BODY ELECTRICAL

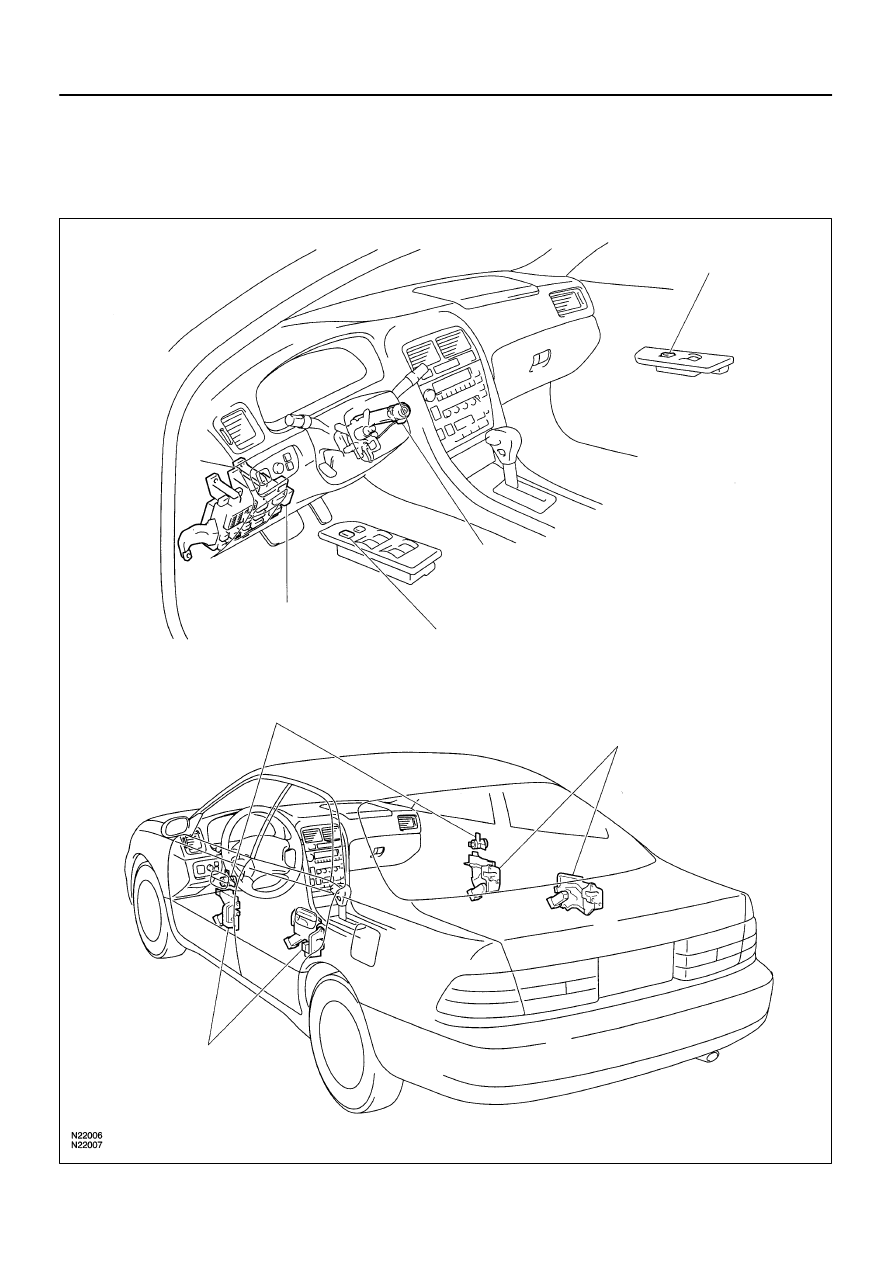

POWER WINDOW CONTROL SYSTEM
BE–115
1499
1997 LEXUS ES300 (RM511U)
(d)
Reverse the polarity, check that the window begins to de-
scend within approximately 60 seconds.
If operation is not as specified, replace the motor.
15.
Front Passenger’s Door Motor:
INSPECT POWER WINDOW MOTOR CIRCUIT
BREAKER OPERATION
(a)
Disconnect the connector from the power window switch.
(b)

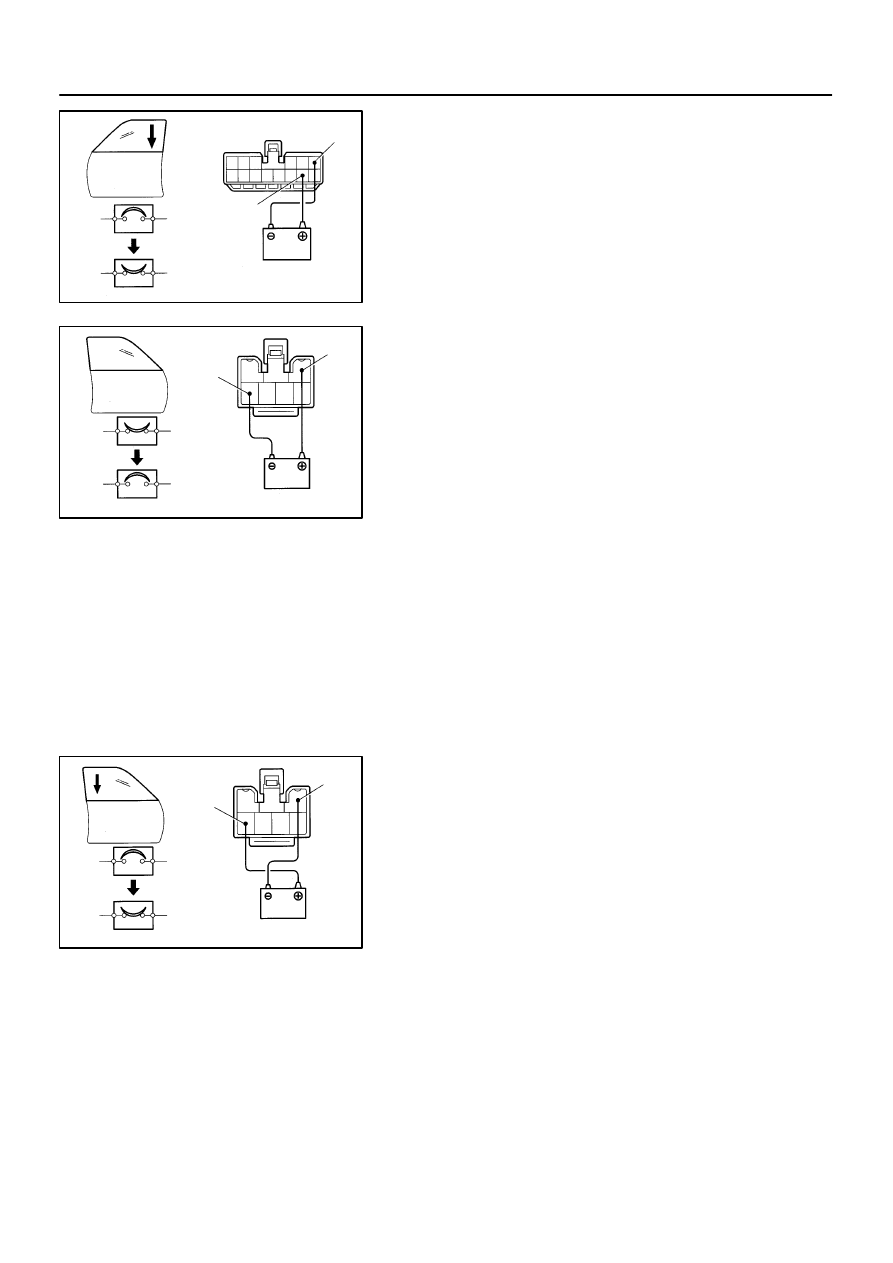

Connect the positive (+) lead from the battery to terminal
2 and the negative (–) lead to terminal 3 on the wire har-
ness side connector, and raise the window to full closed
position.
(c)
Continue to apply voltage, check that there is a circuit
breaker operation noise within approximately 4 to 40 se-
conds.
(d)
Reverse the polarity, check that the window begins to de-
scend within approximately 60 seconds.
If operation is not as specified, replace the motor.
16.
Rear Left Side Door:
INSPECT POWER WINDOW MOTOR CIRCUIT
BREAKER OPERATION
See step of Front Passenger Door Motor.
17.
Rear Right Side Door:
INSPECT POWER WINDOW MOTOR CIRCUIT
BREAKER OPERATION
See step of Front Passenger Door Motor.
