BO3E9–01

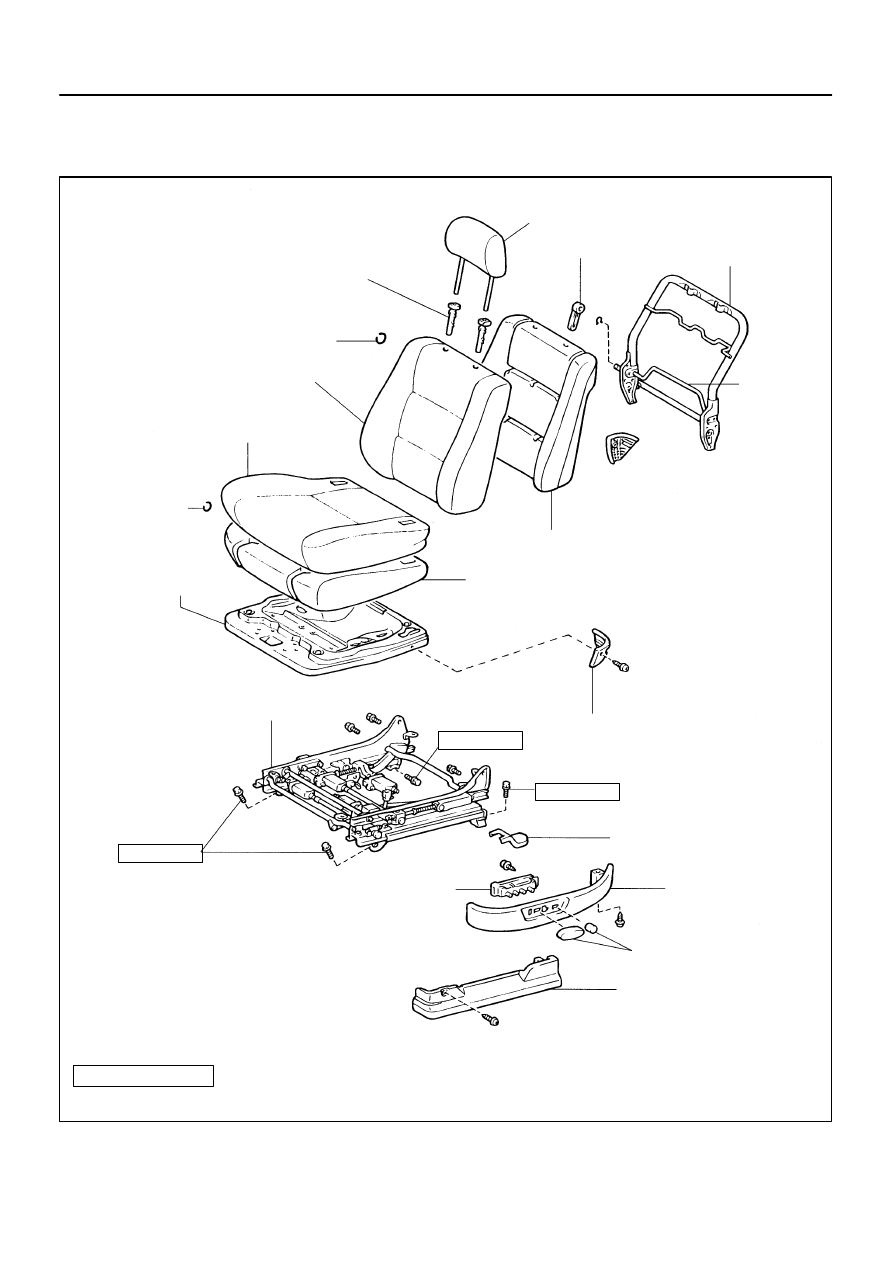

H13534

Headrest

Headrest
Support

Lumber Support
Lever

Seatback Frame

Lumber
Support

Hog Ring

Seatback Cover

Seat Cushion Cover

Hog Ring

Seatback Pad

Seat Cushion Pad

Seat Cushion Frame

Seat Cushion
Inner Shield

Seat Adjuster

Seat Track Cover

Seat Cushion Shield

Switch Knob

Lower Seat Cushion Shield

37 (375, 27)

37 (375, 27)

37 (375, 27)

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

Power Seat Switch

–

BODY

FRONT SEAT

BO–97

1275

1997 LEXUS ES300   (RM511U)

FRONT SEAT

COMPONENTS

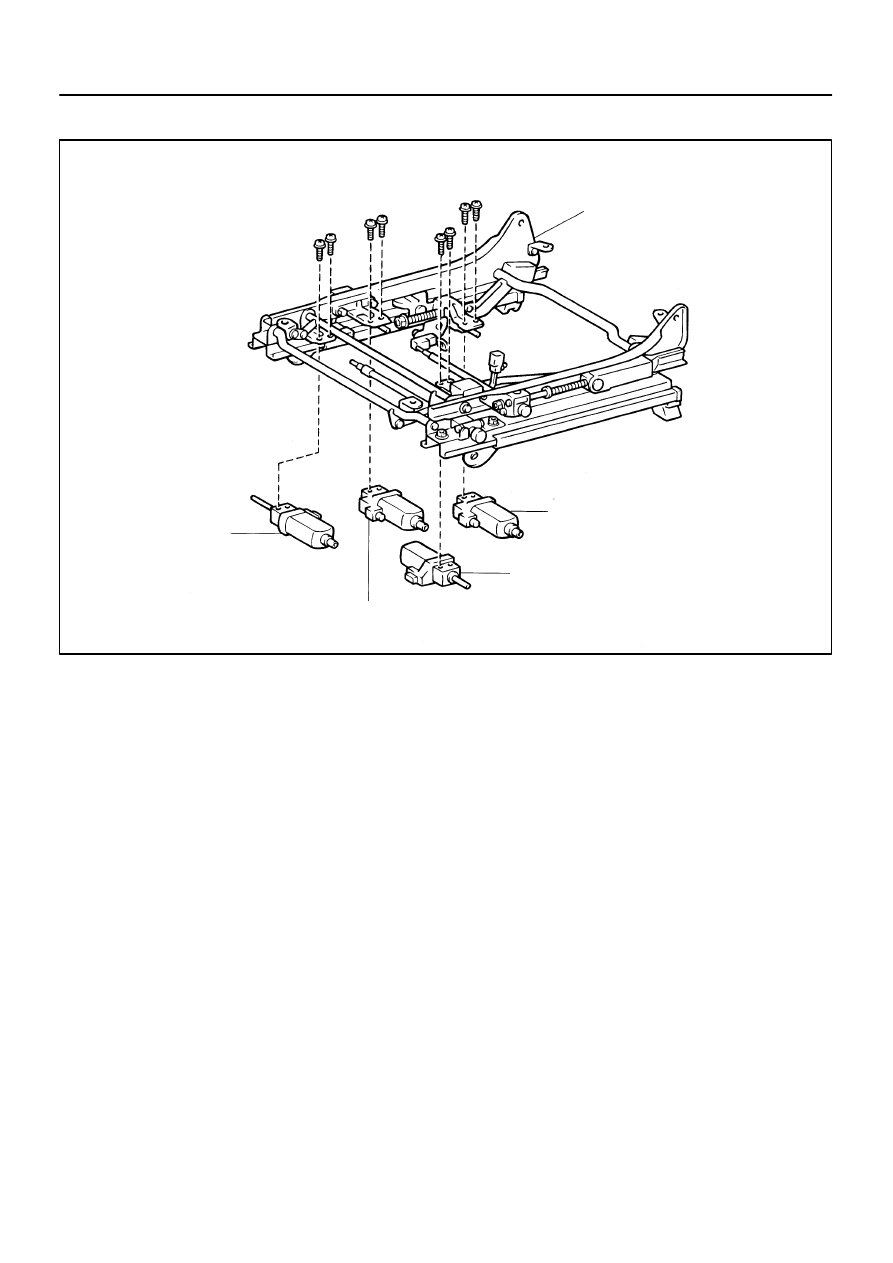

H13535

Power Seat Adjuster

Reclining Motor

Slide Motor

Rear Vertical Motor

Front Vertical Motor

BO–98

–

BODY

FRONT SEAT

1276

1997 LEXUS ES300   (RM511U)

BO0B3–01

–

BODY

FRONT SEAT

BO–99

1277

1997 LEXUS ES300   (RM511U)

REMOVAL

REMOVE FRONT SEAT
(a)

Using a screwdriver, remove the seat track covers.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 4 bolts.

(c)

Disconnect the connector.

(d)

Remove the front seat.

NOTICE:
Be careful not to damage the body.

BO3EC–01

N21417

N21416

BO–100

–

BODY

FRONT SEAT

1278

1997 LEXUS ES300   (RM511U)

DISASSEMBLY

1.

REMOVE THESE PARTS:

(a)

Headrest

(b)

Switch knobs

(c)

Seat cushion shield

(d)

Seat cushion inner shield

2.

REMOVE SEATBACK ASSEMBLY

3.

REMOVE SEATBACK COVER

(a)

Remove the headrest supports.

(b)

Remove the hog rings and seatback frame from seatback
cover with pad.

(c)

Remove the hog rings and seatback cover from seatback
pad.

4.

REMOVE LUMBER SUPPORT LEVER

5.

REMOVE SEAT CUSHION ASSEMBLY

Remove the 4 bolts and seat cushion assembly.
6.

REMOVE SEAT CUSHION COVER

(a)

Remove the hog rings, hook and seat cushion frame from
seat cushion cover with pad.

(b)

Remove the hog rings and seat cushion cover from the
seat cushion pad.

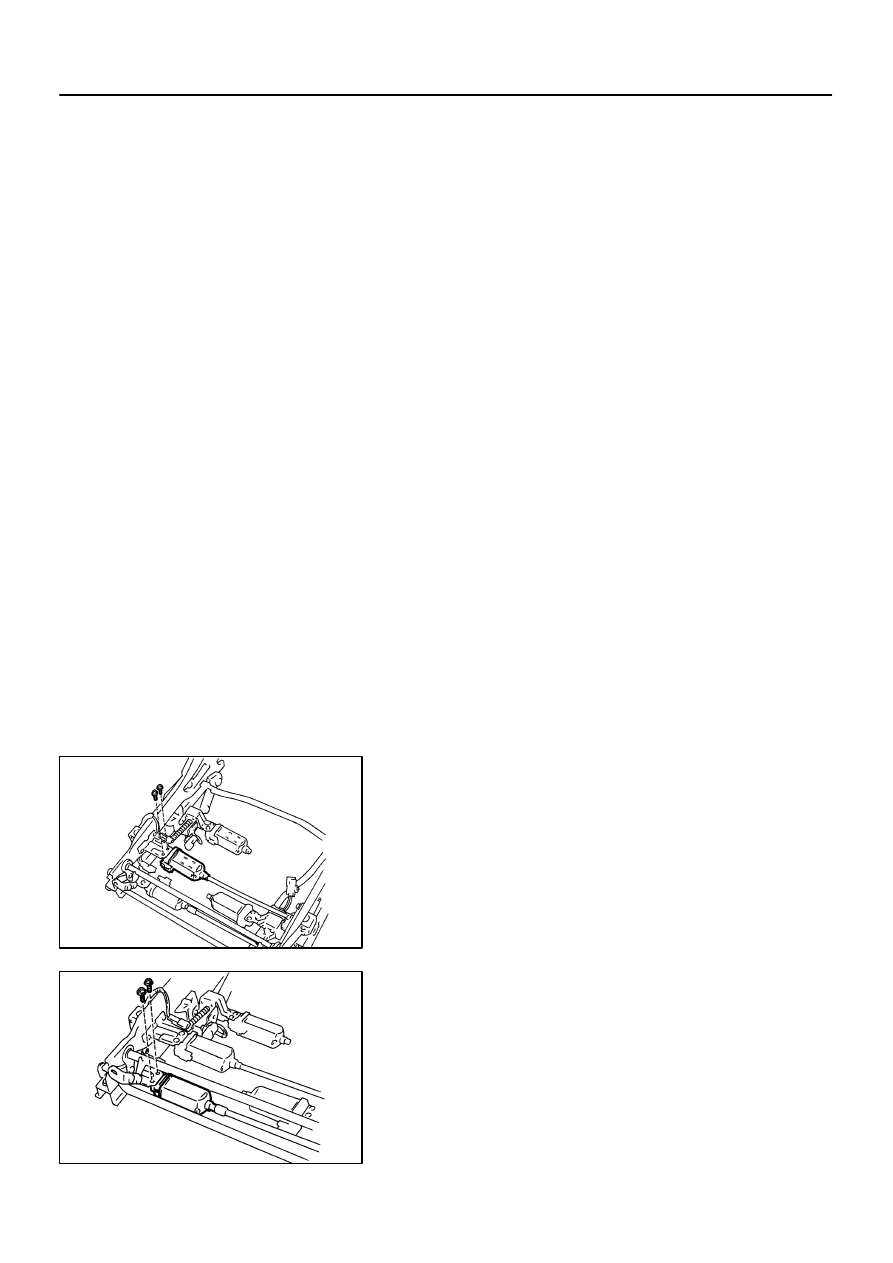

7.

REMOVE LOWER SEAT CUSHION SHIELD

8.

REMOVE REAR VERTICAL MOTOR

Remove the 2 screws and front vertical motor.

9.

REMOVE FRONT VERTICAL MOTOR

Remove the 2 screws and rear vertical motor.
