N21454

RH Side

N21413

–

BODY

INSTRUMENT PANEL

BO–85

1263

1997 LEXUS ES300   (RM511U)

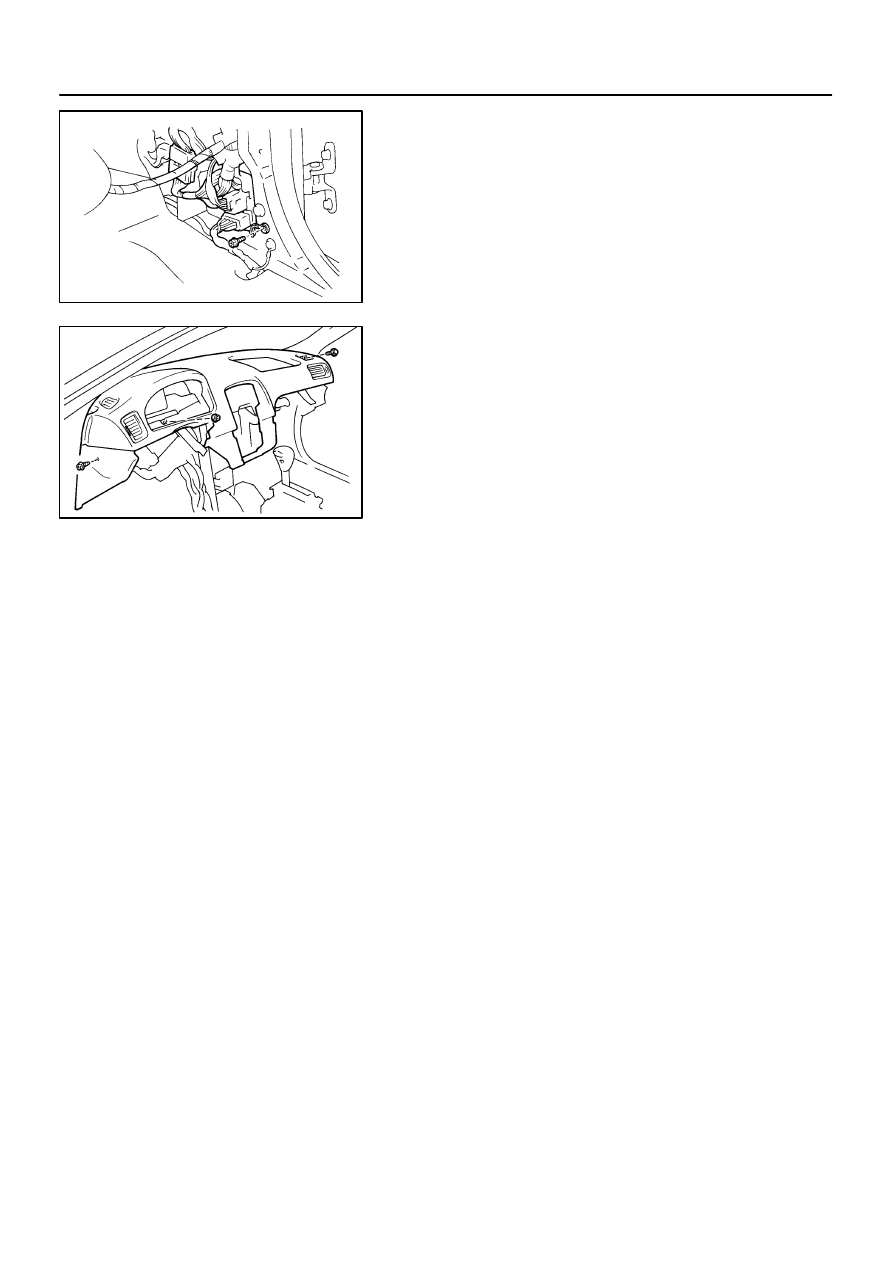

(e)

Disconnect the connectors.

(f)

Remove the bolt.

(g)

Remove the connector holder.

(h)

Remove the bolt, nut, screw and safety pad.

19.

REMOVE INSTRUMENT PANEL REINFORCEMENT

(a)

Remove the nut and No.1 finish panel mounting bracket.

(b)

Remove the 4 nuts and No.1 floor brace.

(c)

Remove the 2 nuts and No.2 brace.

(d)

Remove the bolt, 2 nuts and junction block.

(e)

Remove the 3 bolts, 4 nuts and reinforcement.

BO0AT–01

BO–86

–

BODY

INSTRUMENT PANEL

1264

1997 LEXUS ES300   (RM511U)

DISASSEMBLY

1.

REMOVE THESE PARTS:

(a)

Defroster nozzle No.1 garnish

(b)

Side defroster nozzle No.1 duct

(c)

Side defroster nozzle No.2 duct

(d)

Defroster nozzle

(e)

Heater to register No.1 duct

(f)

Heater to register No.3 duct

(g)

Heater to register No.2 duct

(h)

No.1 register

(i)

No.3 register

(j)

Center bracket

2.

REMOVE INSTRUMENT PANEL WIRE

Remove the screws, clips and wire.

BO0AU–01

–

BODY

INSTRUMENT PANEL

BO–87

1265

1997 LEXUS ES300   (RM511U)

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–86

).

BO0AV–01

BO–88

–

BODY

INSTRUMENT PANEL

1266

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–82

).
