Lexus ES300 (1997 year). Manual - part 142

BO094–02

V00005

Shape (Example)

Removal/Installation

Clip Remover

Pliers

Screwdriver

Scraper

–

BODY

CLIP

BO–1

1179

1997 LEXUS ES300   (RM511U)

CLIP

REPLACEMENT

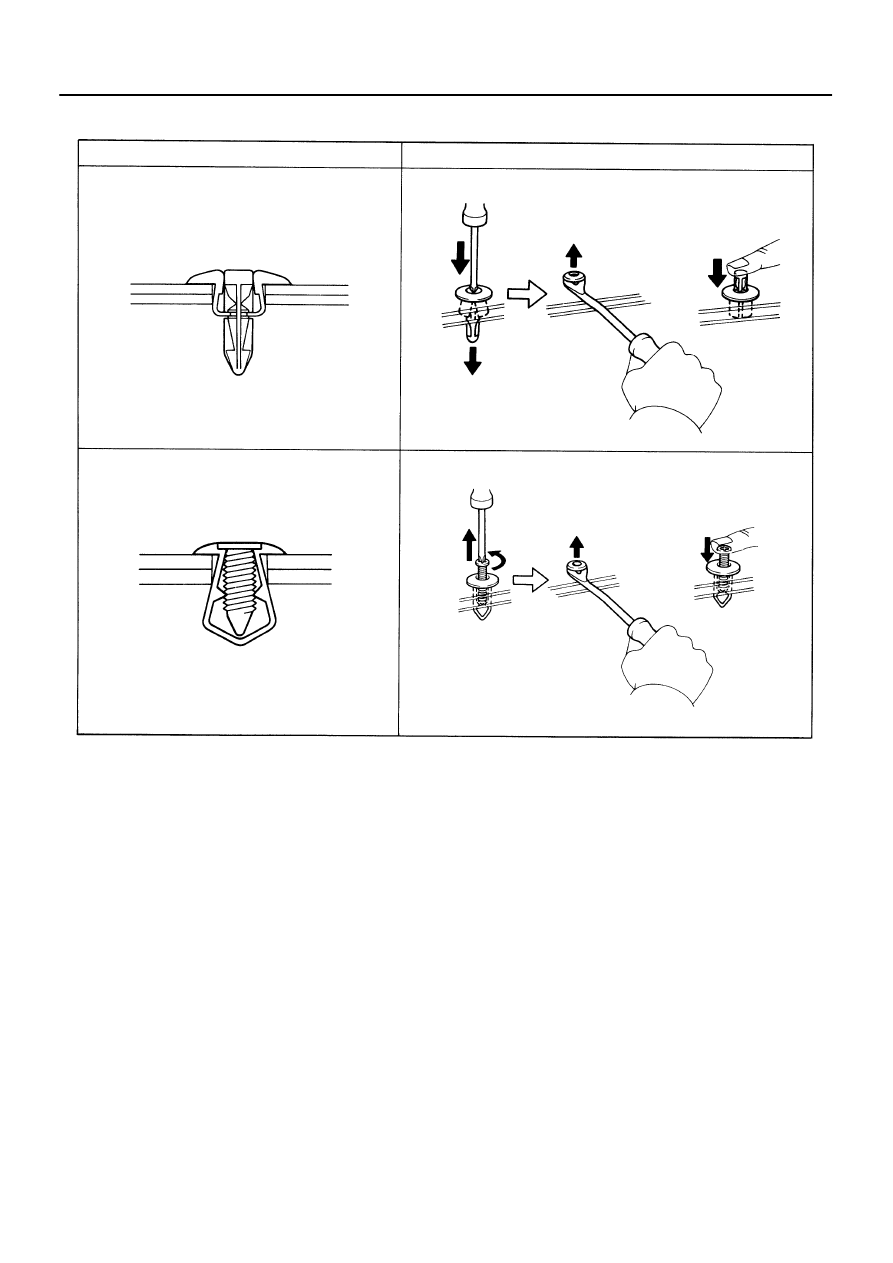

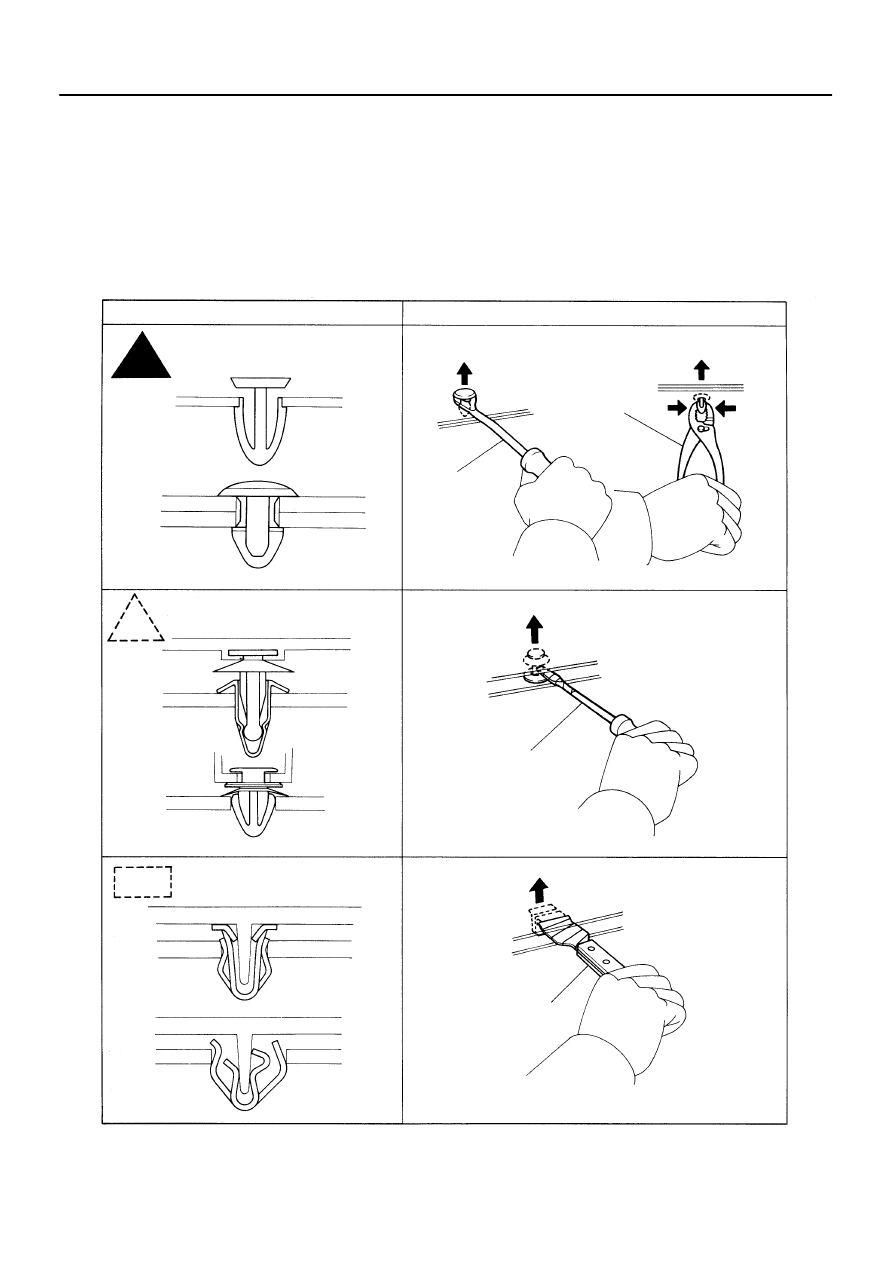

The removal and installation methods of typical clips used in body parts are shown in the table below.
HINT:
If the clip is damaged during the operation, always replace it with a new clip.

V00012

Shape (Example)

Removal/Installation

Removal

Installation

Removal

Installation

BO–2

–

BODY

CLIP

1180

1997 LEXUS ES300   (RM511U)

BO094–02

–

BODY

SRS AIRBAG

BO–3

1181

1997 LEXUS ES300   (RM511U)

SRS AIRBAG

PRECAUTION

The LEXUS ES300 is equipped with an SRS (Supplemental Restraint System) such as the driver airbag

and front passenger airbag. Failure to carry out service operation in the correct sequence could cause the

SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure to read the precautionary notices
in the RS section.

BO095–05

N21844

Front Turn
Signal Light

Front Bumper Cover

Fog Light

Energy Absorber

Front Turn
Signal Light

Reinforcement

N·m (kgf·cm, ft·lbf) : Specified torque

34 (350, 25)

34 (350, 25)

34 (350, 25)

34 (350, 25)

Front Bumper Arm

BO–4

–

BODY

FRONT BUMPER

1182

1997 LEXUS ES300   (RM511U)

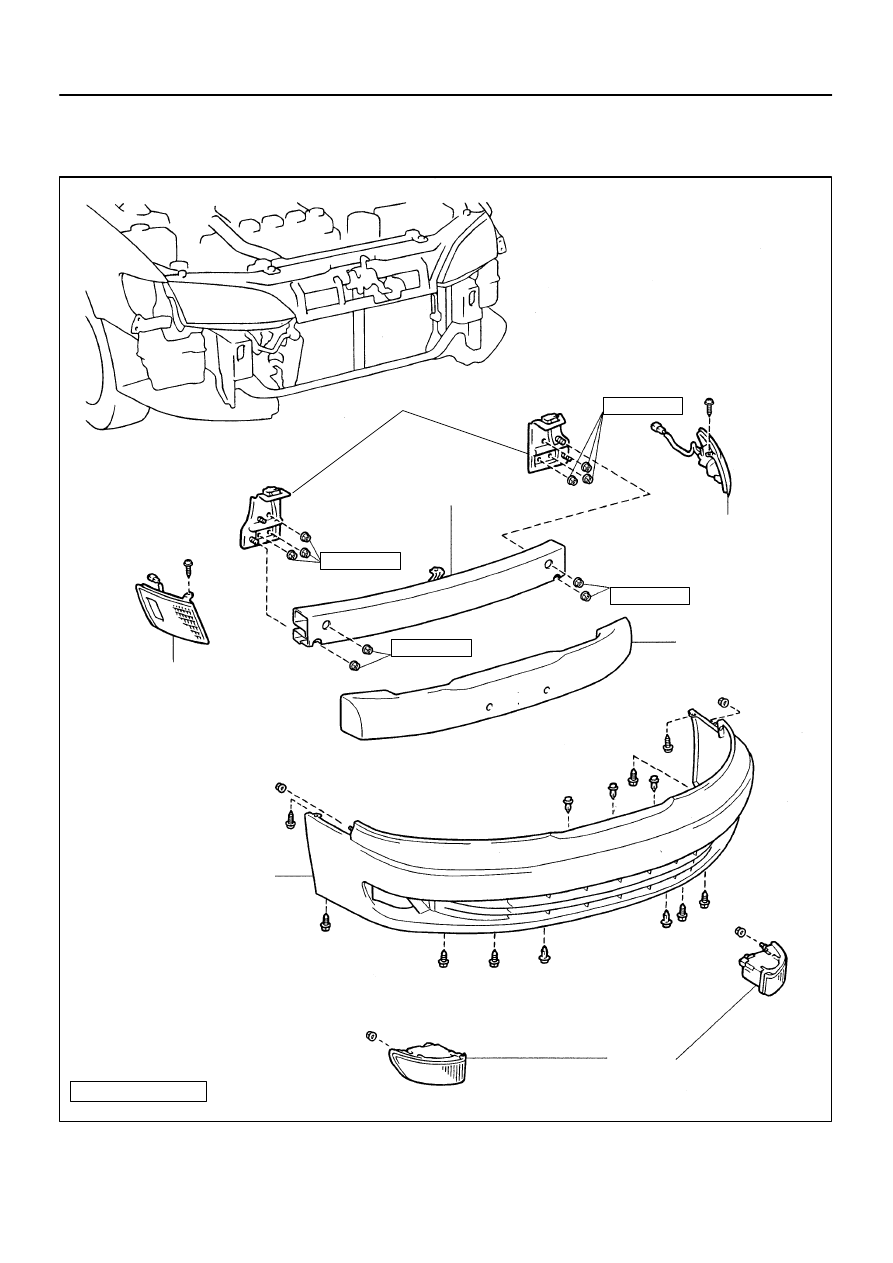

FRONT BUMPER

COMPONENTS
