AUTOMATIC TRANSAXLE

COMPONENT PARTS INSTALLATION

-

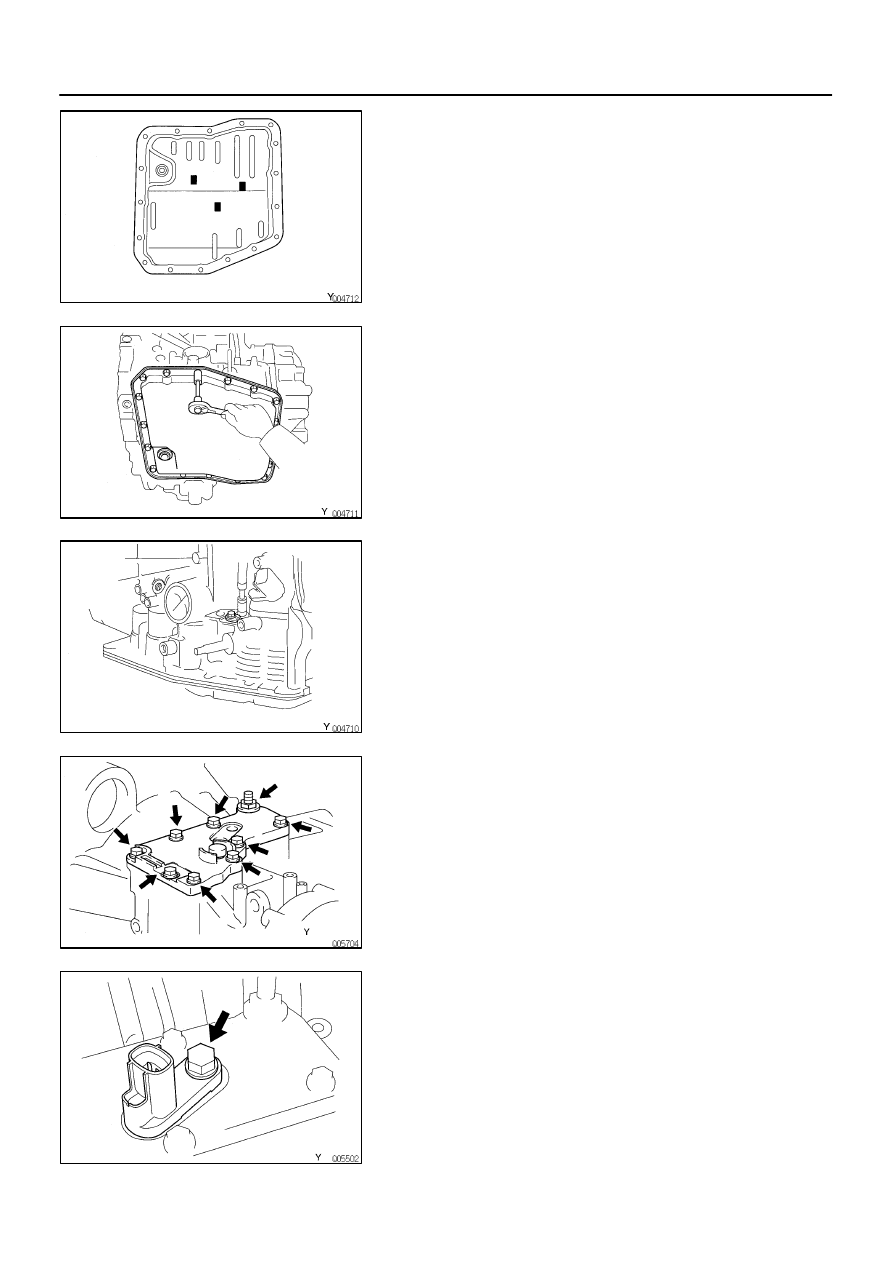

AX-1 19

12. INSTALL MAGNETS IN PLACE

NOTICE: Make sure that the magnets do not interfere with

the oil pipes.

13. INSTALL OIL PAN WITH NEW GASKET
(a)

Install a new gasket and oil pan.

(b)

Install and torque the 17 bolts.

Torque: 4.9 N·m (50 kgf·cm, 43 in.·lbf)

14. INSTALL THROTTLE CABLE RETAINING PLATE

15. INSTALL TRANSAXLE UPPER COVER

16. INSTALL T/M REVOLUTION SENSOR
(a)

Install a new O-ring to the T/M revolution sensor.

(b)

Install the T/M revolution sensor with the bolt.

AUTOMATIC TRANSAXLE

COMPONENT PARTS INSTALLATION

-

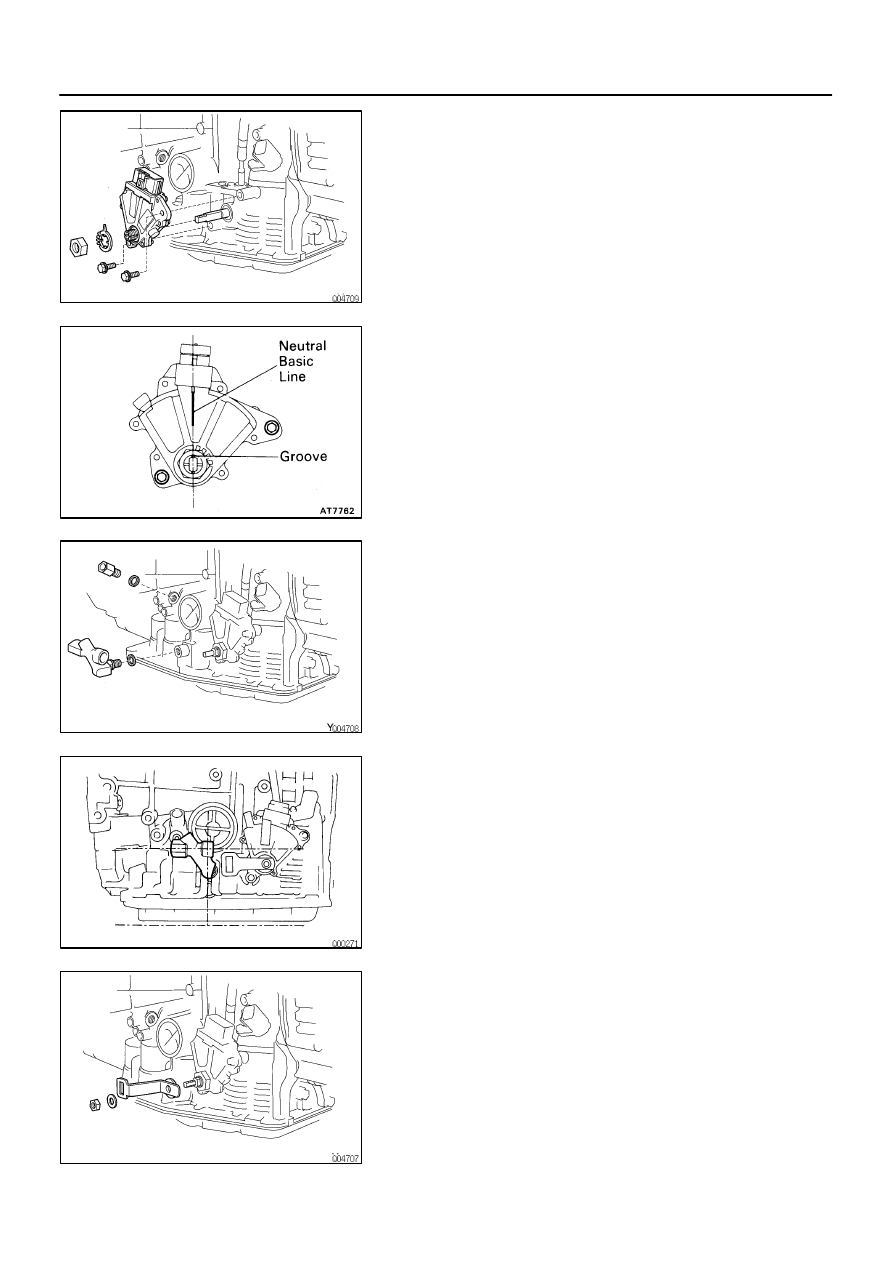

AX-120

17. INSTALL PARK/NEUTRAL POSITION SWITCH
(a)

Install the park/neutral position switch to the manual valve
shaft.

(b)

Place the new locking plate and tighten the nut.

(c)

Stake the nut with locking plate.

(d)

Install the 2 bolts.

(e)

Adjust the park/neutral position switch.
HINT: Align the groove and neutral basic line.

(f)

Tighten the 2 bolts.

18. INSTALL UNION AND ELBOW
(a)

Install the new O-rings to the union and elbow.

(b)

Install the union elbow to the transaxle case.

Torque: 27 N·m (275 kgf·cm, 20 ft·lbf)

HINT: Install the elbow, as shown in the illustration.

19. INSTALL MANUAL SHAFT LEVER

AUTOMATIC TRANSAXLE

COMPONENT PARTS INSTALLATION

-

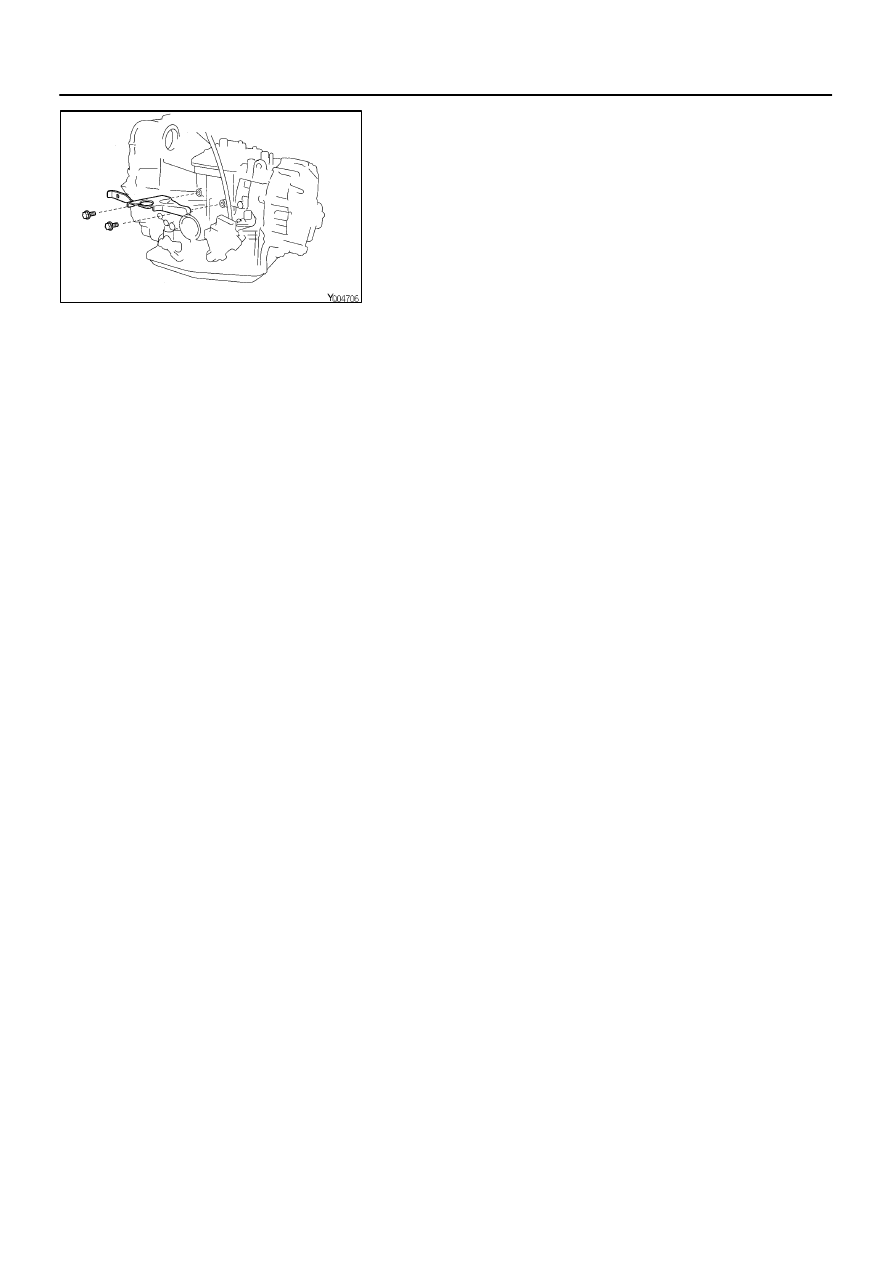

AX-121

20. INSTALL SHIFT CONTROL CABLE BRACKET

BE04P–01

–

BODY ELECTRICAL

BODY ELECTRICAL SYSTEM

BE–1

1385

1997 LEXUS ES300   (RM511U)

BODY ELECTRICAL SYSTEM

PRECAUTION

HINT:
Take care to observe the following precautions when performing inspections or removal and replacement
of body electrical related parts.
1.

HEADLIGHT SYSTEM

Halogen bulbs have pressurized gas inside and require special handling. They can burst if scratched or
dropped. Hold a bulb only by its plastic or metal case. Don’t touch the glass part of a bulb with bare hands.
2.

SRS (SUPPLEMENTAL RESTRAINT SYSTEM)

The LEXUS ES300 is equipped with an SRS (Supplemental Restraint System) such as the driver airbag and
front passenger airbag. Failure to carry out service operation in the correct sequence could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (including
removal or installation of parts, inspection or replacement), be sure to read the precautionary notices in the
RS section.
3.

AUDIO SYSTEM

If the negative (–) terminal cable is disconnected from the battery, the preset AM, FM 1 and FM 2 sta-
tions stored in memory are erased, so make sure to note the stations and reset them after the negative
(–) terminal cable is reconnected to the battery.

If the negative (–) terminal cable is disconnected from the battery, the ”ANTI–THEFT SYSTEM” will
operate when the cable is reconnected, but the radio, tape player and CD player will not operate. Be
sure to input the correct ID number so that the radio, tape player and CD player can be operated again.

4.

MOBILE COMMUNICATION SYSTEM

If the vehicle is equipped with a mobile communication system, refer to precautions in the IN section.
