Lexus ES300 (1997 year). Manual - part 76

AUTOMATIC TRANSAXLE

SECOND COAST BRAKE

-

AX-31

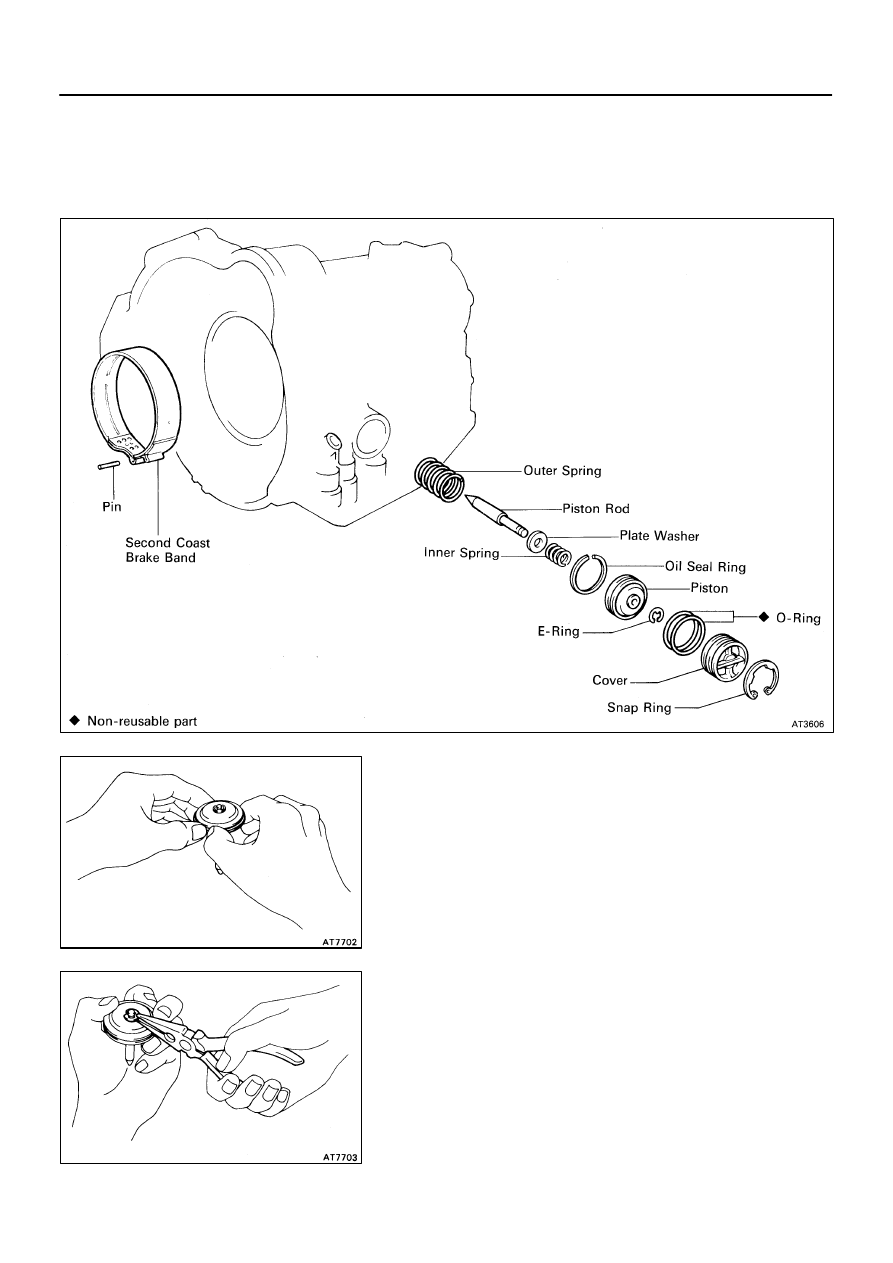

SECOND COAST BRAKE

COMPONENTS

SECOND COAST BRAKE PISTON
DISASSEMBLY

1.

REMOVE OIL SEAL RING
Remove the oil seal ring from the piston.

2.

REMOVE PISTON ROD

(a)

Remove the E-ring while pushing the piston with needle-
nose pliers.

AX02U-02

AX02V-02

AUTOMATIC TRANSAXLE

SECOND COAST BRAKE

-

AX-32

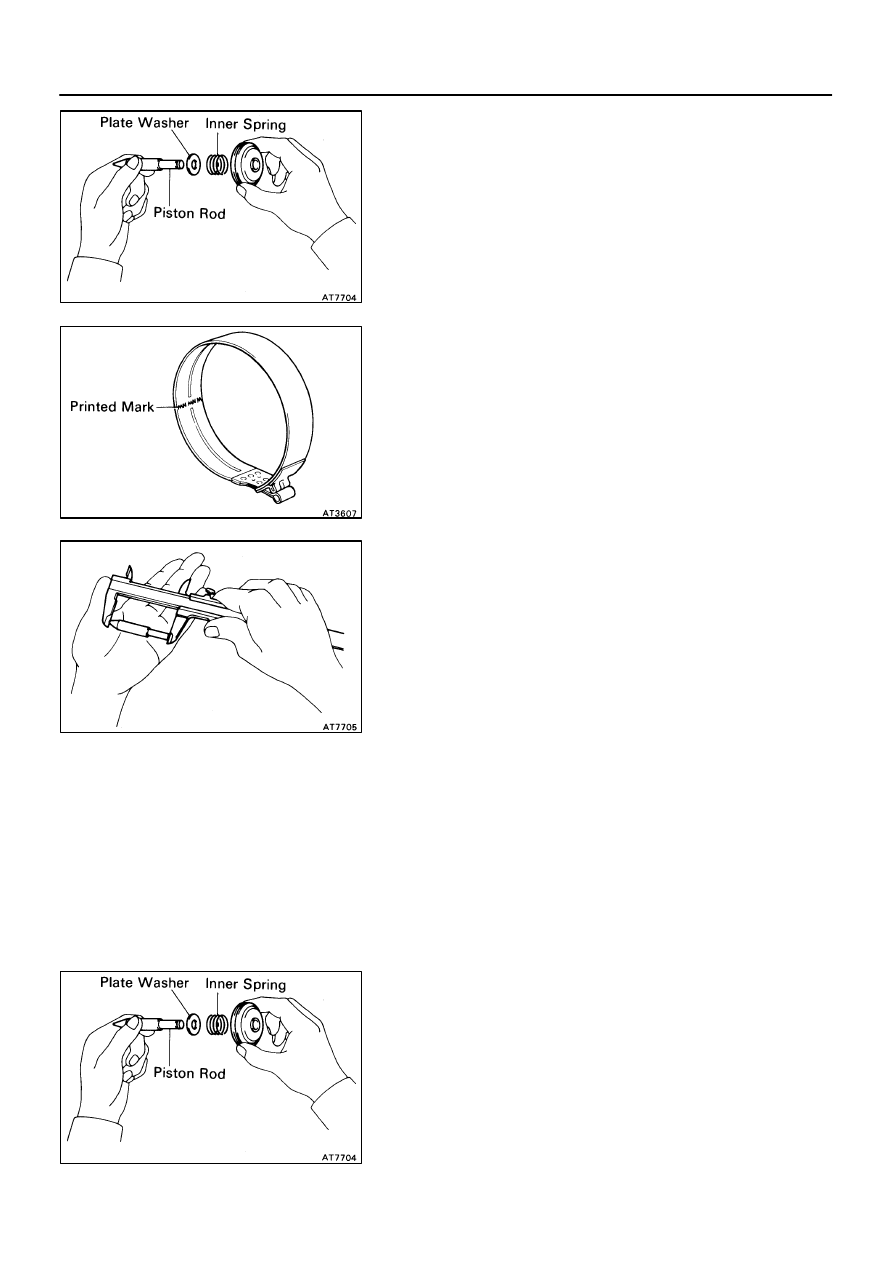

(b)

Remove the inner spring, plate washer and piston rod.

SECOND COAST BRAKE COMPONENT
INSPECTION

If the lining of the brake band is peeling off or discolored,
or even part of the printed mark is defaced, replace the
brake band.

SECOND COAST BRAKE PISTON
ASSEMBLY

1.

SELECT PISTON ROD
If the band is OK but piston stroke not within the standard
value, select a new piston rod.

Piston stroke:

2.0-3.5 mm (0.079-0.138 in.)

There are 2 lengths of piston rod.

Piston rod length:

95.2 mm (3.748 in.)

96.3 mm (3.791 in.)

2.

INSTALL PISTON ROD

(a)

Install the plate washer and inner spring to the piston rod.

AX02W-03

AX02X-03

AUTOMATIC TRANSAXLE

SECOND COAST BRAKE

-

AX-33

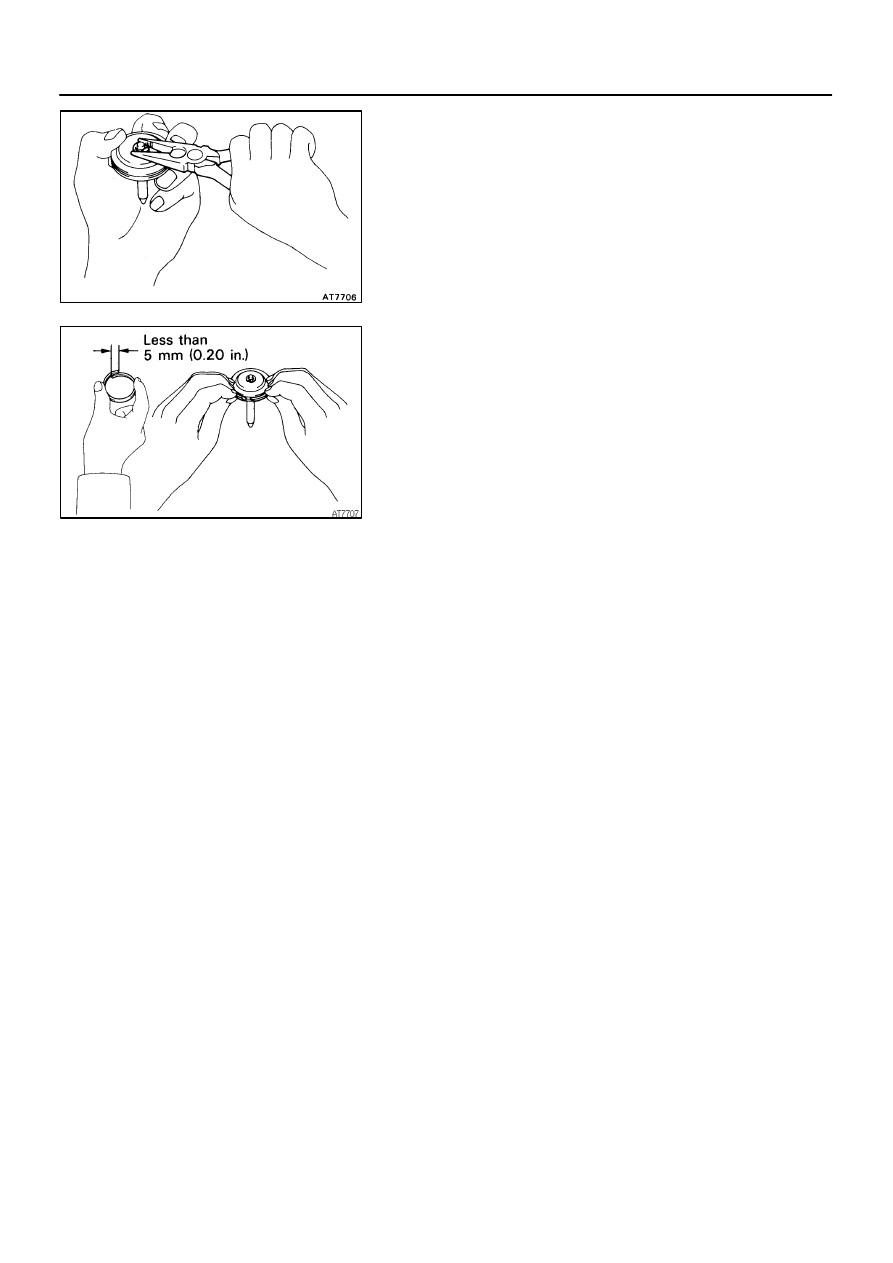

(b)

Install the E-ring while pushing the piston.

3.

INSTALL OIL SEAL RING

(a)

Apply ATF to the oil seal ring.

(b)

Install the oil seal ring to the piston.

NOTICE: Do not spread the ring ends more than necessary.

AUTOMATIC TRANSAXLE

OIL PUMP

-

AX-34

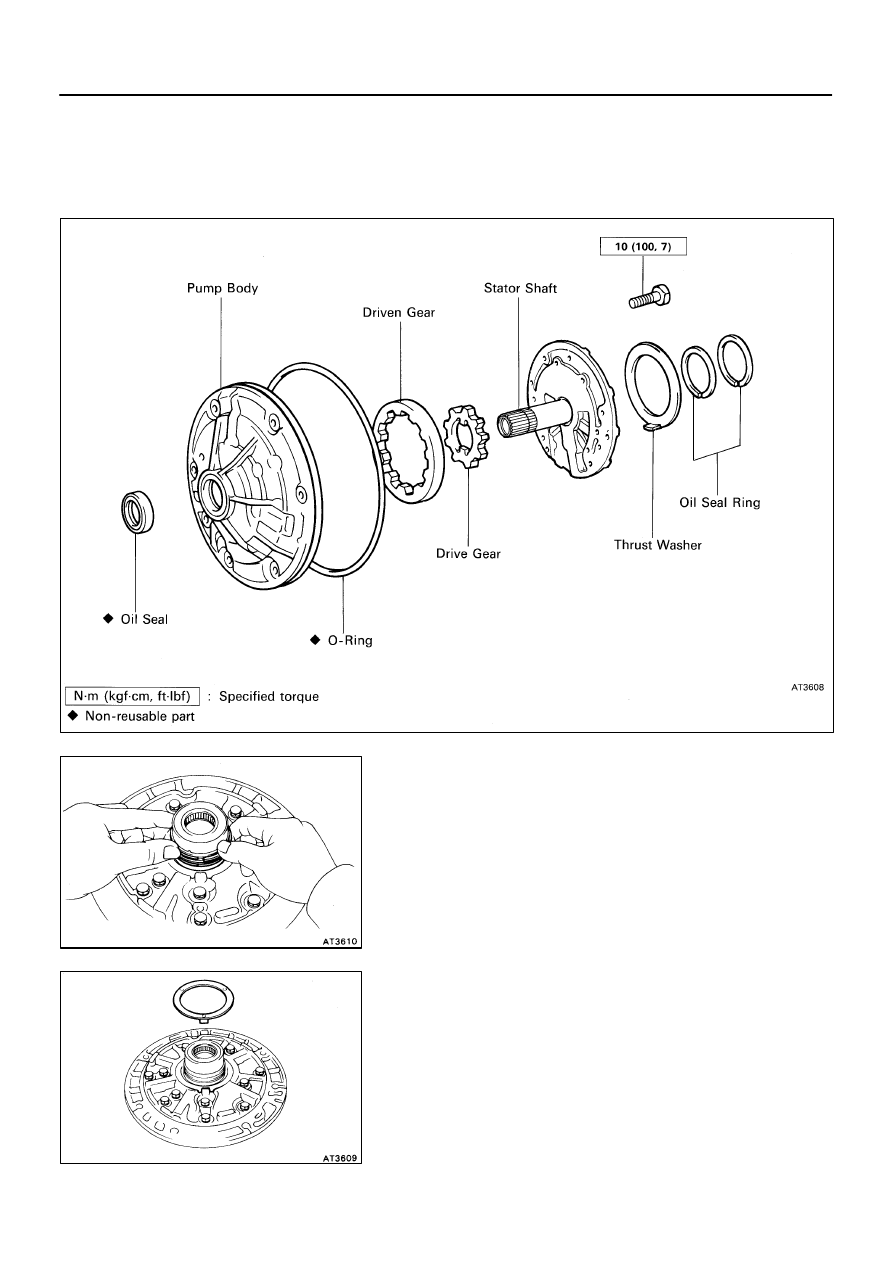

OIL PUMP

COMPONENTS

OIL PUMP DISASSEMBLY

1.

REMOVE OIL SEAL RINGS
Remove the 2 oil seal rings from the stator shaft back
side.

2.

REMOVE THRUST WASHER FROM STATOR SHAFT
BACK SIDE

AX02Y-02

AX02Z-02
