INTRODUCTION

GLOSSARY OF SAE AND TOYOTA TERMS

-

IN-9

TVV

Thermal Vacuum Valve

Bimetallic Vacuum Switching Valve (BVSV)

Thermostatic Vacuum Switching Valve (TVSV)

TWC

Three-W ay Catalytic Converter

Three-W ay Catalyst (TWC)

CC

RO

TWC+OC

Three-W ay + Oxidation Catalytic Converter

CC

R

 + CCo

VAF

Volume Air Flow

Air Flow Meter

VR

Voltage Regulator

Voltage Regulator

VSS

Vehicle Speed Sensor

Vehicle Speed Sensor (Read Switch Type)

WOT

Wide Open Throttle

Full Throttle

WU-OC

Warm Up Oxidation Catalytic Converter

-

WU-TWC

Warm Up Three-Way Catalytic Converter

Manifold Converter

3GR

Third Gear

-

4GR

Fourth Gear

-

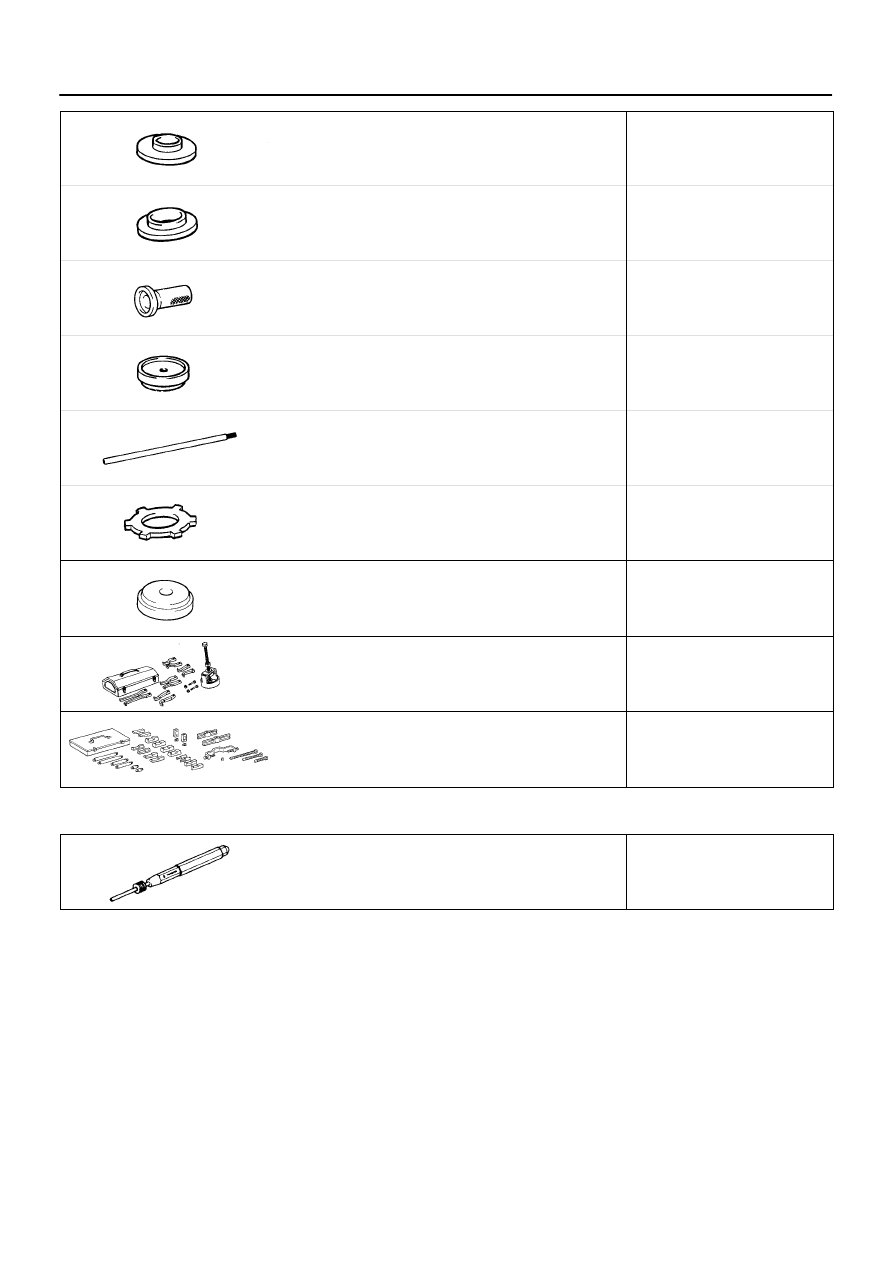

AUTOMATIC TRANSAXLE

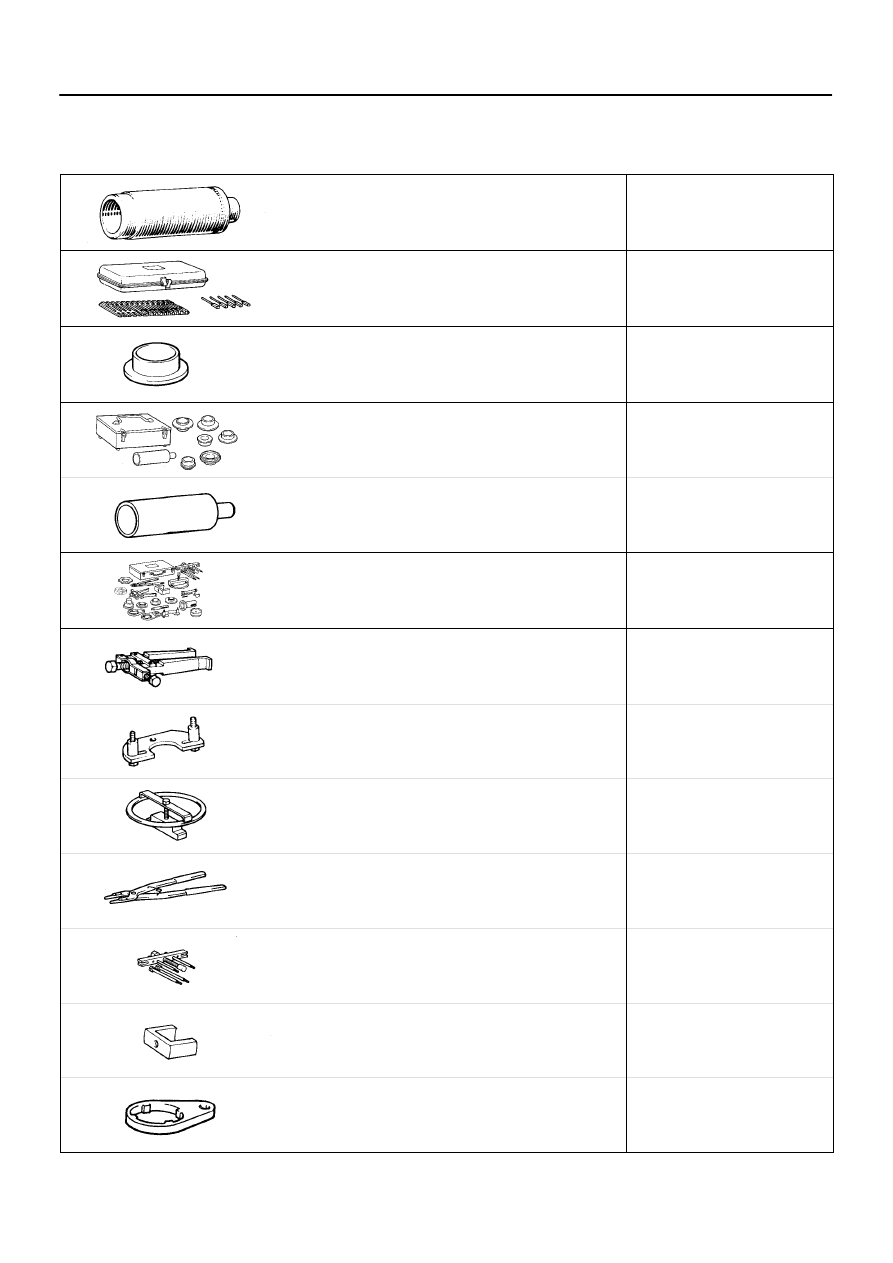

PREPARATION

-

AX-10

PREPARATION

SST (SPECIAL SERVICE TOOLS)

09226-10010

Crankshaft Front & Rear Bearing

Replacer

Install RH retainer oil seal

09240-00020

Wire Gauge Set

09316-2001 1

Transfer Bearing Replacer

09316-6001 1

Transmission & Transfer Bearing

Replacer

(09316-0001 1)

Replacer Pipe

09350-32014

TOYOTA Automatic Transmission

Tool Set

09308-10010

Oil Seal Puller

(09351-32032)

Counter Driven Gear Holding Tool

(09351-32040)

No.1 Piston Spring Compressor

(09351-32050)

Snap Ring Expander

(09351-32061)

Oil Pump Puller

(09351-32070)

No.2 Piston Spring Compressor

(09351-32080)

Lock Nut Wrench

AX02L-06

AUTOMATIC TRANSAXLE

PREPARATION

-

AX-1 1

(09351-32100)

Drive Pinion Bearing Replacer

(09351-32120)

Overdrive Bearing Replacer

(09351-32140)

Oil Seal Replacer

(09351-32150)

Oil Seal Replacer

(09351-32190)

Measure Terminal

(09351-32200)

No.3 Piston Spring Compressor

09608-1601 1

Rear Hub Bearing Tool-

Remove differential side bearing

09612-65014

Steering Worm Bearing Puller

Remove pinion shaft bearing outer

 race

09950-40010

Puller B Set

RECOMMENDED COOL

09031-00030

Pin Punch .

AX02M-02

AUTOMATIC TRANSAXLE

PREPARATION

-

AX-12

EQUIPMENT

Feeler gauge

Check major clearance.

Vernier calipers

Check length of second coast

brake piston rod.

Dial indicator with magnetic base

Check piston stroke and end play

of the output shaft.

Dial indicator

Check inside diameter of

major bushing.

Straight edge

Check side clearance of oil pump.

Torque wrench

LUBRICANT

Item

Capacity

Classification

Automatic transaxle fluid:

  Dry fill

  Drain and refill

6.75 liters (7.10 US qts, 5.94 Imp.qts)

2.5 liters (2.6 US qts, 2.2 Imp.qts)

ATF D-II or DEXRON

® III

(DEXRON

® II

)

Differential oil

0.85 liters (0.89 US qts, 0.75 Imp.qts)

ATF D-II or DEXRON

® III

(DEXRON

® II

)

SSM (SPECIAL SERVICE MATERIALS)

08826-00090

Seal Packing 1281,

THREE BOND 1281 or equivalent

(FIPG)

Differential LH bearing retainer

Differential RH retainer

08833-00070

Adhesive 1324,

THREE BOND 1324 or equivalent

Differential RH retainer set bolt

AX02N-02

AX01V-08

AX02P-02
