AC0BP–01

AC–100

–

AIR CONDITIONING

CONDENSER FAN

1657

1997 LEXUS ES300   (RM511U)

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

AC–99

).

AC0BQ–01

–

AIR CONDITIONING

CONDENSER FAN

AC–101

1658

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–98

).

AC0BR–02

Z19367

Bracket

Center Cluster Finish
Panel

A/C Control Assembly

A/C Control Assembly
Connector

Bracket

Center Cluster Finish
Control Panel

Amplifier Case

Rear Cover

A/C Amplifier

Bulb

A/C Control Panel

Radio

AC–102

–

AIR CONDITIONING

AIR CONDITIONING CONTROL ASSEMBLY

1659

1997 LEXUS ES300   (RM511U)

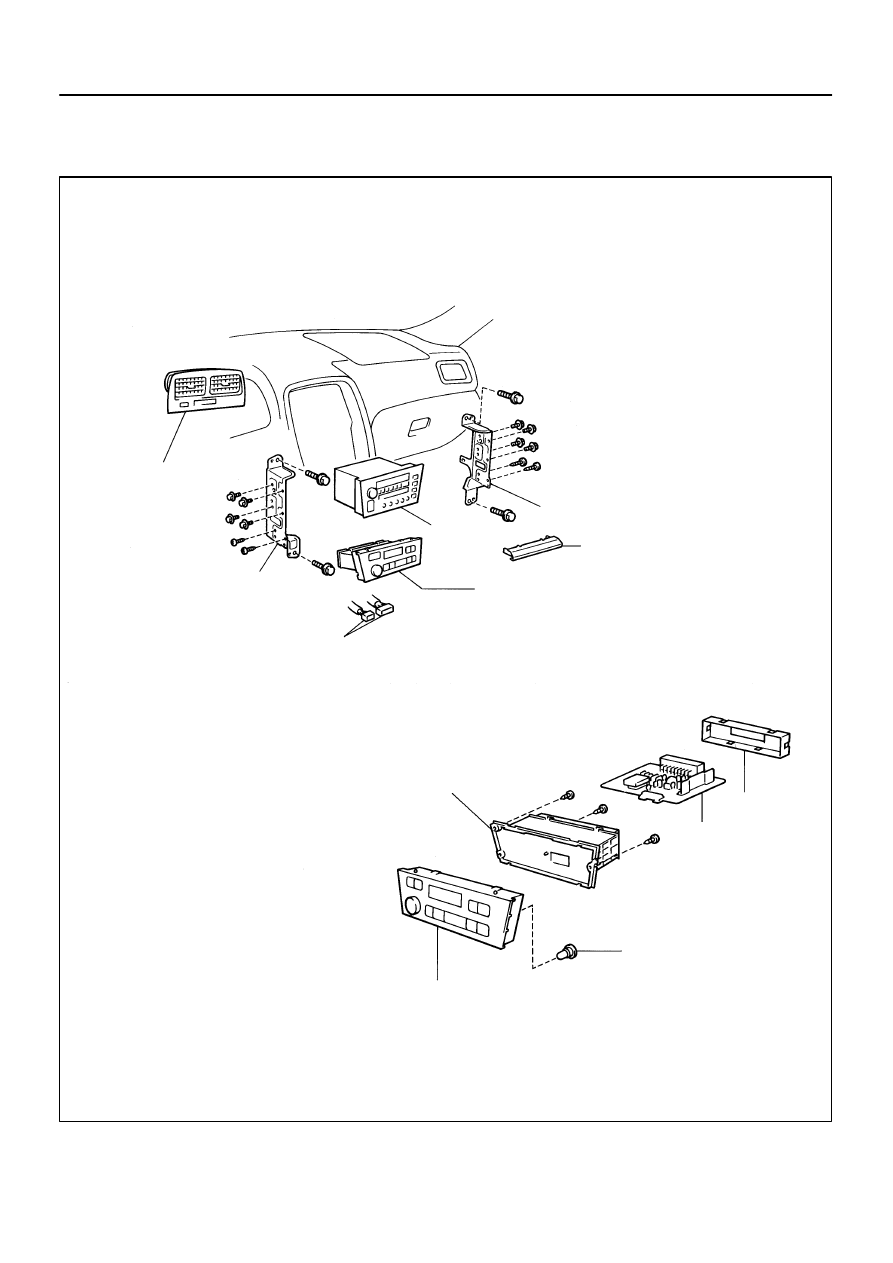

AIR CONDITIONING CONTROL ASSEMBLY

COMPONENTS

AC0BS–01

N21082

N21084

–

AIR CONDITIONING

AIR CONDITIONING CONTROL ASSEMBLY

AC–103

1660

1997 LEXUS ES300   (RM511U)

REMOVAL

1.

REMOVE THESE PARTS:

(a)

End cluster finish panel

(b)

Center cluster finish panel

2.

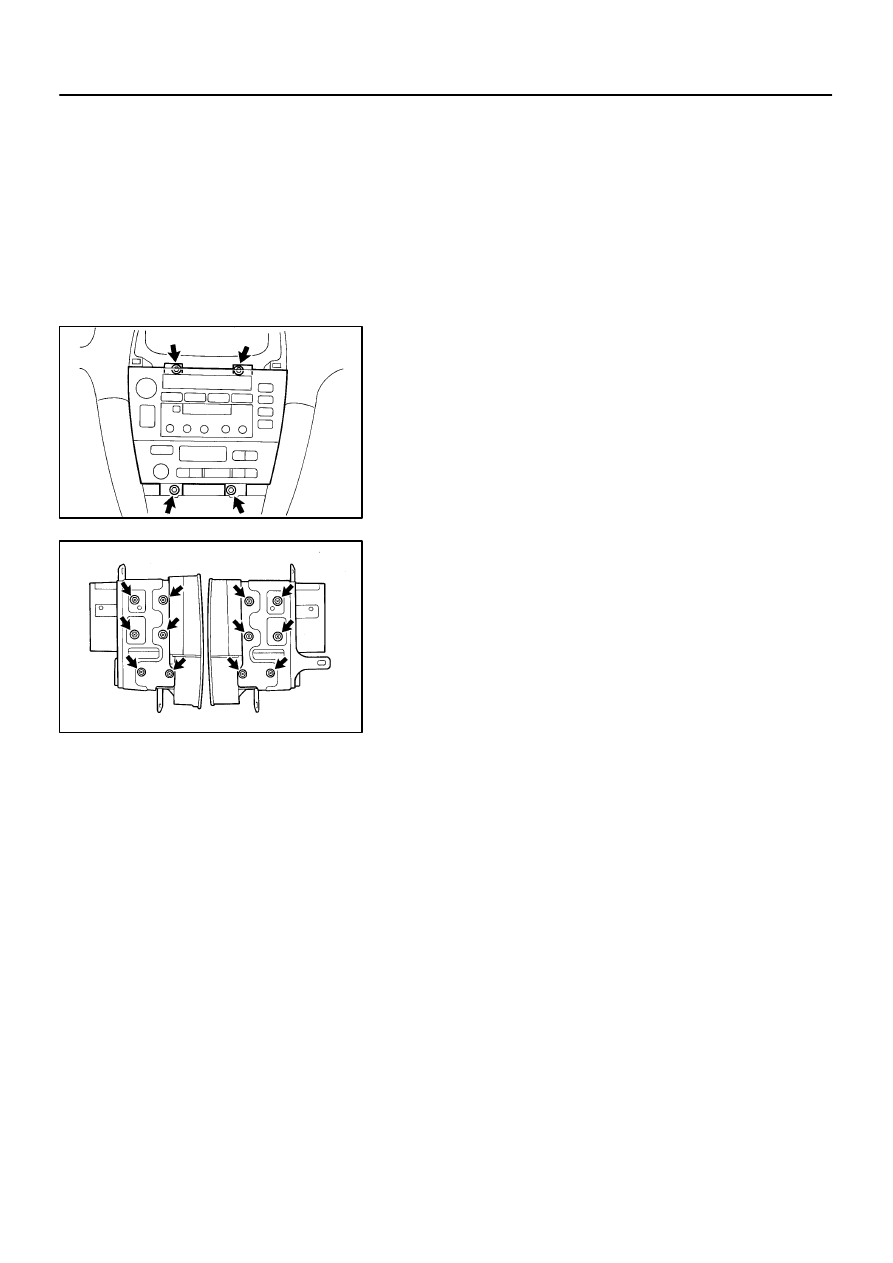

REMOVE A/C CONTROL ASSEMBLY

(a)

Remove the 4 bolts and pull out the A/C control assembly
with radio, then disconnect the connectors.

(b)

Remove the 8 bolts, 4 screws and bracket.

(c)

Remove the A/C control assembly from the radio.
