Lexus ES300 (1997 year). Manual - part 36

AC09S–01

–

AIR CONDITIONING

AIR CONDITIONING UNIT

AC–27

1584

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–23

).

AC09U–02

Z19365

Evaporator Temp. Sensor
Connector

w/ CD Changer:
CD Changer Assembly

w/ CD Changer:
Finish Upper Panel

Cowl Side Trim RH

Front Door Scuff Plate RH

Audio Amplifier

ECM

Blower Motor Connector

Blower Unit

No. 2 Instrument Panel Under Cover

Glove Compertment

Connector Bracket

Air Inlet Servomotor
Connector

Blower Unit Case

Blower Motor

Air Inlet Servomotor

AC–28

–

AIR CONDITIONING

BLOWER UNIT

1585

1997 LEXUS ES300   (RM511U)

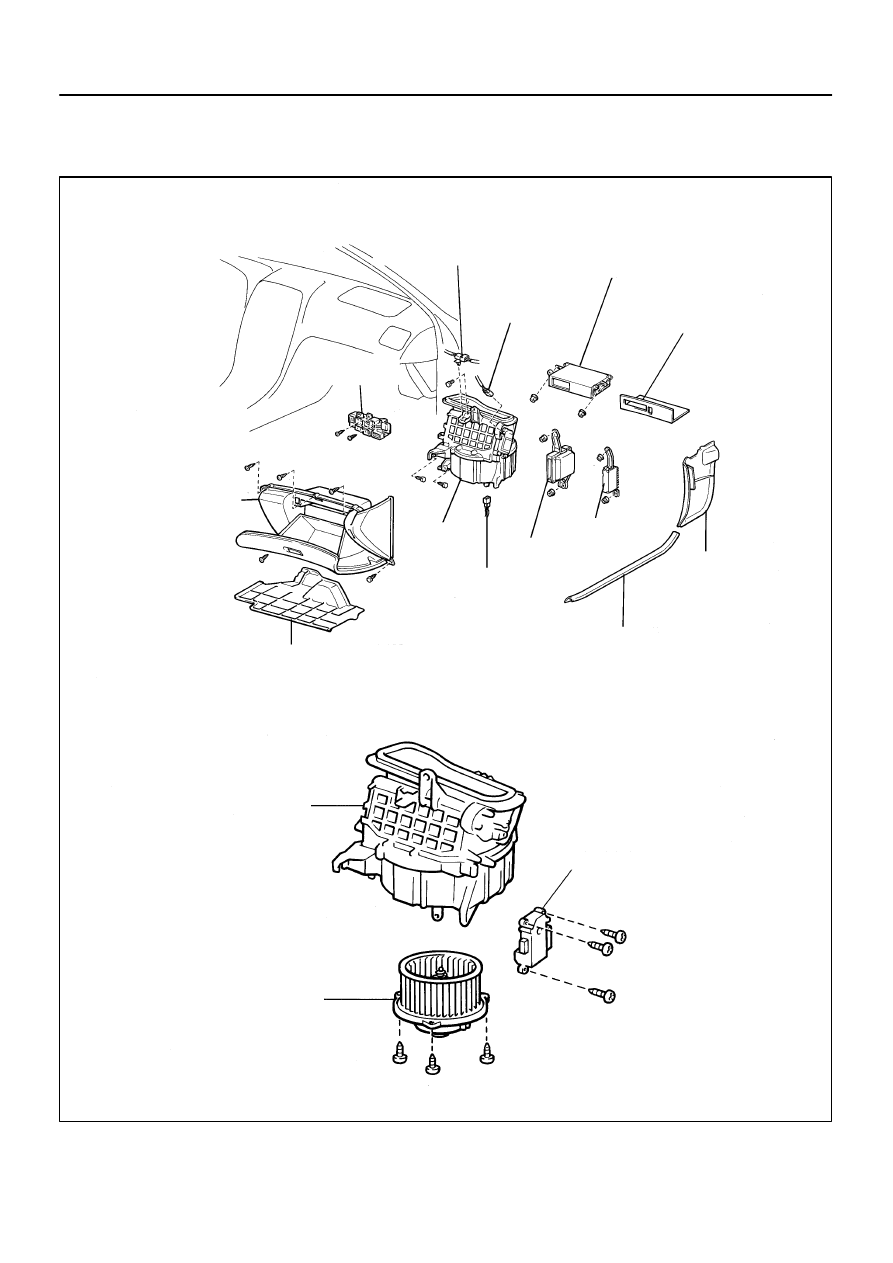

BLOWER UNIT

COMPONENTS

AC09V–02

–

AIR CONDITIONING

BLOWER UNIT

AC–29

1586

1997 LEXUS ES300   (RM511U)

REMOVAL

1.

REMOVE THESE PARTS:

(a)

Cowl side trim RH

(b)

Front door scuff plate RH

(c)

No.2 instrument panel under cover

(d)

Glove Compartment

(e)

w/ CD Changer:
Finish upper panel

(f)

w/ CD Changer:
CD change assembly

(g)

Audio amplifier

(h)

ECM

2.

REMOVE CONNECTOR BRACKET SET SCREWS

3.

REMOVE BLOWER UNIT

(a)

Disconnect the connectors from blower unit.

(b)

Disconnect the wire harness clamps.

(c)

Disconnect the evaporator temp. sensor connector clamp.

(d)

Remove the 2 screws, bolt and nut, then remove the blower unit.

AC09W–01

AC–30

–

AIR CONDITIONING

BLOWER UNIT

1587

1997 LEXUS ES300   (RM511U)

DISASSEMBLY

1.

REMOVE BLOWER MOTOR

Remove the 3 screws and blower motor.
2.

REMOVE AIR INLET SERVOMOTOR

Remove the 3 screws and servomotor.
