Lexus GS300/400 (2000 year). Manual - part 269

SA0S9–01

F03422

Suspension Member Brace

Differential Side Gear Shift

Drive Shaft

Washer



 Cotter Pin



 Snap Ring



 Oil Seal

6

83 (850, 61)

78 (765, 55)

110 (1,120, 81)

Lock Cap



Non–reusable part

: Specified torque

N·m (kgf·cm, ft·lbf)

50  (510, 37)

289 (2,950, 213)

SA–60

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

2060

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

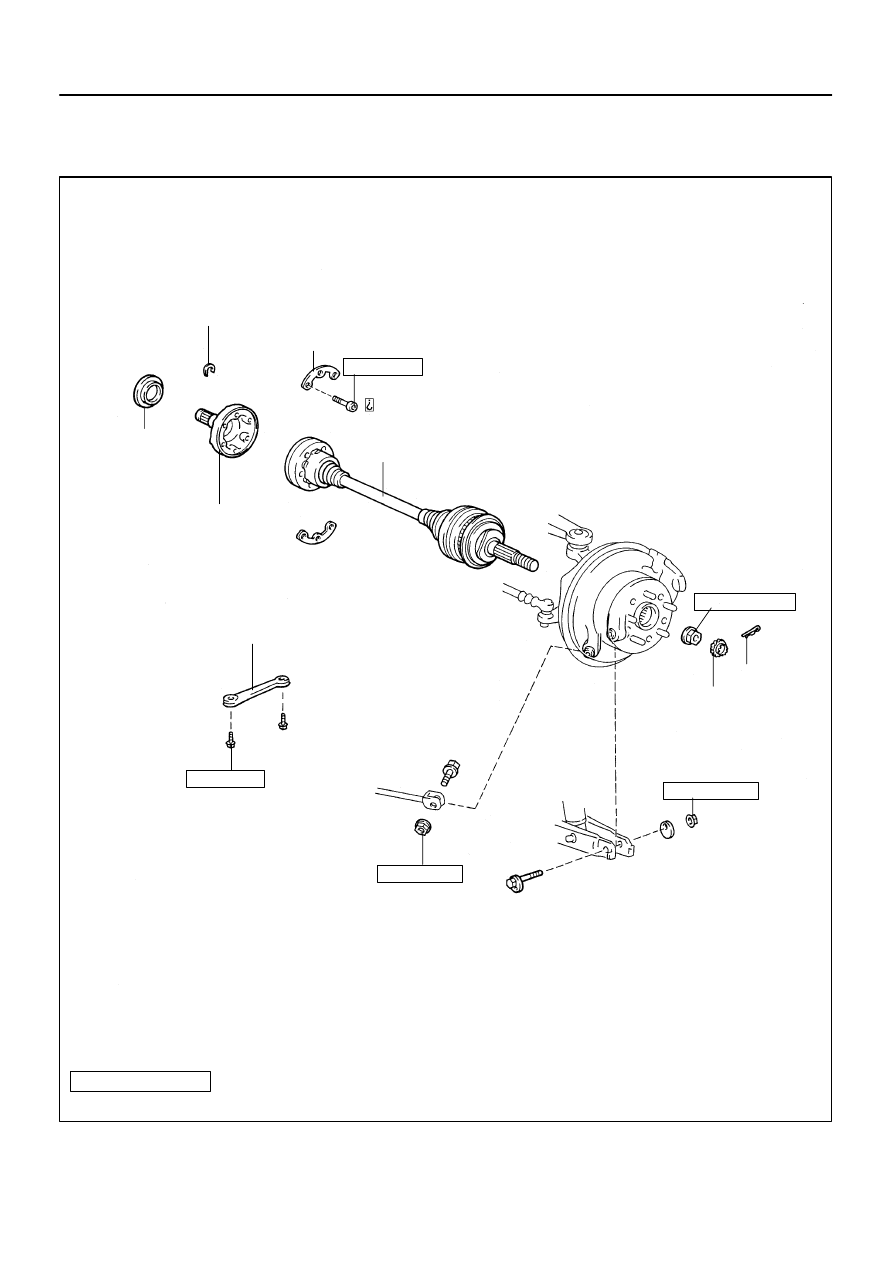

COMPONENTS

SA0SA–01

F02403

SST

F02404

SST

F02405

SST

F03419

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

SA–61

2061

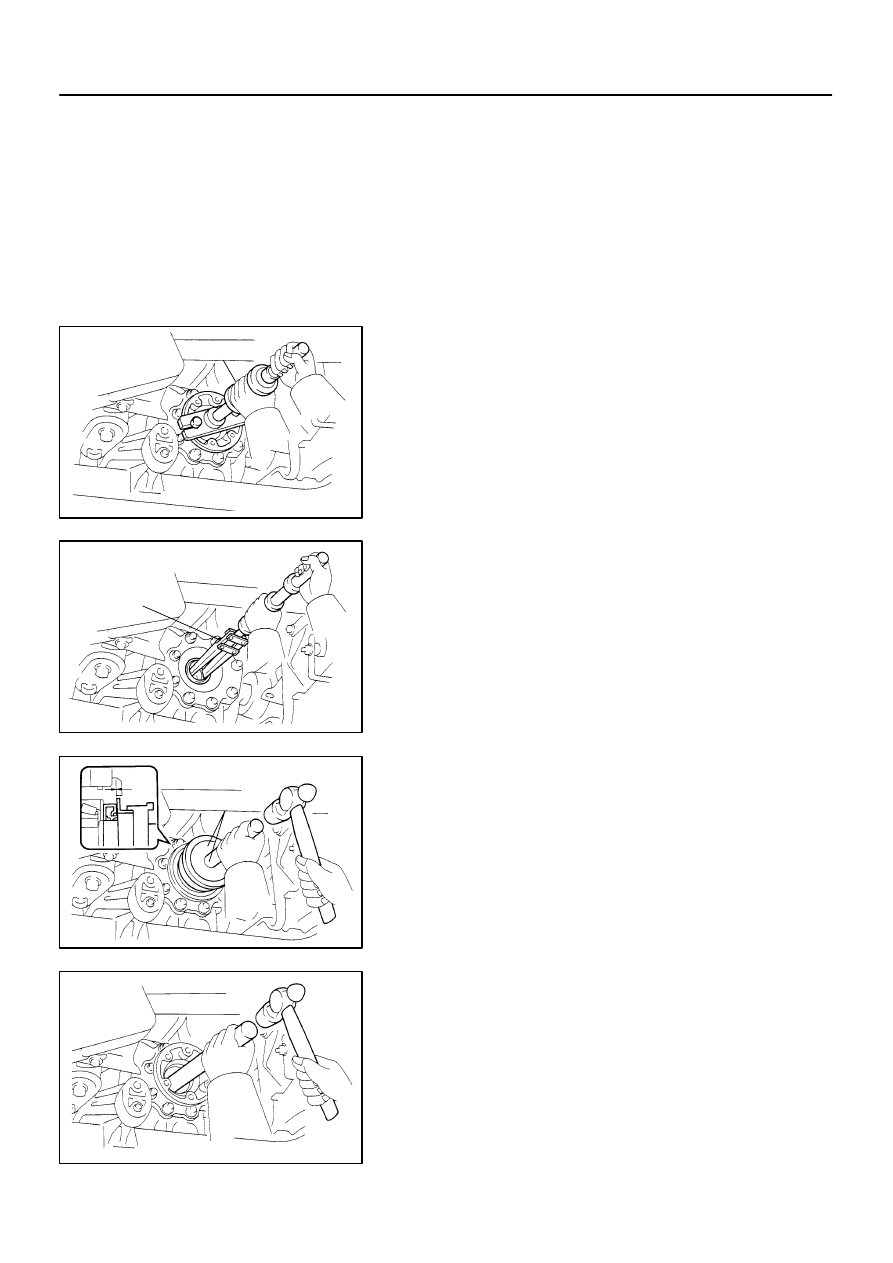

REPLACEMENT

1.

DRAIN DIFFERENTIAL OIL

2.

REMOVE DRIVE SHAFT (See page

SA–52

)

3.

REMOVE SIDE GEAR SHAFT

(a)

Using SST and 2 bolts, remove the side gear shaft.
SST

09520–24010

(b)

Remove the snap ring from the side gear shaft.

4.

REMOVE SIDE GEAR SHAFT OIL SEAL

Using SST, remove the oil seal.

SST

09308–00010

5.

INSTALL SIDE GEAR SHAFT OIL SEAL

(a)

Using SST and a hammer, install a new oil seal.
SST

09608–32010, 09950–70010 (09951–07150)

(b)

Apply MP grease to the oil seal lip.

6.

INSTALL SIDE GEAR SHAFT

(a)

Install a new snap ring to the side gear shaft.

(b)

Using a brass bar and hammer, install the side gear shaft
to the differential.

NOTICE:
Be careful not to damage the side gear shaft and oil seal.
7.

CHECK INSTALLATION OF SIDE GEAR SHAFT

(a)

Check that there is 2 – 3 mm (0.08 – 0.12 in.) of play in
the axial direction.

(b)

Check that the side gear shaft will not come out by trying
to pulling it out by hand.

8.

INSTALL DRIVE SHAFT (See page

SA–59

)

R08549

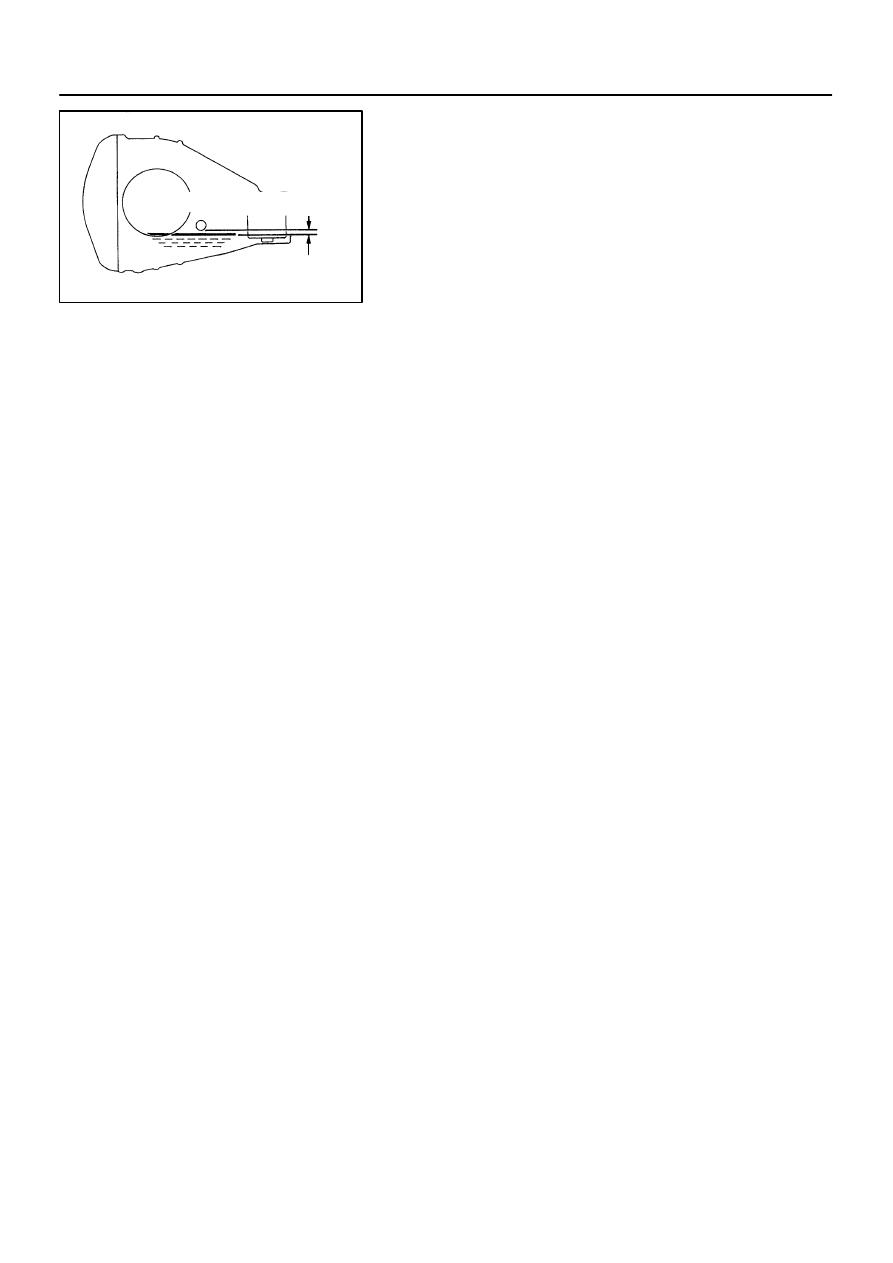

Less than 5 mm (0.20 in.)

SA–62

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

2062

9.

FILL AND CHECK DIFFERENTIAL OIL LEVEL
Torque: 49 N·m (500 kgf·cm, 39 ft·lbf)
Oil grade: Hypoid gear oil API GL–5
Viscosity:
Above –18

°

C (0

°

F) SAE 90

Below –18

°

C (0

°

F) SAE 80W–90 or 80W

Capacity: 1.35 liters (1.43 US qts, 1.19 lmp qts)

SA0SB–03

37 (375, 27)

F03423

142 (1,450, 105)

110 (1,120, 80)

123 (1,250, 90)

7.4 (75, 65 in.·lbf)

Upper Mount Stopper

Differential

Washer

Lower Mount Stopper

Suspension Member Brace

Propeller Shaft

Heat Insulator

Front Floor Center Brace

Heat Insulator

6

: Specified torque



 Non–reusable part

6

N·m (kgf·cm, ft·lbf)

83 (850, 61)

50 (510, 37)

75 (765, 55)

79 (805, 58)

79 (805, 58)

5.4 (55, 48 in.·lbf)

Exhaust Pipe

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–63

2063

REAR DIFFERENTIAL CARRIER

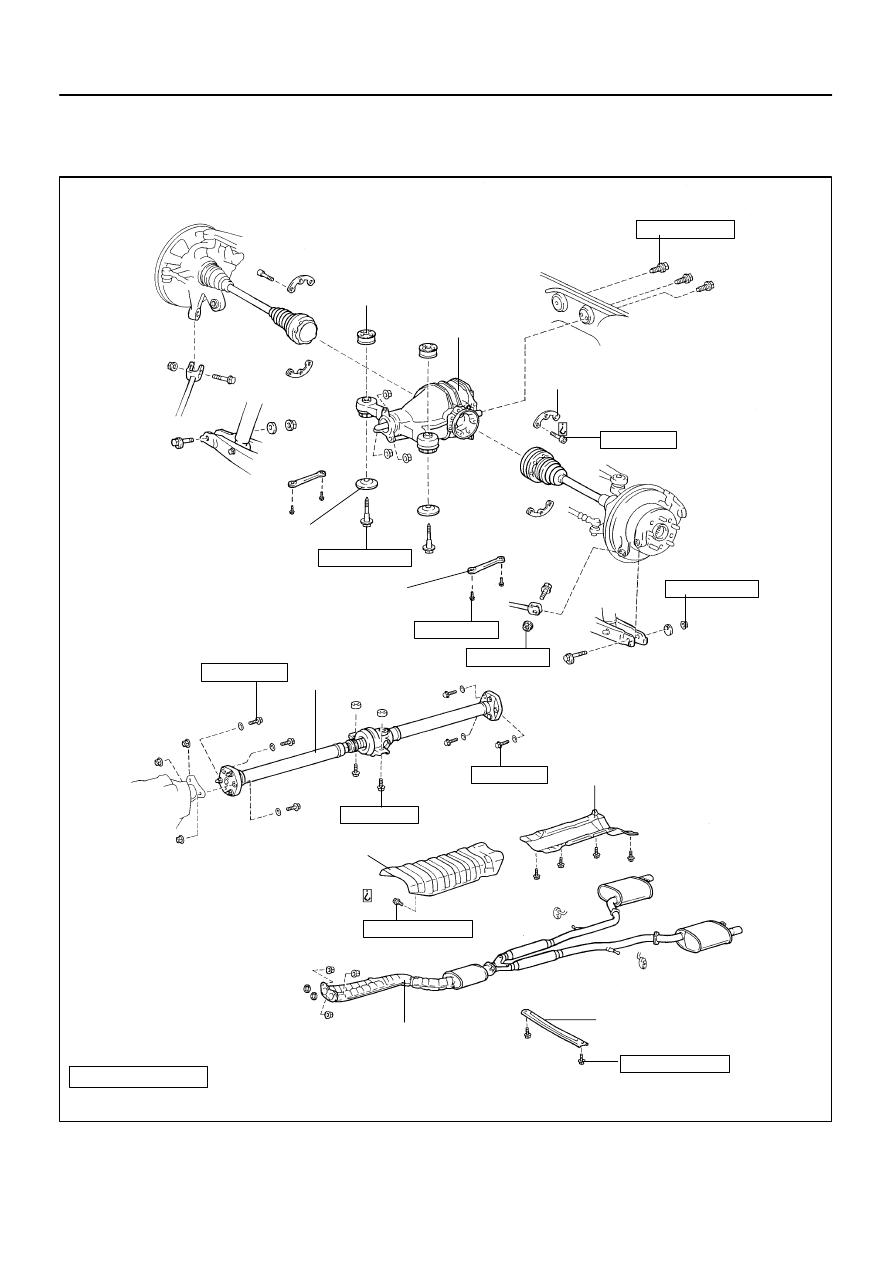

COMPONENTS
