TOE CONTROL LINK

2104

INSTALLATION

Installation is in the reverse order of removal (See page

SA–102

).

AFTER INSTALLATION, CHECK REAR WHEEL ALIGNMENT (See page

SA–7

)

SA0T0–01

F01993

Stabilizer Bar

Bushing

Bracket

Stabilizer Bar Link

N·m (kgf·cm, ft·lbf) : Specified torque

65 (660, 48)

18 (185, 13)

30 (305, 22)

–

SUSPENSION AND AXLE

REAR STABILIZER BAR

SA–105

2105

REAR STABILIZER BAR

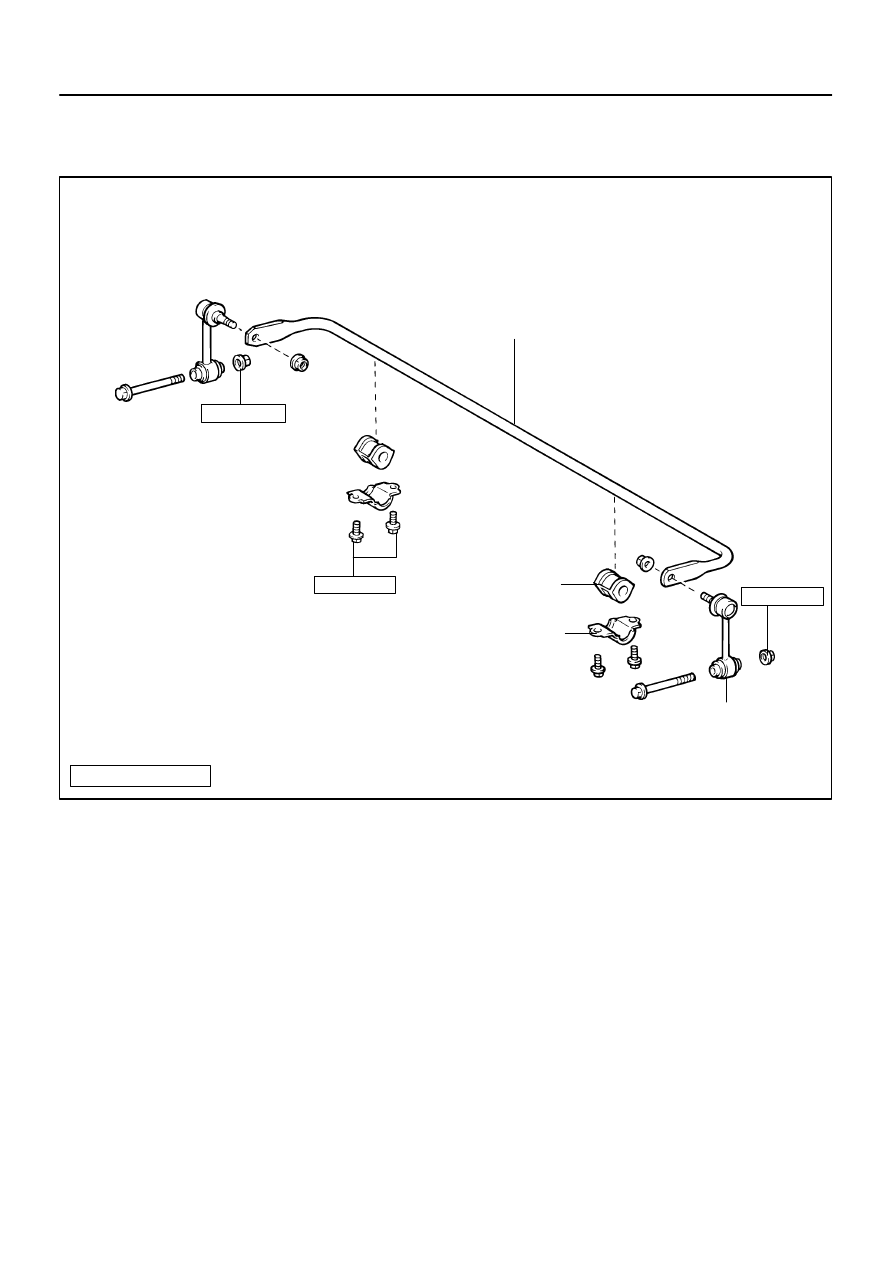

COMPONENTS

SA0R7–05

R05806

R11093

SST

R11078

SST

SA–12

–

SUSPENSION AND AXLE

FRONT AXLE HUB

2012

DISASSEMBLY

1.

REMOVE FRONT HUB GREASE CAP

Using a screwdriver, remove the grease cap from the steering
knuckle.

2.

REMOVE FRONT AXLE HUB LOCK NUT AND ABS
SPEED SENSOR ROTOR

(a)

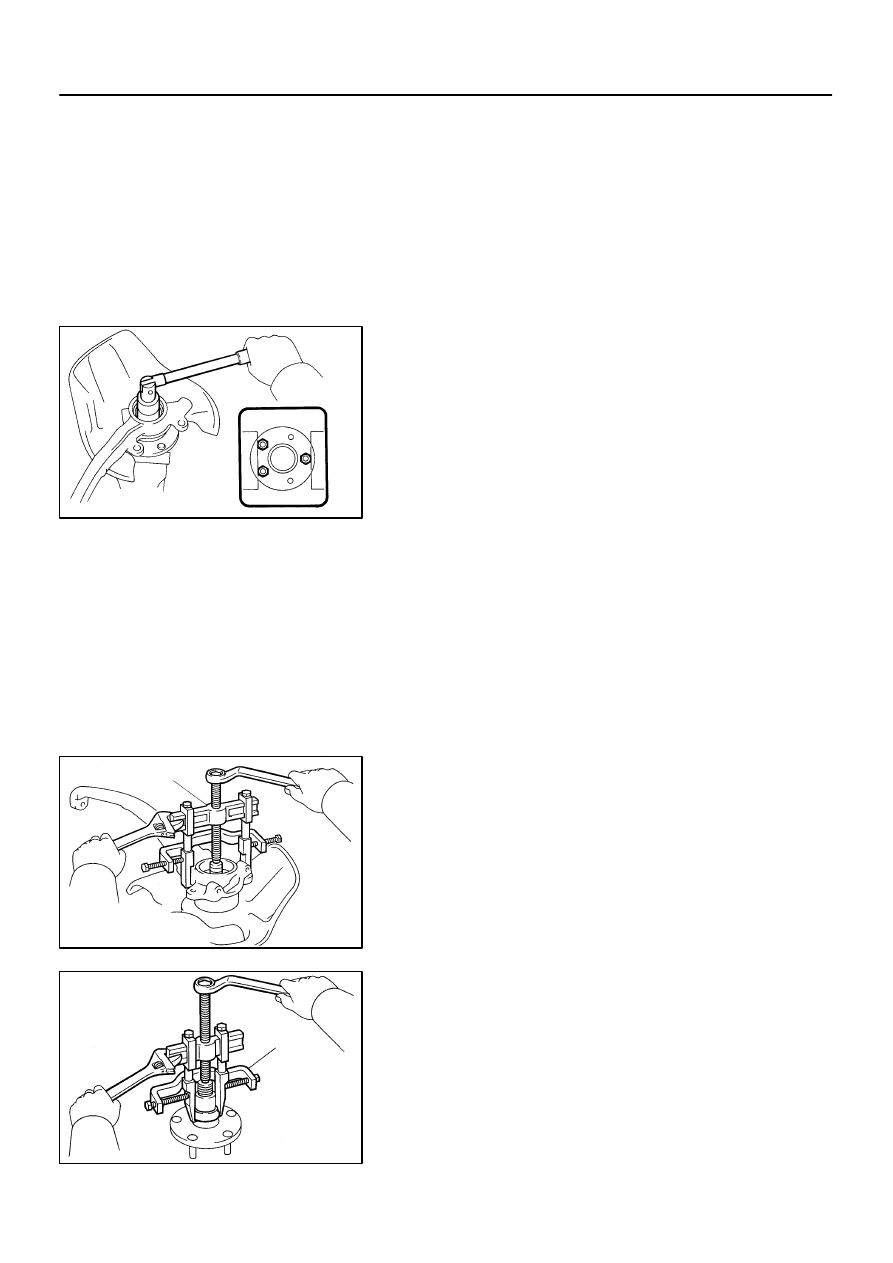

Clamp the axle hub in a soft jaw vise.

HINT:
Close vise until it holds hub bolt. Do not tighten further.
(b)

Using a chisel and hammer, loosen the staked part of the
lock nut.

(c)

Using a 36 mm socket wrench, remove the lock nut.

(d)

Remove the ABS speed sensor rotor.

NOTICE:
Take care not to scratch the serrations of the sensor rotor.
3.

REMOVE AXLE HUB FROM STEERING KNUCKLE

(a)

Remove the 4 bolts and shift the brake dust cover toward
the outside.

(b)

Using SST, remove the axle hub from the steering
knuckle.
SST

09950–40011 (09951–04020, 09952–04010,
09953–04020, 09954–04010, 09955–04051,
09957–04010,  09958–04011)

4.

REMOVE INNER RACE (OUTSIDE) FROM AXLE HUB

Using SST, remove the inner race from the axle hub.

SST

09950–40011 (09951–04020, 09952–04010,
09953–04020, 09954–04010, 09955–04061,
09957–04010,  09958–04011)

R06209

SST

W00273

SST

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–13

2013

5.

REMOVE OIL SEAL

Using SST, remove the oil seal from the steering knuckle.

SST

09308–00010

6.

REMOVE BEARING FROM STEERING KNUCKLE

(a)

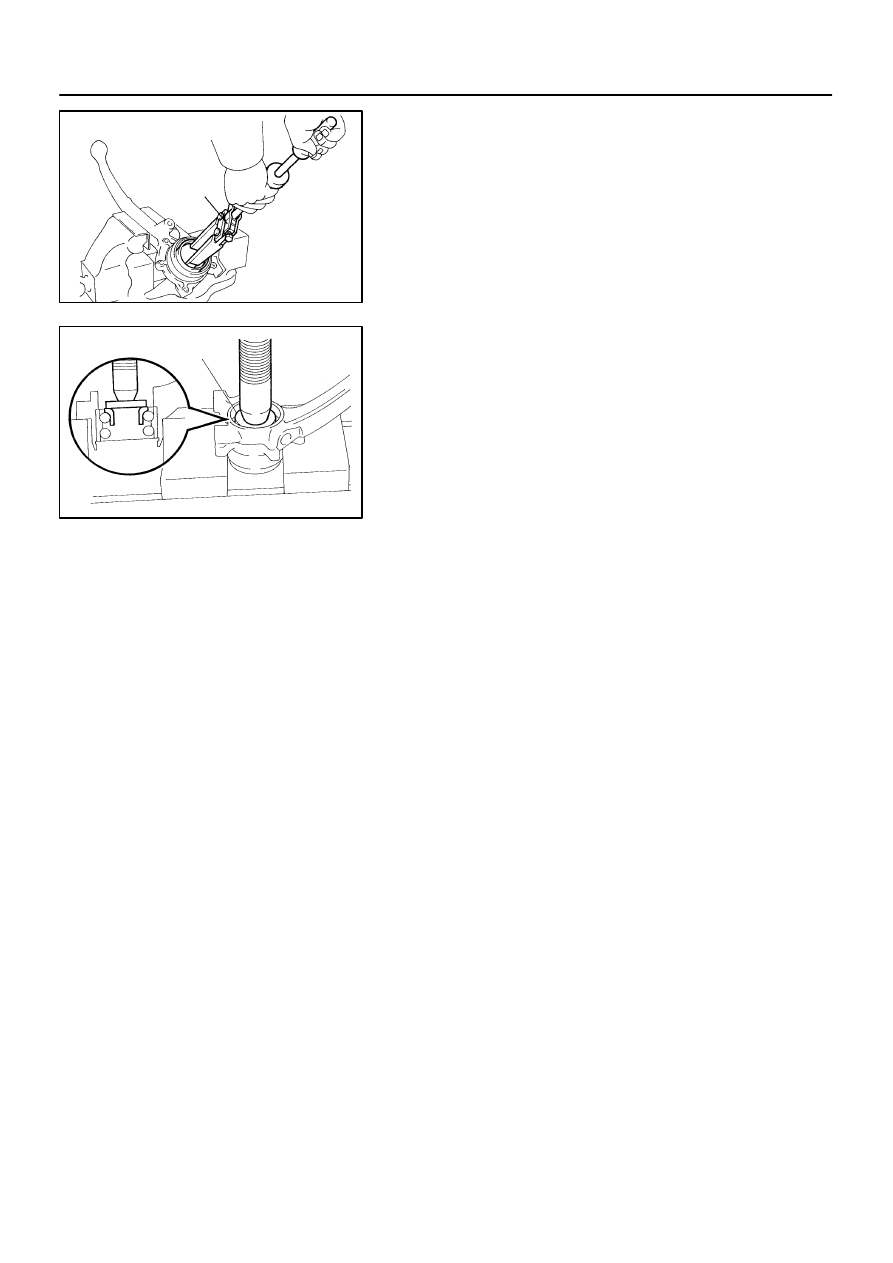

Using snap ring pliers, remove the snap ring.

(b)

Using SST and a press, remove the bearing from the
steering knuckle.
SST

09950–60010 (09951–00560)
