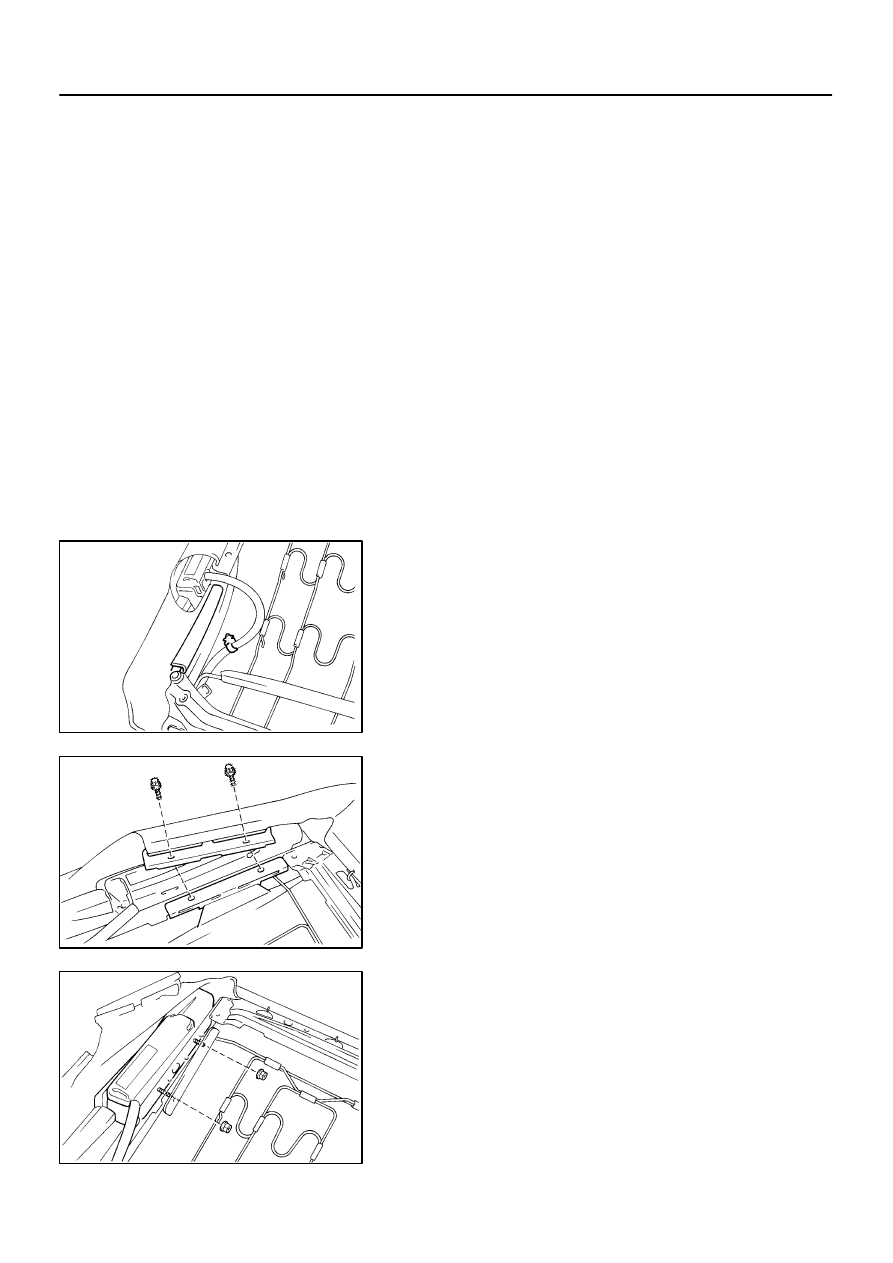

Cross Section

H11875

RS–42

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY

2273

INSPECTION

1.

Vehicles not involved in collision:
INSPECT SUPPLEMANTAL RESTRAINT SYSTEM

(a)

Do a diagnostic system check (See page

DI–552

).

(b)

Do a visual check which includes the following item with
the seatback assembly installed in the vehicle.
Check that there are no cuts or frayed in seams and out-
side of seatback cover.

2.

Vehicle involved in a collision and airbag is not
deployed:
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM

(a)

Do a diagnostic system check (See page

DI–552

).

(b)

Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check cuts and cracks of the side airbag assembly.

Check cuts and cracks in wire harness, and chip-
ping in connectors.

CAUTION:
For removal and installation of the seatback assembly, see
page

RS–40

 and

RS–50

. Be sure to follow the correct pro-

cedure.
3.

Vehicle involved in a collision and airbag is deployed:
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM

(a)

Do a diagnostic system check (See page

DI–552

).

(b)

Do a visual check which includes the following items with
the seatback assembly removed from the vehicle.

Check the seatback installation part of the seat ad-
juster.

Check the damage to the connector and wire har-
ness.

HINT:
If the seat adjuster is deformed, never repair it. Always replace
it with new one.

RS0JD–01

AB0152

SST

AB0158

Battery

SST

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY

RS–43

2274

DISPOSAL

HINT:
When scrapping vehicles equipped with an SRS or disposing
of the side airbag assembly always first deploy the airbag in ac-
cordance with the procedure described below. If any abnormal-
ity occurs with the airbag deployment, contact the SERVICE
DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:

Never dispose of a side airbag assembly which has
an undeployed airbag.

The airbag produces a sizeable exploding sound
when it deploys, so perform the operation out–of–
doors and where it will not create a nuisance to
nearby residents.

When deploying the airbag, always use the specified
SST (SRS Airbag Deployment Tool), perform the op-
eration in a place away from electrical noise.
SST

09082–00700

When deploying an airbag, perform the operation at
least 10 m (33 ft) away from the airbag assembly.

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling side
airbag assembly with the deployed airbag.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a side airbag assembly with
the deployed airbag.

1.

AIRBAG DEPLOYMENT WHEN SCRAPPING VE-
HICLE

HINT:
Have a battery ready as the power source to deploy the airbag.
(a)

Check functioning of the SST
(See step 1–(a) on page

RS–17

).

SST

09082–00700

H03447

H03448

Battery

SST

R13455

10 m (33 ft) or more

SST

Battery

H02604

RS–44

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY

2275

(b)

Disconnect the side airbag connector.

NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.

(c)

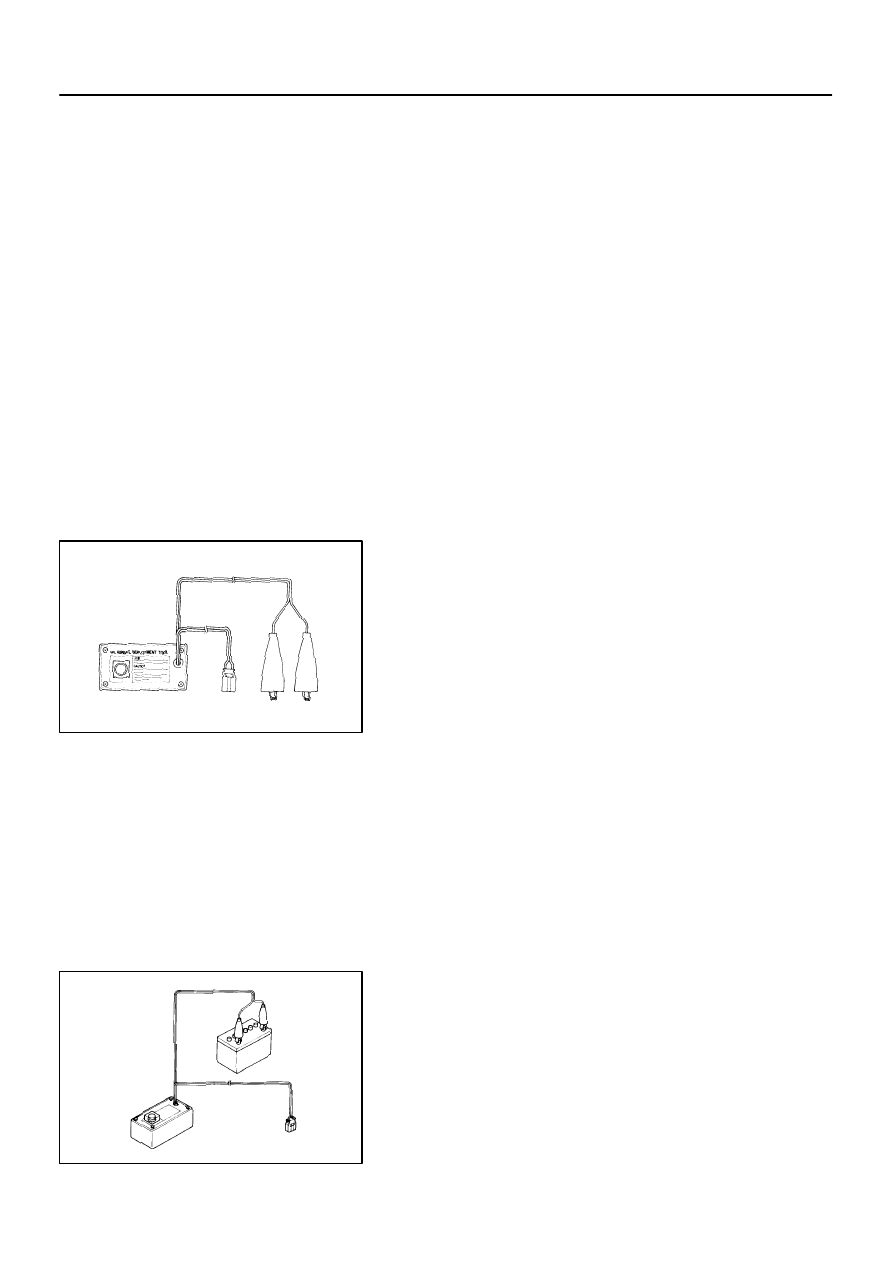

Install the SST.
(1)

Connect the connectors of the 2 SST to the airbag
connector.

SST

09082–00700, 09082–00750

NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.

(2)

Move the SST at least 10 m (33 ft) away from the
front of the vehicle.

(3)

Close all the doors and windows of the vehicle.

NOTICE:
Take care not to damage the SST wire harness.

(4)

Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(–) terminal.

(d)

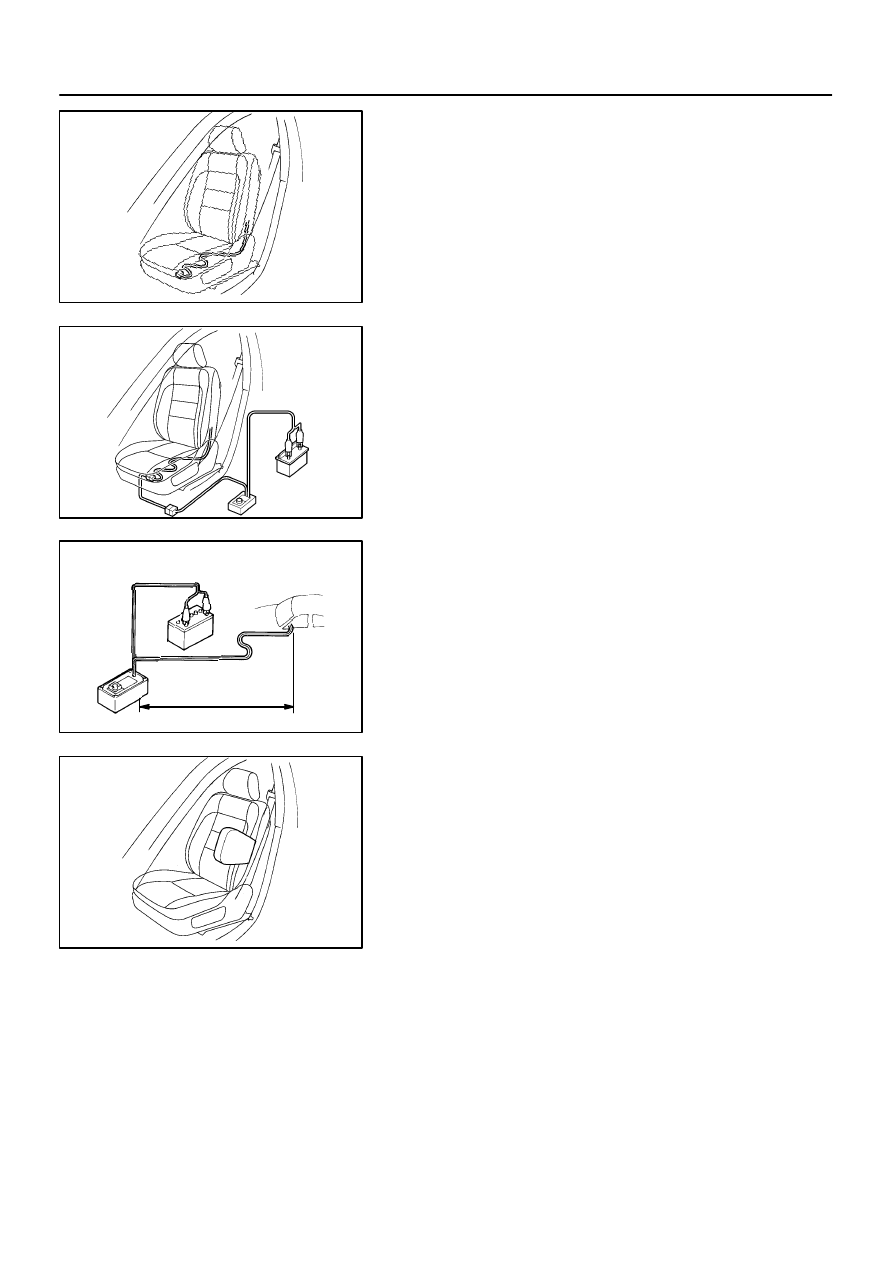

Deploy the airbag.
(1)

Check that no one is inside the vehicle or within 10
m (33 ft) area around the vehicle.

(2)

Press the SST activation switch and deploy the air-
bag.

CAUTION:

The side airbag assembly is very hot when the airbag
is deployed, so leave it alone for at least 30 minutes
after deployment.

Use gloves and safety glasses when handling the
side airbag assembly with the deployed airbag.

Do not apply water, etc. to the side airbag assembly
with the deployed airbag.

Always wash your hands with water after completing
the operation.

When scrapping a vehicle, deploy the airbag and
scrap the vehicle with the side airbag assembly still
installed.

H02600

H02601

H02602

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY

RS–45

2276

HINT:
The airbag deploys simultaneously as the LED of SST activa-
tion switch lights up.
2.

DEPLOYMENT WHEN DISPOSING OF SIDE AIRBAG
ASSEMBLY

NOTICE:

When disposing of the side airbag assembly only,
never use the customer’s vehicle to deploy the air-
bag.

Be sure to follow the procedure given below when de-
ploying the airbag.

HINT:
Have a battery ready as the power source to deploy the airbag.
(a)

Remove the seatback assembly (See page

RS–40

).

(b)

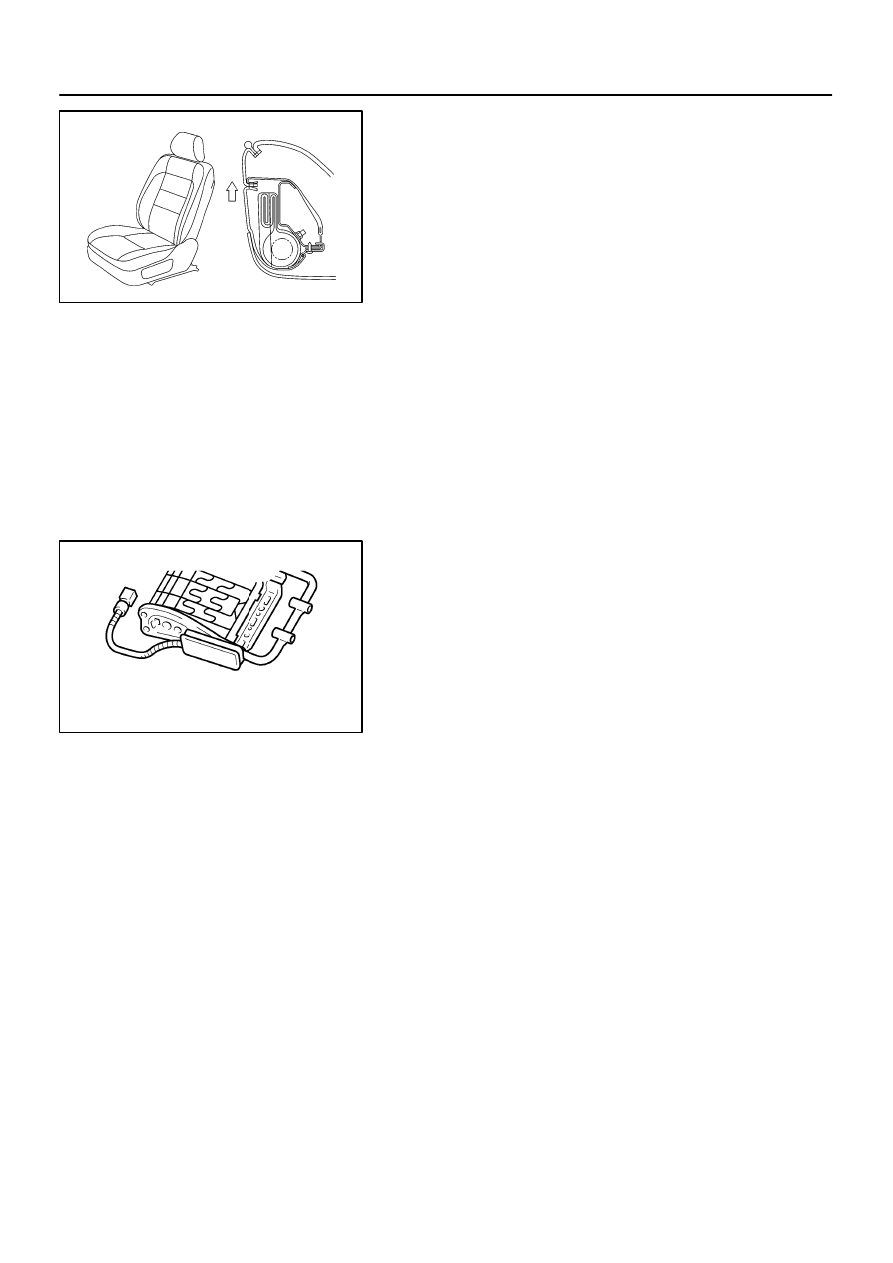

Remove the side airbag assembly from the seatback as-
sembly.
(1)

Remove the clamp.

(2)

Remove the hook.

(3)

Remove the 2 bolts and 2 hooks.

(4)

Remove the 2 nuts and side airbag assembly.

CAUTION:

Do not store the side airbag assembly with the airbag
deployment side facing down.

Never disassemble the side airbag assembly.
