H02593

RS–30

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

2261

3.

VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED

(a)

Do a diagnostic system check.
(See page

DI–552

)

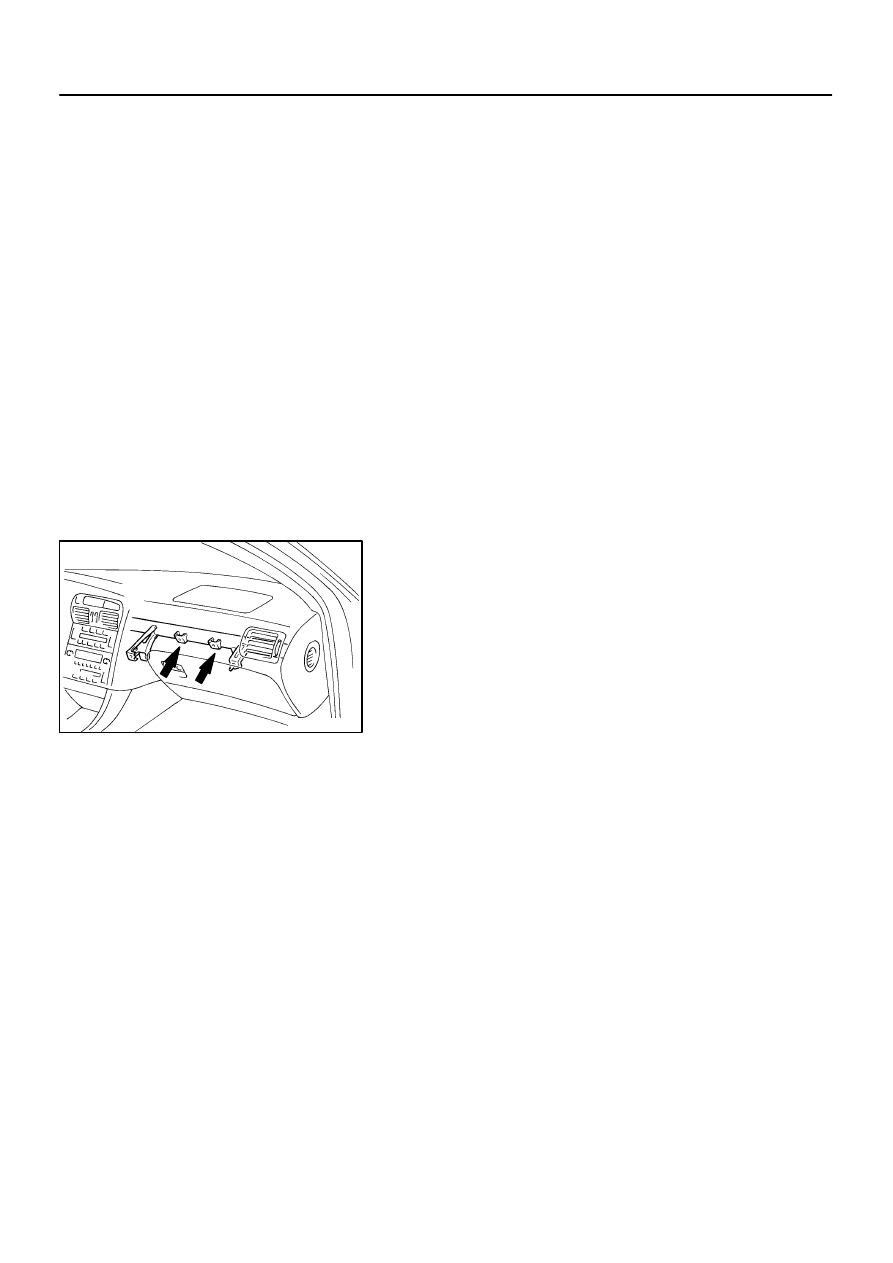

(b)

Do a visual check which includes the following items with
the front passenger airbag assembly removed from the
vehicle.

Check the deformation or cracks on the instrument
panel and instrument panel reinforcement.

Check the damage on the connector and wire har-
ness.

HINT:
If the instrument panel or instrument panel reinforcement is de-
formed or cracked, never repair it. Always replace it with a new
one.

RS07G–01

AB0152

SST

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–31

2262

DISPOSAL

HINT:
When scrapping vehicles equipped with an SRS or disposing
of a front passenger airbag assembly, always first deploy the
airbag in accordance with the procedure described below. If any
abnormality occurs with the airbag deployment, contact the
SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A.,
INC.. When disposing of a front passenger airbag assembly
with an airbag deployed in a collision, follow the same proce-
dure given in step 1–(g) in ”DISPOSAL”.
CAUTION:

Never dispose of front passenger airbag assembly
which has an undeployed airbag.

The airbag produces a sizeable exploding sound
when it deploys, so perform the operation out of
doors and where it will not create a nuisance to
nearby residents.

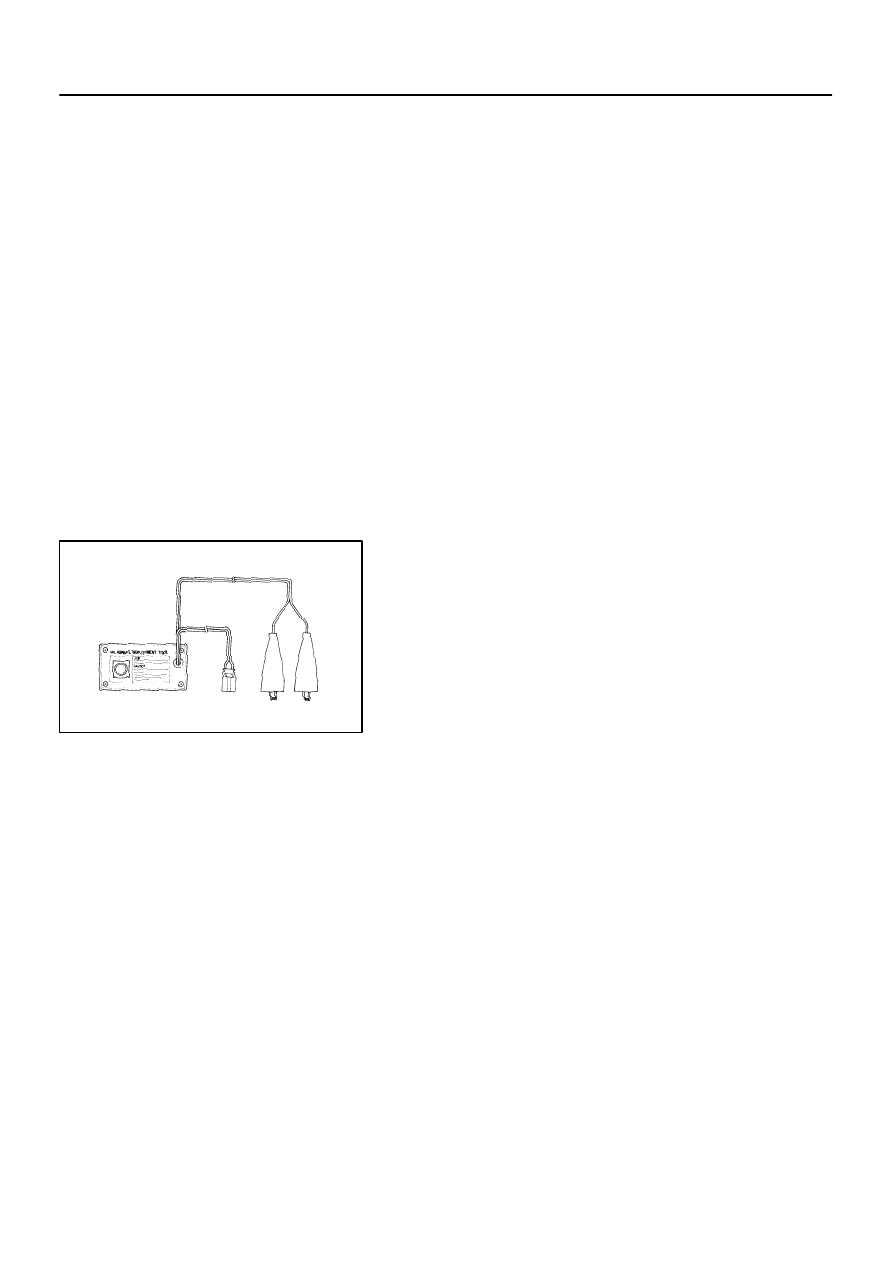

When deploying the airbag, always use the specified
SST (SRS Airbag Deployment Tool). Perform the op-
eration in place away from electrical noise.
SST

09082–00700, 09082–00760

When deploying an airbag, perform the operation at
least 10 m (33 ft) away from the front passenger air-
bag assembly.

The front passenger airbag is very hot when the air-
bag is deployed, so leave it alone for at least 30 min-
utes after deployment.

Use gloves and safety glasses when handling the
front passenger airbag assembly with the deployed
airbag.

Always wash your hands with water after completing
the operation.

Do not apply water etc. to the front passenger airbag
assembly with the deployed airbag.

AB0158

Battery

SST

H02589

H02594

R13455

10 m (33 ft) or more

R09686

RS–32

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

2263

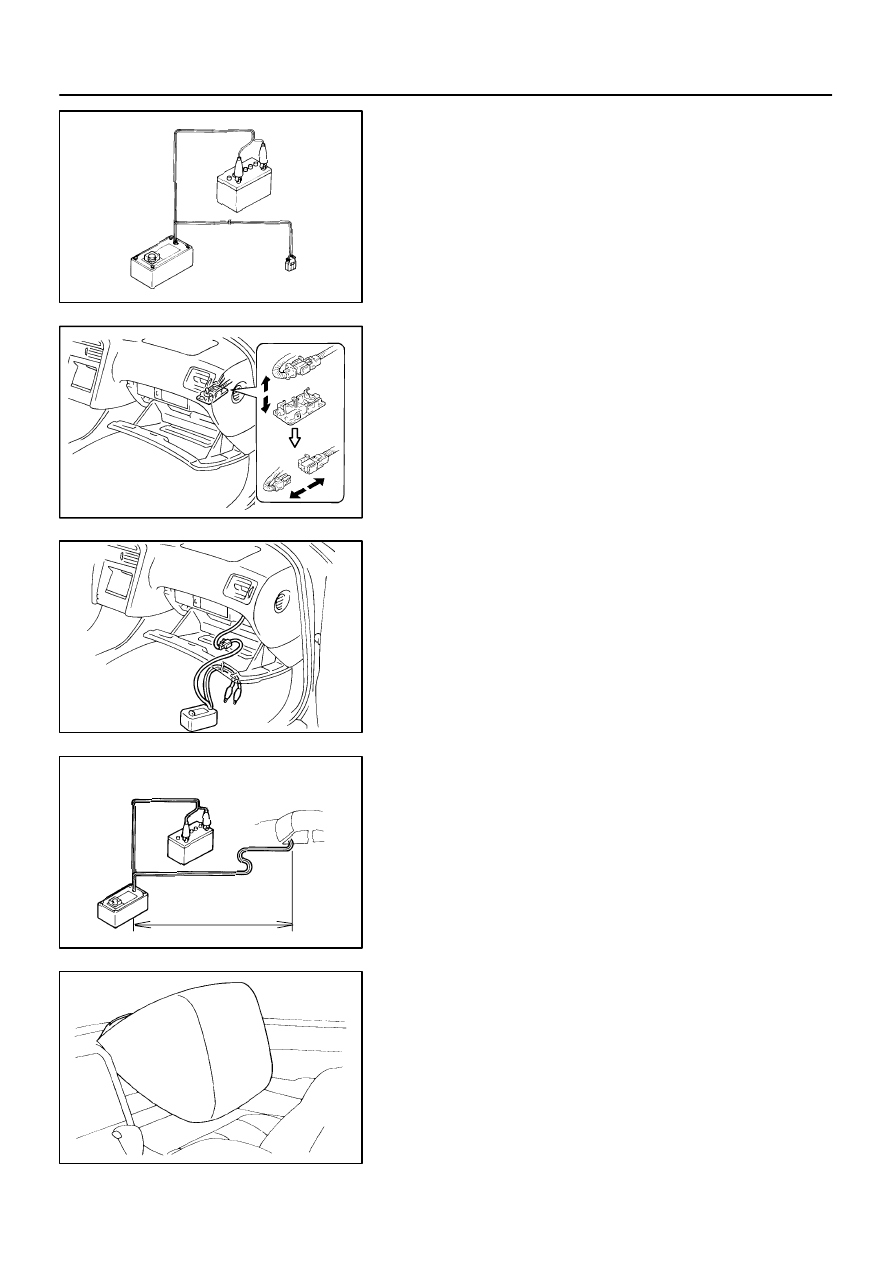

1.

AIRBAG DEPLOYMENT WHEN SCRAPPING VE-
HICLE

HINT:
Have a battery ready as the power source to deploy the airbag.
(a)

Check functioning of SST.
(See page

RS–17

)

SST

09082–00700, 09082–00760

(b)

Disconnect the airbag connector.
(1)

Using a screwdriver, remove the glove compart-
ment door finish plate.

HINT:
Tape the screwdriver tip before use.

(2)

Remove the airbag connector from the plate.

(3)

Disconnect the airbag connector.

(c)

Install the SST.
(1)

Connect the 2 SST each other, then connect them
to the airbag connector of the spiral cable.

SST

09082–00700, 09082–00760

NOTICE:
To avoid damage to the SST connector and wire harness,
do not lock the secondary lock of the twin lock.

(2)

Move the SST at least 10 m (33 ft) away from the
front of the vehicle.

(3)

Close all the doors and windows of the vehicle.

NOTICE:
Take care not to damage the SST wire harness.

(4)

Connect the SST red clip to the battery positive (+)
terminal and the black clip to the battery negative
(–) terminal.

(d)

Deploy the airbag.
(1)

Check that no one is inside the vehicle or within 10
m (33 ft) area around the vehicle.

(2)

Press the SST activation switch and deploy the air-
bag.

HINT:
The airbag deploys simultaneously as the LED of the SST ac-
tivation switch lights up.

H02592

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–33

2264

(e)

Dispose of front passenger airbag assembly.

CAUTION:

The front passenger airbag assembly is very hot
when the airbag is deployed, so leave it alone for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
passenger airbag assembly with the deployed airbag.

Do not apply water etc., to a front passenger airbag
assembly with the deployed airbag.

Always wash your hands with water after completing
the operation.
When scrapping a vehicle, deploy the airbag and scrap
the vehicle with the front passenger airbag assembly still
installed.

2.

DEPLOYMENT WHEN DISPOSING OF FRONT PAS-
SENGER AIRBAG ASSEMBLY

NOTICE:

When disposing of the front passenger airbag assem-
bly only, never use the customer’s vehicle to deploy
the airbag.

Be sure to follow the procedure given below when de-
ploying the airbag.

HINT:
Have a battery ready as the power source to deploy the airbag.

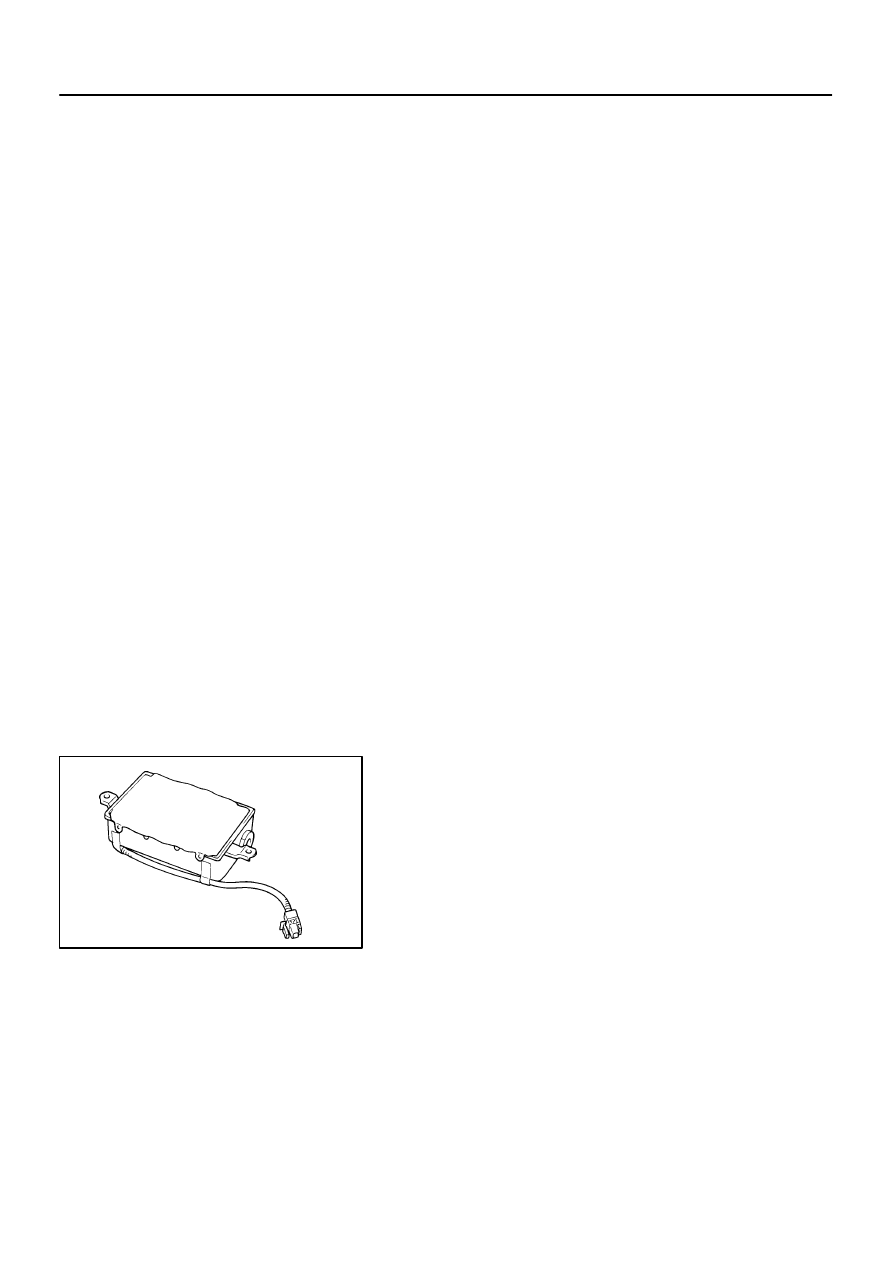

(a)

Remove the front passenger airbag assembly.
(See page

RS–28

)

CAUTION:
Store the front passenger airbag assembly with the airbag
deployment side facing up.
