ST055–01

ST–16

–

STARTING (2JZ–GE)

STARTER

1634

INSTALLATION

Installation is in the reverse order of removal. (See page

ST–4

)

B00923

Starter
Relay

ST056–01

P07170

Ohmmeter

Continuity

No Continuity

1

3

2

5

Ohmmeter

P07171

Ohmmeter

Continuity

1

3

2

5

Battery

–

STARTING (2JZ–GE)

STARTER RELAY

ST–17

1635

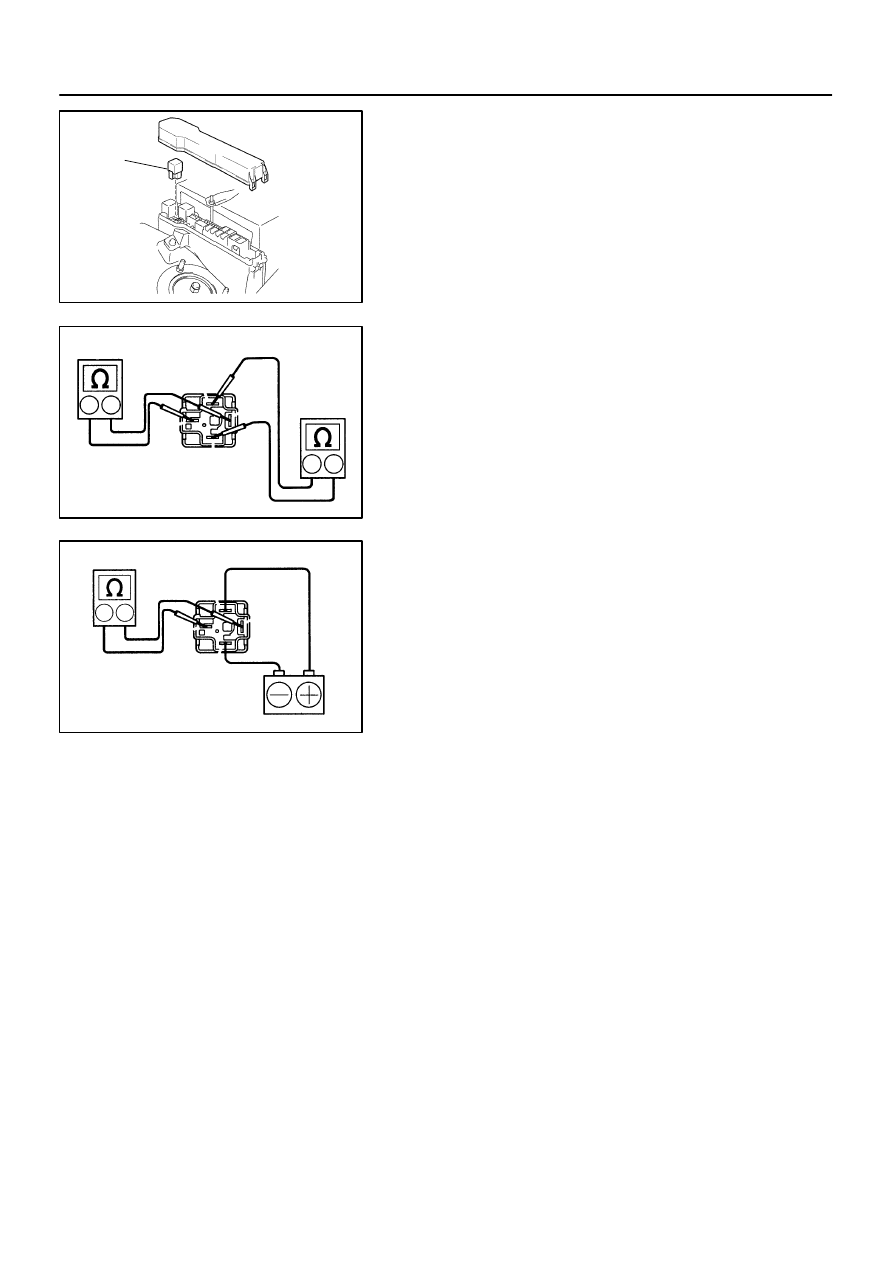

STARTER RELAY

INSPECTION

1.

REMOVE RELAY BOX COVER

2.

REMOVE STARTER RELAY

3.

INSPECT STARTER RELAY

(a)

Inspect the relay continuity.
(1)

Using an ohmmeter, check that there is continuity
between terminals 1 and 2.

If there is no continuity, replace the relay.

(2)

Check that there is no continuity between terminals
3 and 5.

If there is continuity, replace the relay.

(b)

Inspect the relay operation.
(1)

Apply battery positive voltage across terminals 1
and 2.

(2)

Using an ohmmeter, check that there is continuity
between terminals 3 and 5.

If there is no continuity, replace the relay.
4.

REINSTALL STARTER RELAY

5.

REINSTALL RELAY BOX COVER

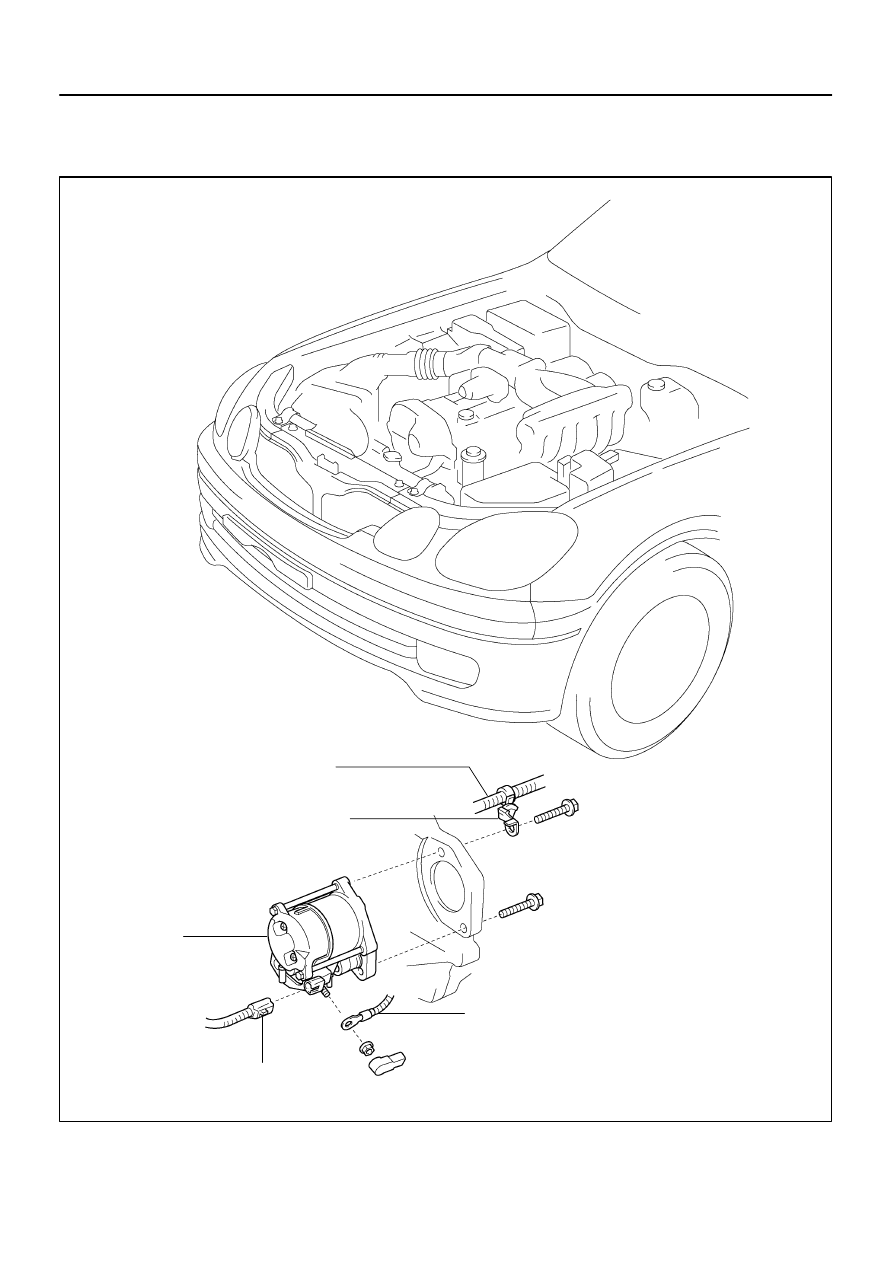

ST04Y–01

B02010

Clamp Bracket

Starter

Starter Connector

Starter Wire

Engine Wire

ST–2

–

STARTING (2JZ–GE)

STARTER

1620

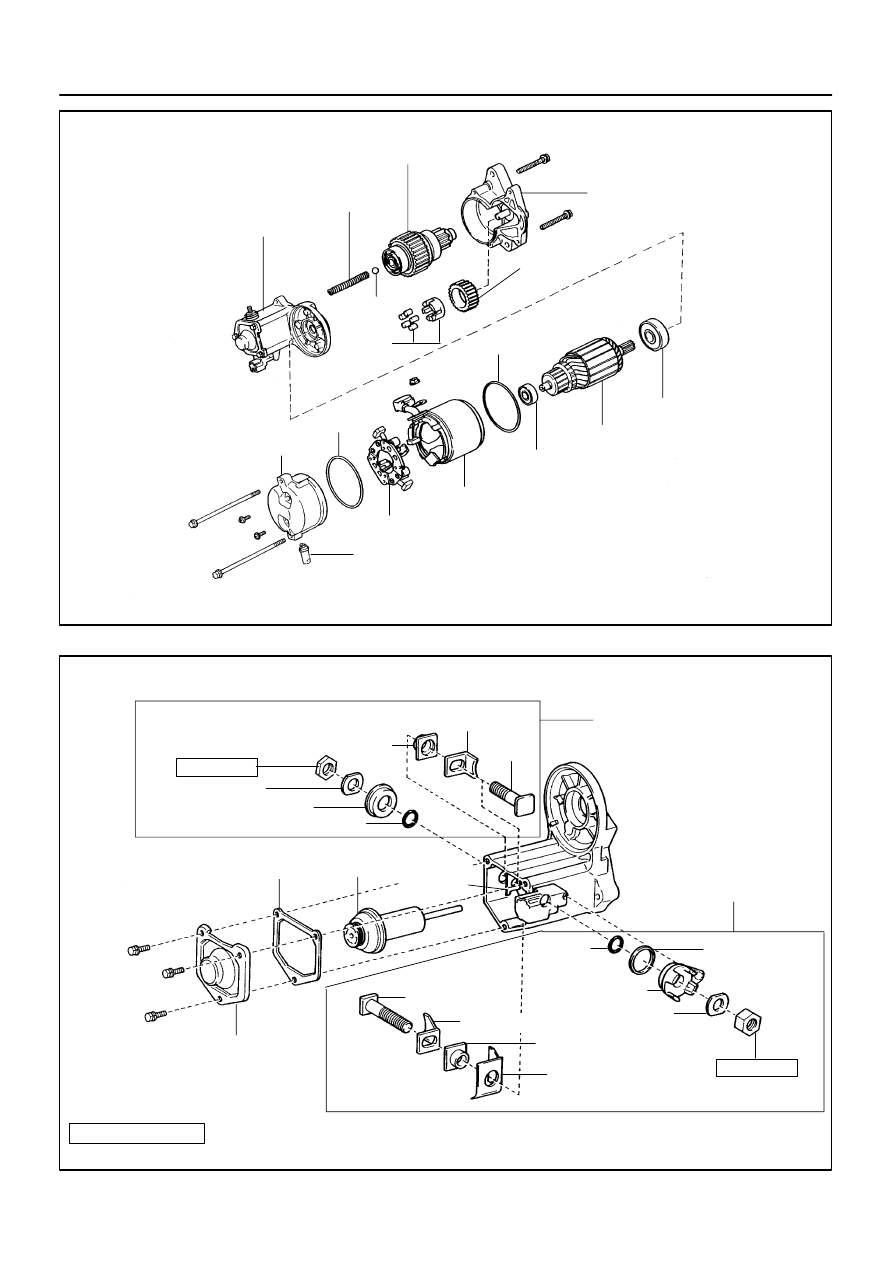

STARTER

COMPONENTS

B01640

Starter Clutch Assembly

Magnetic Switch Assembly

Return Spring

Starter Housing

Idler Gear

Steel Ball

 O–Ring

Armature

 Front Bearing

 Rear Bearing

Field Frame (Field Coil)

Dust Protector

 Non–reusable part

Brush Holder

 O–Ring

End Cover

Bearing

B01641

 Terminal C Kit Part

 Terminal 30 Kit Part

 Non–reusable part

Terminal Insulator

Wave Washer

Terminal Insulator

O–Ring

Contact Plate

Terminal
Bolt

17 (170, 12)

End Cover

 Gasket

Plunger

Lead
Terminal

O–Ring

Packing

Terminal Insulator

Wave Washer

17 (170, 12)

Terminal Bolt

Contact Plate

Terminal Insulator

Insulation Paper

N·m (kgf·cm, ft·lbf) : Specified torque

Magnetic Switch Assembly

–

STARTING (2JZ–GE)

STARTER

ST–3

1621
