Lexus GS300/400 (2000 year). Manual - part 206

SF0N7–01

B01884

Pry

Snap Claw

Pry

B01886

Disconnect

Pull

–

SFI (2JZ–GE)

FUEL PRESSURE REGULATOR

SF–17

1483

REMOVAL

1.

REMOVE FUEL PUMP AND SENDER GAUGE AS-
SEMBLY FROM FUEL TANK (See page

SF–11

)

2.

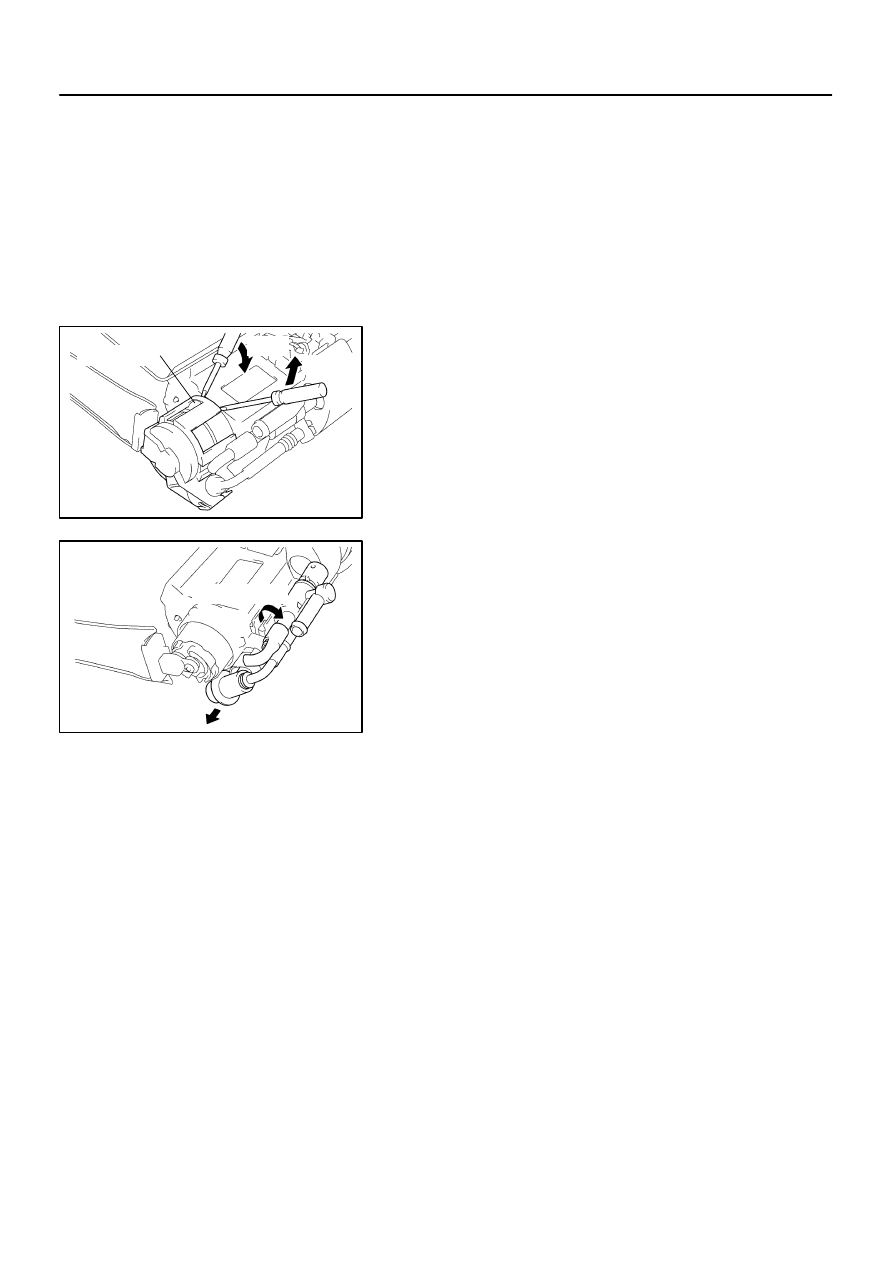

REMOVE NO.2 FUEL SUCTION SUPPORT

(a)

Using 2 screwdrivers, disconnect the 4 snap claws from
the claw holes and remove the fuel suction support.

NOTICE:
Be careful not to damage the suction supports.
(b)

Remove the rubber cushion.

3.

REMOVE FUEL PRESSURE REGULATOR AND FUEL
RETURN JET TUBE ASSEMBLY

(a)

Disconnect the fuel return jet tube from the clamp of the
No.2 fuel suction support.

(b)

Pull out the fuel pressure regulator from the fuel filter, and
remove the fuel pressure regulator and fuel return jet tube
assembly.

(c)

Remove the O–ring from the fuel pressure regulator.

SF0N8–01

B02061

Connect

Push

B01885

B02039

Push

Snap Claw

SF–18

–

SFI (2JZ–GE)

FUEL PRESSURE REGULATOR

1484

INSTALLATION

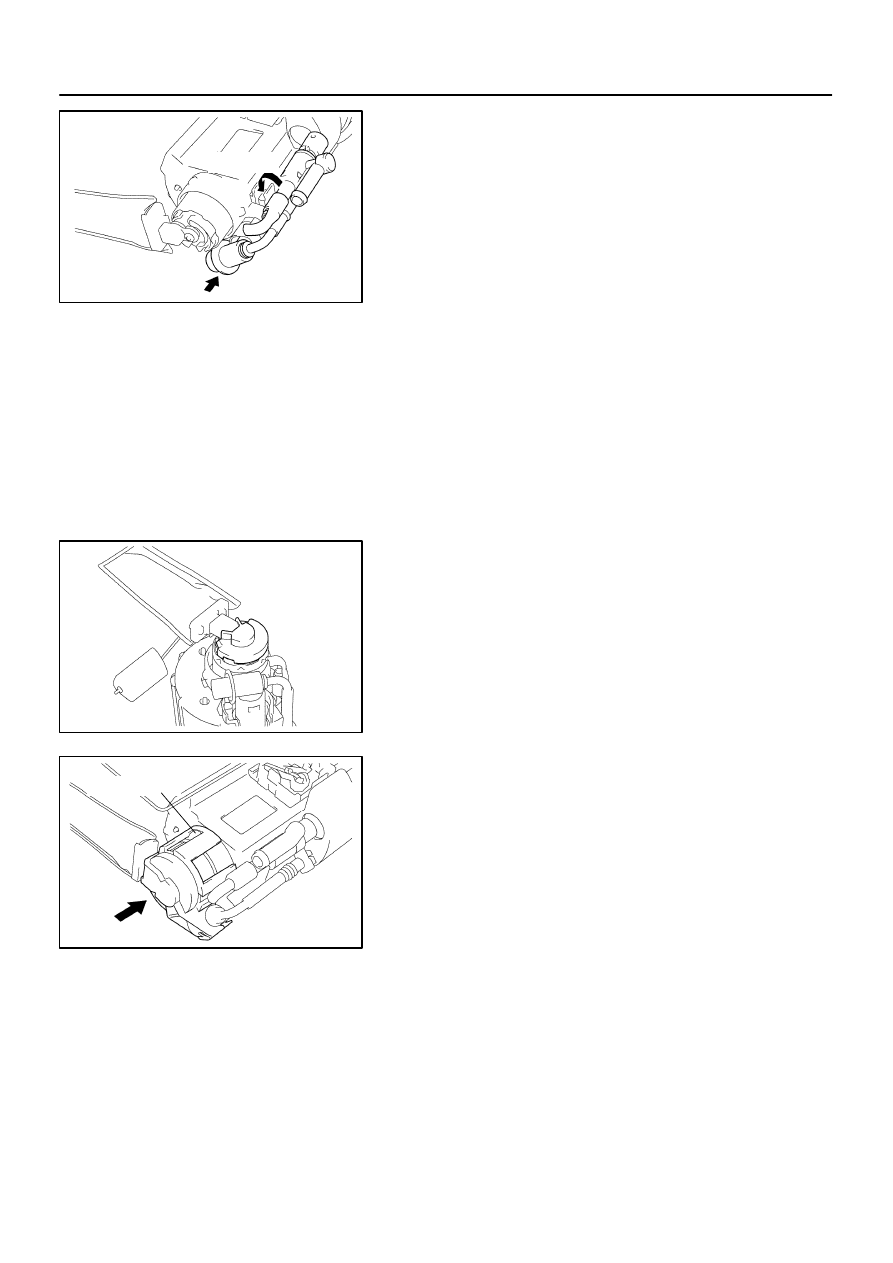

1.

INSTALL FUEL PRESSURE REGULATOR AND FUEL
RETURN JET TUBE ASSEMBLY

(a)

Apply a light coat of gasoline to a new O–ring, and install
it to the fuel pressure regulator.

(b)

Push in the fuel pressure regulator to the fuel filter.

(c)

Check that the fuel pressure regulator rotates smoothly.

If it does not rotates smoothly, the O–ring may be pinched, so
remove the fuel pressure regulator and perform again steps (b)
and (c) above.
(d)

Connect the fuel return jet tube to the clamp of the No.2
fuel suction support.

2.

INSTALL NO.2 FUEL SUCTION SUPPORT

(a)

Install the rubber cushion to the fuel pump.

(b)

Push the fuel suction support, and attach the 4 snap
claws to the claw holes.

3.

INSTALL FUEL PUMP AND SENDER GAUGE AS-
SEMBLY TO FUEL TANK (See page

SF–13

)

SF0N9–04

B01568

Sound Scope

B01569

B01570

Ohmmeter

–

SFI (2JZ–GE)

INJECTOR

SF–19

1485

INJECTOR

ON–VEHICLE INSPECTION

1.

REMOVE ENGINE COVER

Remove 4 nuts and engine cover.

2.

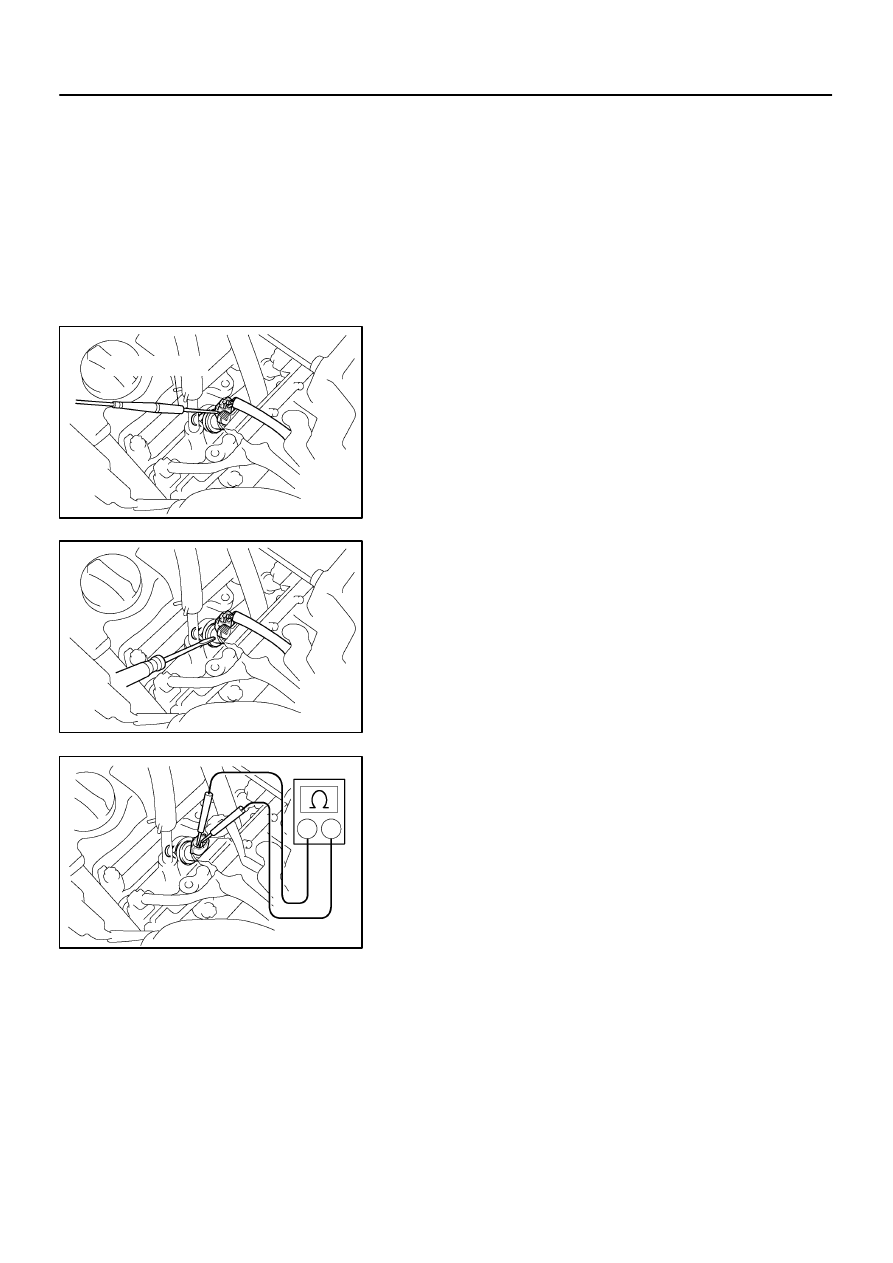

INSPECT INJECTOR OPERATION

Check operation sound from each injector.

(1)

With the engine running or cranking, use a sound
scope to check that there is normal operating noise
in proportion to engine speed.

(2)

If you have no sound scope, you can check the in-
jector transmission operation with a screwdriver.

If no sound or an unusual sound is heard, check the wiring con-
nector, injector or injection signal from the ECM.

3.

INSPECT INJECTOR RESISTANCE

(a)

Disconnect the injector connectors.

(b)

Using an ohmmeter, measure the resistance between the
terminals.
Resistance: 13.4 – 14.2

Ω

 at 20

°

C (68

°

F)

If the resistance is not as specified, replace the injector.
(c)

Reconnect the injector connectors.

4.

REINSTALL ENGINE COVER

Reinstall the 4 engine cover with the 4 nuts.

SF151–01

B08999

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

21 (210, 15)

21 (210, 15)

VSV Connector for EVAP

Camshaft Position Sensor Connector

No.2 Vacuum Pipe

Accelerator Cable

EVAP Hose

Noise Filter
Connector

Vacuum
Hose

Throttle Position
Sensor Connector

 Gasket

PS Air Hose

Engine Wire Clamp

 Gasket

Oil Dipstick and
Guide for A/T

Engine Wire
Clamp

42 (420, 31)

Fuel Pressure Pulsation Damper

 Gasket

 O–Ring

Fuel Inlet Pipe

Delivery Pipe

21 (210, 15)

Spacer

Injector Connector

 O–Ring

 O–Ring

Injector

 Insulator

 Grommet

28 (280, 21)

Engine Cover

SF–20

–

SFI (2JZ–GE)

INJECTOR

1486

COMPONENTS
