ENGINE MECHANICAL (2JZ–GE)

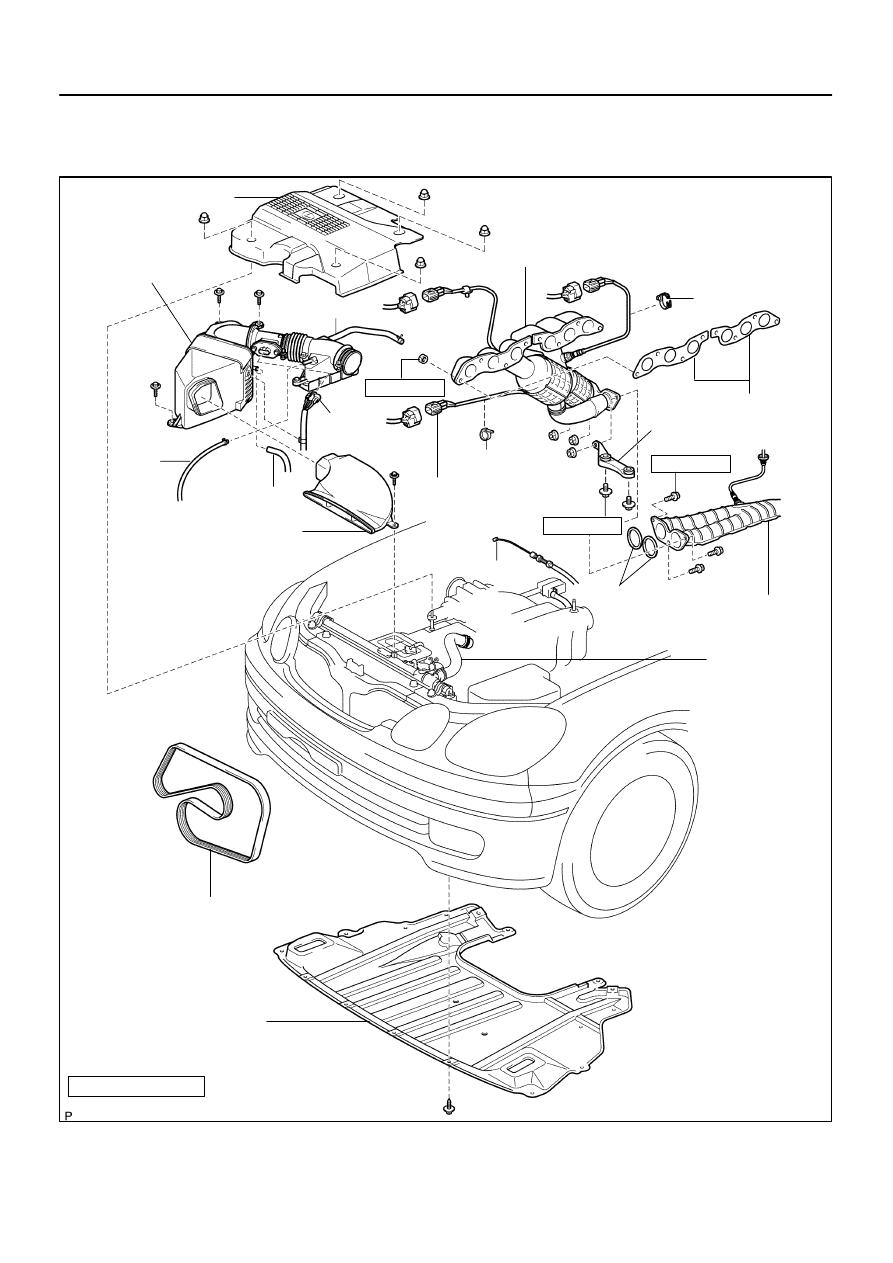

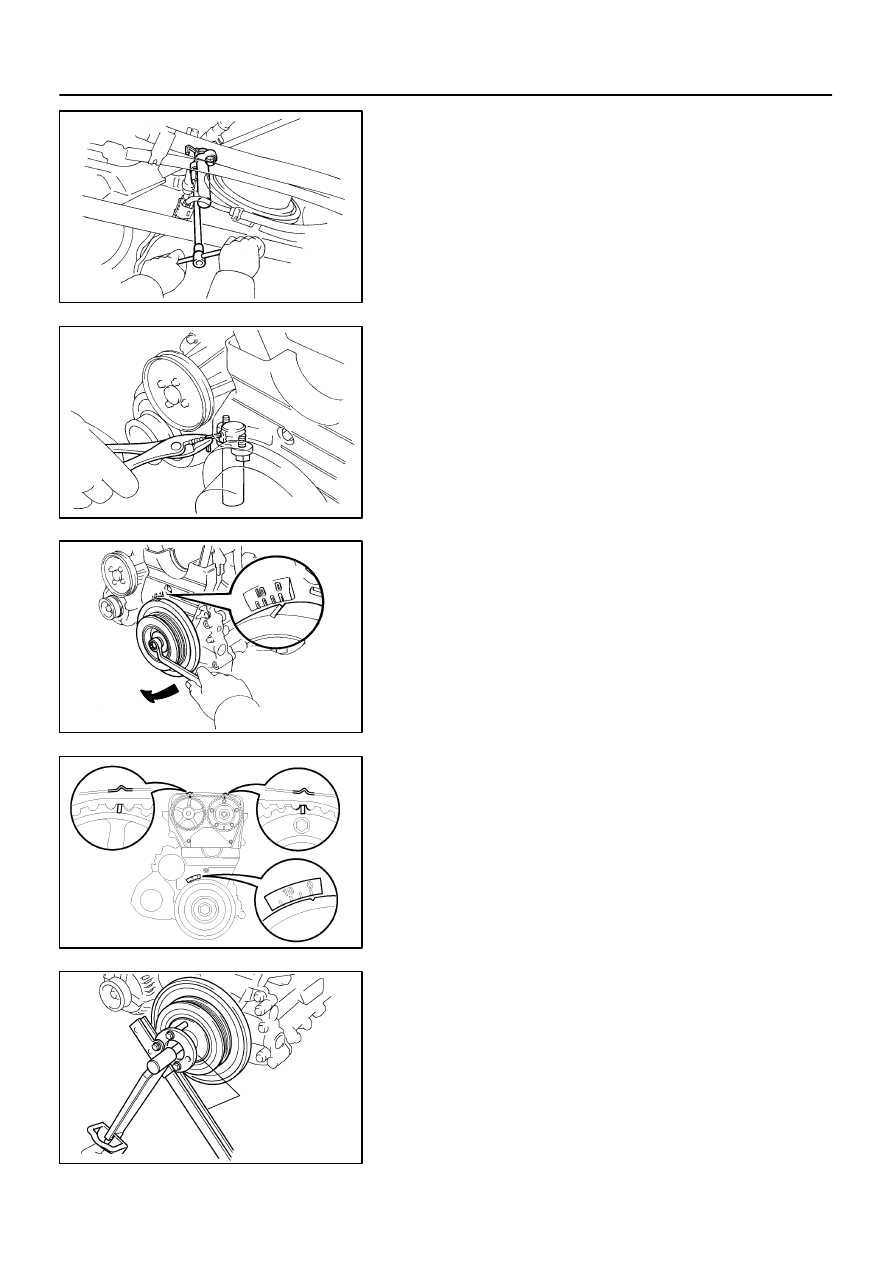

TIMING BELT
1380
(d)

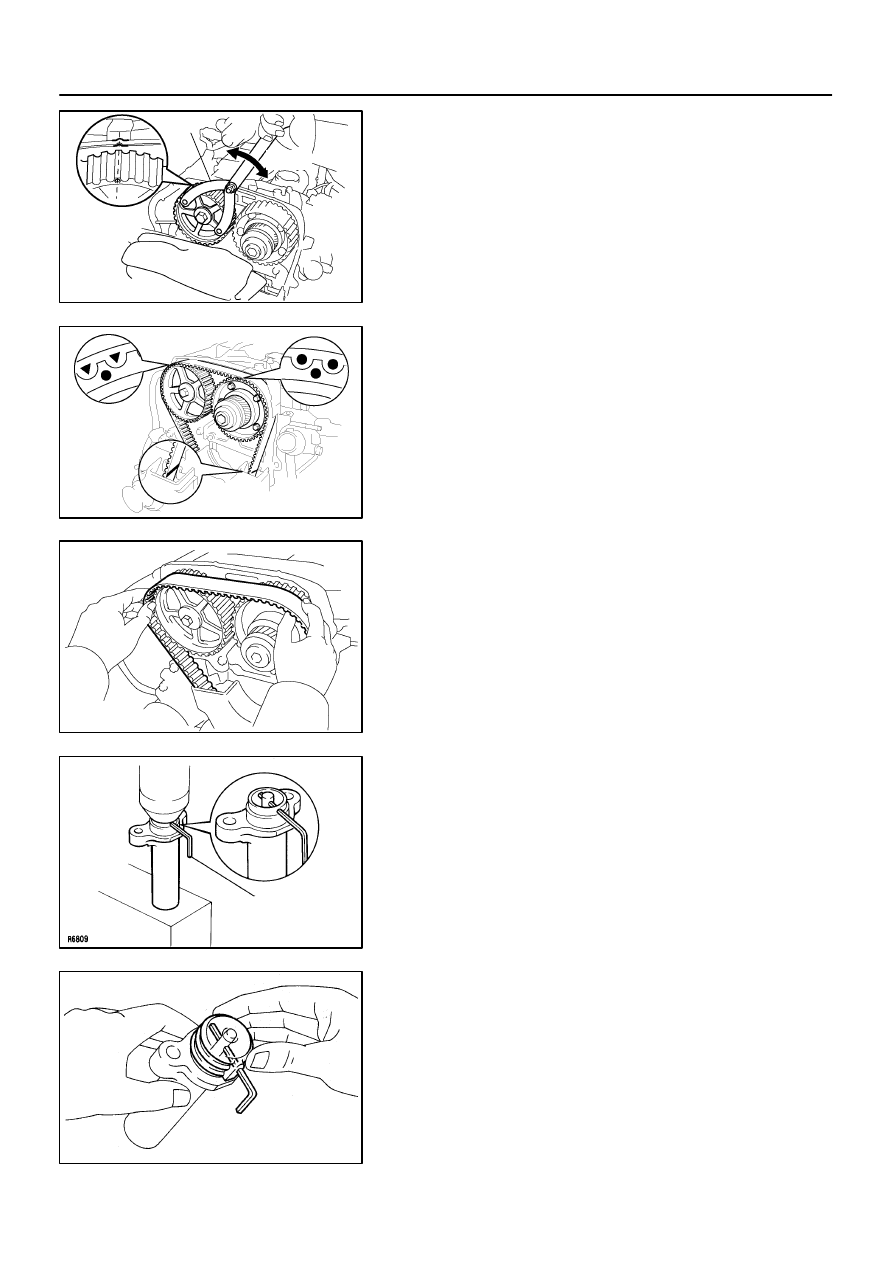

Using SST, align the dot mark on the camshaft timing tim-
ing pulley with the timing mark of the No.4 timing belt cov-
er.
SST
09960–10010 (09962–01000, 09963–01000)
14.
CONNECT TIMING BELT TO CAMSHAFT TIMING
PULLEYS
HINT:
When re–using timing belt:
Check that the matchmark on the timing belt matches the
end of the No.1 timing belt cover.
If the matchmark does not align, shift the meshing of the
timing belt and crankshaft timing pulley until they align.
Align the matchmarks of the timing belt and camshaft tim-
ing pulleys.
(a)
Remove any oil or water on the camshaft timing pulley,
and keep it clean.
(b)
Install the timing belt, checking the tension between the
crankshaft timing pulley and intake camshaft timing
pulley.
15.
SET TIMING BELT TENSIONER
(a)
Using a press, slowly press in the push rod using 981 –
9,807 N (100 – 1,000 kgf, 220 – 2,205 lbf) of force.
(b)
Align the holes of the push rod and housing, pass a 1.5
mm hexagon wrench through the holes to keep the push
rod retracted.
(c)
Release the press.
(d)
Install the dust boot onto the tensioner.
