BR0K2–06

F02814

F02815

BR–58

–

BRAKE

FRONT SPEED SENSOR

2166

REMOVAL

1.

REMOVE FRONT WHEEL
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)

2.

DISCONNECT SPEED SENSOR CONNECTOR

3.

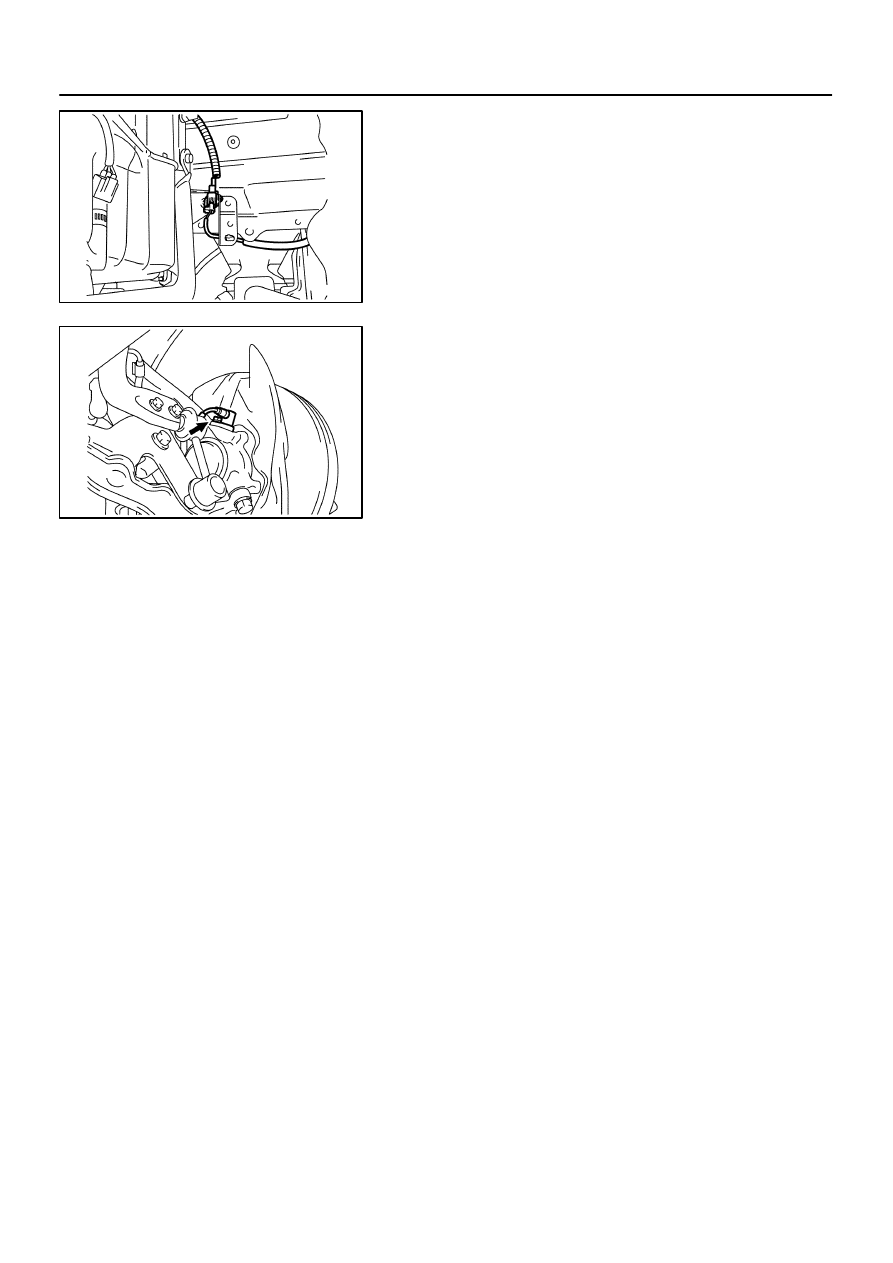

REMOVE SPEED SENSOR

(a)

Remove the resin clip and 2 clamp bolts holding the sen-
sor harness to the body.
Torque: 5.0 N·m (51 kgf·cm, 44 in.·lbf)

(b)

Remove the bolt and speed sensor from the steering
knuckle.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

BR0K3–04

–

BRAKE

FRONT SPEED SENSOR

BR–59

2167

INSTALLATION

Installation is in the reverse order of removal (See page

BR–58

).

HINT:
After installation, check speed sensor signal (See page

DI–389

).

BR0K4–07

F02816

Headrest

Seatback

Seat Cushion

Rear Speed Senser

5.5 (56, 49in.·lbf)

5.0 (51, 44 in.·lbf)

8.0 (82, 71 in.·lbf)

18 (185, 13)

N·m (kgf·cm, ft·lbf)

: Specified torque

BR–60

–

BRAKE

REAR SPEED SENSOR

2168

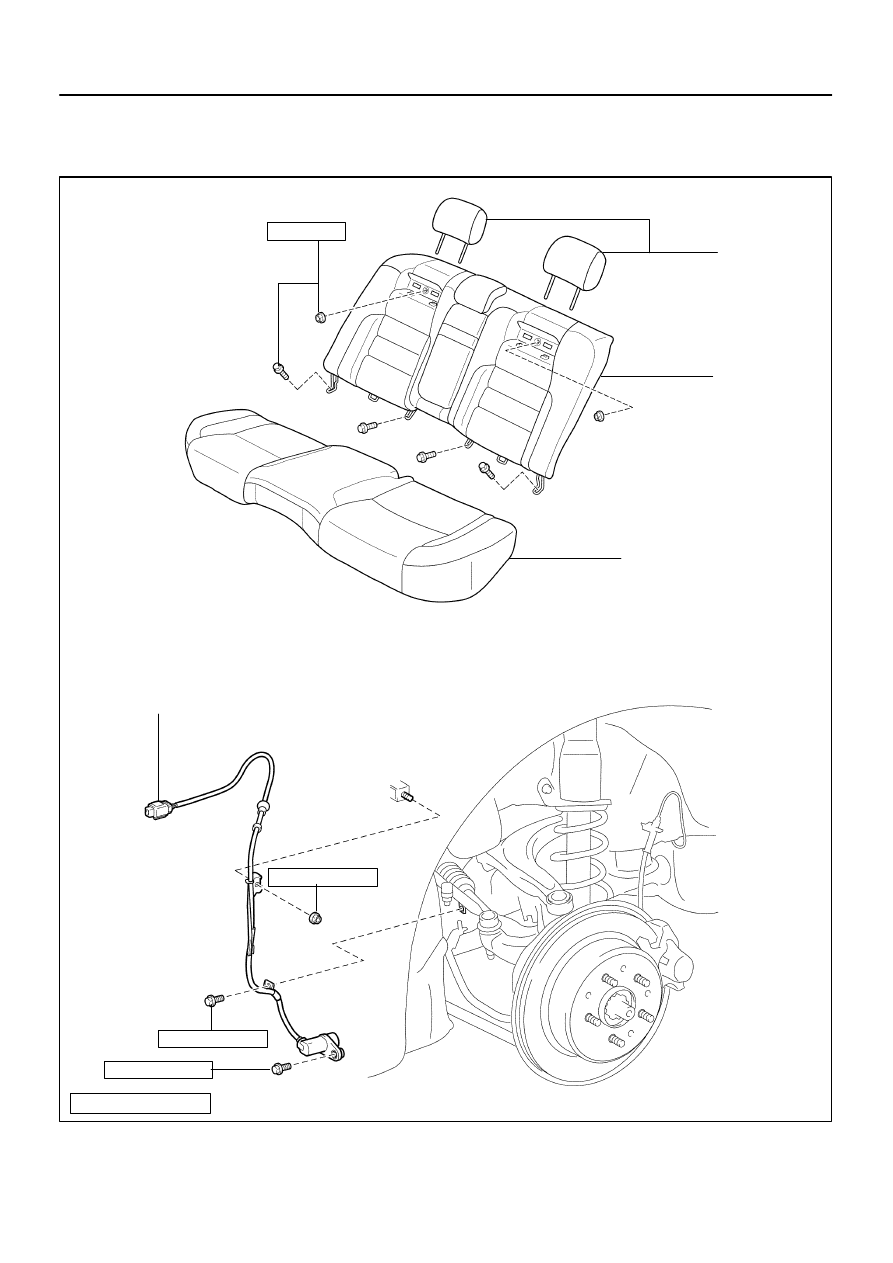

REAR SPEED SENSOR

COMPONENTS

BR0K5–07

F02817

F02818

–

BRAKE

REAR SPEED SENSOR

BR–61

2169

REMOVAL

1.

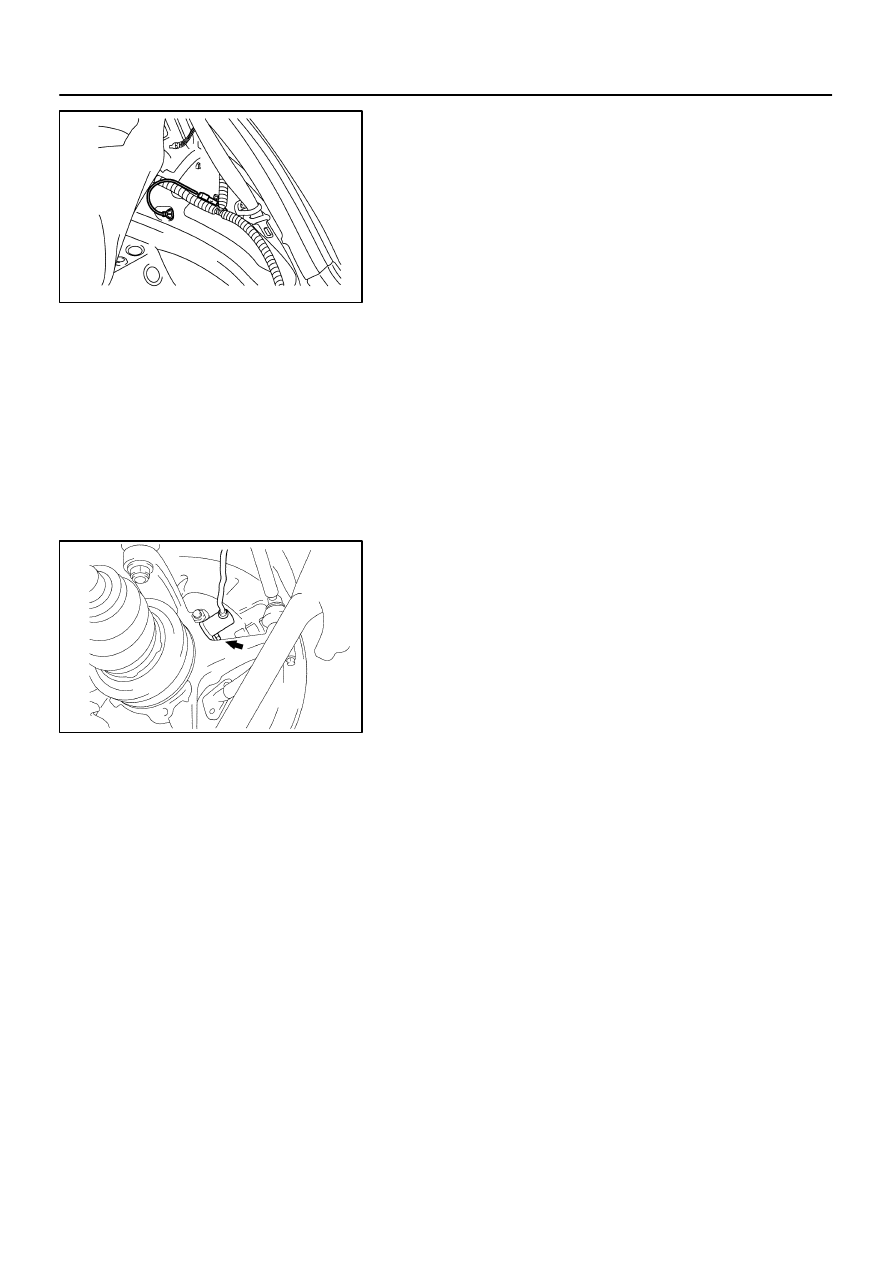

DISCONNECT SPEED SENSOR CONNECTOR

(a)

Remove the seat cushion and 2 headrests.

(b)

Remove the 4 bolts, 2 nuts and seatback.
Torque: 18 N·m (185 kgf·cm, 13 in.·lbf)

(c)

Disconnect the speed sensor connector and pull out the
sensor wire harness with the grommet.

2.

REMOVE SPEED SENSOR

(a)

Remove the clamp bolt holding the sensor wire harness
to the suspension arm No. 1.
Torque: 5.0 N·m (51 kgf·cm, 44 in.·lbf)

(b)

Remove the clamp nut holding the sensor wire harness
to the body.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(c)

Remove the sensor installation bolt and speed sensor
from the axle carrier.
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)
