BR0JE–03

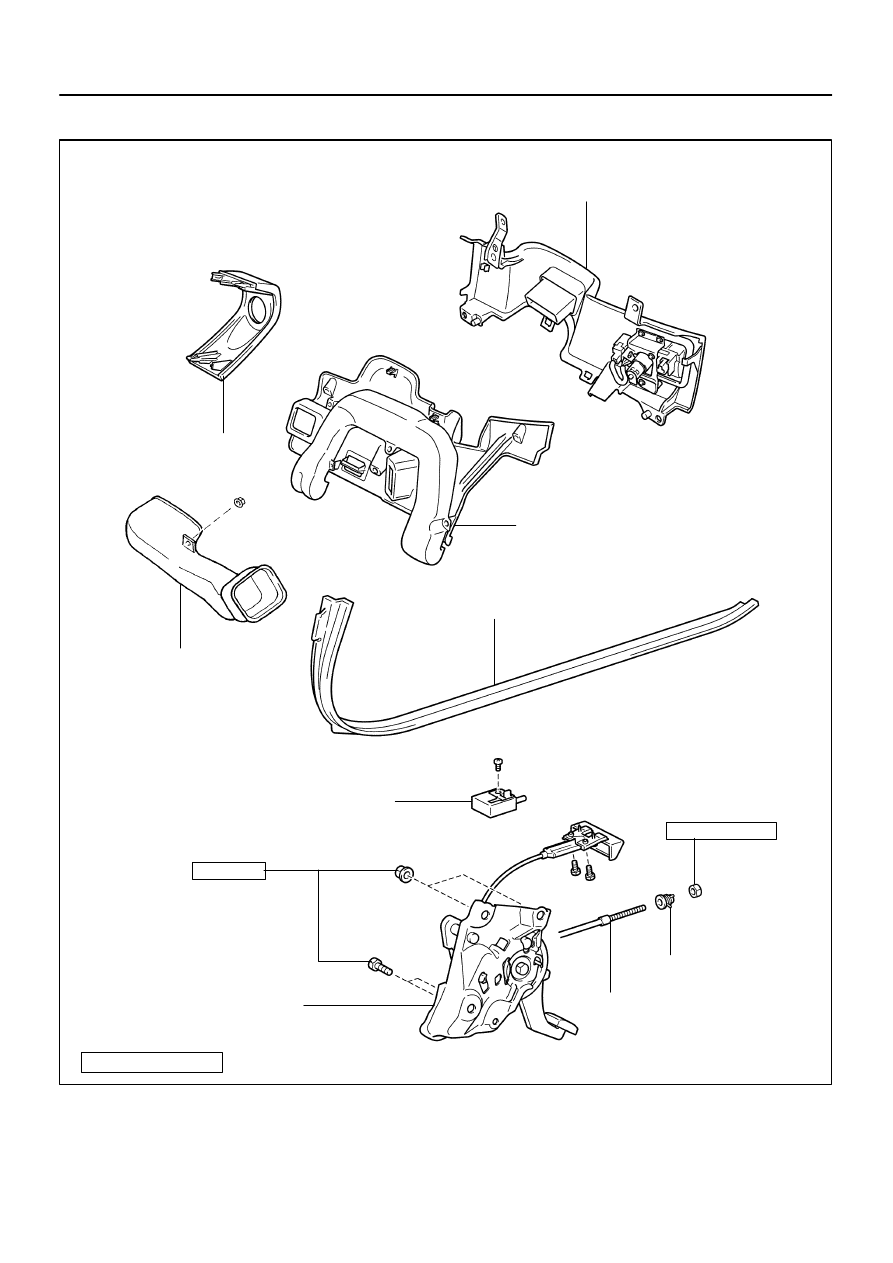

F07241

No. 1 Safety Pad

No. 1 Under Cover

Front Door Scuff Plate

End Pad

Parking Brake Switch

Parking Brake Pedal
Assembly

Parking Brake Wire

Adjusting Nut

Lock Nut

13 (130, 9)

5.4 (55, 48 in.·lbf)

No. 7 Heater to Register Duct

N·m (kgf·cm, ft·lbf)

: Specified torque

BR–12

–

BRAKE

PARKING BRAKE PEDAL

2120

COMPONENTS

BR0JF–03

–

BRAKE

PARKING BRAKE PEDAL

BR–13

2121

REMOVAL

1.

REMOVE FRONT DOOR SCUFF PLATE, END PAD, NO. 1 UNDER COVER, NO. 1 SAFETY PAD
AND NO. 7 HEATER TO REGISTER DUCT (See page

BO–88

)

2.

REMOVE PARKING BRAKE PEDAL ASSEMBLY

(a)

Disconnect the parking brake switch connector.

(b)

Remove the 2 bolts, and disconnect the parking brake release lever from the safety pad.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(c)

Remove the lock nut and the adjusting nut from the parking brake wire.

(d)

Remove the parking brake wire.

(e)

Remove the 2 bolts, 2 nuts and parking brake pedal assembly.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)

3.

REMOVE PARKING BRAKE SWITCH

Remove the screw and parking brake switch from the parking brake pedal assembly.

BR0JG–02

BR–14

–

BRAKE

PARKING BRAKE PEDAL

2122

INSTALLATION

Installation is in the reverse order of removal (See page

BR–13

).

HINT:
After the installation, check and adjust parking brake pedal travel (See page

BR–11

).

BR0JH–05

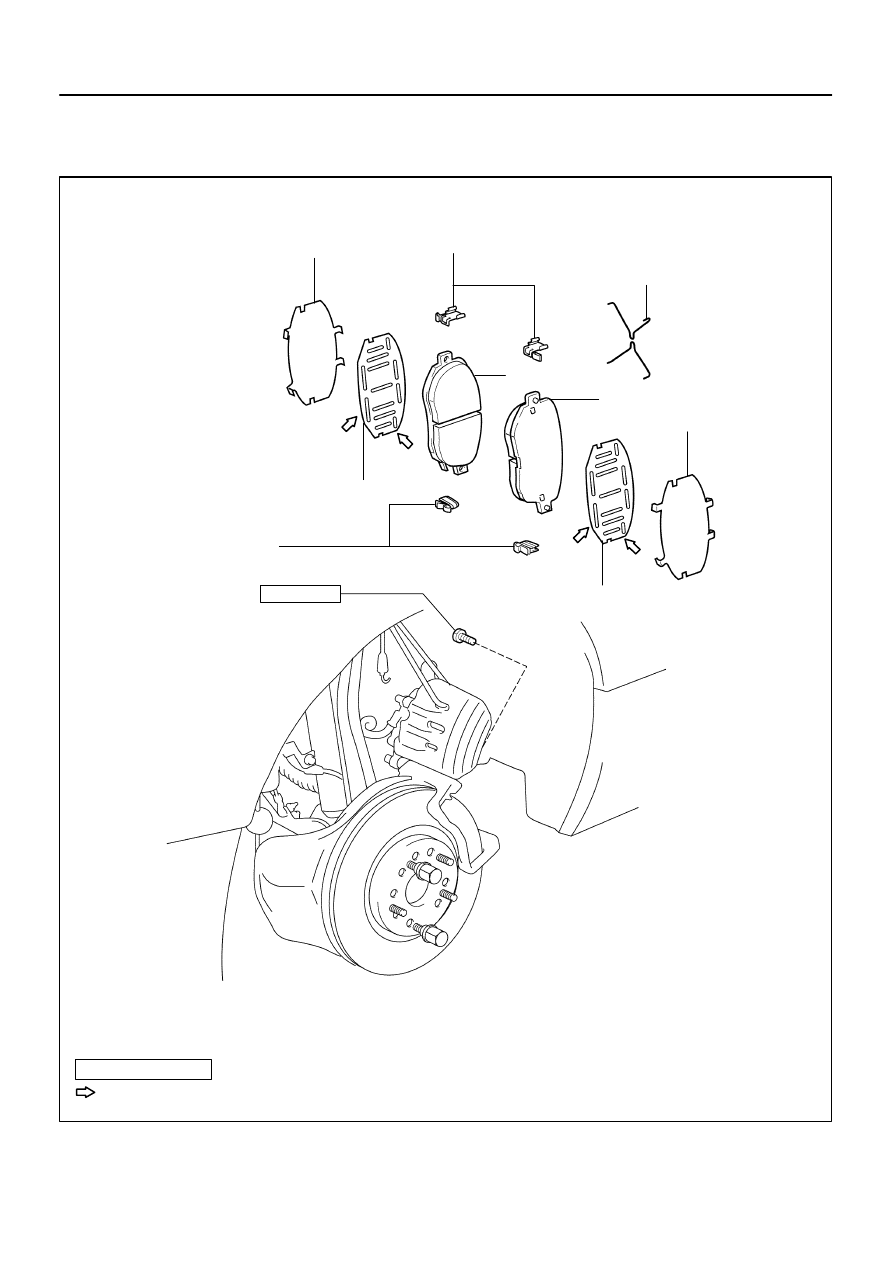

F01622

Anti–squeal Shim

Pad Support Plate

Anti–squeal Spring

Inner Pad

Outer Pad

Anti–squeal Shim

Inner Anti–squeal Shim

Pad Support Plate

Inner Anti–squeal Shim

34 (350, 25)

N·m (kgf·cm, ft·lbf) : Specified torque

Disc brake grease

–

BRAKE

FRONT BRAKE PAD

BR–15

2123

FRONT BRAKE PAD

COMPONENTS
