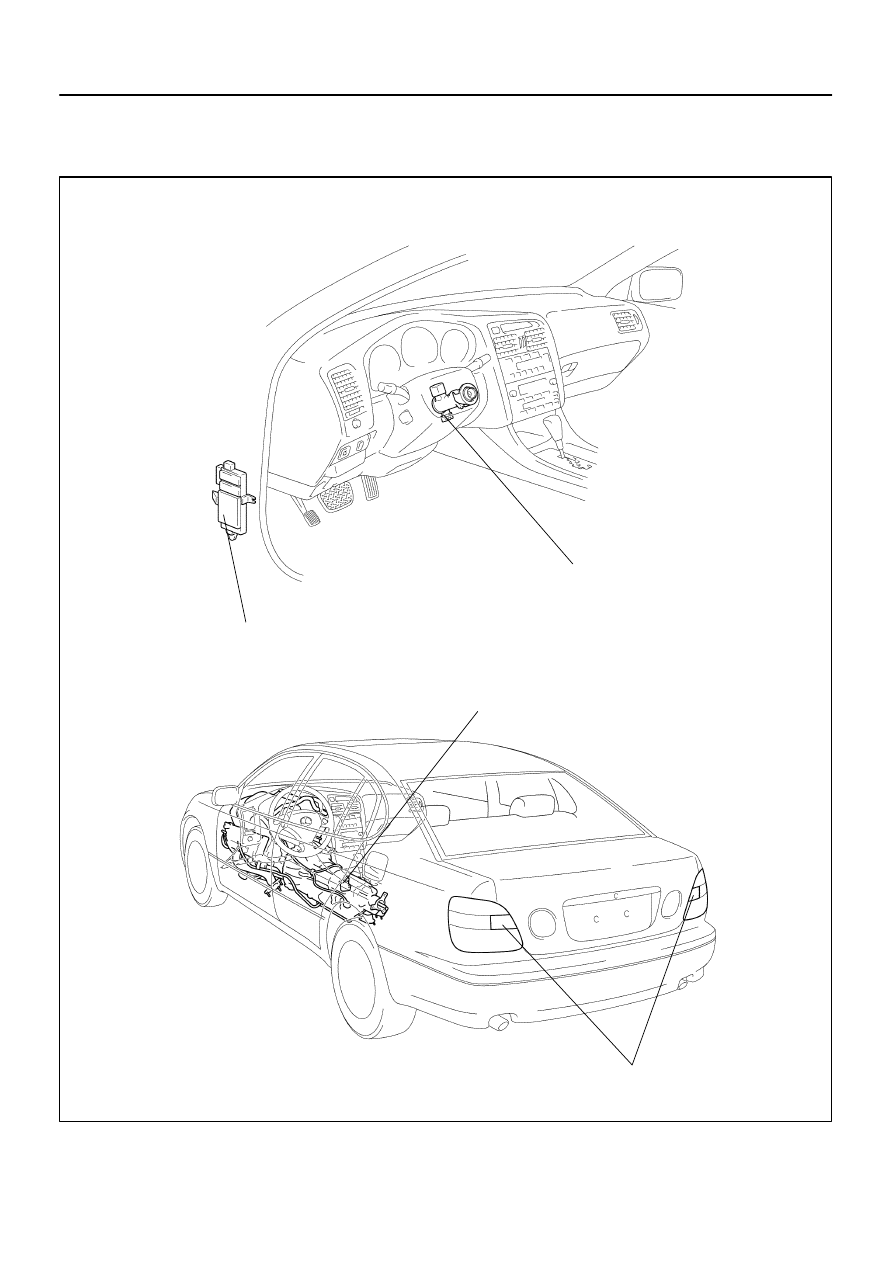

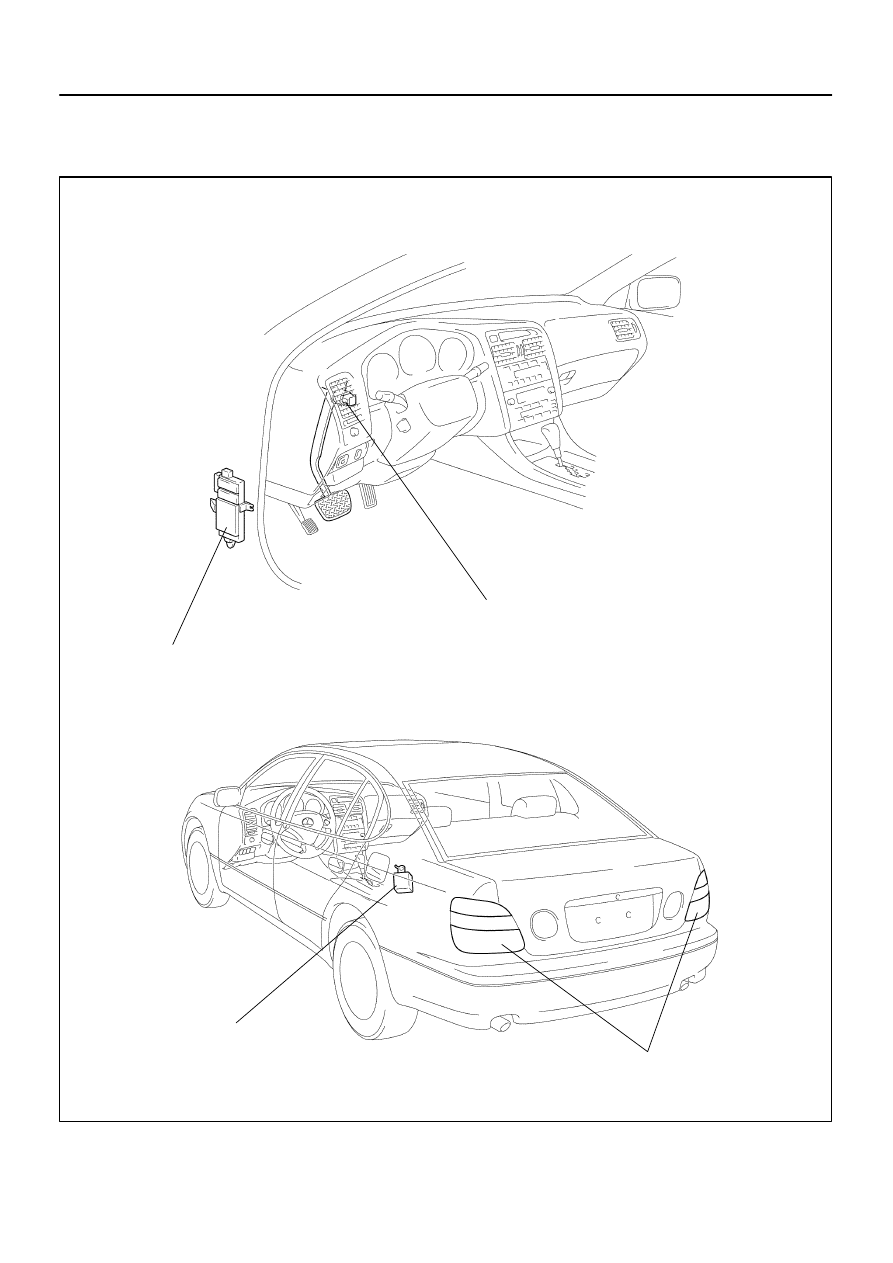

INTERIOR LIGHT SYSTEM
2367
20.
INSPECT GLOVE COMPARTMENT LIGHT CIRCUIT

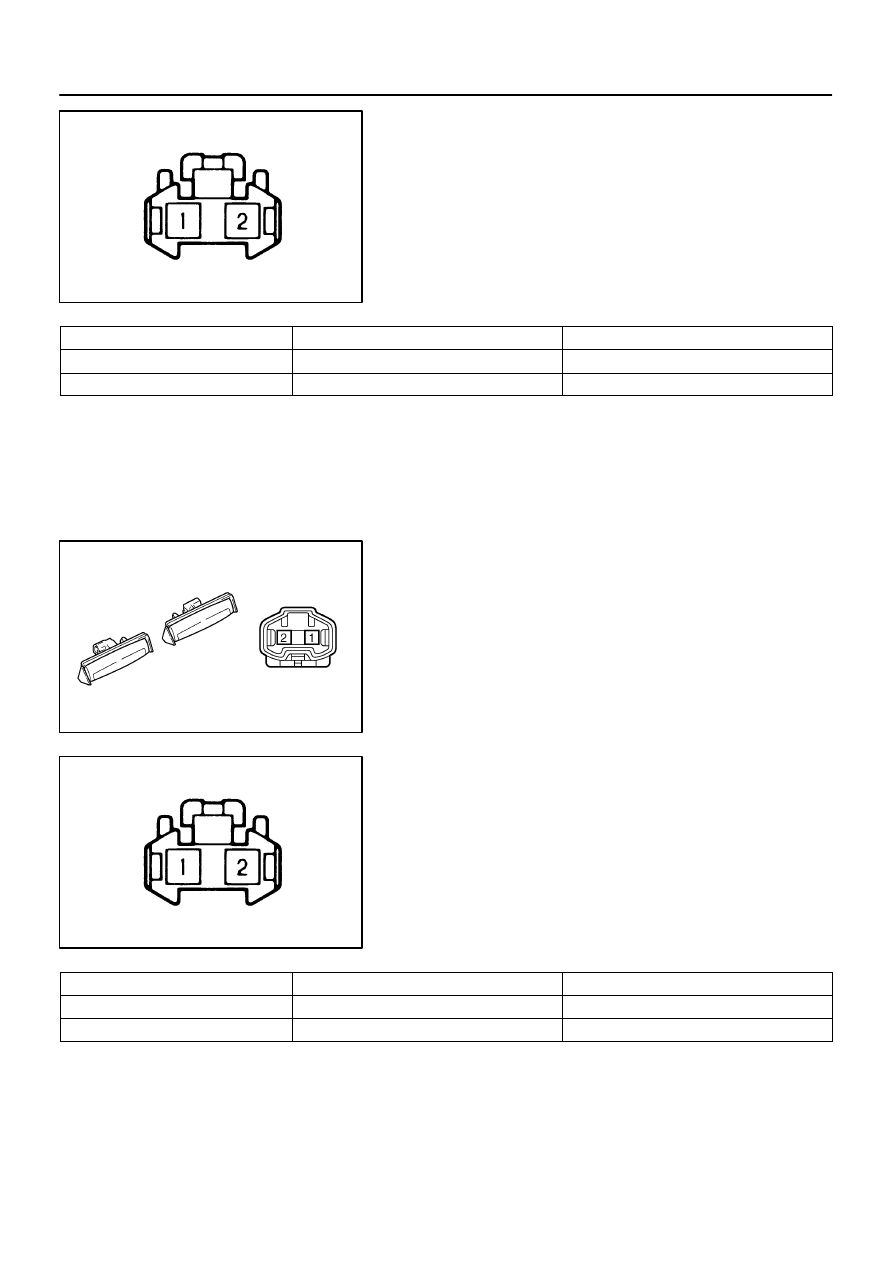

Disconnect the connector from the light and inspect the con-
nector on the wire harness side, as shown.
Tester connection
Condition
Specified condition
2 – Ground
Glove compartment door courtesy switch ON
Continuity
1 – Ground
LIght control switch in TAIL or HEAD
Battery positive voltage
If circuit is not as specified, inspect power source or wire har-
ness.
21.
INSPECT LICENCE PLATE LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between termi-
nals.
If continuity is not as specified, replace the light assembly or
bulb.
22.
INSPECT LICENCE PLATE LIGHT CIRCUIT
Disconnect the connector from the light and inspect the con-
nector on the wire harness side, as shown.
Tester connection
Condition
Specified condition
1 – Ground
Constant
Continuity
2 – Ground
Light control switch TAIL or HEAD
Battery positive voltage
If circuit is not as specified, inspect power source or wire har-
ness.
