Lexus GS300/400 (2000 year). Manual - part 49
N13471
1
2
I04152
Wire Harness Side
–
BODY ELECTRICAL

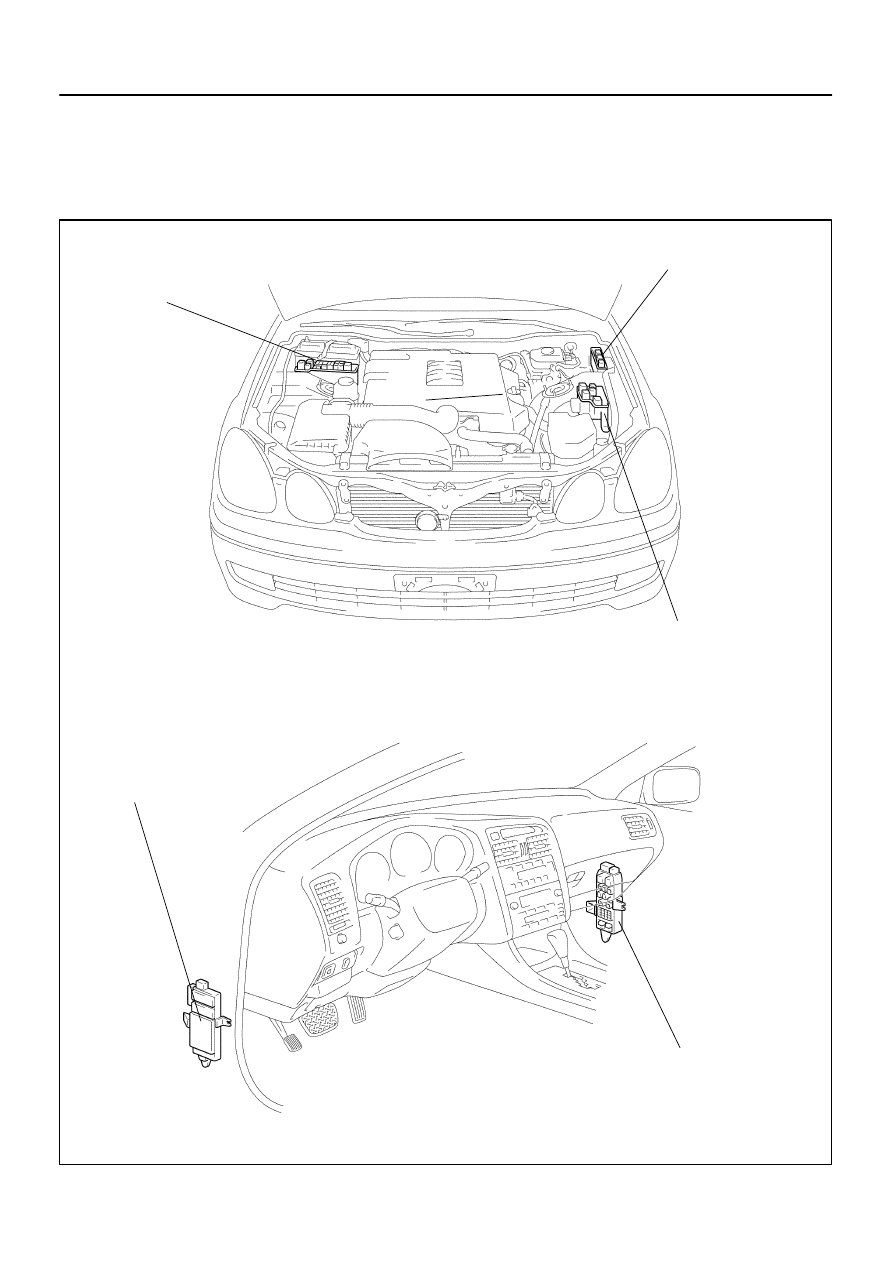

WIRELESS DOOR LOCK CONTROL SYSTEM
BE–159
2460
HINT:
When the temperature of the battery is low, the judge can
not be made correctly.
When the outcome of the test is less than 2.1 V, conduct
the test again after leaving the battery in the place at 18
°
C for more than 30 minutes.
By auto power off function, the voltage becomes no load
voltage (more than 2.5 V) condition 0.8 seconds after the
switch was pressed.
Make sure to read the voltage before of it.
High voltage might be shown 1 to 2 times after leaving the
battery, judge should be made with the voltage shown at
the 3rd time or later.
(g)
Disconnect the lead.
(h)
Set the battery (lithium battery) in the transmitter.
(i)
Install the cover, so that the O–ring is not distorted or
slipped off.
(j)
Using a screwdriver, tighten the screws.
3.

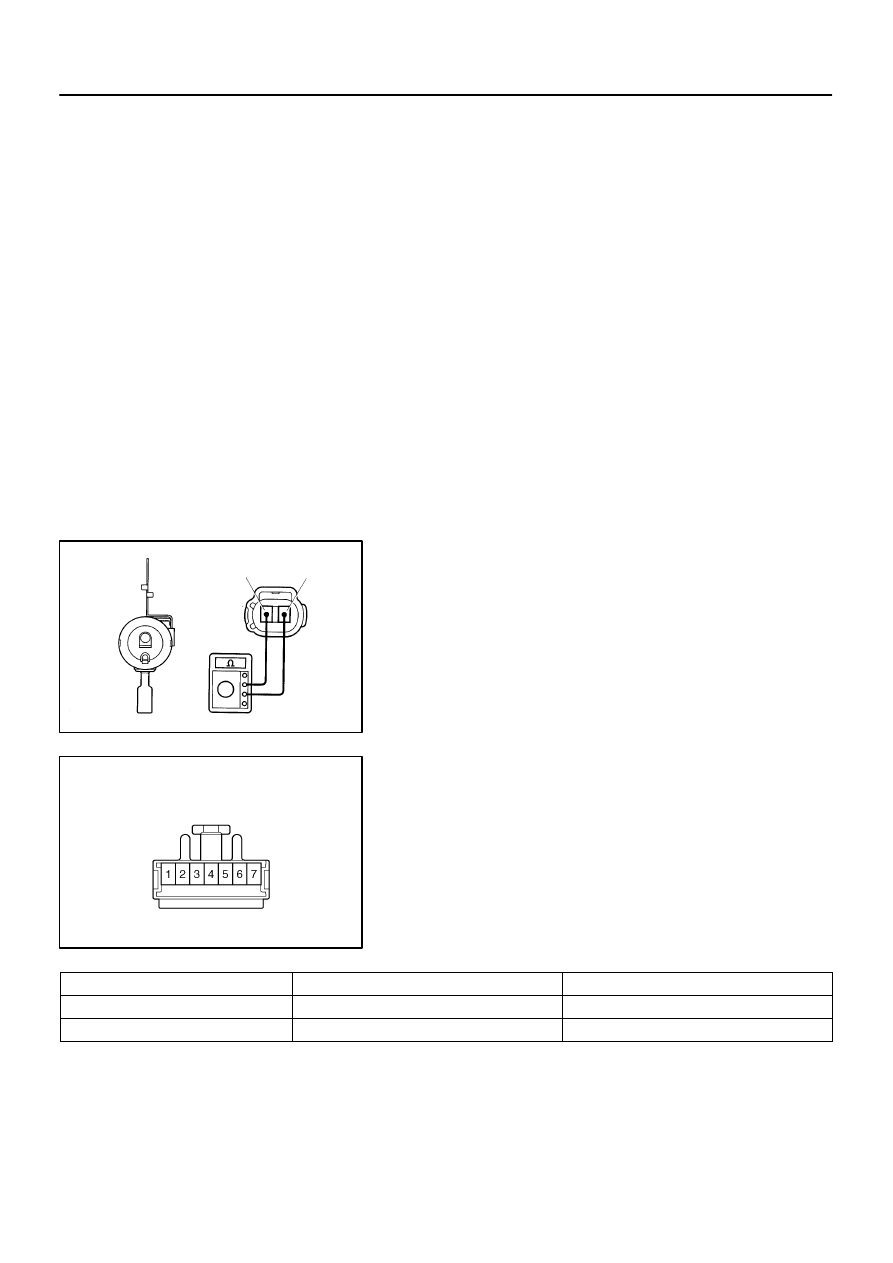

INSPECT WIRELESS DOOR LOCK BUZZER OPERA-
TION
Connect the positive (+) lead from the ohmmeter to terminal 1
and the negative (–) lead to terminal 2, and measure resistance
of approx. 1 k
Ω
.
If resistance is not as specified, replace the buzzer.
4.
INSPECT WIRELESS DOOR LOCK BUZZER CIRCUIT
(See page
5.
INSPECT WIRELESS DOOR LOCK CONTROL RE-
CEIVER CIRCUIT
(See page

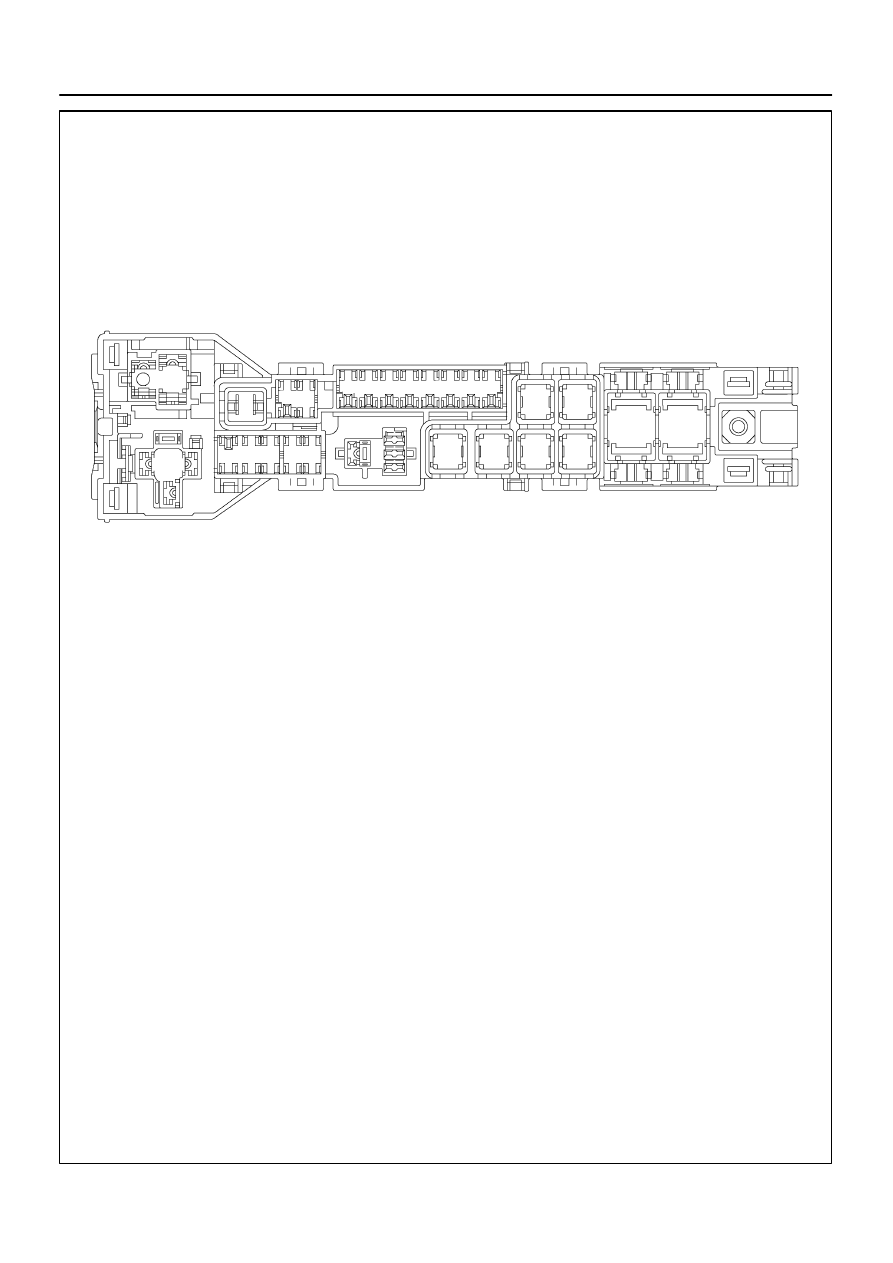

Connector disconnected:
Disconnect the connector from the receiver and inspect the
connector on the wire harness side, as shown.
Tester connection
Condition
Specified condition
1 – Ground
Constant
Continuity
7 – Ground
Constant
Battery positive voltage
If the circuit is not as specified, inspect the circuits connected
to other parts.
