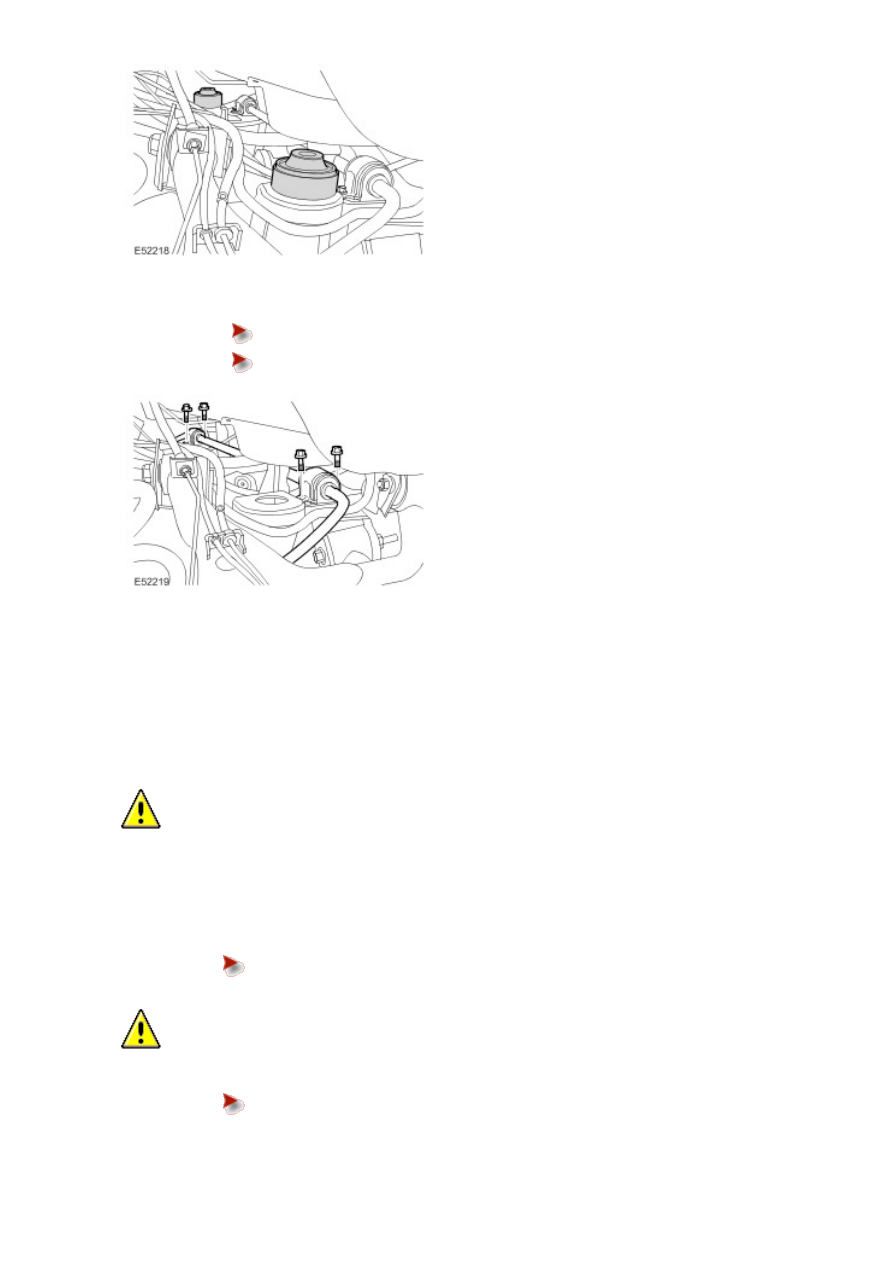

Remove the 4 bolts.



Remove the 2 clamps.

12 . NOTE:



Note the fitted position.

With assistance, remove the stabilizer bar and actuator assembly.

Installation

1 .

  CAUTION: Make sure the stabilizer bar is correctly installed.

With assistance, install the stabilizer bar and actuator assembly.

2 . Install the stabilizer bar and actuator assembly bushings.

3 . Install the stabilizer bar clamps.



Tighten the 4 retaining bolts to 62 Nm (46 lb.ft).

4 .

  CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.

Connect the RH stabilizer bar link.



Install a new nut and tighten to 115 Nm (85 lb.ft).

5

  CAUTION: Make sure the actuator fluid lines are not damaged or kinked during removal or

installation.

  CAUTION: Care must be taken to avoid damage to the plastic spacer washers and O-ring seals

during installation of the fluid lines to the actautor.

NOTE:



Some fluid spillage is inevitable during this operation.

Connect the fluid lines to the actuator.



Clean the component mating faces.



Remove the blanking caps from the ports.



Install new plastic spacer washers and O-ring seals.



Tighten the 2 bolts to 22 Nm (16 lb.ft).

6 . Bleed the rear of the Dynamic Response system using T4.

7 .

  CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.

Connect the LH stabilizer bar link.



Install a new nut and tighten to 115 Nm (85 lb.ft).

8 . Install the body mounts.

9 . Lower the body.



Remove the stands.

10 . Install the body mount retaining bolts.



Tighten the 8 retaining bolts to 133 Nm (98 lb.ft).

11 . Install the wheels and tires.



Tighten the wheel nuts to 140 Nm (103 lb.ft).

12 . Lower the vehicle.

13 . Install the spare wheel and tire.

14 . Install the rear bumper cover.

For additional information, refer to

Rear Bumper Cover (76.22.74)

Maintenance Schedules - Diesel Engines

Torque Specifications

Description

Nm lb-ft

Seat frame fixing Torx screws 40

30

Seat belt fixing Torx screws

40

30

Road wheel nuts

140 103

  CAUTION: Unless stated otherwise, the following operations must be carried out at every service interval.

Note that the A and B Services listed on the Maintenance Check Sheet, applicable to vehicles operating under
arduous conditions, vary both in period and mileage (kilometres) to the intervals specified for those vehicles
operating under normal conditions. Reference must therefore, always be made to the 'Arduous Conditions
Maintenance Check Sheet' for vehicles operating under these conditions.

Under Bonnet View - 2.7 Litre

1. Brake fluid reservoir (RH drive illustrated - LH drive on opposite side)
2. Engine oil filler cap
3. Dynamic Response fluid reservoir
4. Engine oil level indicator
5. Windshield washer reservoir
6. Coolant expansion tank
7. Power steering fluid reservoir

Maintenance Operations

Seats and Safety Belts

1. Carefully remove the trim panels covering the seat frame fixing Torx screws.

2. Check that the front seat frame fixing Torx screws are secure and that the seat frames show no signs of movement.

3. Reinstall the trim panels on completion.

Rear seat frame front fixings - Every 2 years or 30,000 miles (48,000 km)

4. Check that the rear seat frame front fixings are secure and that the seat frames show no signs of movement.
