Range Rover 2. Electrical Manual - part 273

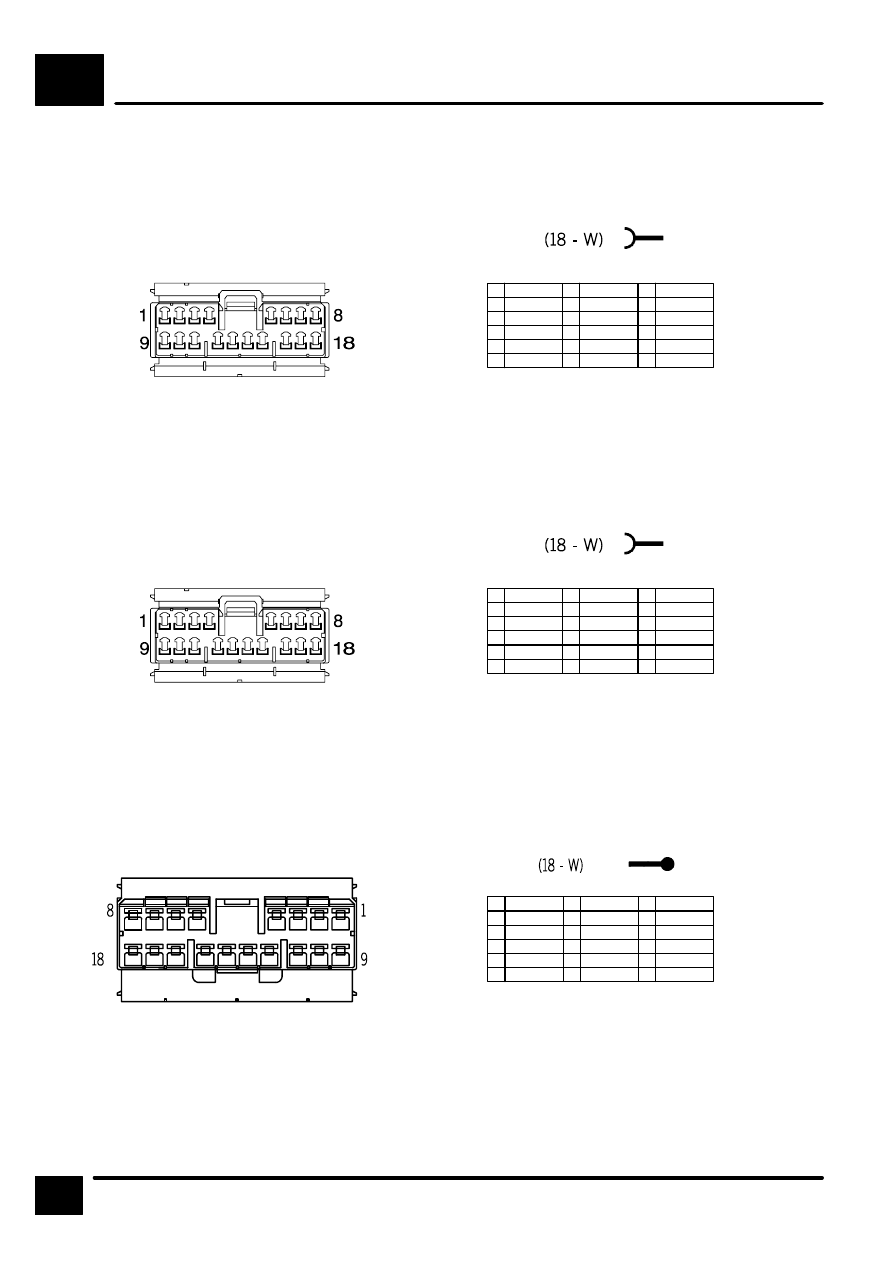

CONNECTOR VIEWS

Z6

48

CA3C0519L

C0519L

1

WG

2

BG

3

UY

7

8

WB

12

UR

4

W

9

U

13

RG

14

RG

17

WY

18

BW

5

10

RB

15

RG

6

BY

11

RB

16

With Memory

CA3C0519

R

C0519R

1

WG

2

BG

3

UY

7

8

WB

12

UR

4

W

9

U

13

RG

14

RG

17

WY

18

BW

5

10

RB

15

RG

6

BY

11

RB

16

With Memory

CA3C0519L

C0519L

Without Memory

1

B

2

W

3

B

7

Y

8

WB

12

BS

4

B

9

W

13

G

14

UG

17

YB

18

BW

5

O

10

BP

15

BG

6

SR

11

16

WG

CONNECTOR VIEWS

Z6

49

CA3C0519R

C0519R

Without Memory

1

B

2

W

3

B

7

Y

8

WB

12

BS

4

B

9

W

13

G

14

UG

17

YB

18

BW

5

O

10

BP

15

BG

6

SR

11

16

WG

CA3C0520

C0520

1

PY

2

B

CA3C0522

C0522

1

YU

2

NO

CONNECTOR VIEWS

Z6

50

CA3C0523

C0523

1

YW

2

NO

CA3C0524

C0524

1

YB

2

NO

CA3C0525

C0525

1

YN

2

NO

CONNECTOR VIEWS

Z6

51

CA3C0526

C0526

1

YG

2

NO

CA3C0527

C0527

1

YS

2

NO

CA3C0528

C0528

1

YR

2

NO
