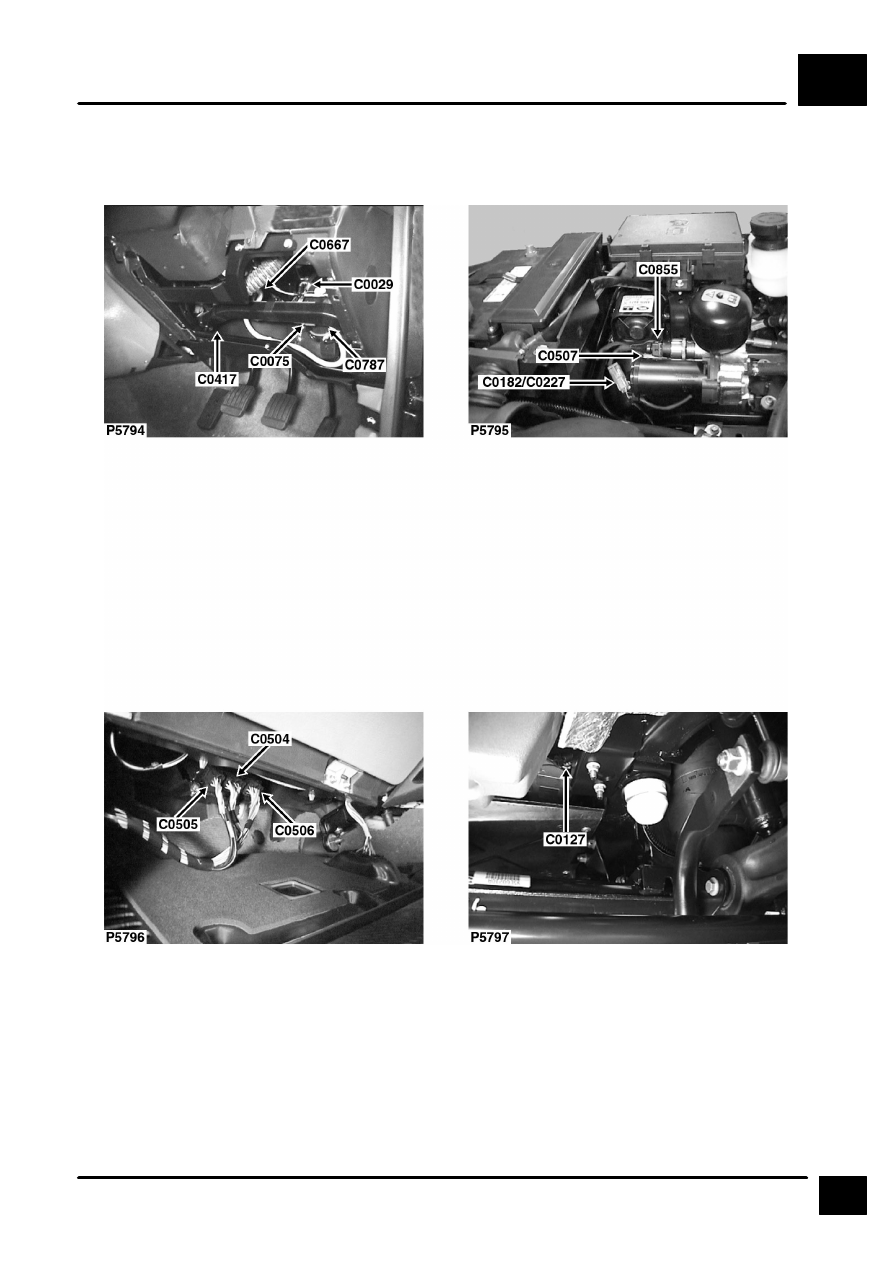

COMPONENT LOCATION VIEWS

Z5

34

133. beneath LH front seat
C1401 (3-W)
C1402 (2-W)
C1429 (12-S)

134. beneath RH front seat
C1403 (3-W)
C1404 (2-W)
C1430 (12-S)

135. RH rear of engine compartment
C0203 (25-B)
C0448 (25-B)

136. beneath engine compartment fuse box

Diesel
C0577 (8-B)
E0556D

COMPONENT LOCATION VIEWS

Z5

35

137. RH front of engine compartment
C0215 (12-B)
C0411 (55-B)

138. LH rear of engine
C0168D (3-B)
C0178 (1- )
C0823 (1- )

139. LH rear of engine compartment
C0209 (6-B)
C0216 (3-B)
C0925 (3-B)

140. LH side of engine
C0196D (2-B)
C0478 (1- )
C0479 (1- )
C1500 (1- )
C1501 (1- )

COMPONENT LOCATION VIEWS

Z5

36

REV: 08/99

143. LH side of engine
C0476 (1- )
C0477 (1- )

144. rear RH side of engine compartment
C0500 (1-W)
C0501 (13-B)
C0652 (2-B)

141. LH rear of engine compartment
C0272 (2-B)

142. LH side of engine
C0183 (1- )
C0187D (2-B)
C0226 (1- )
C1503 (2-B)

COMPONENT LOCATION VIEWS

Z5

37

   # & )&' '  $ '




  & )&' '  $ # #

   # !$)$*




  $(($" $ # #  '
