AIR SUSPENSION

S1

10

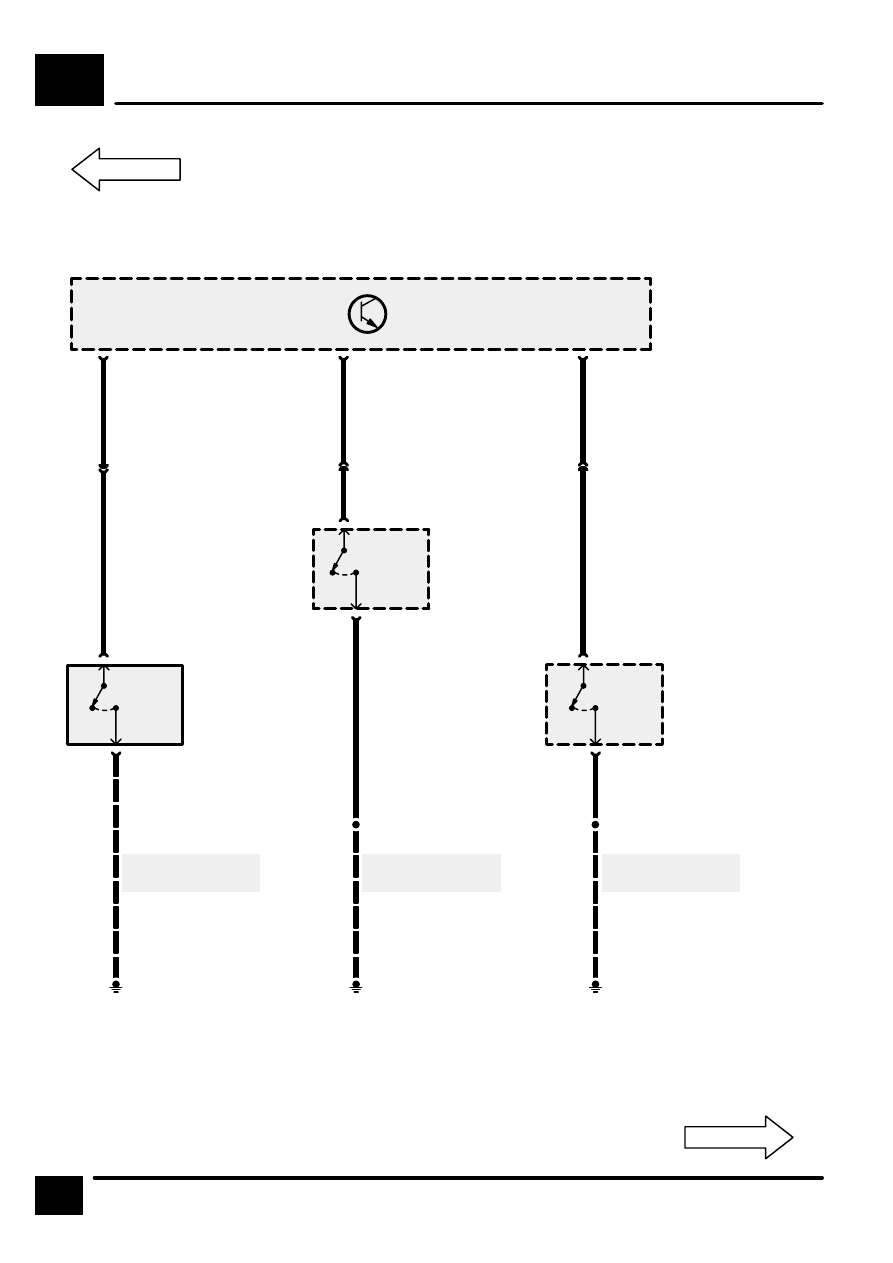

CIRCUIT DIAGRAM

REV: 11/99

C1285

3

9

C0697

C0789

C0616

2

X170
Tailgate Switch

[0]

Close

[1]

Open

[1]

C0616

1

E0565

See Ground
Distribution

PY

W

C1286

4

3

C1360L

C1386L

C0302L

4

M149
Left Rear Door
Lock Actuator

[1]

Door Ajar
Switch

0

[1]

C0302L

1

E0809

See Ground
Distribution

PW

S701L

B

C1285

13

3

C1369

C1386R

C0302R

6

M150
Right Rear Door
Lock Actuator

[1]

Door Ajar
Switch

0

[1]

C0302R

3

E0807

See Ground
Distribution

PW

S701R

B

Z238
Body Electrical
Control Module
(BECM)

C1585

(MY 2000)

(MY 1999)

C1585

(MY 2000)

(MY 1999)

[0]

AIR SUSPENSION

S1

11

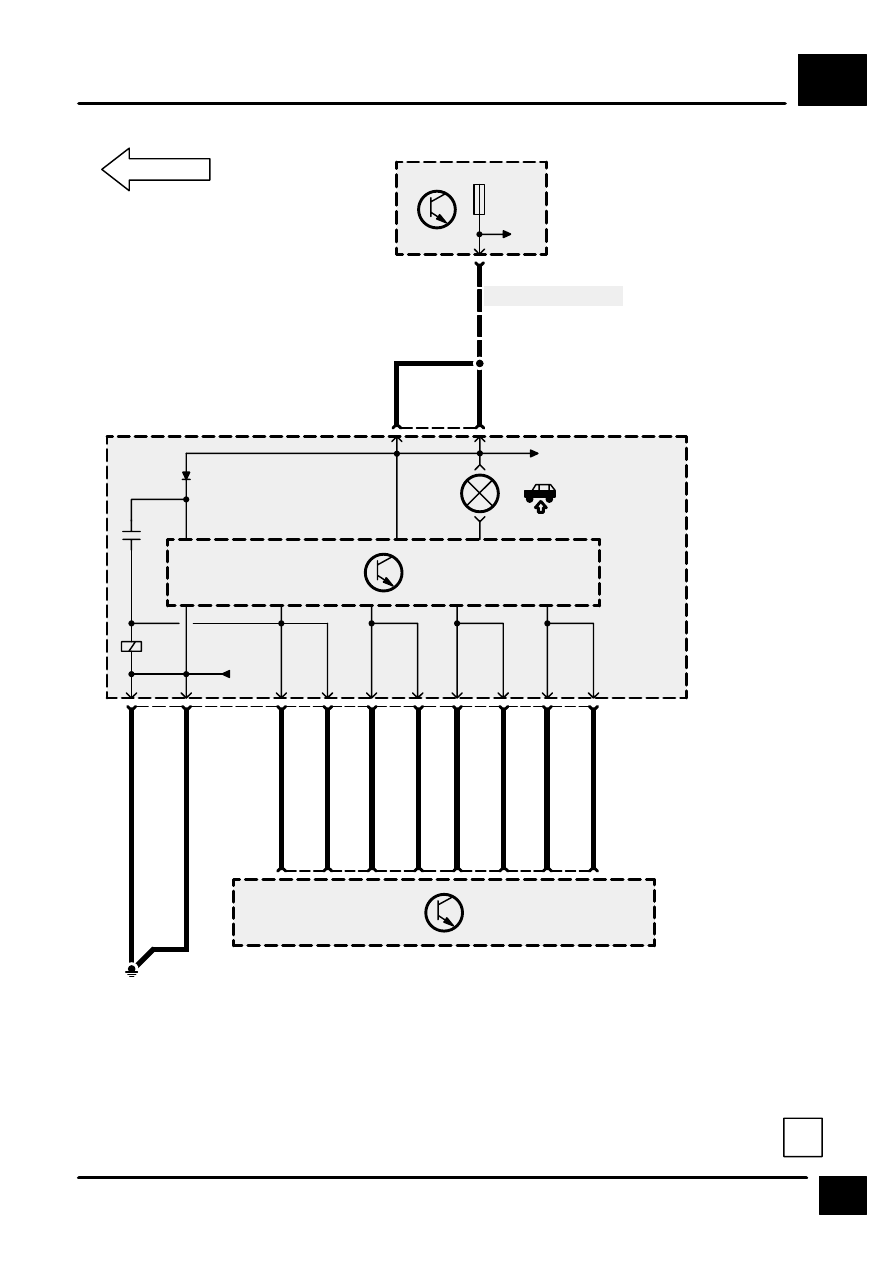

CIRCUIT DIAGRAM

30

F 1

10 A

Z238
Body Electrical
Control Module
(BECM)

7

C1276

See Fuse Details

S205

P

4

C0233

14

P

Z142
Instrument
Cluster

[15] Control Unit

and
Message
Centre
Display

15

C0233

5

13

3

12

2

18

8

17

7

LG

3

C1280

LG

11

OG

9

OG

1

RG

10

RG

2

BG

5

BG

14

B

B

E0564

Z238
Body Electrical
Control Module
(BECM)

[15]

SECURITY/CENTRAL LOCKING

S3

CIRCUIT OPERATION

1

CIRCUIT OPERATION

Basic Overview – Central Door Locking

All new Range Rover models feature Central Door
Locking.

All four doors and the tailgate can be locked and
unlocked through operation of the central locking
system, which can be operated by:

D

Pressing down, or lifting up, either of the front
door sill buttons.

D

Turning the key clockwise (to lock), or turning the
key anti–clockwise (to unlock), with the key in
the drivers door lock.

D

Pressing the “lock” button, or pressing the
“unlock” button, on the remote handset.

The new Range Rover is also equipped with a
“Superlocking” feature. When the vehicle is
“Superlocked”, it is impossible to unlock any of the
doors from inside the vehicle by lifting any of the sill
buttons.

Basic Overview – Alarm

All new Range Rovers are equipped with a
sophisticated integrated security system.

The alarm system offers the following forms of
protection:

D

Perimetric protection against unauthorised open-
ing of any of the hinged “slam” panels.

D

Engine crank inhibit against unauthorised engine
crank.

D

Electronic engine immobilisation against unau-
thorised engine start.

D

Volumetric protection against intrusion into the
passenger compartment.

Basic Overview – Lazy Locking

An additional feature of the new Range Rover’s
security system is Lazy Locking.

Lazy Locking enables the driver to close any open
glass panel (window or sunroof) from outside the car
using either the key or the remote handset.

Lazy Locking can be carried out either when locking
or super locking the vehicle, or when the vehicle is
already in a locked state.

N.B. Activation of a lazy locking sequence will be
dependent on market requirements.

General

The vehicle locking and security system comprises
the following components:

D

“C” type latches on the passenger doors incorpo-
rating central door locking, superlocking and
slam locking facilities.

D

An external key barrel on the driver’s door, allow-
ing central door locking, superlocking and
unlocking, with mechanical override via key
(excluding superlocking) in the event of a power
failure.

D

Separately controlled central door locking
actuators on tailgate and fuel filler flap.

D

Ultrasonic movement detector, located over the
LH “B” post.

D

Passive Immobilisation Coil (Z270) (Not on all
vehicles).

D

Under bonnet mounted alarm klaxon (Not on all
vehicles).

D

Battery Backed Up Alarm Sounder (Z272) (Not
on all vehicles).

D

Radio Frequency remote key allowing locking,
superlocking, unlocking and lazy locking.

D

Inertia switch allowing unlocking in the event of a
crash.

D

Security LED to indicate the “alarm active” state.
