Range Rover 2. Electrical Manual - part 74





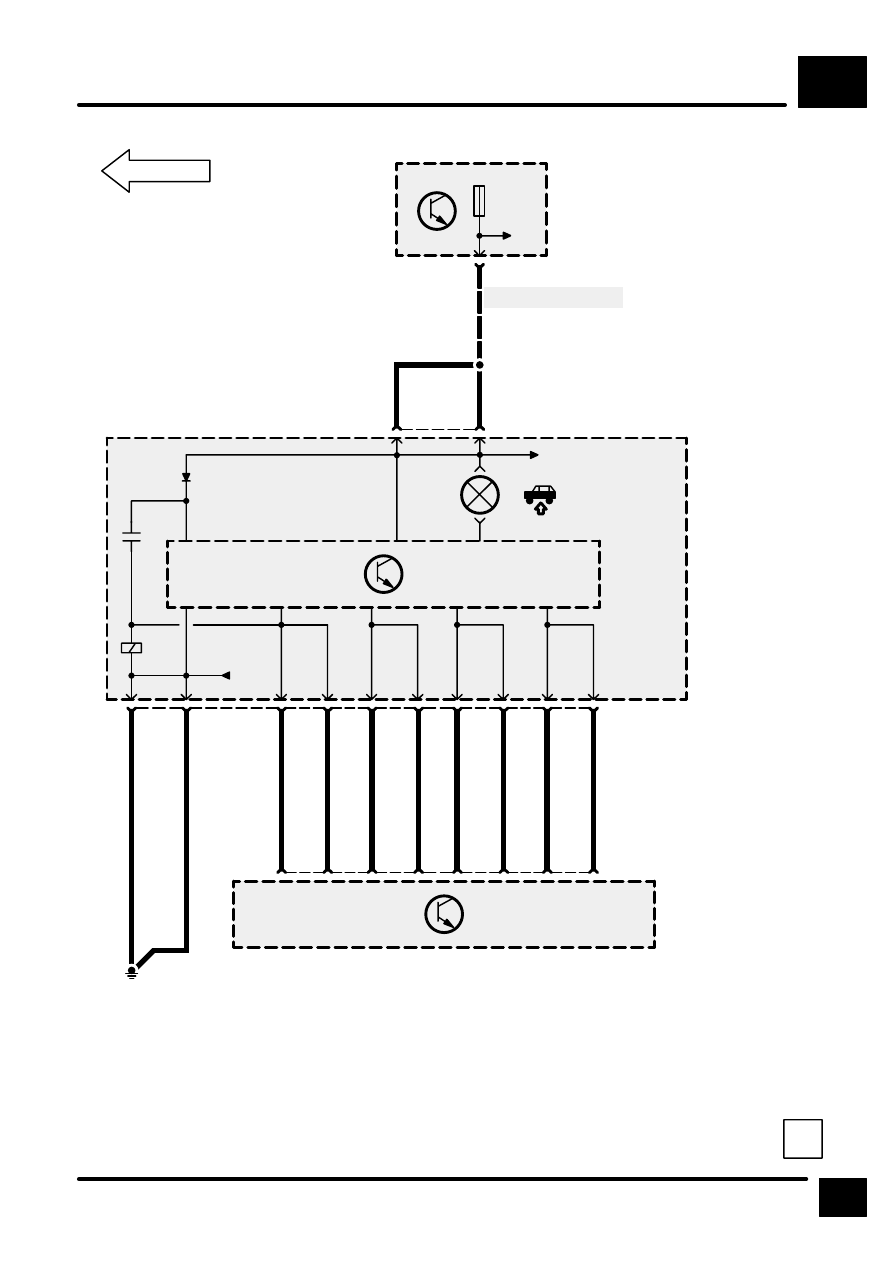

AIR SUSPENSION

S1

11

CIRCUIT DIAGRAM

30

F 1

10 A

Z238
Body Electrical
Control Module
(BECM)

7

C258

See Fuse Details

S205

P

4

C242

14

P

Z142
Instrument
Cluster

[15] Control Unit

and Mess-
age Centre
Display

15

C242

5

13

3

12

2

18

8

17

7

LG

3

C256

LG

11

OG

9

OG

1

RG

10

RG

2

BG

5

BG

14

B

B

E254

Z238
Body Electrical
Control Module
(BECM)

[15]

SECURITY/CENTRAL LOCKING

S3

CIRCUIT OPERATION

1

CIRCUIT OPERATION

Basic Overview – Central Door Locking

All new Range Rover models feature Central Door
Locking.

All four doors and the tailgate can be locked and
unlocked through operation of the central locking
system, which can be operated by:

D

Pressing down, or lifting up, either of the front
door sill buttons.

D

Turning the key clockwise (to lock), or turning the
key anti–clockwise (to unlock), with the key in
the drivers door lock.

D

Pressing the “lock” button, or pressing the “un-
lock” button, on the remote handset.

The new Range Rover is also equipped with a
“Superlocking” feature. When the vehicle is
“Superlocked”, it is impossible to unlock any of the
doors from inside the vehicle by lifting any of the sill
buttons.

Basic Overview – Alarm

All new Range Rovers are equipped with a
sophisticated integrated security system.

The alarm system offers the following forms of
protection:

D

Perimetric protection against unauthorised open-
ing of any of the hinged “slam” panels.

D

Engine crank inhibit against unauthorised engine
crank.

D

Electronic engine immobilisation against unau-
thorised engine start.

D

Volumetric protection against intrusion into the
passenger compartment.

Basic Overview – Lazy Locking

An additional feature of the new Range Rover’s
security system is Lazy Locking.

Lazy Locking enables the driver to close any open
glass panel (window or sunroof) from outside the car
using either the key or the remote handset.

Lazy Locking can be carried out either when locking
or super locking the vehicle, or when the vehicle is
already in a locked state.

N.B. Activation of a lazy locking sequence will be
dependent on market requirements.

General

The vehicle locking and security system comprises
the following components:

D

“C” type latches on the passenger doors incorpo-
rating central door locking, superlocking and
slam locking facilities.

D

An external key barrel on the driver’s door, allow-
ing central door locking, superlocking and un-
locking, with mechanical override via key (ex-
cluding superlocking) in the event of a power
failure.

D

Separately controlled central door locking actua-
tors on tailgate and fuel filler flap.

D

Ultrasonic movement detector, located over the
LH “B” post.

D

Passive Immobilisation Coil (Z270) (Not on all
vehicles).

D

Under bonnet mounted alarm klaxon (Not on all
vehicles).

D

Battery Backed Up Alarm Sounder (Z272) (Not
on all vehicles).

D

Radio Frequency remote key allowing locking,
superlocking, unlocking and lazy locking.

D

Inertia switch allowing unlocking in the event of a
crash.

D

Security LED to indicate the “alarm active” state.

SECURITY/CENTRAL LOCKING

S3

CIRCUIT OPERATION

2

Remote Handset Operation

The handset has two buttons, lock/superlock and
unlock. The operation is as follows:

D

Lock – single press of lock button.

D

Superlock – double press of lock button (within
1 second).

D

Unlock – single press of unlock button from
either locked or superlocked.

D

Lazy lock – press and hold lock button for more
than 1 second.

D

(NB Hold on second press if superlock required
as well.)

D

Lazy Seats – press unlock button for more than
1 second.

D

(NB This will unlock as well.)

Locking operation

There are six different ways to lock a new Range
Rover. These are:

D

Sill Locking

Depressing either of the front door sill buttons while
both front doors are closed will result in all the doors
and the tailgate locking, and the vehicle entering a
sill locked state.

In this state the alarm remains inactive (provides no
protection), with no LED flash.

Sill locking can be achieved independently of key–in
and ignition switch status.

D

Slam Locking:

Depressing either of the front door sill buttons with
either front door open, will result in all the doors and
the tailgate locking and the vehicle entering a slam
locked state.

Following a slam locking operation, the alarm will
enter the perimetric mode, engine crank will be
disabled and electronic engine immobilisation will be
activated.

Attempting to slam lock the vehicle with either the
key in the ignition, or the ignition on, will cause
unlocking of all the doors.

D

Key Locking

A single turn of the key towards the front of the
vehicle will result in all the doors and tailgate locking.

The alarm will enter the perimetric mode, engine
crank will be disabled and electronic engine
immobilisation will be activated.

D

Key Superlocking

A double turn of the key in a clockwise direction (i.e.
towards the front of the vehicle) within 2 seconds,
provided the doors, tailgate and bonnet are closed,
will result in all the doors being superlocked.

The alarm will enter the perimetric mode, engine
crank will be disabled and electronic engine
immobilisation will be activated.

D

Remote Locking

A single press of the lock button on the remote
handset will result in all the doors and the tailgate
locking.

The alarm will enter the perimetric mode, engine
crank will be disabled and electronic engine
immobilisation will be activated.

D

Remote Superlocking

A double press of the lock button on the remote
handset within 2 seconds, provided the doors,
tailgate and bonnet are closed, will result in all the
doors being superlocked (subject to ultrasonic look
around – see Ultrasonic Sensor).

Providing all the windows are closed, the perimetric
and volumetric alarm will be set. If all the windows
are not closed, then only the perimetric alarm will be
set.

Engine crank will be disabled and electronic engine
immobilisation will be activated.

SECURITY/CENTRAL LOCKING

S3

CIRCUIT OPERATION

3

Lazy Locking

Lazy locking can be carried out when either locking
or superlocking, or when the vehicle is already in a
locked state, by either holding the key turned to the
lock position or by holding the remote handset lock
button pressed for more than one second.

This will cause all the open windows to start closing
simultaneously. Closure of the windows will be
followed by closure of the sunroof.

Dependent upon market requirements, lazy locking
will either operate in one–shot mode, or in dead
man’s handle mode.

D

In one–shot mode, the windows and sunroof will
continue to close even after the key has been
released from the lock position, or the lock but-
ton on the remote handset has been released.

D

In dead man’s handle mode, closure of the win-
dows and sunroof will only continue for as long
as the key is held to the lock position, or the lock
button is pressed on the remote handset. In this
case, failure of any of the apertures to be fully
closed upon release of the key/button will result
in a mislock.

Mislock

A mislock condition is indicated by either two short
“beeps” from the alarm sounder, or by three short
flashes of the courtesy lights, depending on the
market legislation.

Partial Arming Of The Perimetric Alarm

If the perimetric alarm is armed with one (or more) of
the doors, or the tailgate, or the bonnet open, then
the remaining panels are all protected by the alarm.
If any of the open panels are subsequently closed,
then they too will be protected by the alarm.

Security LED

The security LED has two functions:

D

Firstly for the initial ten seconds after a lock re-
quest, it provides visual confirmation of the lock
status.

D

Secondly, after this confirmation period, it acts as
a deterrent to any theft attempt, (flashing at a
slower rate).

Volumetric Protection

Volumetric protection, (protection of the vehicle’s
interior), is provided by an Ultrasonic Sensor and
an Ultrasonic detector.

If the vehicle has been successfully superlocked with
the key, then provided all the windows are closed, a

single press on the remote transmitter lock button
will activate the ultrasonics. There is a 5 second
settling period before movement can be detected.
