SUPPLEMENTARY RESTRAINT SYSTEM

7

REPAIR

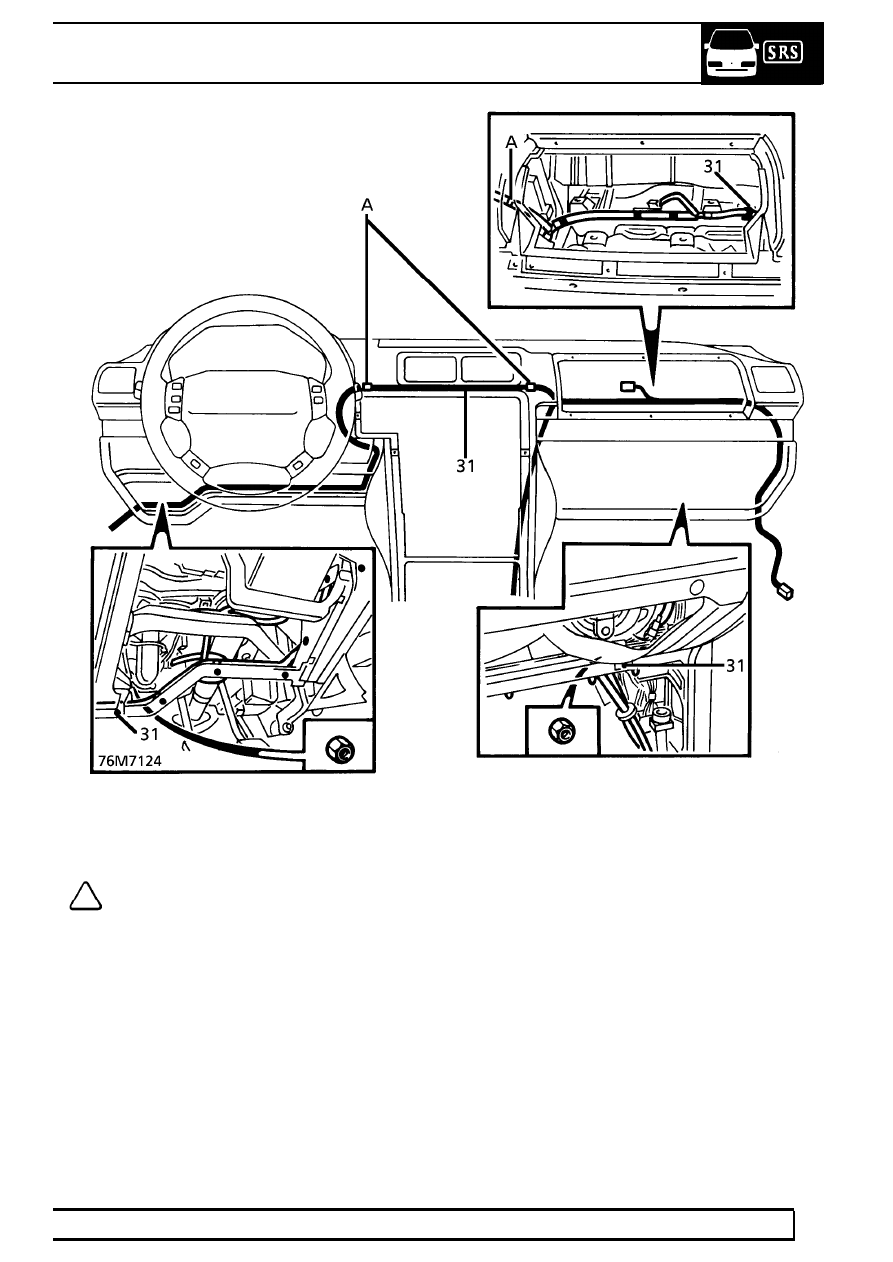

30. Disconnect drivers air bag module connector.

Release connector and harness from clips.

31. Release 13 clips securing SRS harness to fascia

frame.

NOTE: Due to restricted access, two outer
clips ’A’ securing harness above heater
unit may have to be cut. Ensure that

location holes are clear. Collect loose ends of
clips.

32. Release 3 clips securing fascia harness trunking

to passenger side fascia frame.

33. Remove nut securing lower end of each blower

assembly to fascia frame.

34. Route crash sensor ends of harness into

passenger air bag module space.

35. Feed SRS ECU connector into passenger air

bag module space.

36. Remove harness.

Refit

37. Position harness in passenger air bag module

space. Feed SRS ECU connector between
heater and fascia frame.

38. Route harness along transmission tunnel.

Secure harness clips.

39. Connect multiplug to ECU.
40. Fit sound deadener pad to transmission tunnel.
41. Route crash sensor ends of harness correctly

around fascia frame and behind blower
assemblies.

42. Secure harness clips to fascia frame.
43. Position fascia harness trunking. Secure with

clips.

44. Secure blower assemblies to fascia frame with

nuts.

45. Connect drivers air bag module, secure

multiplug and harness to trunking.

46. Connect SRS multiplug to instrument pack.

75

SUPPLEMENTARY RESTRAINT SYSTEM

NEW RANGE ROVER

8

REPAIR

47. Route SRS crash sensor harnesses through

bulkhead into wheel arches, locate harness
grommets.

48. Secure harness clips beneath wheel arches.
49. Route harnesses through valances into engine

bay. Locate harness grommets.

50. Raise battery tray and air cleaner for access.

Route crash sensor harnesses. Secure harness
clips.

51. Connect multiplugs to crash sensors.
52. Secure battery tray and air cleaner with bolts.
53. Connect SRS harness multiplug to main

harness. Secure multiplug to bracket.

54. Fit air cleaner baffle beneath LH wheel arch.

Secure with trim studs.

55. Fit wheel arch liners.

See CHASSIS AND

BODY, Repair.

56. Position drivers side lower closing panel.

Connect footwell lamp multiplug.

57. Align closing panel. Secure with scrivet

fasteners.

58. Position ’A’ post lower trim panels. Engage

sprag clips. Secure with screws.

59. Re-fit door aperture seals.
60. LHD automatic vehicles only: Position foot

rest. Secure with bolts.

61. Position heater controls. Connect multiplugs.

Secure to fascia with screws.

62. Position fascia switch pack. Connect multiplugs.

Secure to fascia with screws.

63. Fit instrument pack binnacle.

See

INSTRUMENTS, Repair.

64. Fit radio.

See ELECTRICAL, Repair.

65. Fit passenger air bag module.

See this section.

66. Fit centre console.

See CHASSIS AND BODY,

Repair.

67. Fit battery.

See ELECTRICAL, Repair.

68. Remove safety stands. Lower vehicle.

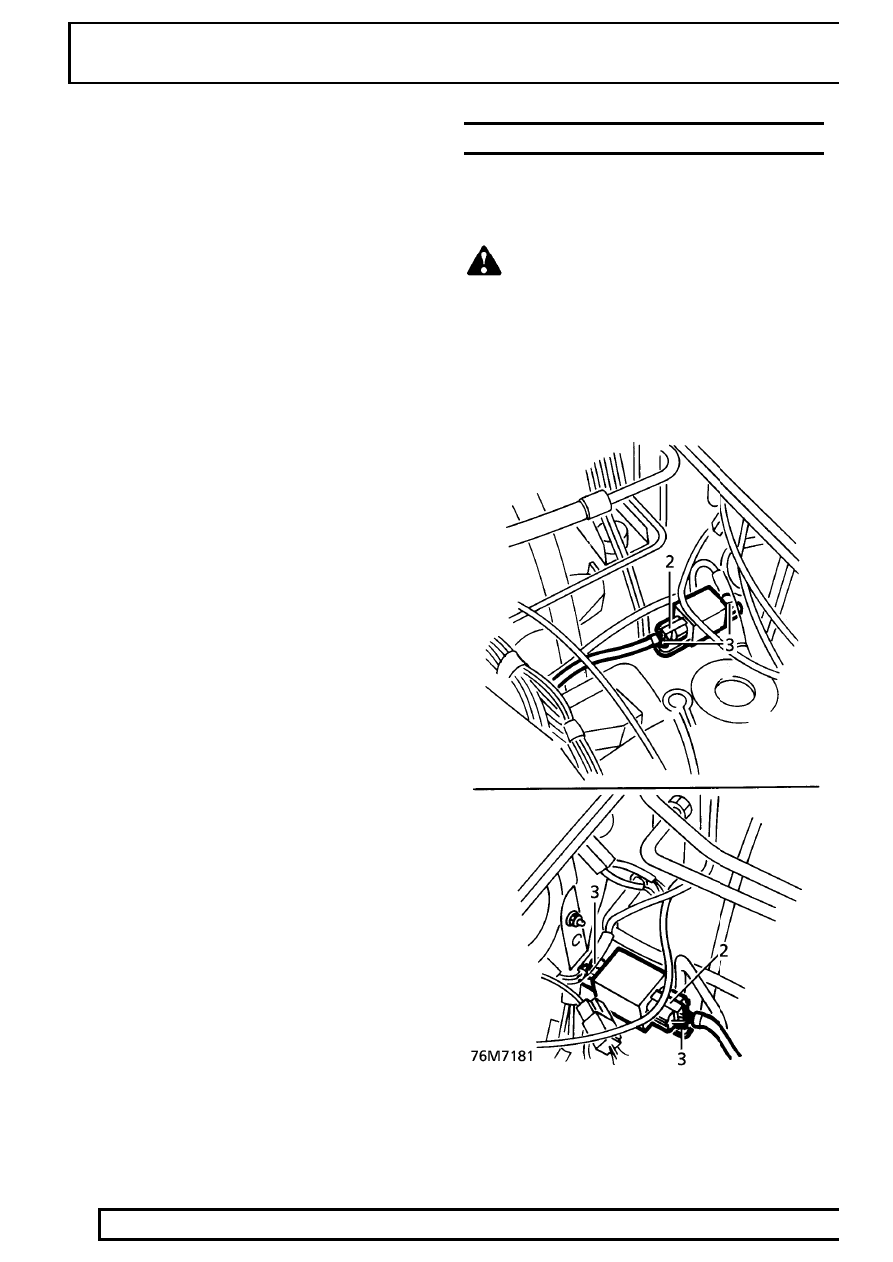

SRS CRASH SENSOR

Service repair no - 76.73.70

Remove

WARNING: Always disconnect negative
lead from battery first. Disconnection of
positive lead with negative lead connected

risks short circuit and severe sparking through
accidental grounding of spanner. Personal injury
could result.

1. Disconnect both battery terminals.
2. Disconnect sensor multiplug.
3. Remove 2 bolts securing sensor to valance.

Remove sensor.

Refit

4. Reverse removal procedure.

SUPPLEMENTARY RESTRAINT SYSTEM

9

REPAIR

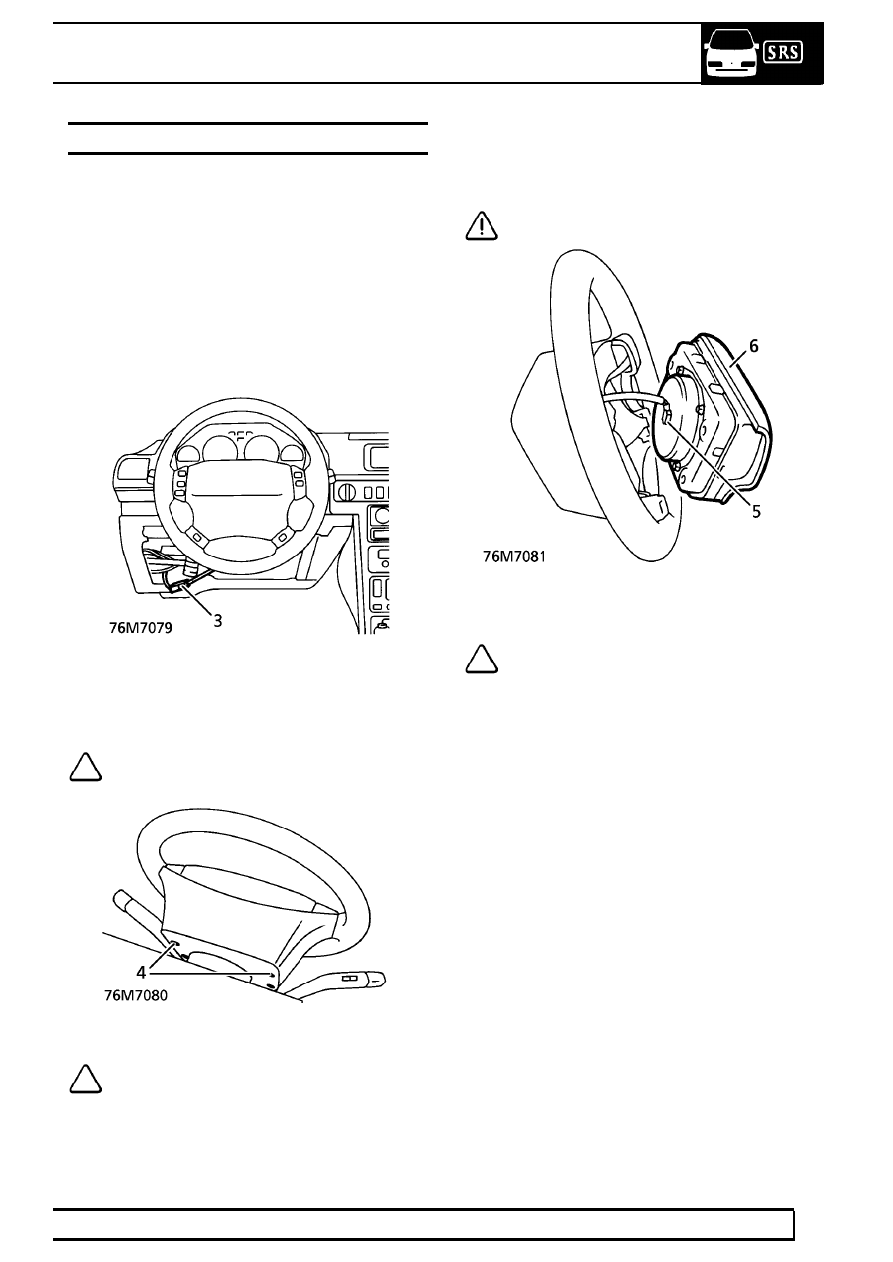

AIRBAG MODULE - DRIVER SIDE

Service repair no - 76.73.71

Remove

1. Disconnect both battery terminals, negative lead

first.

2. Remove steering column nacelle.

See

STEERING, Repair.

3. Disconnect Supplementary Restraint System

(SRS) ’shorting link’.

4. Unscrew 4 bolts (TX 30 Torx bit) securing

module to steering wheel.

NOTE: Fixings remain captive in steering
wheel.

NOTE: Rotate steering wheel for access to
all fixings.

5. Release module from steering wheel, disconnect

multiplug.

6. Remove module.

CAUTION: Store the airbag module
correctly.

See Description and operation.

Refit

NOTE: If a new airbag module is being
fitted, the serial numbers must be
recorded.

7. Position module and connect multiplug.
8. Tighten bolts to

9 Nm. (7 lbf.ft)

9. Connect SRS ’shorting link’and secure

connector to location.

10. Fit steering column nacelle.

See STEERING,

Repair.

11. Connect battery terminals, positive before

negative. Fit and secure battery cover.

12. Check SRS using TestBook .

CHASSIS AND BODY

1

ADJUSTMENT

FRONT DOOR

Service repair no - 76.28.07

NOTE: Adjustment should not be
necessary unless door or hinges have
been renewed.

Alignment of door to aperture.

1. Gain access to ’A’ post hinge bolts by removing

relevant wheel arch liner.

See Repair.

2. Slacken 2 bolts securing striker to ’B/C’ post.
3. Slacken 6 bolts securing door hinges to ’A’ post.
4. With assistance, adjust door position in aperture.

Tighten hinge bolts to

30 Nm. (22 lbf.ft)

Profile adjustment, door skin/frame to adjacent
body panels.

5. Slacken 4 bolts securing hinges to door.
6. With assistance adjust inboard/outboard position

of door. Tighten hinge bolts to

30 Nm. (22 lbf.ft)

CAUTION: Ensure that leading edge of
door is flush with adjacent panels or wind
noise will result.

7. When alignment of door is correct, adjust height

and inboard/outboard position of striker. Tighten
striker bolts. Check for correct door latching.

8. Slacken bolts and readjust striker position as

necessary. Tighten striker bolts to

22 Nm. (16

lbf.ft)

9. Fit wheel arch liner.

See Repair.

REAR DOOR

Service repair no - 76.28.08

NOTE: Adjustment should not be
necessary unless door or hinges have
been renewed.

1. Open door and slacken 2 bolts securing striker

to ’D’ post.

2. Open front door and slacken 6 bolts securing

rear door hinges to ’B/C’ post.

3. With assistance, adjust door position in aperture

and tighten hinge bolts to

25 Nm. (18 lbf.ft)

4. To adjust profile of door skin and frame relative

to adjacent body panels, slacken 4 bolts
securing hingess to door.

5. With assistance adjust inboard/outboard position

of door. Tighten hinge bolts to

25 Nm. (18 lbf.ft)

CAUTION: Ensure that leading edge of
door is flush with adjacent panels or wind
noise will result.

6. When alignment of door is correct, adjust height

and inboard/outboard position of striker. Tighten
striker bolts and check for correct door latching.

7. Slacken bolts and readjust striker position as

necessary. Tighten striker bolts to

22 Nm. (16

lbf.ft)
