CHASSIS AND BODY

23

REPAIR

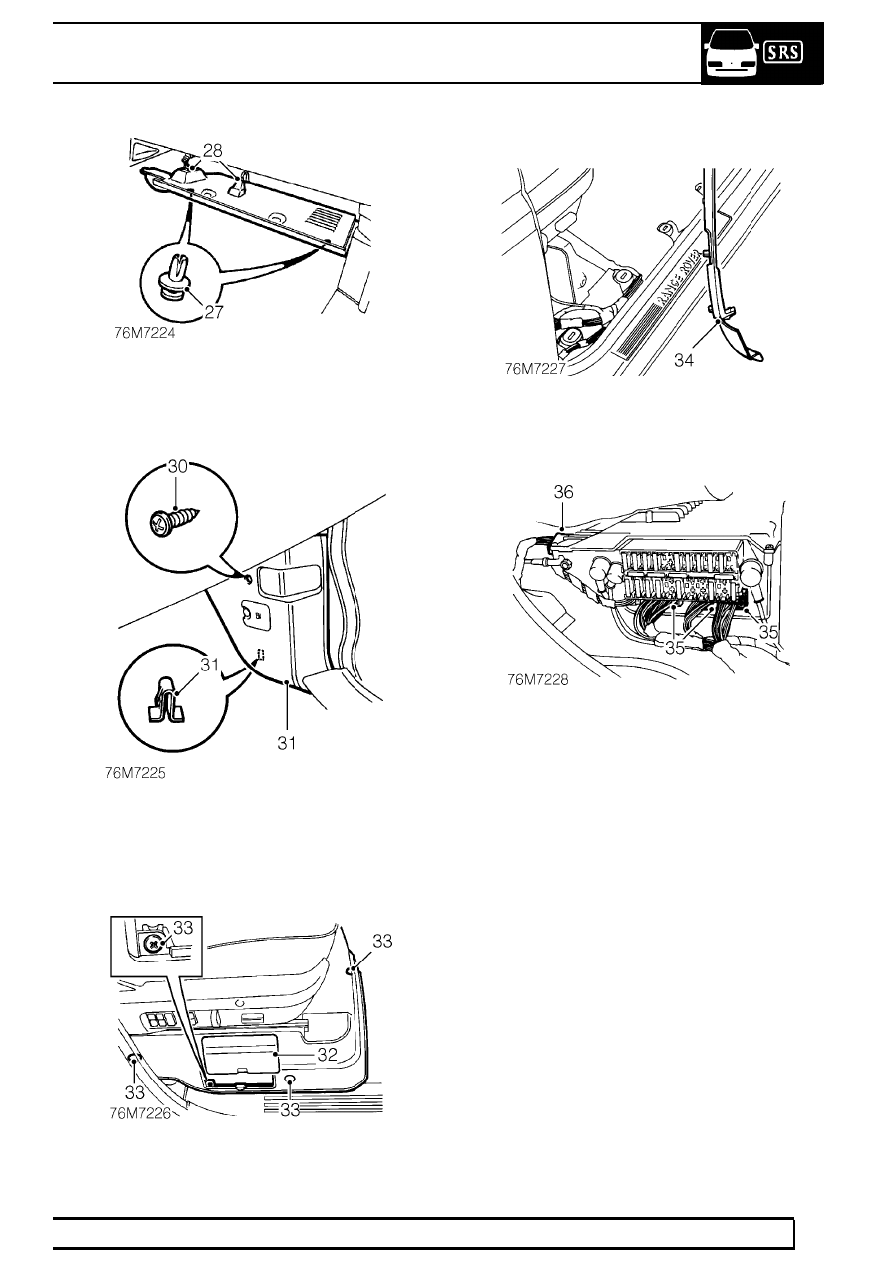

27. Remove 3 scrivets securing lower fascia closing

panel to passenger’s side of fascia.

28. Release closing panel and release diagnostic

connector from panel.

29. Release door aperture seal adjacent to ’A’ post

lower trim panels.

30. Remove screw securing each ’A’ post lower trim

panel to ’A’ post.

31. Release ’A’ post lower trim panels from sprag

clip and remove panels.

32. Remove fuse box cover from driver’s seat base

trim.

33. Remove screw and 3 trim studs securing seat

base trim to body and remove seat base trim.

34. Release 4 sprag clips securing driver’s side

carpet retainer to body and remove carpet
retainer.

35. Disconnect 3 multiplugs from Body Electrical

Control Module (BeCM).

36. Position carpet aside and disconnect multiplug

from rear of BeCM.

76

CHASSIS AND BODY

NEW RANGE ROVER

24

REPAIR

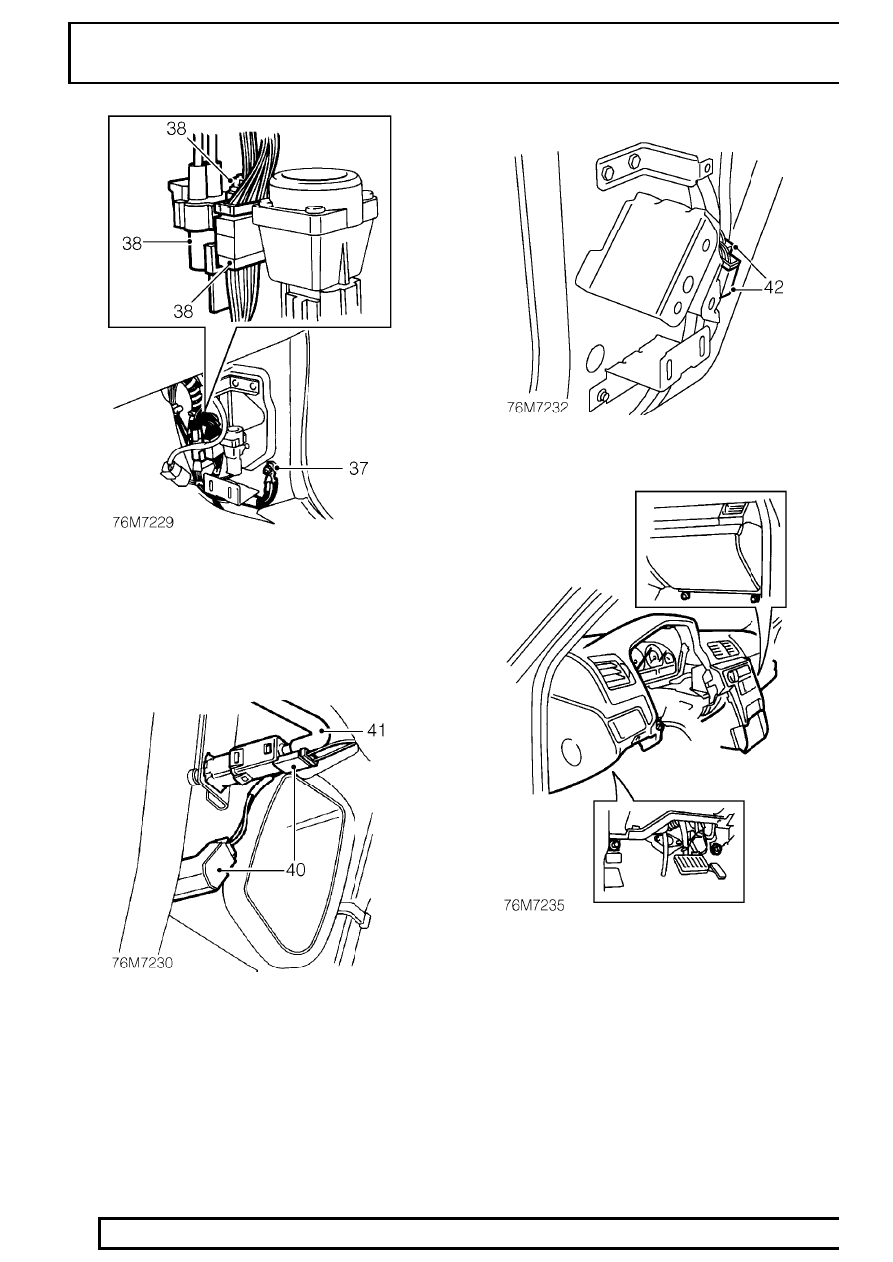

37. Remove captive nut securing earth wires to

driver’s side lower ’A’ post and release 3
additional earth wires.

38. Disconnect 3 multiplugs at base of driver’s side

’A’ post.

39. Release harness from driver’s side carpet and

position to fascia to avoid snagging.

40. Disconnect multiplugs from clutch and 2 brake

pedal switches.

41. Disconnect vacuum hose from clutch and brake

pedal switches.

42. Disconnect 2 multiplugs at base of passenger’s

side ’A’ post.

43. Remove 2 nuts securing fascia to ’A’ post and

transmission tunnel bracket, passenger’s side

44. Remove 2 nuts securing fascia to ’A’ post and

transmission tunnel bracket, driver’s side.

CHASSIS AND BODY

25

REPAIR

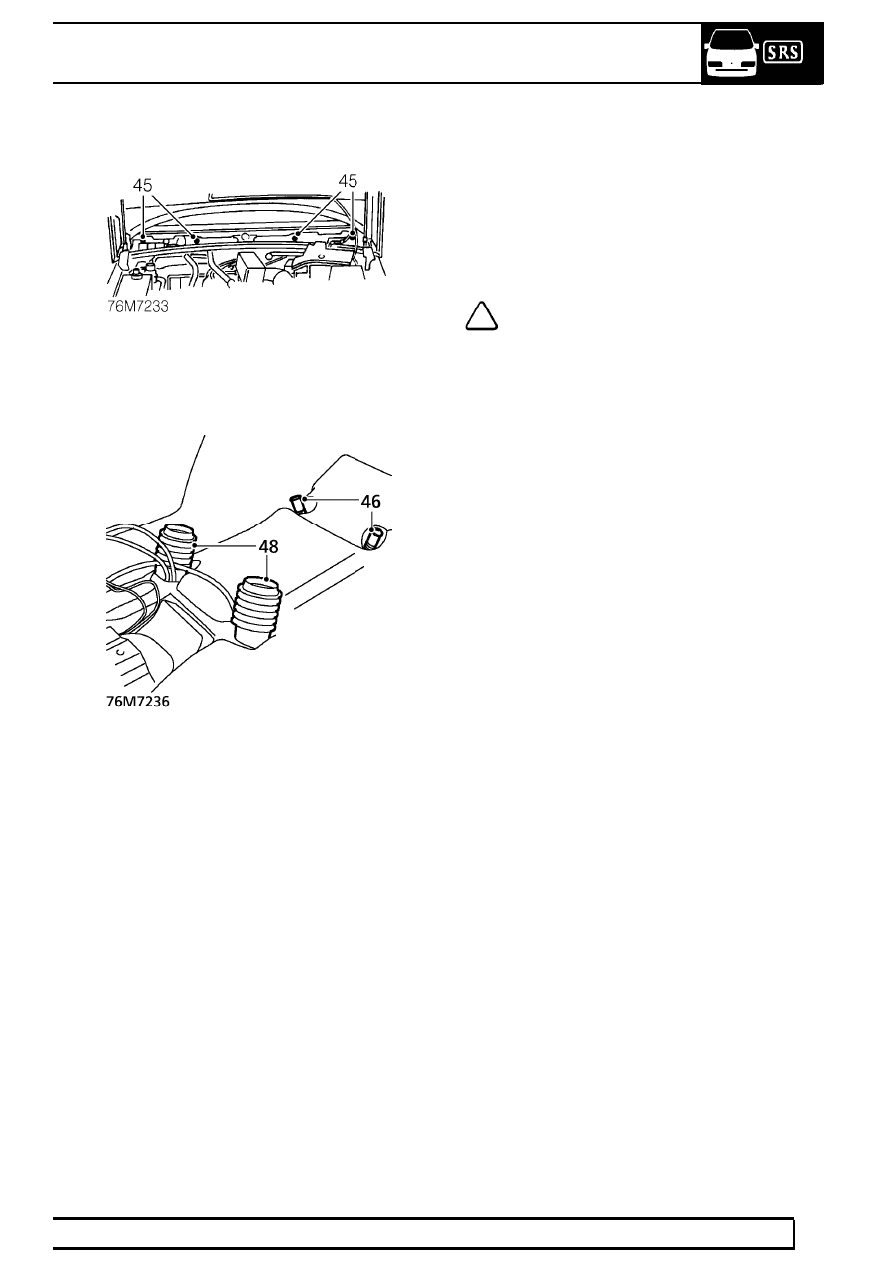

45. Remove 4 tube bolts securing fascia assembly

to scuttle panel.

46. Disconnect 2 evaporator drain hoses from

evaporator.

47. Using assistance, carefully manoeuvre fascia

assembly through the driver’s door aperture.
Position the fascia on a work surface with a soft
covering and support on suitable wooden blocks.

48. Collect 2 ducts connecting rear heating pipes to

fascia assembly.

Refit

49. Tape intake duct seals inside blower duct to aid

fitment.

50. Fit guide pins LRT-76-001 to outer fascia studs.
51. With assistance, manoeuvre fascia assembly

through driver’s door aperture and locate guide
pins to scuttle panel.

NOTE: Assistance from a third person may
be required to guide heater pipes through
bulkhead.

52. Fit one tube bolt securing fascia to scuttle panel

but do not tighten.

53. Fit nuts securing fascia to lower ’A’ posts and

tighten to

25 Nm. (18 lbf.ft)

54. Fit nuts securing fascia to transmission tunnel

brackets and tighten to

25 Nm. (18 lbf.ft)

55. Remove LRT-76-001.
56. Fit remaining tube bolts securing fascia to scuttle

panel and tighten to

25 Nm. (18 lbf.ft)

57. Fit fascia centre bracket, fit bolts and tighten to

25 Nm. (18 lbf.ft)

58. Connect evaporator drain hoses to evaporator.
59. Fit ducts connecting rear heating pipes to fascia

assembly.

60. Fit gear lever to gearbox remote, fit bolts and

tighten to

25 Nm. (18 lbf.ft)

61. Fit gear lever gaiter and ring to transmission

tunnel and secure with nuts.

62. Connect high/low switch multiplug.
63. Position SRS harness to transmission tunnel.
64. Connect multiplug to airbag DCU. Ensure

connector latching mechanism is correctly
engaged.

65. Fit transmission tunnel insulation pad to

transmission tunnel and position multiplugs
through pad.

66. Fit radio.

See ELECTRICAL, Repair.

67. Connect multiplugs at base of passenger’s side

’A’ post.

68. Fit passenger’s side ’A’ post lower trim panel

and secure with screw.

69. Engage door aperture seal to door aperture.
70. Position fascia lower closing panel and engage

diagnostic connector to panel.

71. Position closing panel to fascia and secure with

scrivets.

72. Connect vacuum hose to clutch and brake pedal

switches.

73. Connect multiplugs to clutch and brake pedal

switches.

76

CHASSIS AND BODY

NEW RANGE ROVER

26

REPAIR

74. Position harness to driver’s side carpet.
75. Connect multiplugs to BeCM.
76. Connect multiplugs at base to driver’s side ’A’

post.

77. Position earth wires to ’A’ post stud, fit and

secure captive nut.

78. Fit driver’s side carpet retainer and engage to

clips.

79. Fit seat base trim and secure with trim studs and

screw.

80. Fit seat base fuse box cover.
81. Fit driver’s side lower ’A’ post trim and secure

with screw.

82. Fit steering column.

See STEERING, Repair.

83. Fit radio.

See ELECTRICAL, Repair.

84. Fit centre console.

See this section.

85. Remove tape from heater intake ducts.
86. Engage heater intake seals to scuttle apertures.
87. Fit heater intake housings and secure with

screws.

88. Fit pollen filters to intake housings.
89. Fit wiper motor and linkage.

See WIPERS AND

WASHERS, Repair.

90. Fit scuttle side panel to scuttle and secure with

bolts.

91. Connect heated screen multiplug and engage

multiplug to scuttle side panel bracket.

92. Remove caps from heater matrix pipes.
93. Engage heater matrix grommet to bulkhead

aperture.

94. Connect heater hoses to heater matrix and

secure with clips.

95. Remove caps from air conditioning pipes and

TXV.

96. Lubricate NEW ’O’ ring seals with clean

compressor oil and fit to air conditioning pipes.

97. Connect air conditioning pipes to TXV, position

clamp and fit bolt.

98. Tighten clamp bolt to

6 Nm. (4 lbf.ft)

99. Charge air conditioning system.

See AIR

CONDITIONING, Adjustment.

100. Fill coolant system.

See COOLING SYSTEM,

Repair.

101. Connect both battery terminals, earth lead last.

PANELS - VENEERED - FASCIA

Service repair no - 76.46.24

Remove

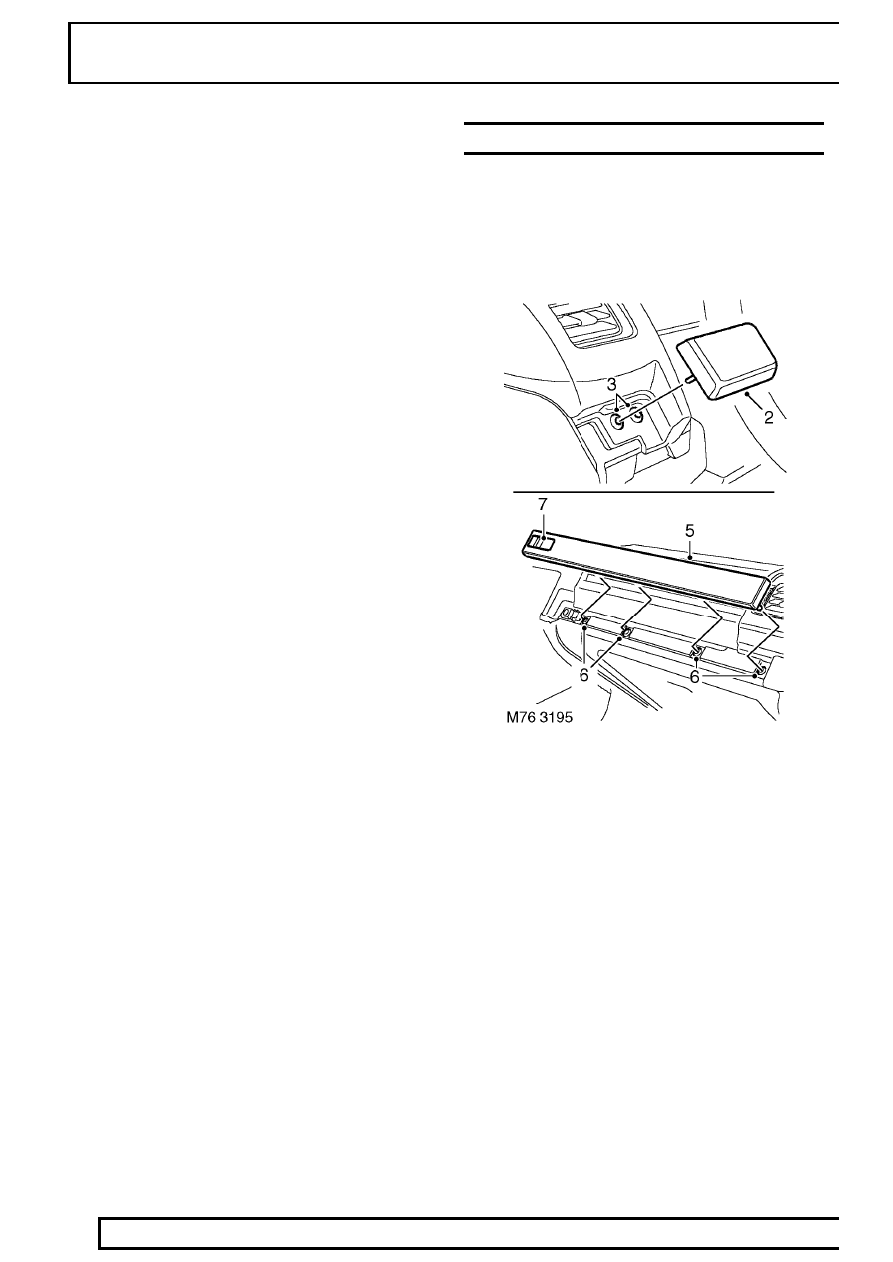

1. Drivers side: Remove fascia closing panel.

See

this section.

2. With suitable protection against fascia, carefully

lever veneered panel away from fascia to
release 2 fixing studs.

3. Remove fixing stud inserts.
4. Passenger side: Open glove box.
5. With suitable protection against fascia, carefully

lever veneered panel away from fascia to
release 4 fixings studs.

6. Remove fixing stud inserts.
7. Remove glove box lock bezel from veneered

panel.
