Range Rover. Manual - part 226





CHASSIS AND BODY

1

ADJUSTMENT

FRONT DOOR

Service repair no - 76.28.07

NOTE: Adjustment should not be
necessary unless door or hinges have
been renewed.

Alignment of door to aperture.

1. Gain access to ’A’ post hinge bolts by removing

relevant wheel arch liner.

See Repair.

2. Slacken 2 bolts securing striker to ’B/C’ post.
3. Slacken 6 bolts securing door hinges to ’A’ post.
4. With assistance, adjust door position in aperture.

Tighten hinge bolts to

30 Nm. (22 lbf.ft)

Profile adjustment, door skin/frame to adjacent
body panels.

5. Slacken 4 bolts securing hinges to door.
6. With assistance adjust inboard/outboard position

of door. Tighten hinge bolts to

30 Nm. (22 lbf.ft)

CAUTION: Ensure that leading edge of
door is flush with adjacent panels or wind
noise will result.

7. When alignment of door is correct, adjust height

and inboard/outboard position of striker. Tighten
striker bolts. Check for correct door latching.

8. Slacken bolts and readjust striker position as

necessary. Tighten striker bolts to

22 Nm. (16

lbf.ft)

9. Fit wheel arch liner.

See Repair.

REAR DOOR

Service repair no - 76.28.08

NOTE: Adjustment should not be
necessary unless door or hinges have
been renewed.

1. Open door and slacken 2 bolts securing striker

to ’D’ post.

2. Open front door and slacken 6 bolts securing

rear door hinges to ’B/C’ post.

3. With assistance, adjust door position in aperture

and tighten hinge bolts to

25 Nm. (18 lbf.ft)

4. To adjust profile of door skin and frame relative

to adjacent body panels, slacken 4 bolts
securing hinges to door.

5. With assistance adjust inboard/outboard position

of door. Tighten hinge bolts to

25 Nm. (18 lbf.ft)

CAUTION: Ensure that leading edge of
door is flush with adjacent panels or wind
noise will result.

6. When alignment of door is correct, adjust height

and inboard/outboard position of striker. Tighten
striker bolts and check for correct door latching.

7. Slacken bolts and readjust striker position as

necessary. Tighten striker bolts to

22 Nm (16

lbf.ft).

76

CHASSIS AND BODY

NEW RANGE ROVER

2

ADJUSTMENT

SUNROOF - PANEL

Service repair no - 76.82.04

Adjust

1. Slide back sunshade.
2. Tilt sunroof panel.
3. Remove mechanism covers.

See Repair.

4. Close sunroof panel.

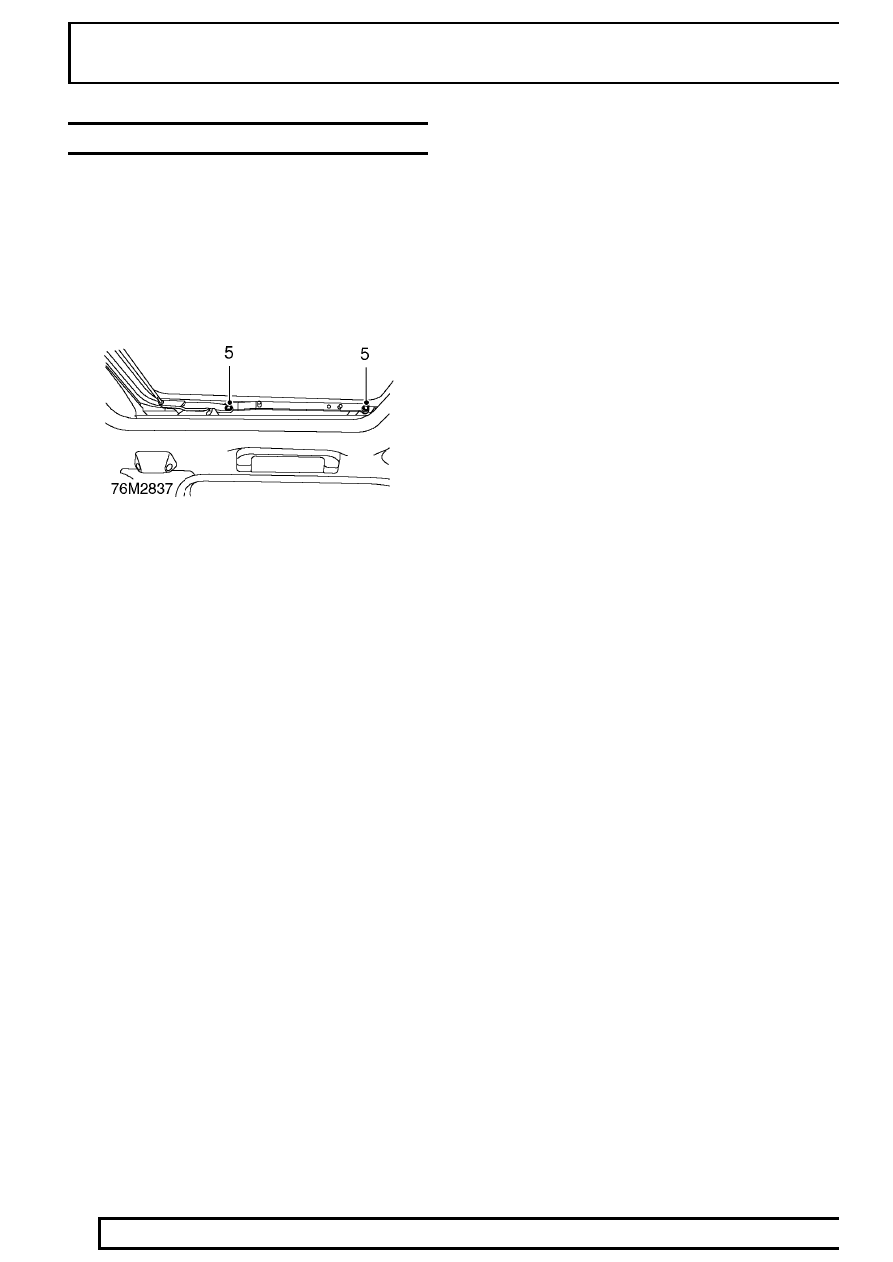

5. Slacken 4 Torx screws, securing mechanism to

sunroof panel.

6. Align sunroof panel to aperture in roof.
7. Position leading edge of sunroof panel so that it

is flush or not more than 0.5 mm lower than roof
outer surface.

8. Position trailing edge of sunroof panel so that it

is flush or not more than 0.5 mm higher than roof
outer surface.

9. Hold in position and torque tighten Torx screws

to

6 Nm (4.5 lbf.ft).

10. Tilt sunroof panel.
11. Fit mechanism covers.
12. Close sunroof panel.

CHASSIS AND BODY

1

REPAIR

BONNET

Service repair no - 76.16.01

Remove

1. Open bonnet.
2. Mark hinge outlines on bonnet.
3. Remove 2 hinge bolts from each side.

4. Disconnect washer tube at T piece on bonnet,

release tube from clip.

5. With assistance, release bonnet support struts at

lower ends.

6. With assistance, remove 2 remaining hinge bolts

and remove bonnet.

Refit

7. With assistance, fit bonnet. Fit, but do not tighten

bolts.

8. With assistance, connect bonnet support struts.
9. Connect washer tube, secure to clip.

10. Close bonnet, check alignment.
11. Open bonnet, tighten hinge bolts.
12. Close bonnet.

76

CHASSIS AND BODY

NEW RANGE ROVER

2

REPAIR

BONNET LOCK PIN

Service repair no - 76.16.24

Remove

1. Remove bolts securing lock pin to bonnet.
2. Remove pin.

Refit

3. Position lock pin to bonnet.
4. Fit bolts but do not tighten.
5. Close and open bonnet to align pin.
6. Secure pin with bolts.
7. Lubricate pin.

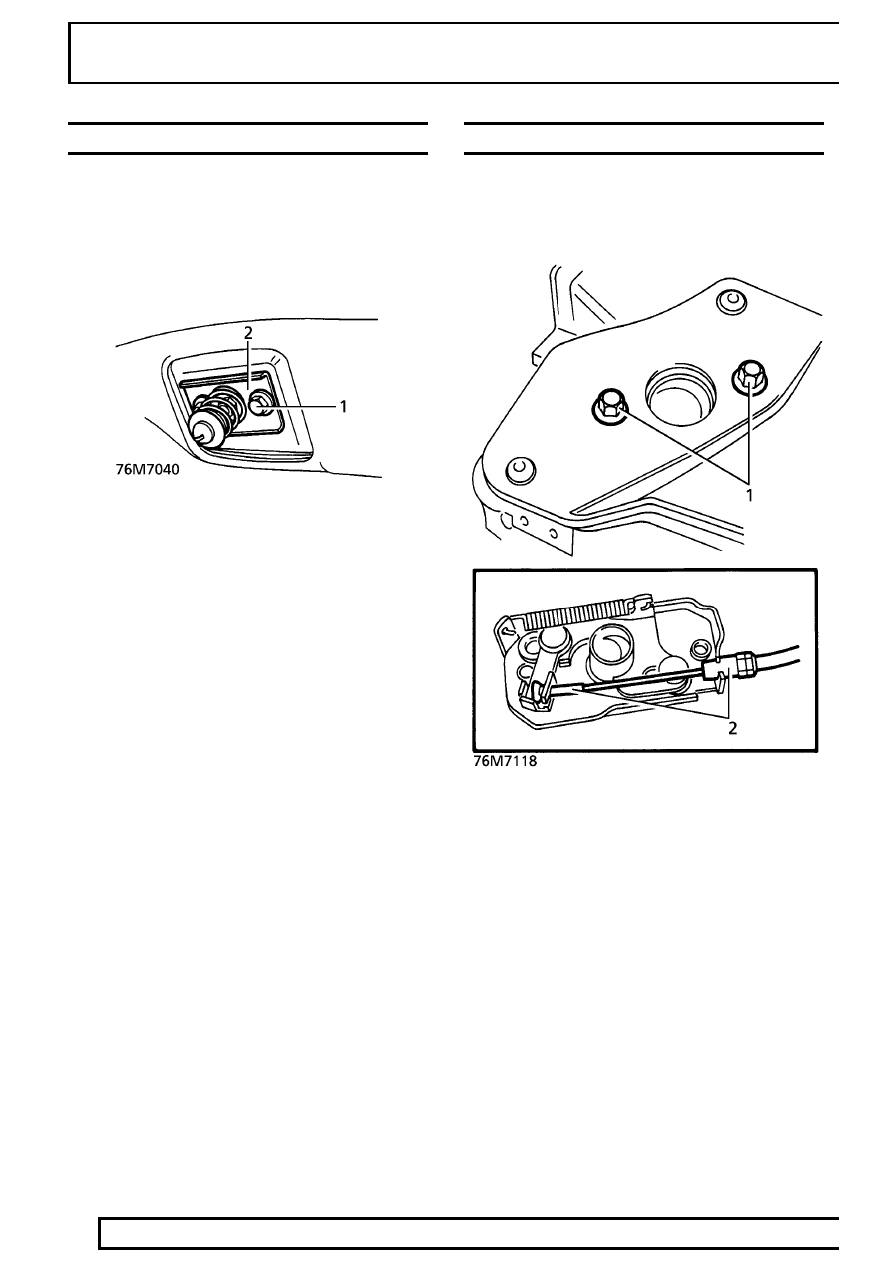

BONNET LOCK - LEFT HAND

Service repair no - 76.16.21

Remove

1. Remove bolts securing bonnet lock.

2. Release outer and inner cables from lock.
3. Remove lock.

Refit

4. Reverse removal procedure.
