LAND ROVER V8

3

REPAIR

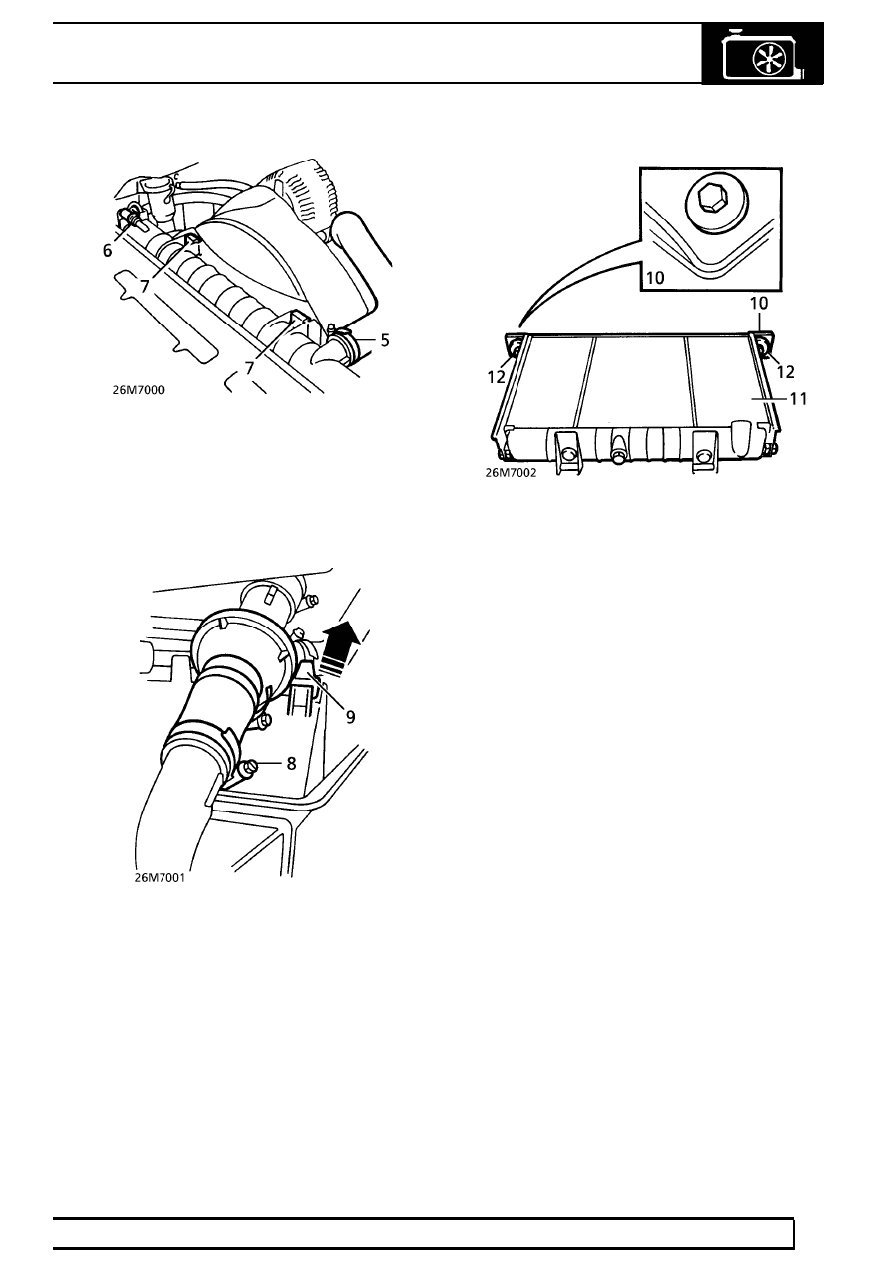

7. Remove clips securing radiator to cooling fan

cowl.

8. Slacken bottom hose clips at radiator and

thermostat housing.

9. Release thermostat housing from fan cowl.

Remove bottom hose.

10. Remove 2 bolts securing radiator to mounting

bracket.

11. Release radiator from upper and lower

mountings.

12. Remove radiator. Collect lower mounting

rubbers.

Refit

13. Reverse removal procedure.
14. Refill cooling system.

See this section.

26

COOLING SYSTEM

NEW RANGE ROVER

4

REPAIR

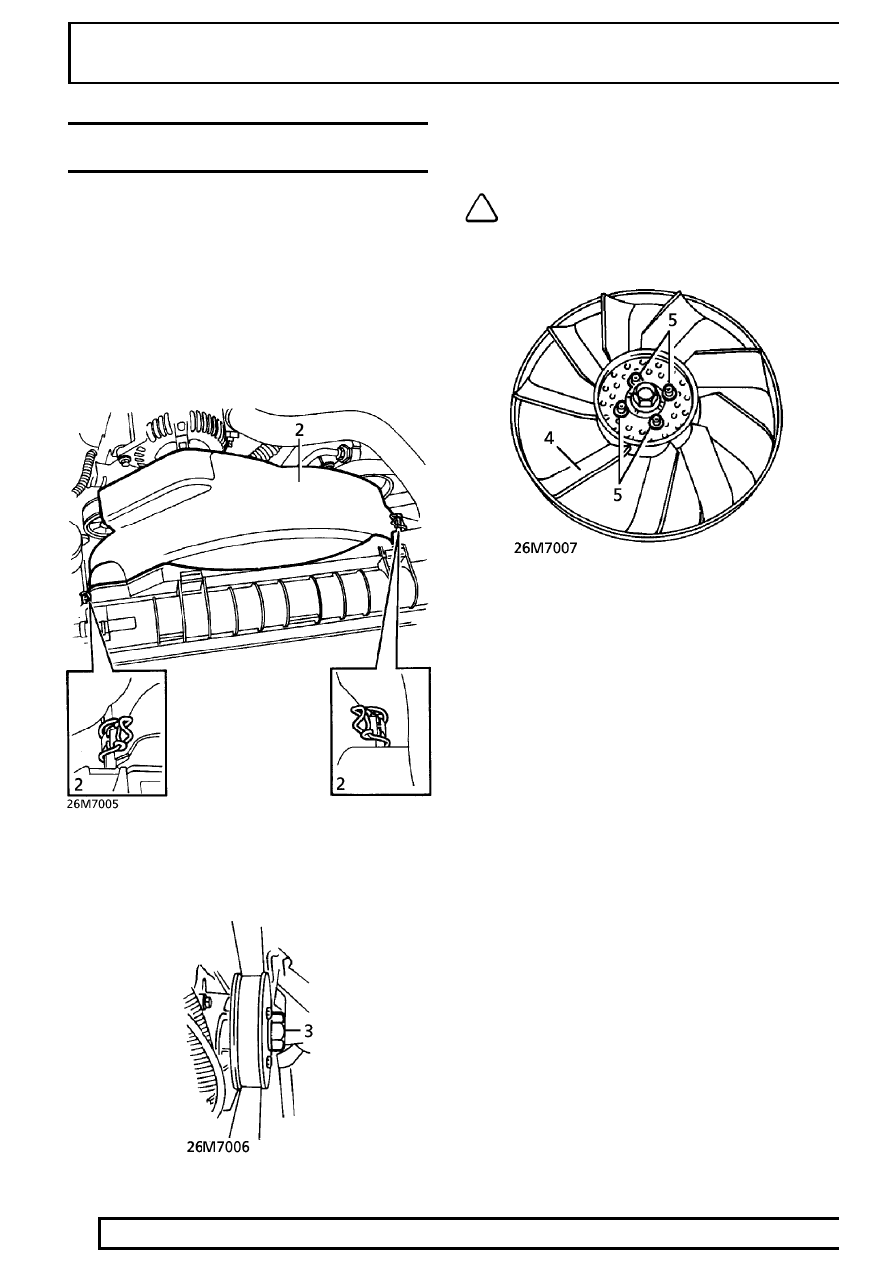

VISCOUS COUPLING AND FAN ASSEMBLY - UP
TO 99MY

Service repair no - 26.25.19

Special tools:
LRT-12-093
LRT-12-094 - Viscous coupling removal

Remove

1. Disconnect battery negative lead.

2. Release 2 clips securing cooling fan upper cowl.

Remove cowl.

3. Using LRT-12-093 and LRT-12-094 unscrew

viscous coupling from water pump.

NOTE: Viscous coupling is secured with a
RH thread.

4. Remove fan and coupling assembly.

Do not carry out further dismantling if component
is removed for access only.

5. Remove 4 bolts securing coupling to fan.

Remove coupling.

Refit

6. Ensure mating faces are clean.
7. Fit fan to coupling. Secure with bolts. Tighten to

24 Nm (18 lbf.ft)

8. Using LRT-12-093 and LRT-12-094, fit fan

assembly to pump. Tighten to

56 Nm

(41 lbf.ft.)

9. Fit cooling fan upper cowl. Secure with clips.

10. Reconnect battery negative lead.

LAND ROVER V8

5

REPAIR

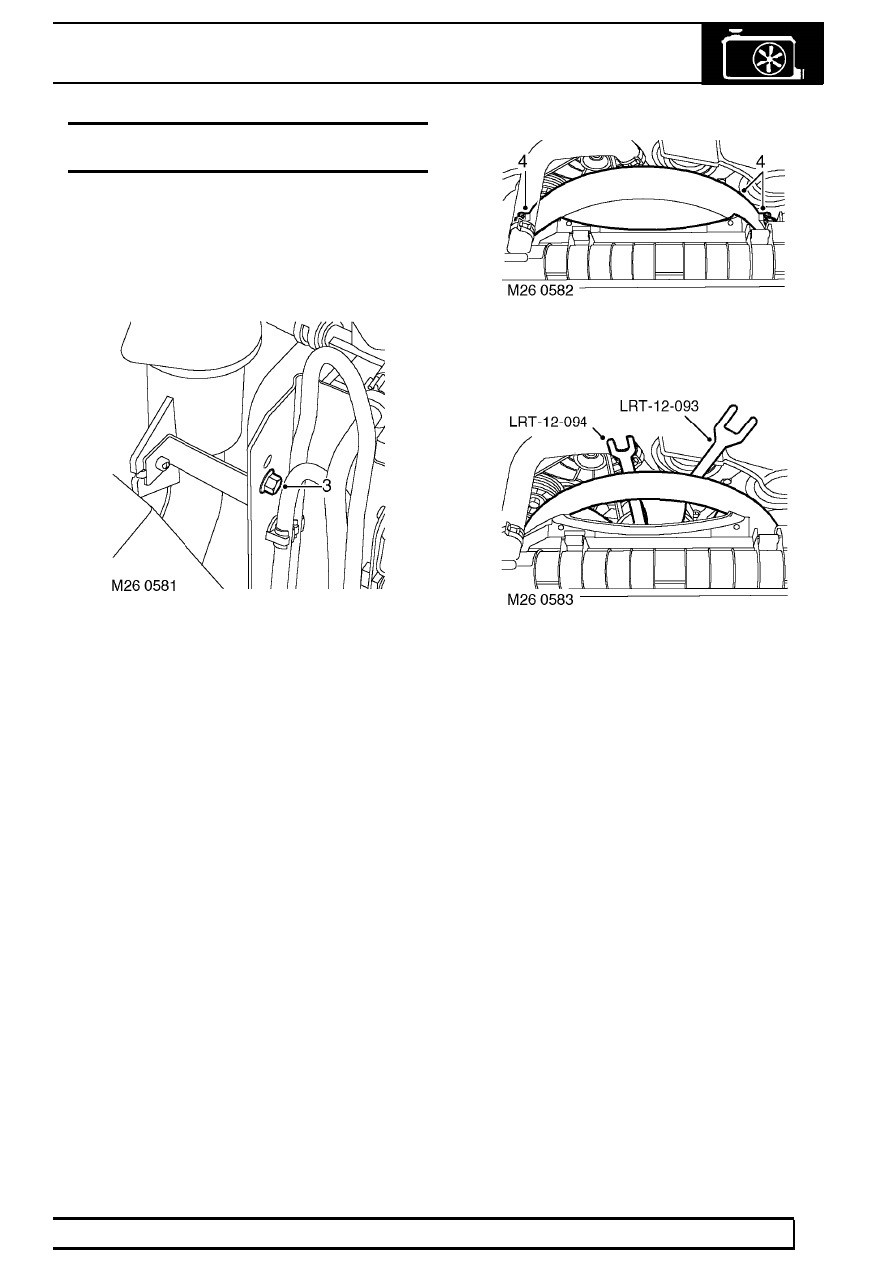

VISCOUS COUPLING AND FAN ASSEMBLY -
FROM 99MY

Service repair no - 26.25.19

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.

3. Remove bolt securing washer reservoir filler tube

support bracket to radiator bracket.

4. Release 2 clips securing fan cowl and remove

fan cowl.

5. Remove cooling fan using LRT-12-093

andLRT-12-094.

Refit

6. Position cooling fan and tighten using

LRT-12-093 andLRT-12-094.

7. Fit fan cowl and secure with clips.
8. Align washer reservoir filler tube bracket and

secure with bolt.

9. Connect battery earth lead.

10. Fit battery cover and secure with fixings.

26

COOLING SYSTEM

NEW RANGE ROVER

6

REPAIR

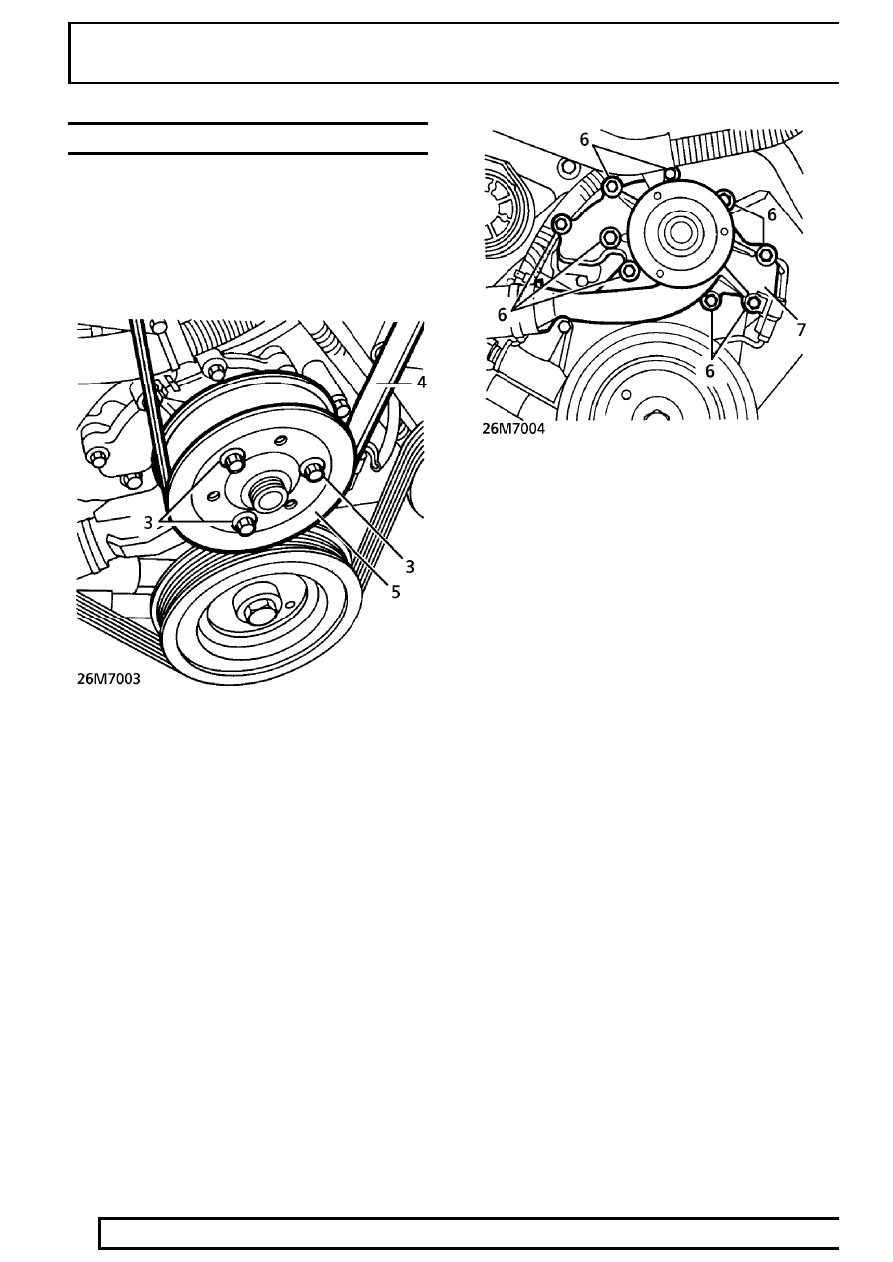

WATER PUMP - UP TO 99MY

Service repair no - 26.50.01

Remove

1. Drain cooling system.

See this section.

2. Remove cooling fan.

See this section.

3. Slacken water pump pulley bolts.

4. Release tension from water pump drive belt.

Remove belt.

5. Remove water pump pulley.

6. Remove 9 bolts securing water pump.
7. Remove water pump and gasket.

Refit

8. Ensure mating faces are clean.
9. Fit water pump with new gasket.

10. Position water pump. Secure with bolts. Tighten

to

22 Nm (16 lbf.ft)

11. Fit water pump pulley. Secure with bolts.

Tighten to

22 Nm (16 lbf.ft)

12. Fit water pump drive belt.
13. Fit cooling fan.

See this section.

14. Fill cooling system.

See this section.
