Alarm

46

L

DISARMING THE ALARM

When the vehicle is unlocked using
the remote control, the alarm is
automatically disabled. The hazard

lamps will flash twice to indicate that the alarm
is disabled.

Disarming when the unlock button fails
to work

If, when pressed, the unlock button fails to
operate the vehicle can still be unlocked and
the alarm disabled. To unlock the vehicle :-

1. Unlock the drivers door using the key

blade.

2. Dock the remote control.

Note: When the drivers door is unlocked using
the key, the alarm will sound until the remote is
docked.

Deactivating the alarm when triggered

If the alarm has been triggered it can be
deactivated by pressing the remote unlock
button, or by docking the remote control.

47

Seats

R

Seats

SITTING IN THE CORRECT POSITION

The seat, head restraint, seat belt and airbags,
all contribute to the protection of the user.
Correct use of these components will give you
greater protection, therefore you should
observe the following points:

1. Sit in an upright position with the base of

your spine as far back as possible and the
seatback reclined no more than 30
degrees.

2. Do not move the driver's seat too close to

the steering wheel. Ideally, a minimum
distance of 254 mm (10 inches) is
recommended between the breastbone
and the steering wheel airbag cover. Hold
the steering wheel in the correct position
with your arms slightly bent.

• Adjust the head restraint so that it's

highest point is level with the top of your
head.

• Position the seatbelt so that it is mid-way

between your neck and your shoulder. Fit
the strap tightly across your hips, not
across your stomach.

• Ensure that your driving position is

comfortable, and enables you to maintain
full control of the vehicle.

WARNING

Do not adjust the seat while the
vehicle is moving. Doing so could
cause loss of vehicle control and

personal injury.

1

E81931

2

Seats

48

L

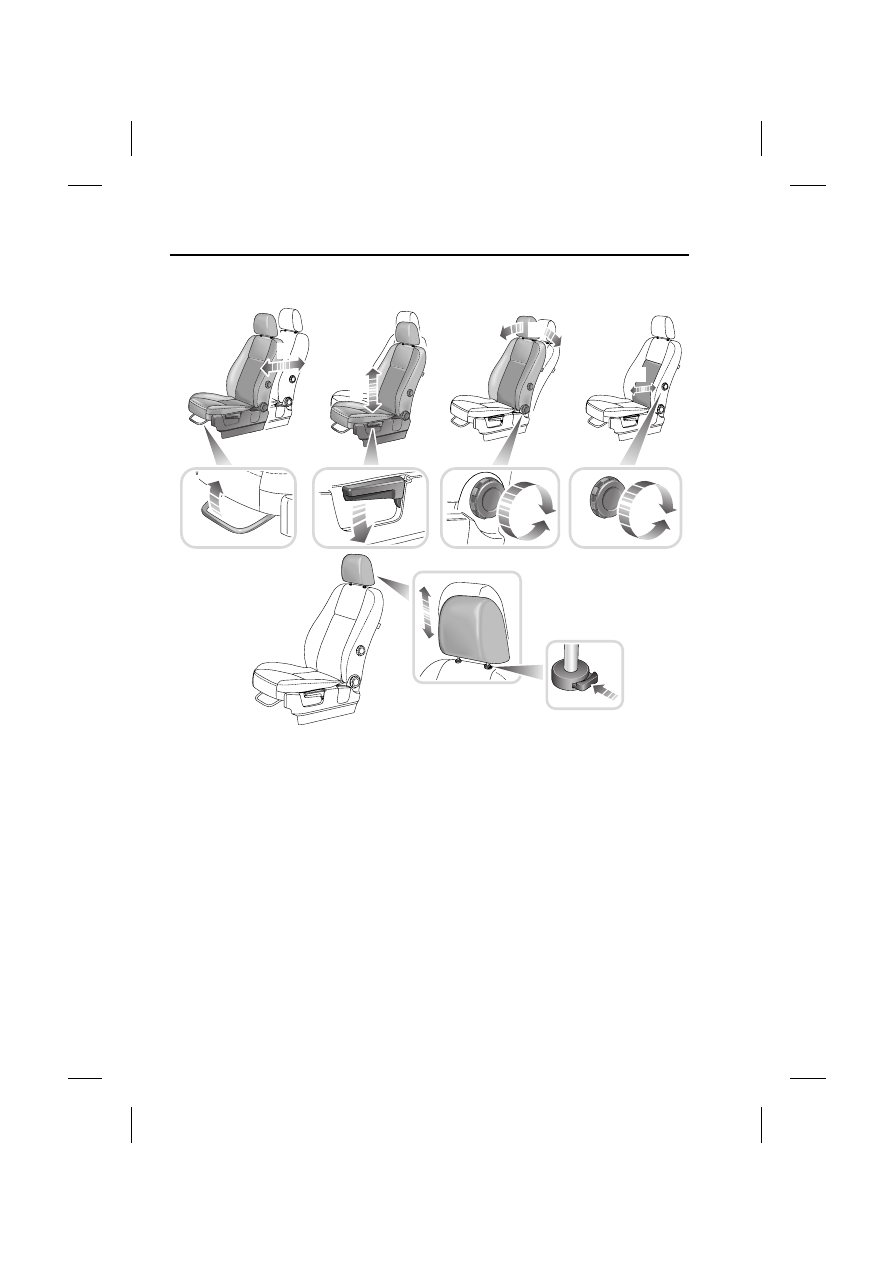

MANUAL SEATS

1. Fore and aft adjustment.

2. Height adjustment.

3. Seat back angle adjustment.

4. Lumbar support adjustment.

5. Head restraint height adjustment.

1

5

1

2

4

3

4

2

3

5

E81977

49

Seats

R

ELECTRIC SEATS

1. Fore and aft adjustment.

2. Height adjustment.

3. Lumbar support adjustment.

4. Seat back angle adjustment.

5. Head restraint height adjustment.

6. Armrest height adjustment.

1

2

3

4

6

5

1

2

3

4

E81930
