Frelander 2. Manual - part 685

18

Quick start

L

1. Exterior lamps master switch

2. Direction indicators/headlamps/trip computer switch

3. Cruise control switches

4. Instrument pack

5. Audio/telephone switches

6. Washer/wiper switch

7. Start stop engine button

8. Master unlock switch

9. Hazard warning switch

10. Master lock switch

11. Audio unit

12. Heater/air conditioning controls

13. Dynamic Stability Control (DSC) switch

14. Gear selector

15. Touch screen

16. Parking brake

17. Terrain Response control switch

18. Hill Descent Control (HDC) switch

19. Starter control unit

20. Steering column adjustment lever

21. Horn switches

22. Facia illumination dimmer control

19

Quick start

R

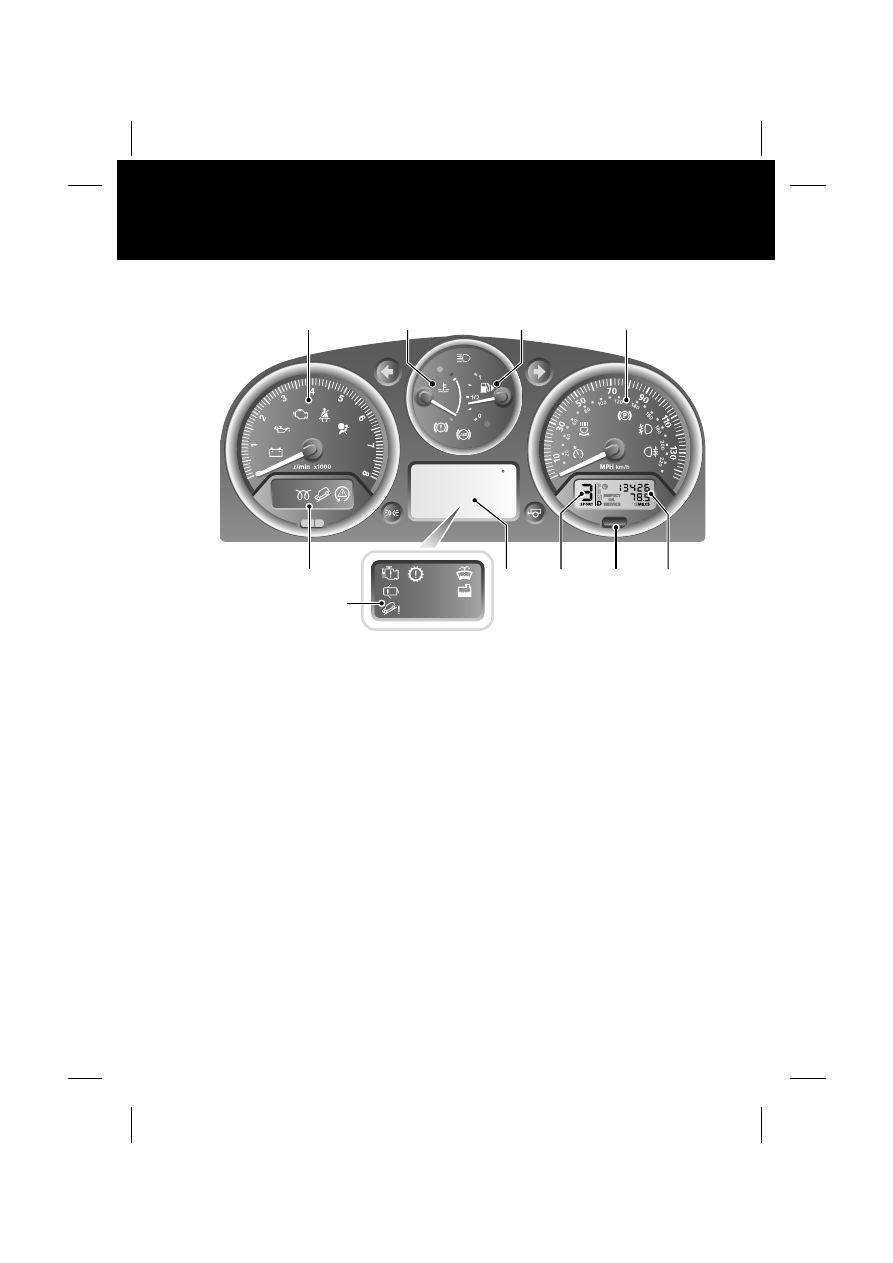

Instrument pack

1. Tachometer

2. Temperature gauge

3. Fuel gauge

4. Speedometer

5. Total distance (odometer) and trip recorder

6. Trip recorder reset switch

7. Gear selector mode and position display

8. Main message centre

9. Warning indicators panel

10. Tachometer indicators panel

EXT

C

21

E83375

5

6

7

10

8

9

1

4

2

3

20

Quick start

L

Tachometer

Indicates engine speed in revolutions per
minute (x 1 000). In normal driving conditions
the engine is most fuel efficient between 2 000
and 3 000 rev/min.

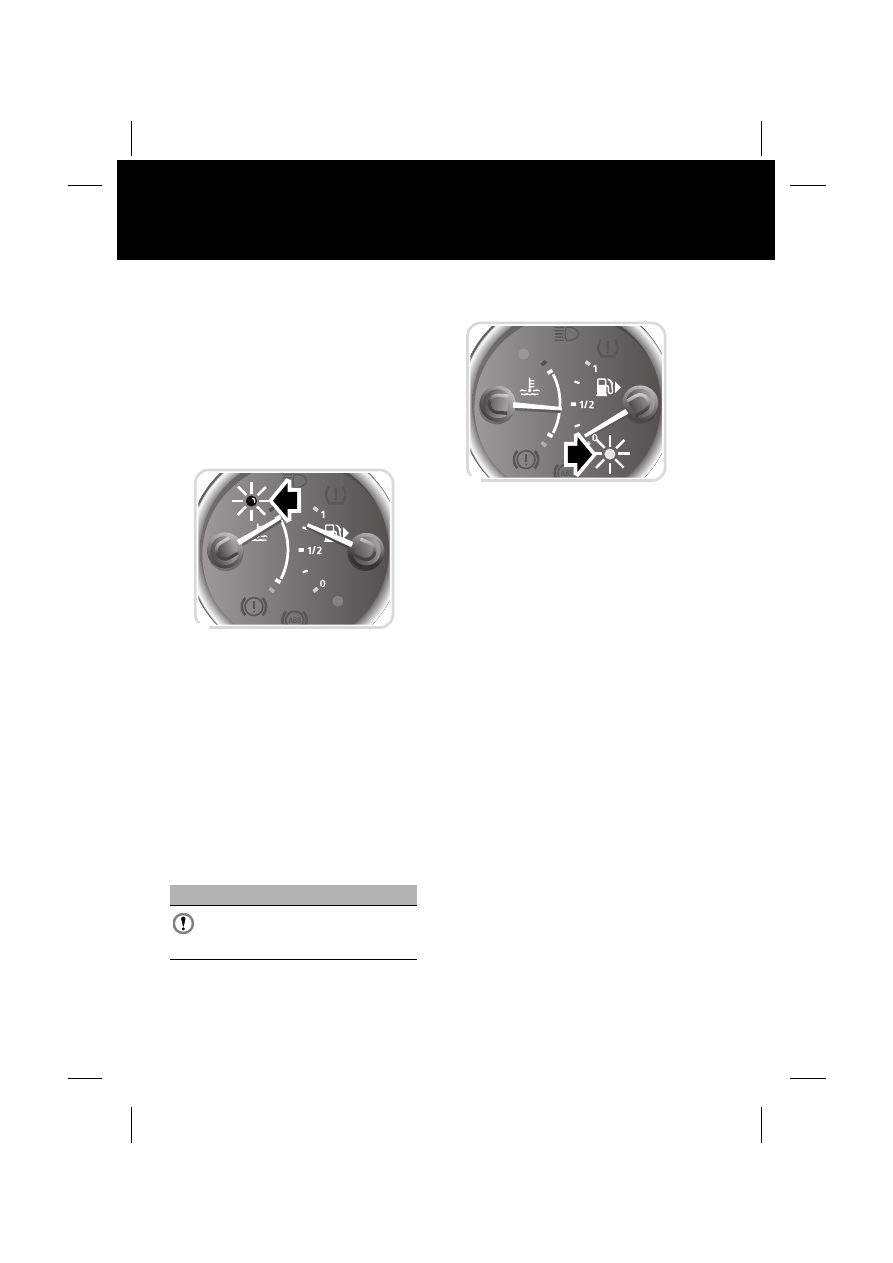

Temperature gauge

At normal operating temperature, the pointer is
positioned midway between the red and blue
segments of the gauge (the precise position
will vary according to climatic conditions).

If the pointer moves into the red segment and
the red warning indicator (arrowed)
illuminates, severe engine damage could occur
(under these circumstances the air
conditioning may switch off and engine
performance may reduce to minimise engine
load).

If the engine overheats, stop the vehicle as
soon as safety permits. Switch the engine off
and allow it to cool down. If the problem
reoccurs, seek qualified assistance before
continuing.

Fuel gauge

When the ignition is on the pointer quickly rises
to show the level of fuel in the tank.

When the amber low fuel warning indicator
(arrowed) illuminates, the remaining fuel
should give a range of 80 km (50 miles). The
small arrow alongside the fuel pump symbol
indicates the side of the vehicle on which the
fuel filler is located.

Total distance (odometer) and trip recorder

Indicates the total distance travelled, and also
shows the most recent individual journey
distance.

Trip recorder reset switch

With the ignition on, press to reset the trip
recorder back to zero.

Selected gear display

Displays the currently selected gear and
operating mode.

CAUTION

Never allow your vehicle to run out of fuel
as the resultant misfire may destroy the

catalytic converter.

E80509

E80510

21

Quick start

R

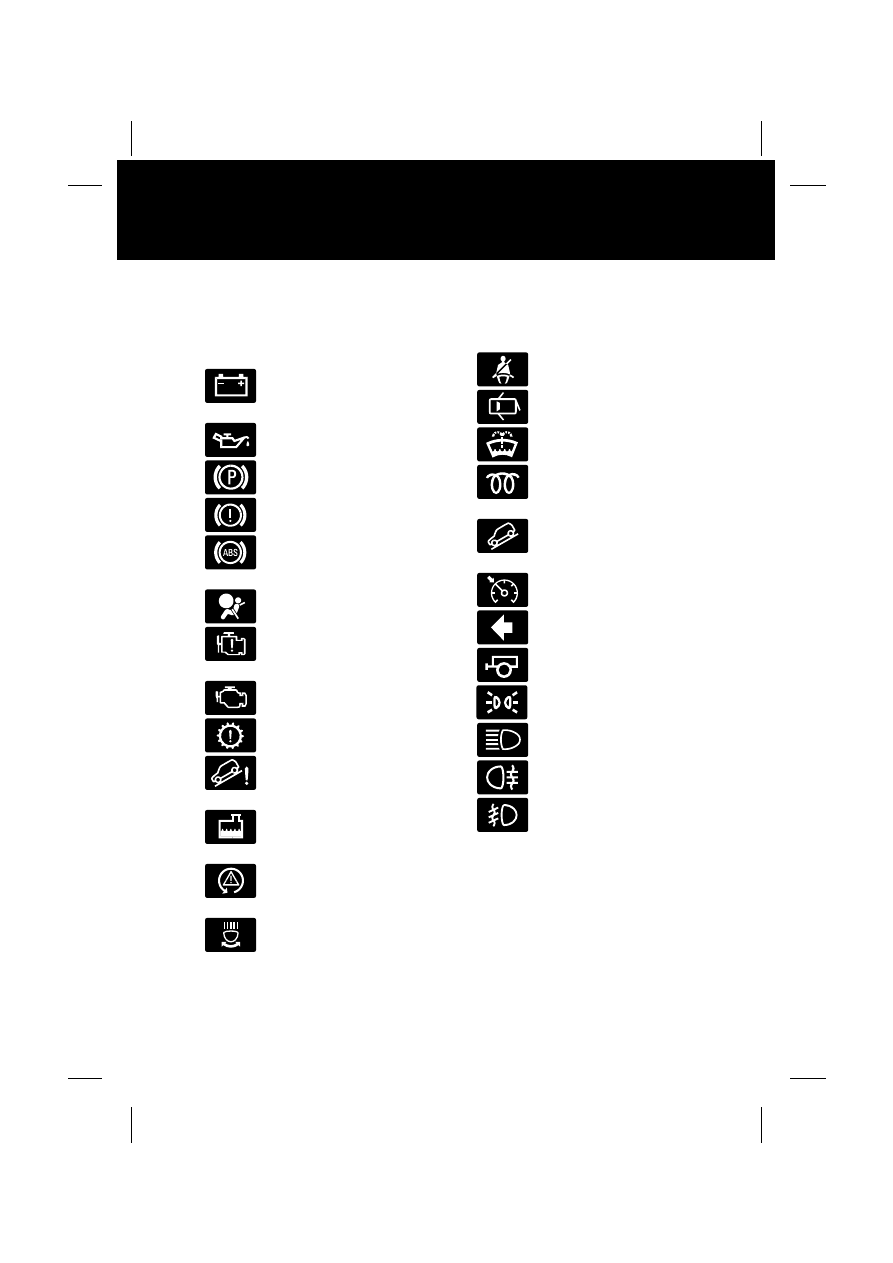

Warning indicators (attention)

If any of the following illuminates whilst driving
a fault has been detected. Refer to the
individual pages given below for further
information.

Battery charge indicator. See
GENERAL DRIVING POINTS
(page 128).

Low oil pressure. See GENERAL
DRIVING POINTS (page 128).

Parking brake.  See PARKING
BRAKE (page 124).

Brake systems.  See PRINCIPLE OF
OPERATION (page 123).

Anti-lock braking system.  See
HINTS ON DRIVING WITH ABS
(page 123).

Airbag system.  See AIRBAG
WARNING LAMP (page 61).

Engine management system. See
REDUCED ENGINE PERFORMANCE
(page 128).

Engine. See REDUCED ENGINE
PERFORMANCE (page 128).

Transmission.  See MANUAL
TRANSMISSION (page 118).

Hill Descent Control (HDC).  See
PRINCIPLE OF OPERATION
(page 136).

Low engine coolant level.  See
ENGINE COOLANT CHECK
(page 163).

Dynamic Stability Control (DSC).
See PRINCIPLE OF OPERATION
(page 140).

Adaptive front lighting system.  See
ADAPTIVE FRONT LIGHTING
SYSTEM (AFS) (page 74).

Warning indicators (information)

The following will illuminate during normal
driving to indicate that a particular system or
feature is operating.

Seat belt reminder.  See SEAT BELT
REMINDER (page 55).

Door open.  See LOCKING AND
UNLOCKING (page 44).

Low screen washer level.  See
WASHER FLUID CHECK (page 167).

Diesel glow plugs active.  See
STARTING A DIESEL ENGINE
(page 115).

Hill Descent Control (HDC) active.
See PRINCIPLE OF OPERATION
(page 136).

Cruise control active.  See USING
CRUISE CONTROL (page 130).

Direction indicator.  See DIRECTION
INDICATORS (page 75).

Trailer direction indicator.  See
TOWING A TRAILER (page 150).

Side lamps on.  See LIGHTING
CONTROL (page 72).

Headlamp high beam on.  See
LIGHTING CONTROL (page 72).

Rear fog lamps on.  See REAR FOG
LAMPS (page 73).

Front fog lamps on.  See FRONT
FOG LAMPS (page 72).

Diesel particulate filter warnings

If either of the messages DPF FULL or DPF
FULL VISIT DEALER are displayed, you must
resolve the problem as soon as possible. See
DIESEL PARTICULATE FILTER (DPF)
(page 116).
