Frelander 2. Manual - part 556





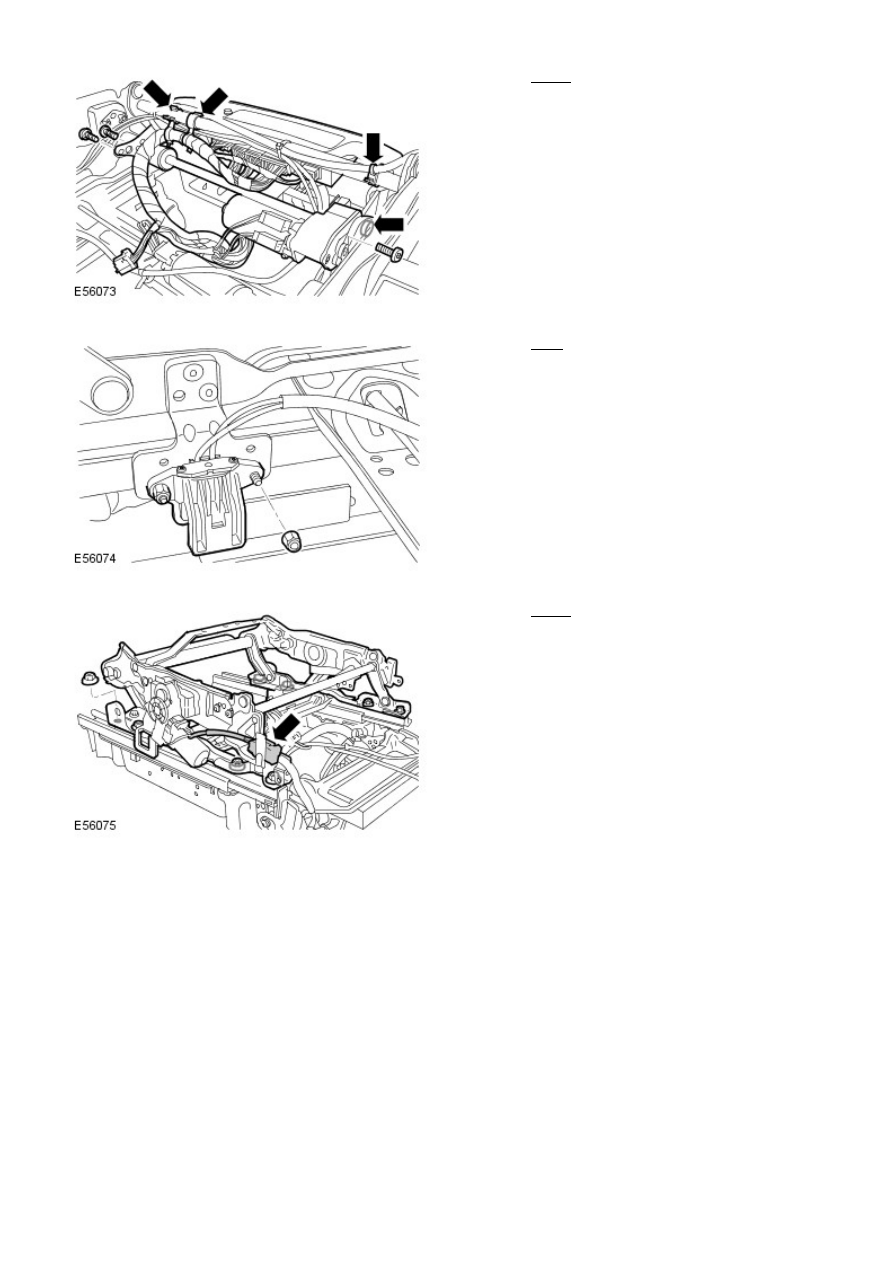

Torque: 10 Nm

5.

Torque: 4 Nm

6.

Torque: 25 Nm

7.

Installation

To install, reverse the removal procedure.

1.

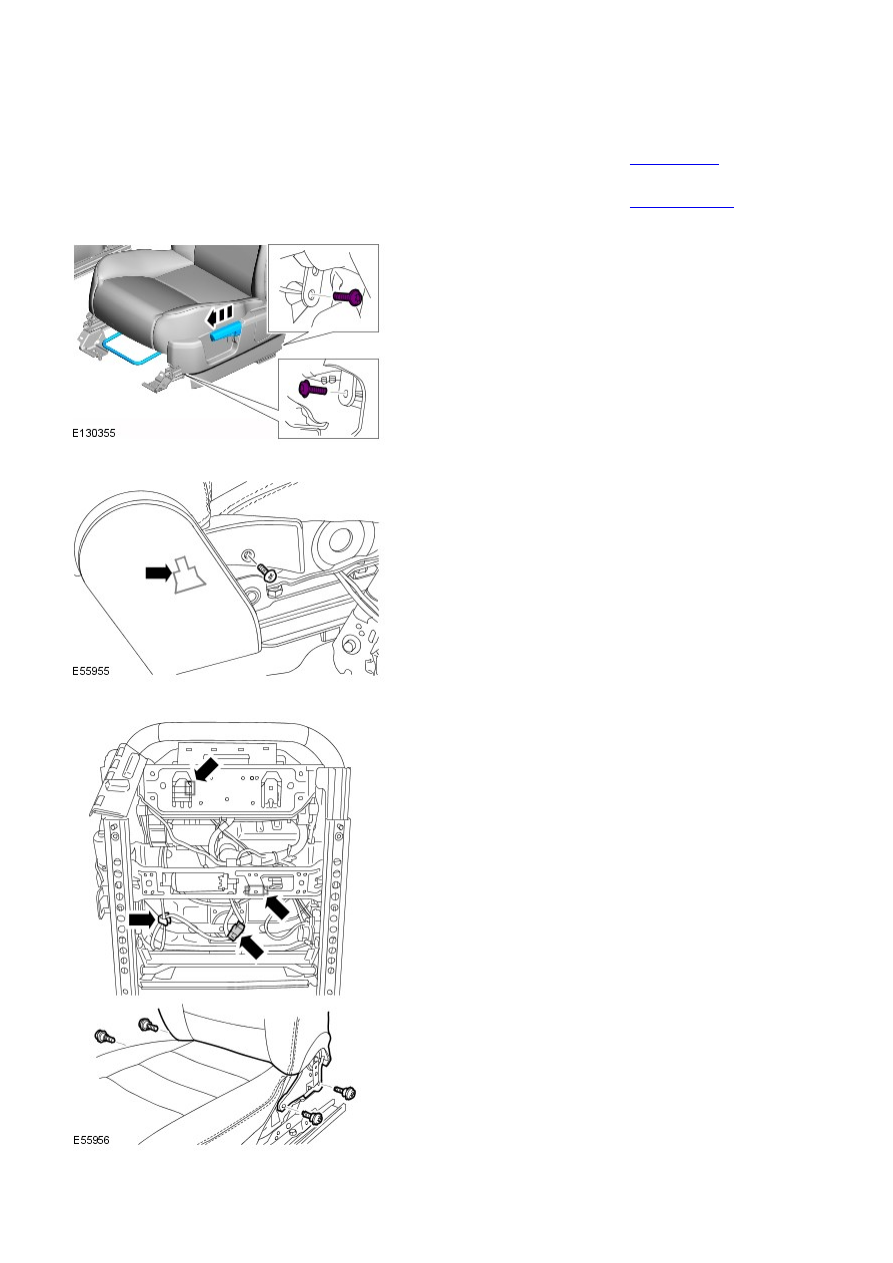

Seating - Front Seat Manual Height Adjustment Lever

Removal and Installation

Removal

1. Remove the drivers side seat slides.

For additional information, refer to:

Front Seat Track

 (501-10 Seating,

Removal and Installation).

2. Remove the front seat cushion base.

For additional information, refer to:

Front Seat Cushion

 (501-10

Seating, Removal and Installation).

3.

4.

5. TORQUE: 25 Nm

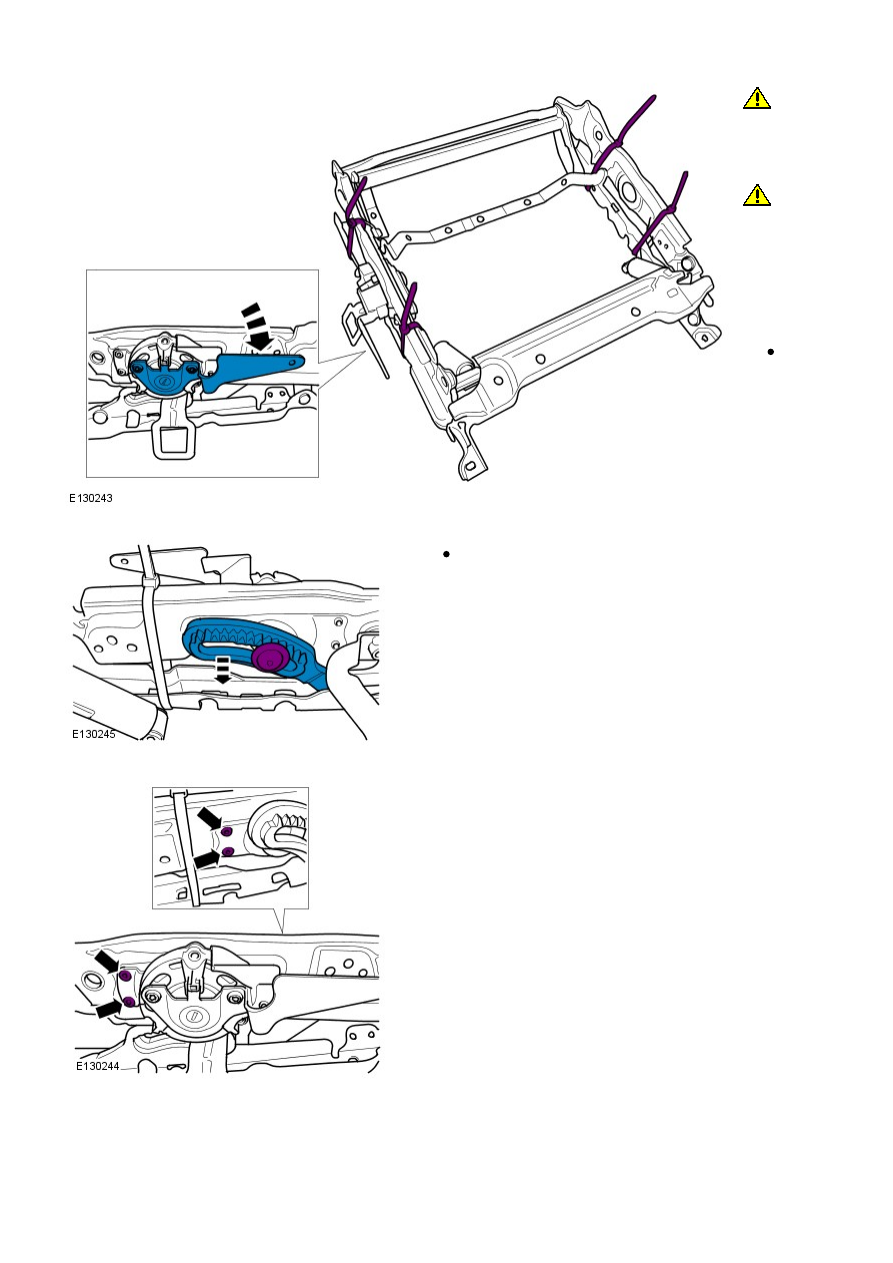

6. CAUTIONS:

 Tie straps

must be fitted,
failure to follow
this instruction
may result in
personal injury.

 Failure to

follow this
instruction may
cause damage
to the vehicle.

Secure the
seat base
using the 4
tie straps
supplied, as
shown.

Using
the seat
height
adjuster,
lower
the seat
base to
its
lowest
position.

7. Release the arm from the height adjuster.

Remove the Torx bolt.

8. Drill out the 4 rivets.

Installation

1. To install, reverse the removal procedure.

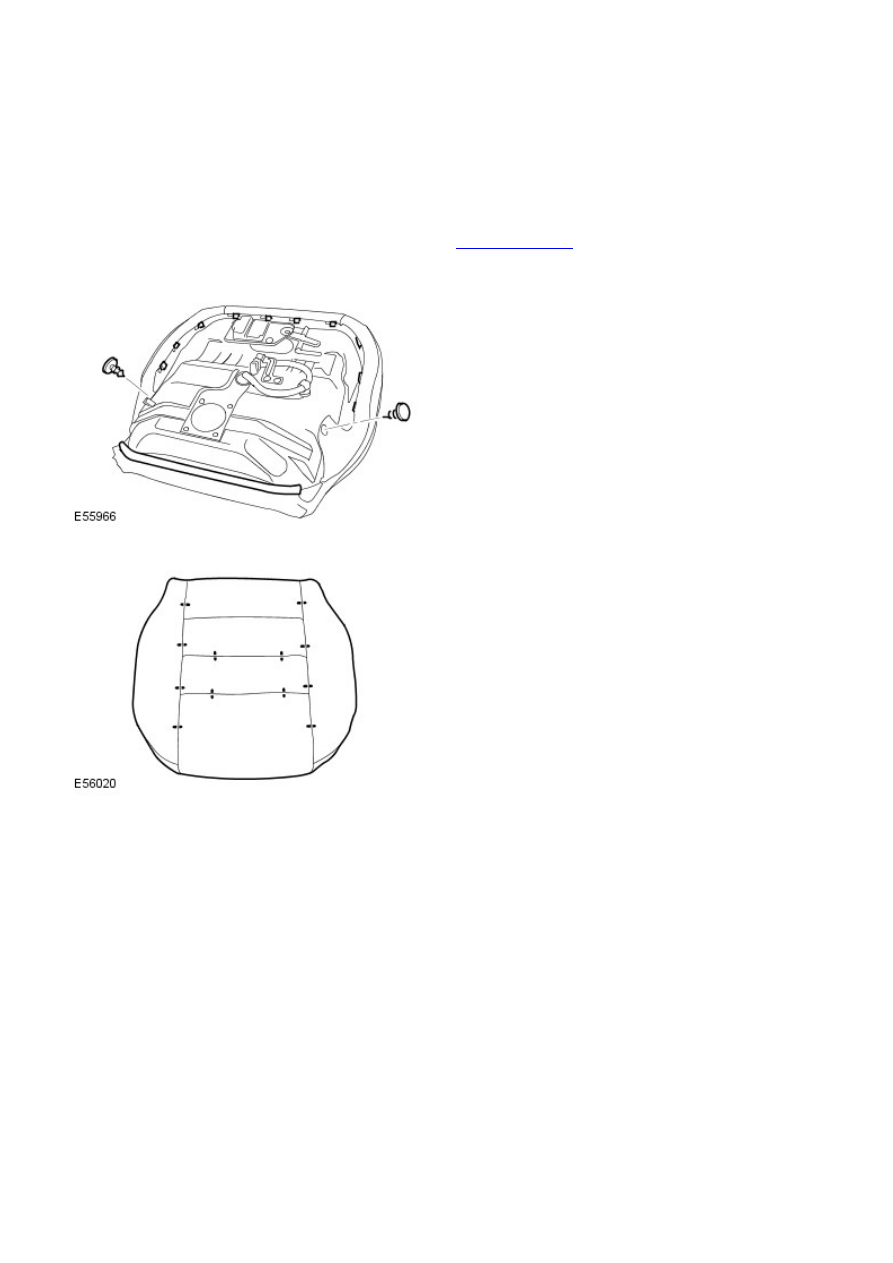

Seating - Front Seat Cushion Cover

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat cushion assembly.

Refer to:

Front Seat Cushion

 (501-10 Seating, Removal and

Installation).

1.

2.

3.

Installation

To install, reverse the removal procedure.

1.
