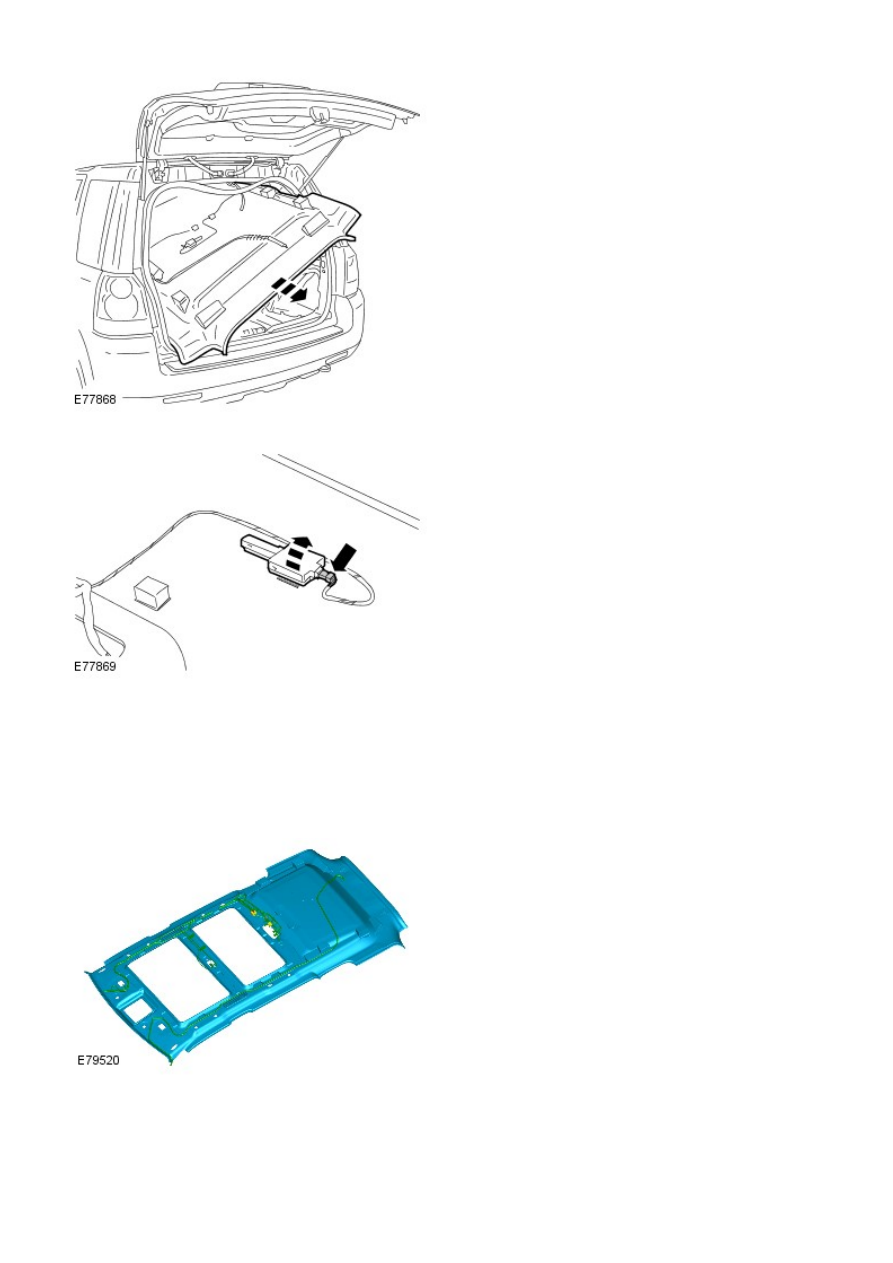

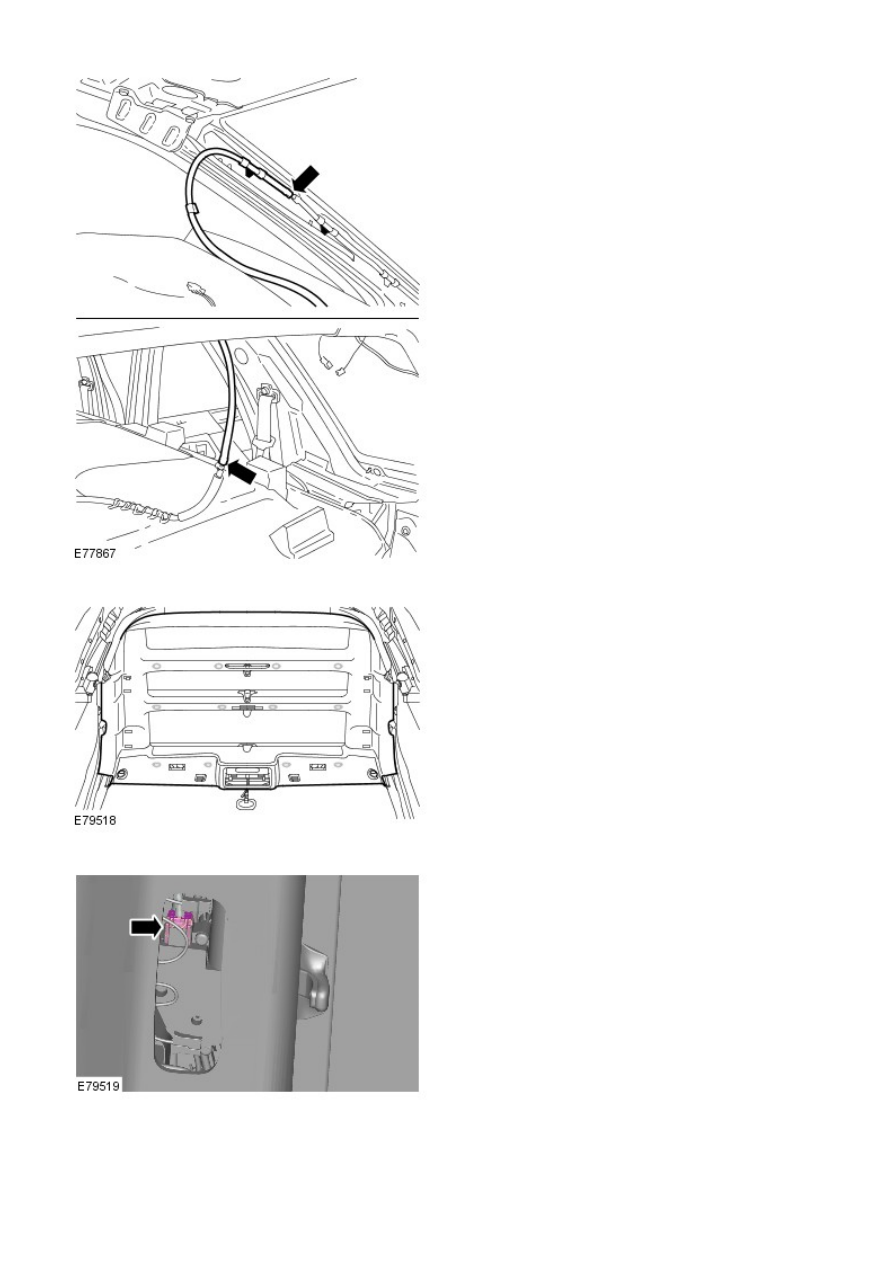

Disconnect the washer jet hose.

24.

Release the headliner.

25.

Disconnect the roof opening panel motor electrical
connector.

26.

27. NOTE: This step requires the aid of another
technician.

Remove the headliner.

27.

28. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the tire pressure monitoring system receiver.

28.

29. NOTE: Make sure that this component is installed to the noted
removal position.

Remove the washer jet hose.

29.

Remove the 14 clips.

30.

31. NOTE: Note the position of the wiring harnesses to
aid installation.

Remove the headliner wiring harness.

31.

Installation

1.

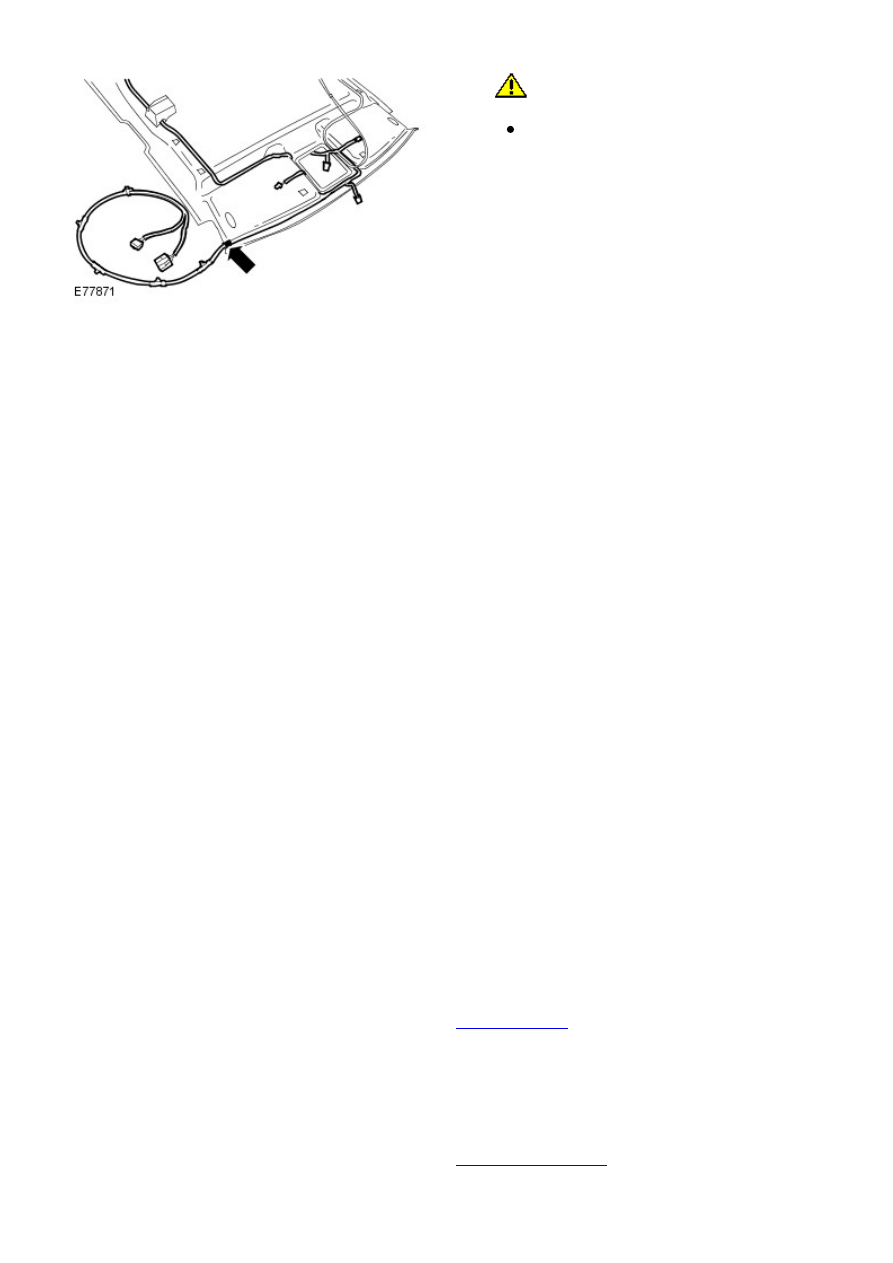

CAUTION: Make sure that the wiring harnesses

are correctly located.

Align the yellow tape on the wiring harness to
the corner of the headliner.

1.

Install the clips.

2.

Install the washer jet hose.

3.

Install the tire pressure monitoring system receiver.

4.

5. NOTE: This step requires the aid of another technician.

Install the headliner.

5.

Connect the roof opening panel motor electrical connector.

6.

Connect the washer jet hose.

7.

Attach the front door seals.

8.

Attach the rear of the headliner.

9.

Reposition the rear seats.

10.

Reposition the front seats.

11.

Install the passenger assist handles.

12.

Install the rear interior lamp.

13.

Install the center interior lamp.

14.

Install the front interior lamps.

15.

Install the overhead console.

Refer to:

Overhead Console

 (501-12 Instrument Panel and Console,

Removal and Installation).

16.

Install the sun visors.

17.

Install the interior rear view mirror.

Refer to:

Interior Rear View Mirror

 (501-09 Rear View Mirrors,

Removal and Installation).

18.

Connect the headliner wiring harness and secure the clips.

19.

Install the speaker grille.

20.

Install the cowl side trim panel.

Refer to:

Cowl Side Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

21.

Install the glove compartment.

Refer to:

Glove Compartment

 (501-12 Instrument Panel and

Console, Removal and Installation).

22.

Install the rear quarter trim panel.

23.

Install the loadspace securing ring and tighten the Torx screw.

Torque: 25 Nm

24.

Install the D-pillar trim panels.

Refer to:

D-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

25.

Install the C-pillar trim panels.

Refer to:

C-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

26.

Install the B-pillar trim panels.

Refer to:

B-Pillar Upper Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

27.

Install the A-pillar trim panels.

Refer to:

A-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

28.
