Frelander 2. Manual - part 501





35.

36. NOTE: LHD illustration shown, RHD is similar.

36.

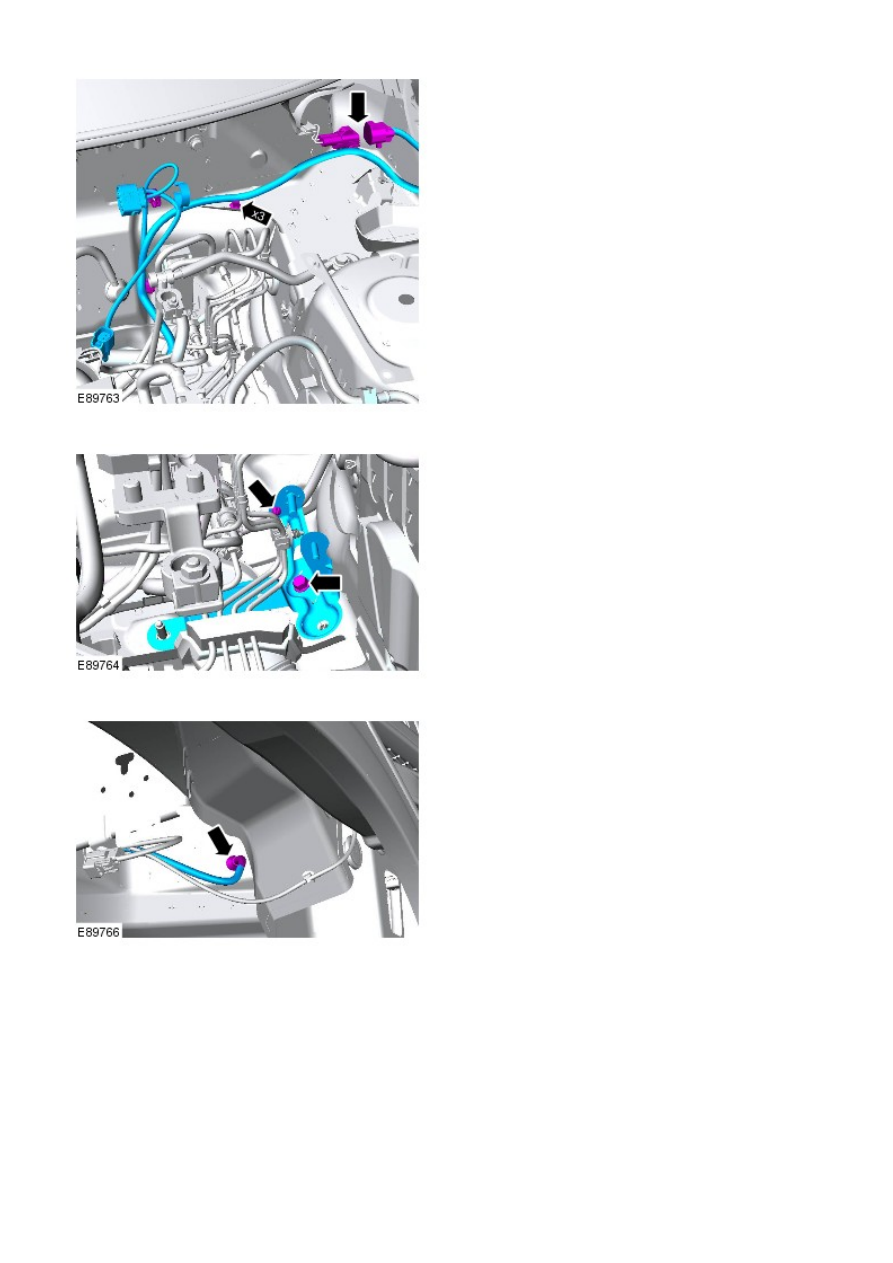

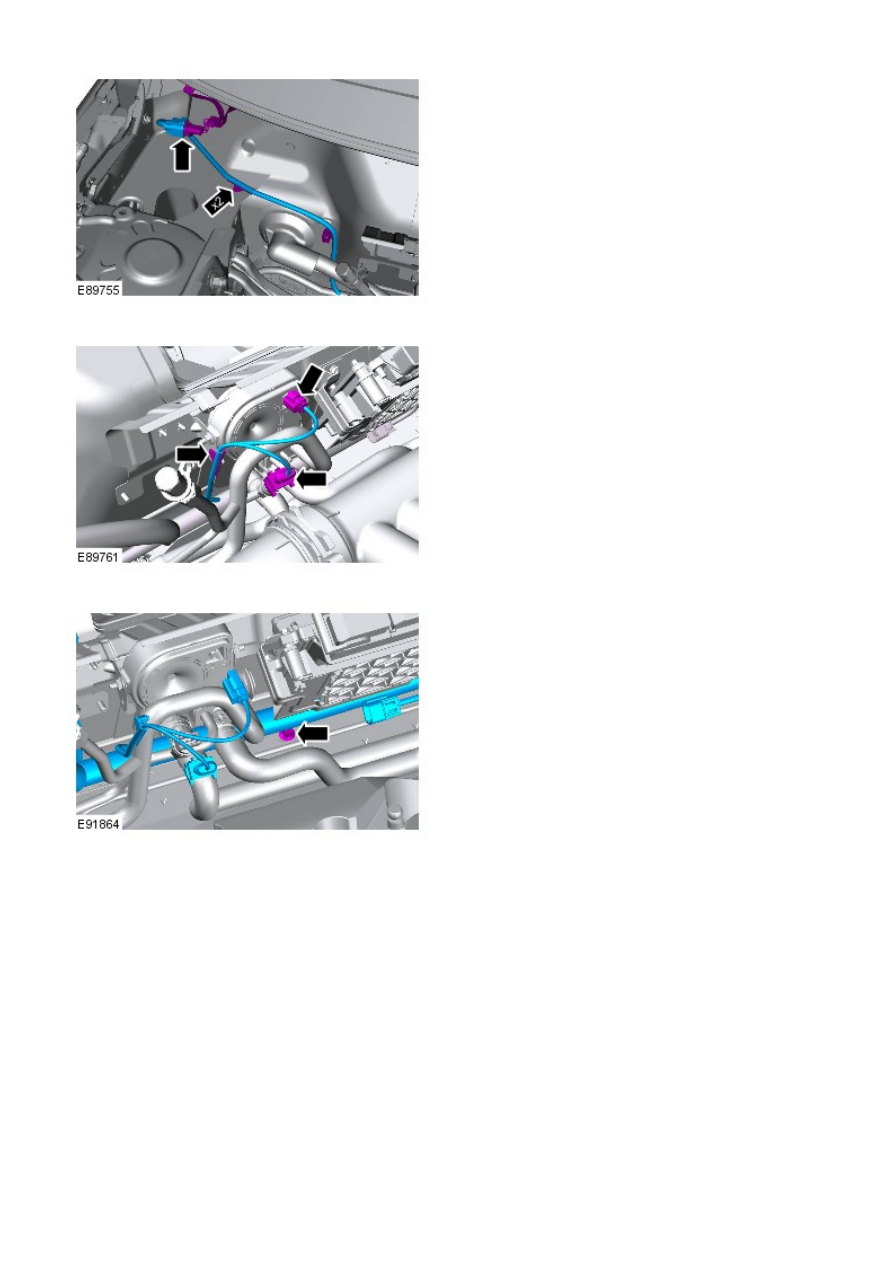

Release the engine compartment harness from clip
securing it to the vehicle bulkhead.

37.

38. NOTE: RHD illustration shown, LHD is similar.

38.

39.

40.

41. NOTE: RHD illustration shown, LHD is similar.

41.

42. NOTE: RHD illustration shown, LHD is similar.

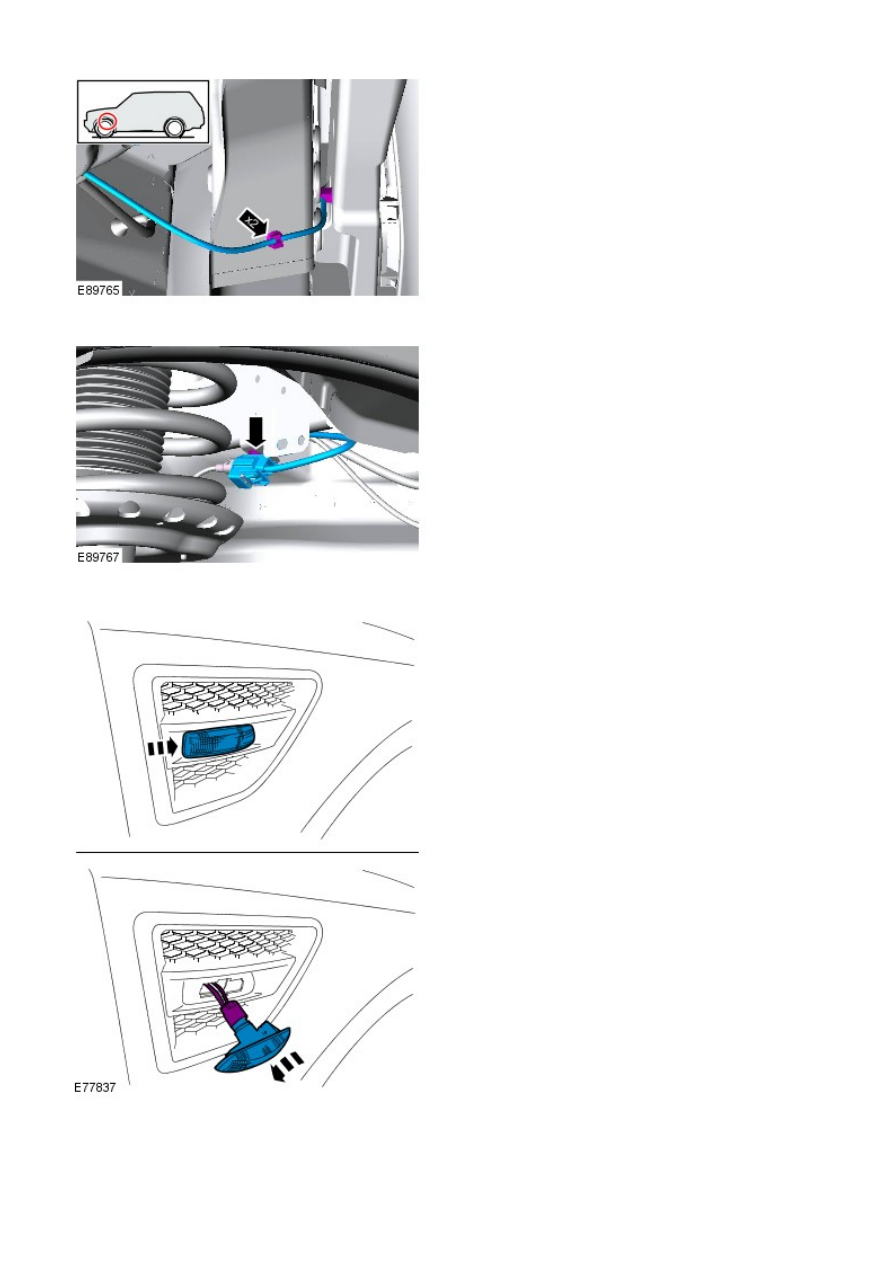

RH side front: Release the ABS sensor lead and
disconnect the electrical connector.

42.

43. NOTE: RH illustration shown, LH is similar

Release the LH side repeater from the vehicle body and
disconnect the electrical connector.

43.

44. NOTE: RHD illustration shown, LHD is similar.

44.

45. NOTE: RHD illustration shown, LHD is similar.

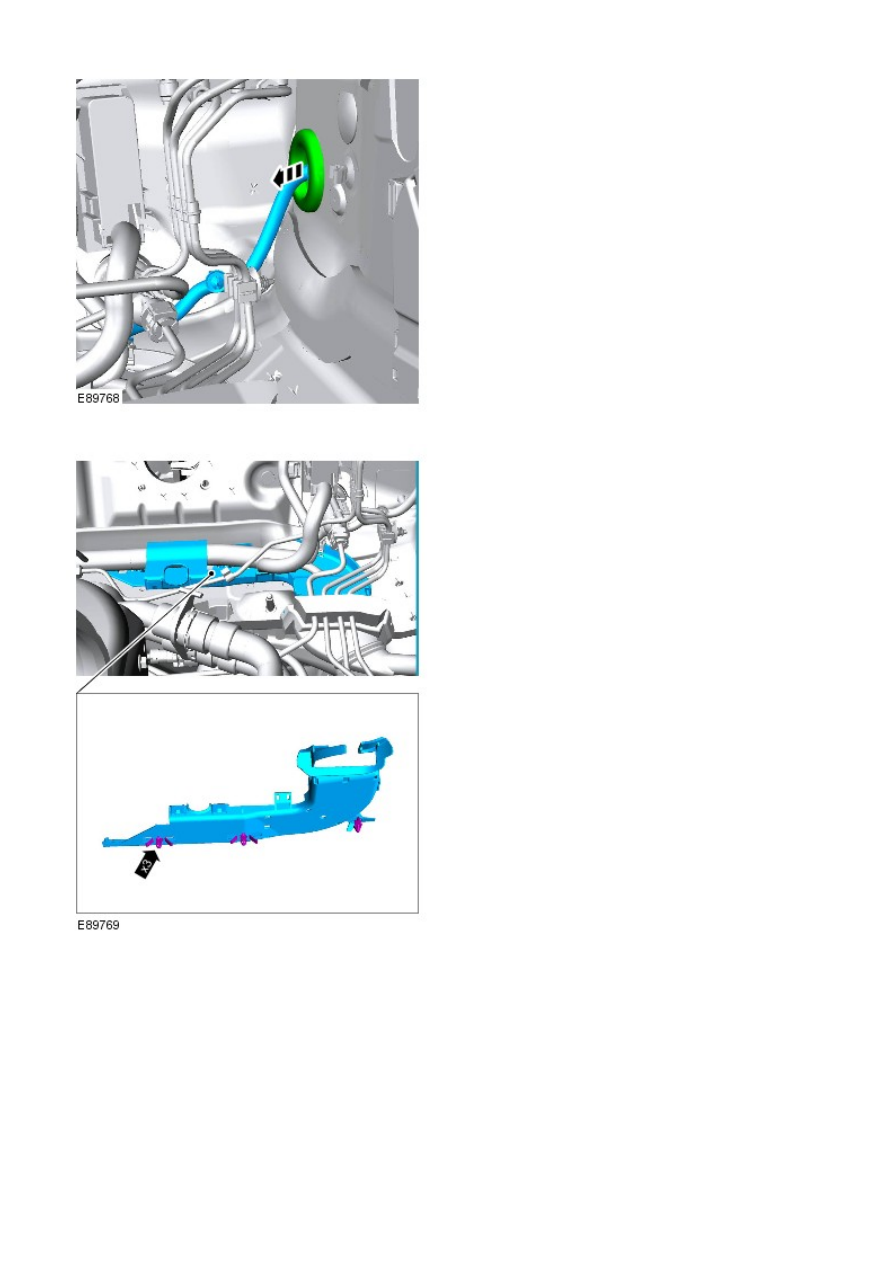

Unclip the harness tray from the vehicle bulkhead and
route the RHS of the harness around the brake pipes
into the LHS of the engine bay.

45.
