Frelander 2. Manual - part 497





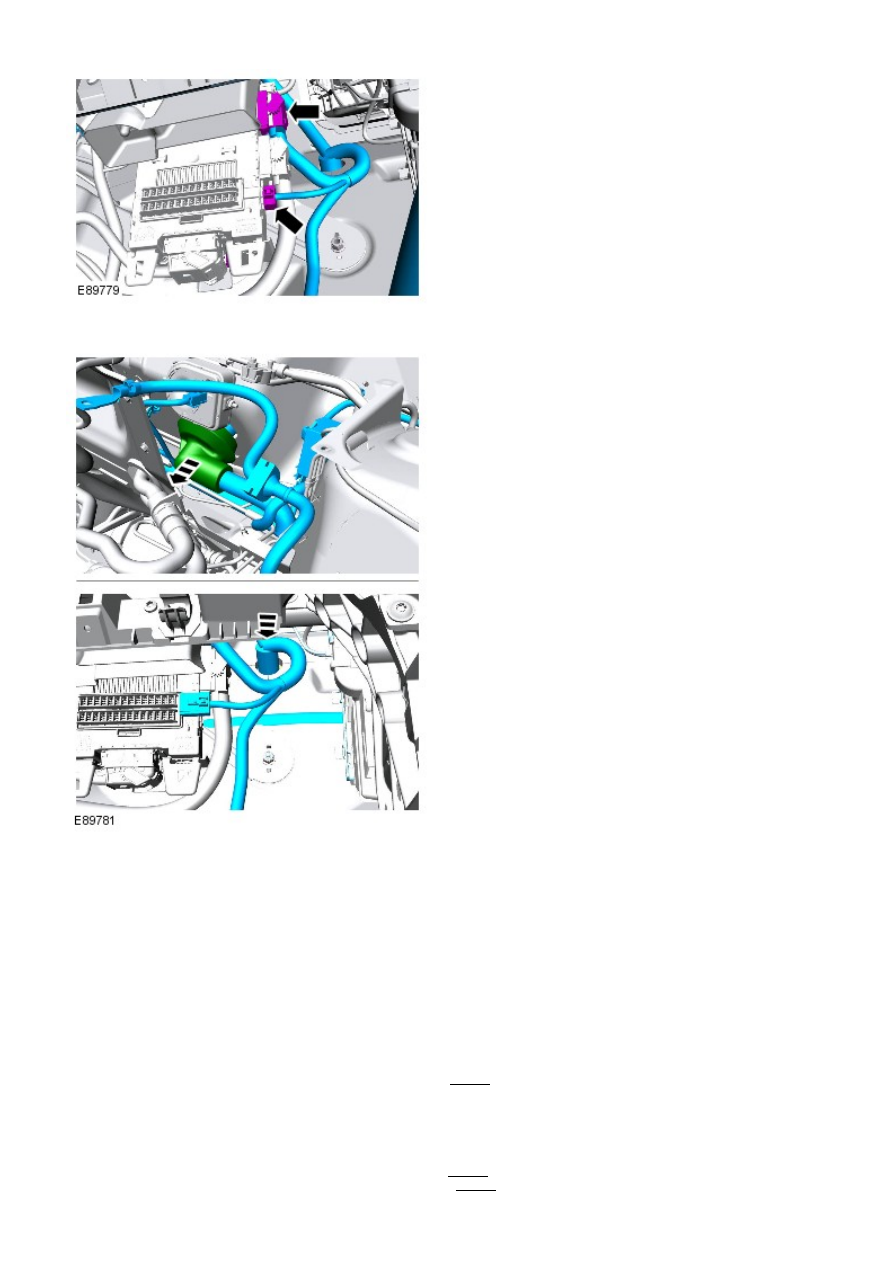

48. NOTE: LHD illustration shown, RHD is similar.

48.

Unclip the harness tray from the vehicle bulkhead and route the RHS
of the harness around the brake pipes into the LHS of the engine
bay.

49.

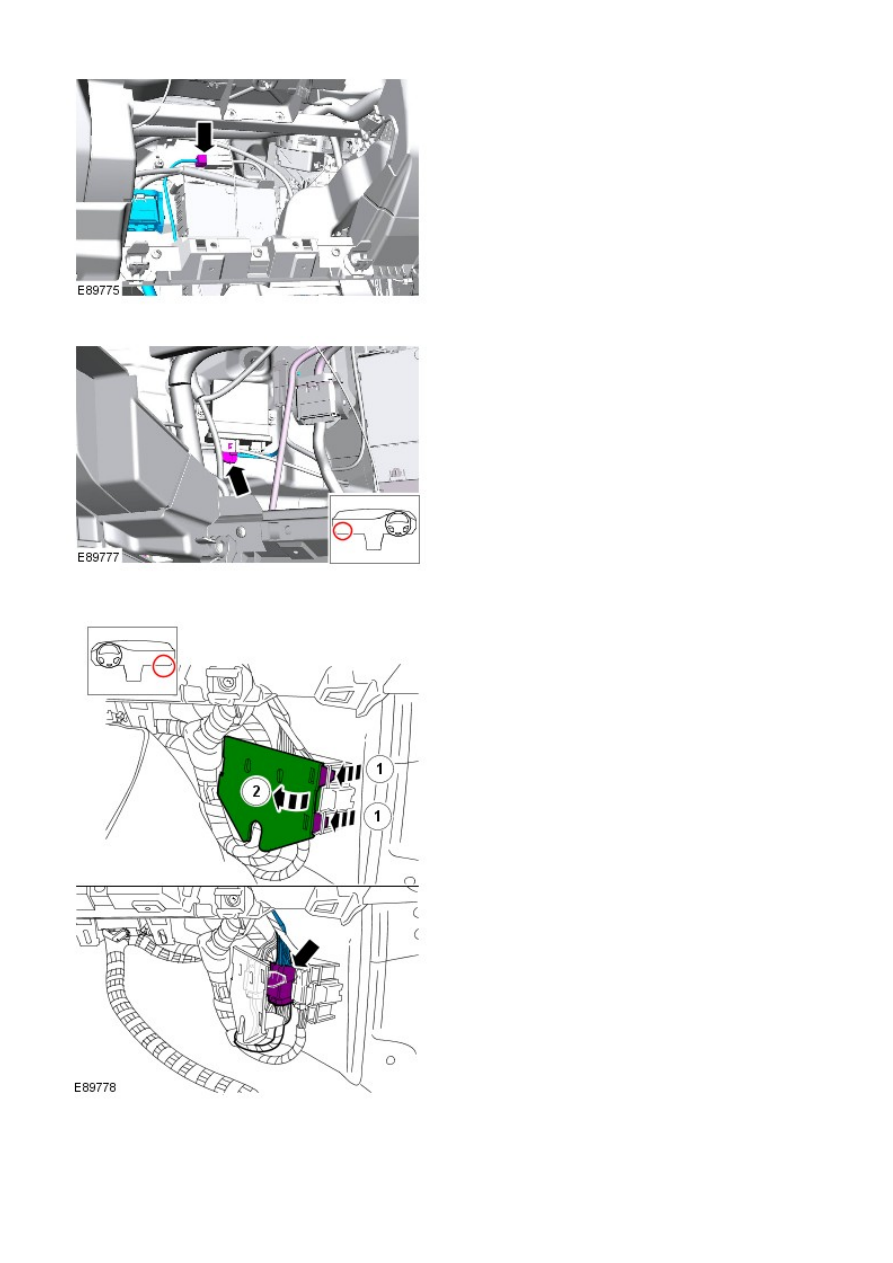

50. NOTE: RHD illustration shown, LHD is similar.

50.

51. NOTE: RHD illustration shown, LHD is similar.

51.

52. NOTE: RHD illustration shown, LHD is similar.

52.

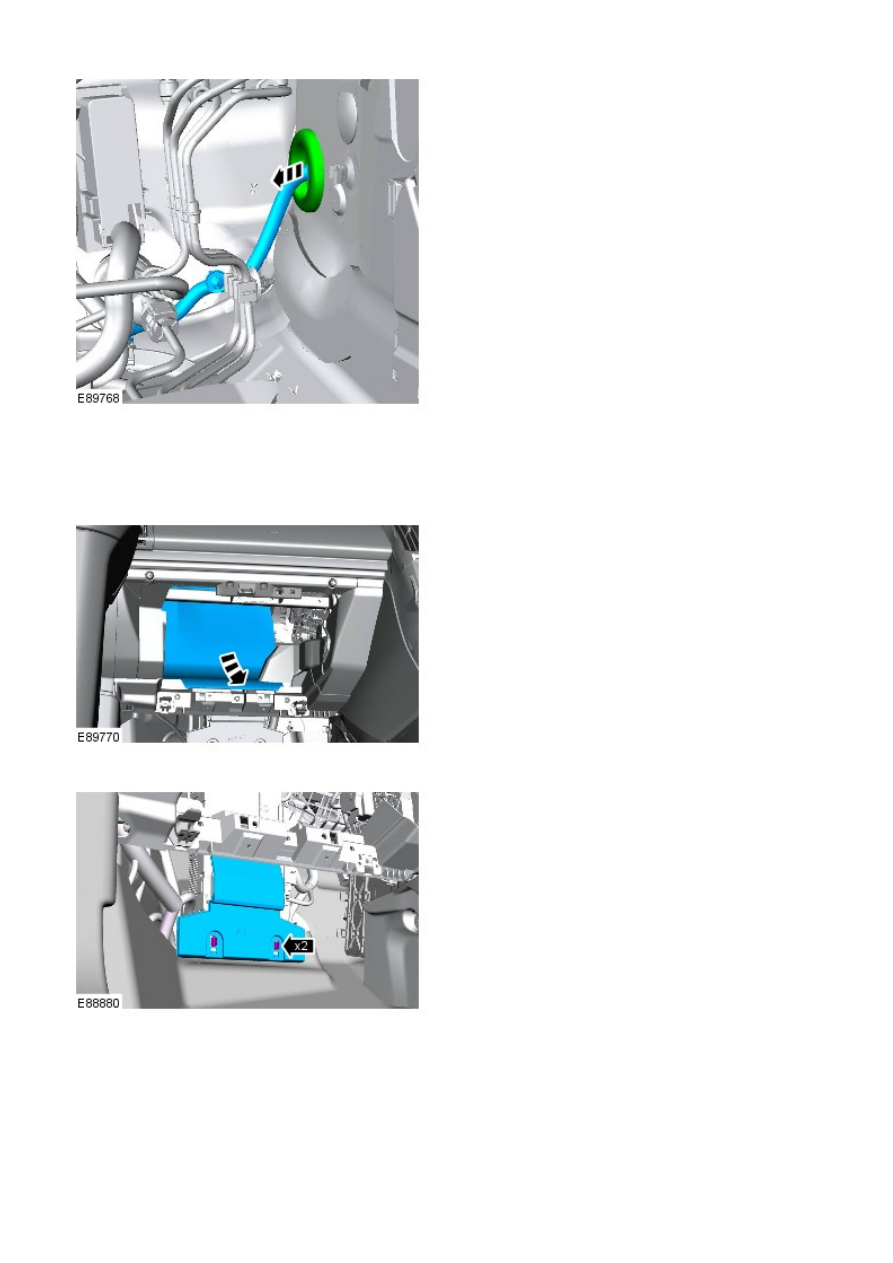

53. NOTE: LHD illustration shown, RHD is similar.

53.

54. NOTE: LHD illustration shown, RHD is similar.

54.

55. NOTE: RHD illustration shown, LHD is similar.

55.

56. NOTE: RHD illustration shown, LHD is similar.

56.

Installation

Place harness to vehicle plenum, feed connectors into inside of
vehicle and install grommet. Use assistance inside vehicle to pull
connectors through.

1.

Secure harness tray clips and secure rubber grommet to vehicle
body.

2.

Install and secure fusebox to body.

Torque: 10 Nm

3.

Install the engine mounting plate.

Torque:

M8 24 Nm
M12 80 Nm

4.

Secure the engine harness to the fusebox.

5.

Install and secure the battery lead to the fusebox and install the
small battery lead cover.

Torque: 10 Nm

6.

Connect the two electrical connectors to the BJB.

7.

Secure the 3 earth points and secure the harness clips to the vehicle
body.

Torque: 10 Nm

8.

Secure the battery lead to the battery terminal clamp.

Torque: 25 Nm

9.

Install the fuse box cover.

10.

Install the harness cover to the suspension turret.

11.

Feed harness under the air cleaner duct and secure the duct to the
grommet.

12.

Secure headlamp and bumper harness clips.

13.

Connect the height sensor electrical connector and secure the
harness with the clips.

14.

Install headlamp mounting plate.

Torque: 10 Nm

15.

Connect the side repeater electrical connector.

16.

Connect the heated washer jet electrical connection and secure the
harness to the vehicle body.

17.

Connect the ABS sensor and secure the harness to the vehicle body.

18.

Secure the washer pipe to the harness and secure the harness to the
body.

19.

Connect the crash sensor electrical connectors.

20.

Connect the the bonnet lock electrical connector

21.

Secure the harness to the body and then secure the bonnet release
cable to the harness.

22.

Secure the washer pipe to the washer bottle.

23.

Install the washer bottle and connect the electrical connections.

Torque: 10 Nm

24.
