Frelander 2. Manual - part 459





Name

Item

Number

Vehicle

Description

Fuse
F9

55

i6

Fuel injectors, MAF sensor, ECM

Fuse
F10

54

TD4

Not used

Fuse
F10

54

i6

ECM

Fuse
F11

4

TD4

Fuel rail pressure control valve, BJB relay R4 coil

Fuse
F11

4

i6

Intake Camshaft Position (CMP) sensor, exhaust CMP sensor, Variable Camshaft
Timing (VCT) solenoid, variable plenum valve, variable intake tract valve, ECM, A/C
compressor clutch

Fuse
F12

53

TD4

Exhaust Gas Recirculation (EGR) valve, port deactivation actuator

Fuse
F12

53

i6

Ignition coils

Fuse
F13

52

All

BJB relay R3 (A/C compressor clutch)

Fuse
F14

51

TD4

Fuel pump (volume control valve)

Fuse
F14

51

i6

Not used

Fuse
F15

50

All

BJB relay R1 (starter motor)

Fuse
F16

8

TD4

Electric booster heater

Fuse
F16

8

i6

Not used

Fuse
F17

9

All

CJB fuses 6, 8, 21, 22, 23, 24, 25, 26, 27 and 28, interior lamp Field Effect
Transistor (FET), exterior lamp FET's, (CJB), electric steering column lock/instrument
cluster relay (CJB), battery saver relay, central electronic module (CJB)

Fuse
F18

10

All

CJB fuses 7, 9, 10, 11, 13 and 14, exterior lamp FET's

Fuse
F19

11

All

AJB fuses FA1 to FA11

Fuse
F20

13

All

AJB fuses FB9, AJB relay RB1

Fuse
F21

15

All

AJB relay RD1

Fuse
F22

44

All

BJB relays R8 and R11 (windshield wipers)

Fuse
F23

45

All

Not used

Fuse
F24

12

All

BJB relays R9 and R12 (headlamp washer pump)

Fuse
F25

14

All

Anti-lock Brake System (ABS) module (valves)

Fuse
F26

16

All

ABS module (pump)

Fuse
F27

17

All

Not used

Fuse
F28

18

All

Blower motor, blower motor control module

Fuse
F29

19

All

Not used

Fuse
F30

42

All

Not used

Fuse
F31

41

All

BJB relay R10 (horn)

Fuse
F32

43

TD4

Fuel fired booster heater

Fuse
F32

43

i6

Not used

Fuse
F33

20

All

BJB relays R5, R6, R7 and R10, light control module

Fuse
F34

22

All

LH heated windshield element

Fuse
F35

21

All

RH heated windshield element

Fuse
F36

40

All

Not used

Fuse
F37

39

All

Heated washer jets

Fuse
F38

33

Adaptive Front
lighting System
(AFS)

RH headlamp motor

Fuse
F39

26

All

Pollution sensor, air intake stepper motor, LH temperature blend stepper motor, RH
temperature blend stepper motor, face/feet distribution stepper motor, windshield
(defrost) distribution stepper motor

Name

Item

Number

Vehicle

Description

Fuse
F40

38

All

Not used

Fuse
F41

37

All

CJB fuses 1 to 4

Fuse
F42

30

Manual
transmission

ECM

Fuse
F42

30

Automatic
transmission

ECM, TCM

Fuse
F43

27

AFS

AFS control module

Fuse
F43

27

Headlamp leveling

Headlamp leveling control module

Fuse
F44

24

AFS

LH headlamp motor

Fuse
F45

23

All

Cigar lighter/accessory socket

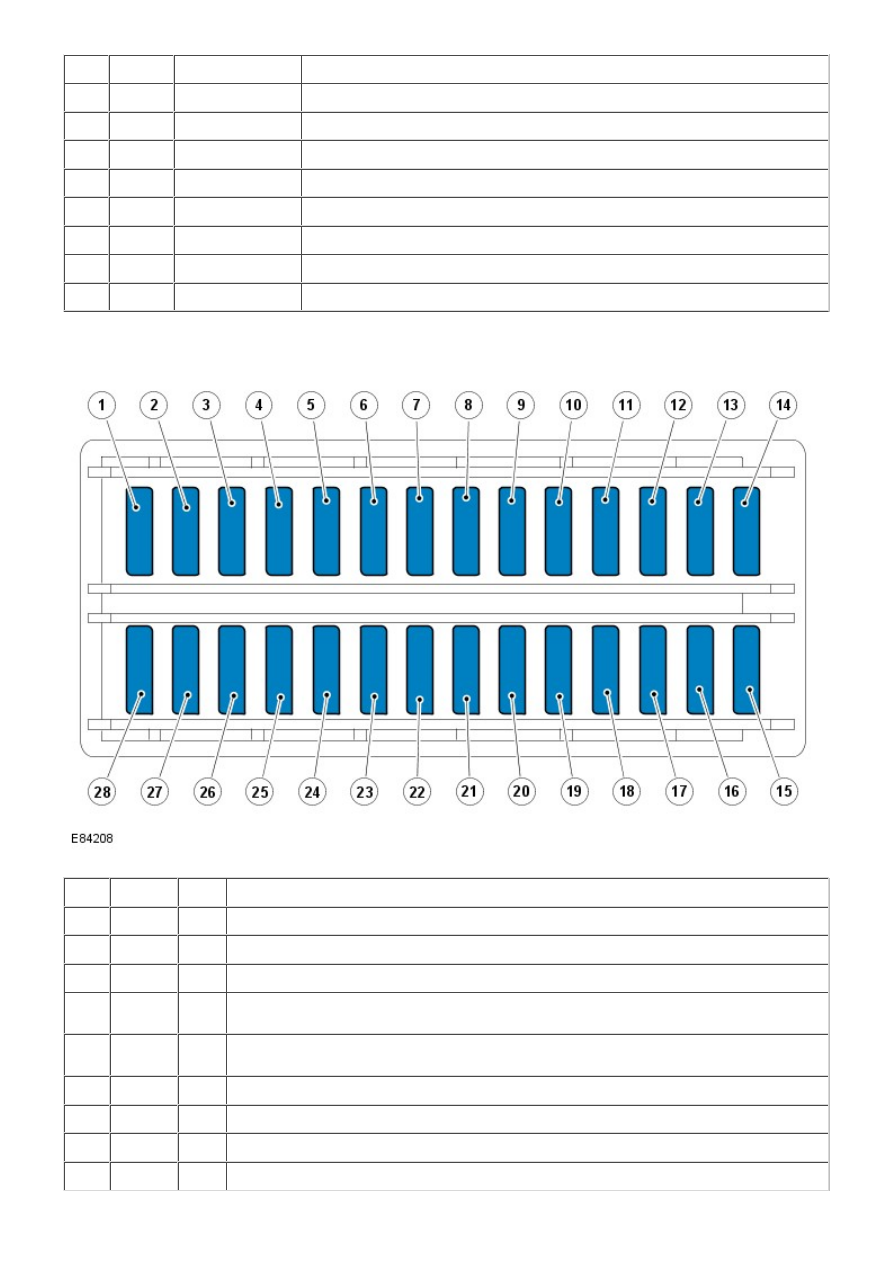

CENTRAL JUNCTION BOX

Fuses

Name

Item

Number Vehicle

Description

Fuse
F1

1

All

Rain/light sensor

Fuse
F2

2

All

Restraints Control Module (RCM), occupant classification system sensor

Fuse
F3

3

All

ABS module

Fuse
F4

4

TD4

Instrument cluster, electric booster heater, Terrain Optimization™ rotary control, automatic
dimming interior mirror, light switch module, passenger airbag disabled indicator, Accelerator
Pedal Position (APP) sensor

Fuse
F4

4

i6

Instrument cluster, Terrain Optimization™ rotary control, automatic dimming interior mirror,
light switch module, passenger airbag disabled indicator, Accelerator Pedal Position (APP)
sensor

Fuse
F5

5

All

Not used

Fuse
F6

6

All

Audio head unit, Infotainment Control Module (ICM)

Fuse
F7

7

All

LH steering column multi-function switch

Fuse
F8

8

All

Instrument cluster

Name

Item

Number Vehicle

Description

Fuse
F9

9

All

LH headlamp main beam, RH headlamp main beam

Fuse
F10

10

All

Roof opening panel control unit

Fuse
F11

11

All

LH reversing lamp, RH reversing lamp, automatic dimming interior mirror

Fuse
F12

12

All

Not used

Fuse
F13

13

All

LH front fog lamp, RH front fog lamp

Fuse
F14

14

All

W indshield and rear screen washer pump

Fuse
F15

28

All

Not used

Fuse
F16

27

All

Not used

Fuse
F17

26

All

Front interior lamp, rear interior lamp, LH vanity mirror lamp, RH vanity mirror lamp, glovebox
lamp, driver door latch switch, luggage compartment lamp

Fuse
F18

25

All

Not used

Fuse
F19

24

All

Drivers seat control module, drivers seat switch pack, lumbar support switch, battery power
save relay

Fuse
F20

23

All

Rear screen wiper motor, AJB relay RA2

Fuse
F21

22

All

Radio Frequency (RF) receiver, intrusion detection module

Fuse
F22

21

All

Fuel delivery module

Fuse
F23

20

All

Electric steering column lock

Fuse
F24

19

All

Not used

Fuse
F25

18

All

Fuel filler flap release motor and liftgate latch

Fuse
F26

17

All

Diagnostic socket, battery backed sounder

Fuse
F27

16

All

Automatic Temperature Control (ATC) module, start control module

Fuse
F28

15

All

Stop lamp switch

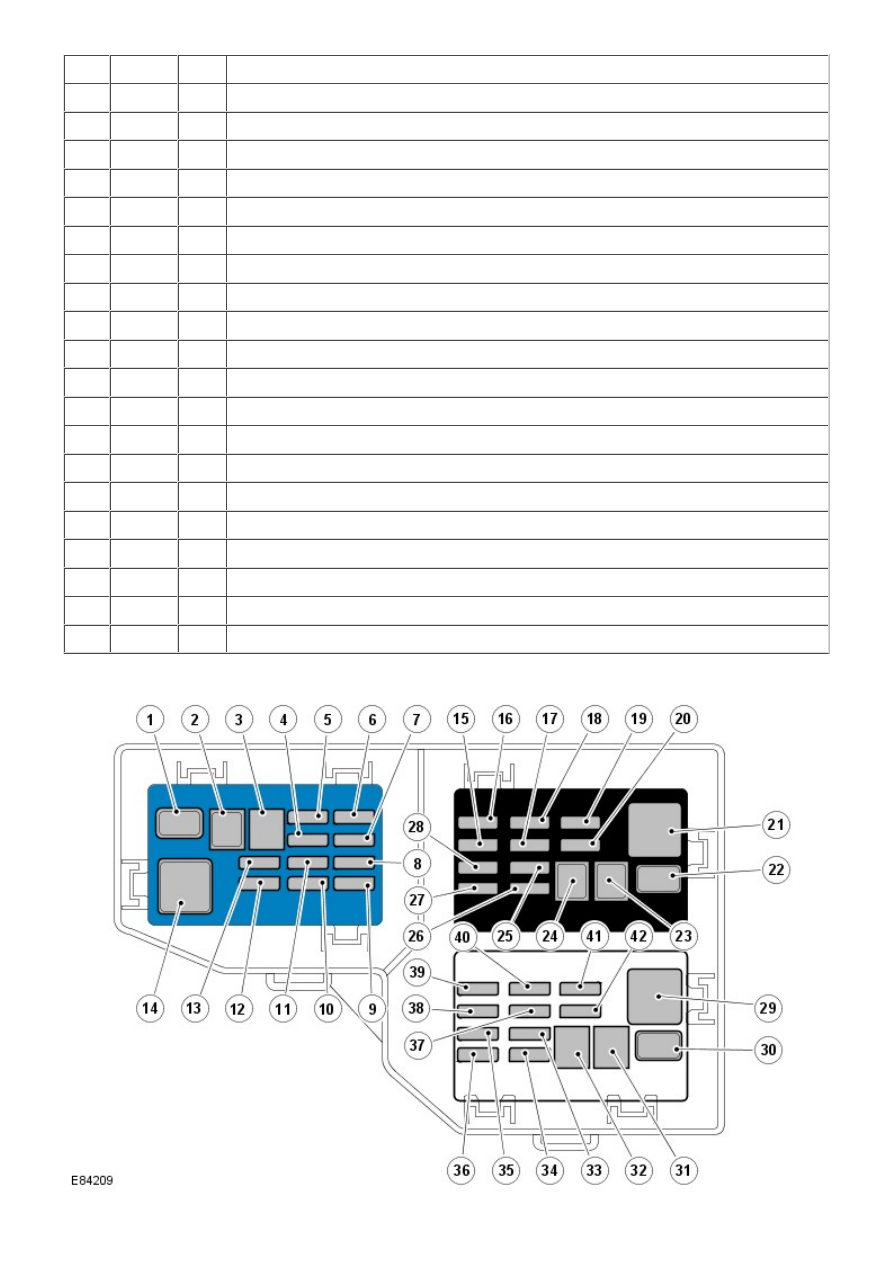

AUXILIARY JUNCTION BOX

The Auxiliary Junction Box (AJB) comprises up to 3 individual elements, depending on vehicle specification. The casing of
each junction box is color coded as follows:

AJB 1 = Black
AJB 2 = White
AJB 4 = Blue

• NOTE: AJB 3 is not used on Freelander 2

Auxiliary Junction Box 1 Relays

Name

Item Number

Vehicle

Description

Relay RA1

21

All

Heated rear screen

Relay RA2

22

All

Rear screen wiper motor

Auxiliary Junction Box 1 Fuses

Name

Item Number

Vehicle

Description

Fuse FA1

16

All

Driver door module

Fuse FA2

15

All

Passenger door module

Fuse FA3

28

All

LH rear door module

Fuse FA4

27

All

RH rear door module

Fuse FA5

18

All

Not used

Fuse FA6

17

All

Rear accessory socket

Fuse FA7

25

All

AJB relay RA1

Fuse FA8

26

All

Not used

Fuse FA9

19

All

Trailer connector (battery feed)

Fuse FA10

20

All

Drivers seat control module, drivers seat switch pack

Fuse FA11

23

All

Trailer control module

Fuse FA12

24

All

Not used

Auxiliary Junction Box 2 Relays

Name

Item Number

Vehicle

Description

Relay RB1

29

All

AJB fuses FB1 to FB8

Relay RB2

30

All

Not used

Auxiliary Junction Box 2 Fuses

Name

Item Number

Vehicle

Description

Fuse FB1

39

All

Parking aid module

Fuse FB2

38

All

Not used

Fuse FB3

35

All

Driver seat heat control module

Fuse FB4

36

All

Passenger seat heat control module

Fuse FB5

40

All

Trailer connector (fridge)

Fuse FB6

37

All

Active on-demand coupling

Fuse FB7

33

All

Not used

Fuse FB8

34

All

Not used

Fuse FB9

41

All

Passenger power operated seat relay

Fuse FB10

42

All

Not used

Fuse FB11

31

All

Not used

Fuse FB12

32

All

Not used

Auxiliary Junction Box 4 Relays

Name

Item Number

Vehicle

Description

Relay RD1

14

All

Media Orientated System Transport (MOST) ring break

Relay RD2

1

All

Not used

• NOTE: Relay RD1 is a 'plug in' ring break, not a relay

Auxiliary Junction Box 4 Fuses

Name

Item

Number

Vehicle

Description

Fuse FD1 9

All

Infotainment Control Module (ICM), navigation computer

Fuse FD2 8

All

Not used

Fuse FD3 7

All

Digital Audio Broadcast (DAB) amplifier, DAB/Satellite Digital Audio Radio Service (SDARS)
tuner

Fuse FD4 6

All

Telephone control module

Fuse FD5 10

All

Not used

Fuse FD6 11

All

Audio head unit, Integrated Audio Module (IAM)

Fuse FD7 4

All

Not used

Fuse FD8 5

All

Not used

Fuse FD9 12

All

Audio amplifier

Fuse
FD10

13

All

Not used

Fuse
FD11

2

All

Not used

Fuse
FD12

3

All

Not used
