Frelander 2. Manual - part 401





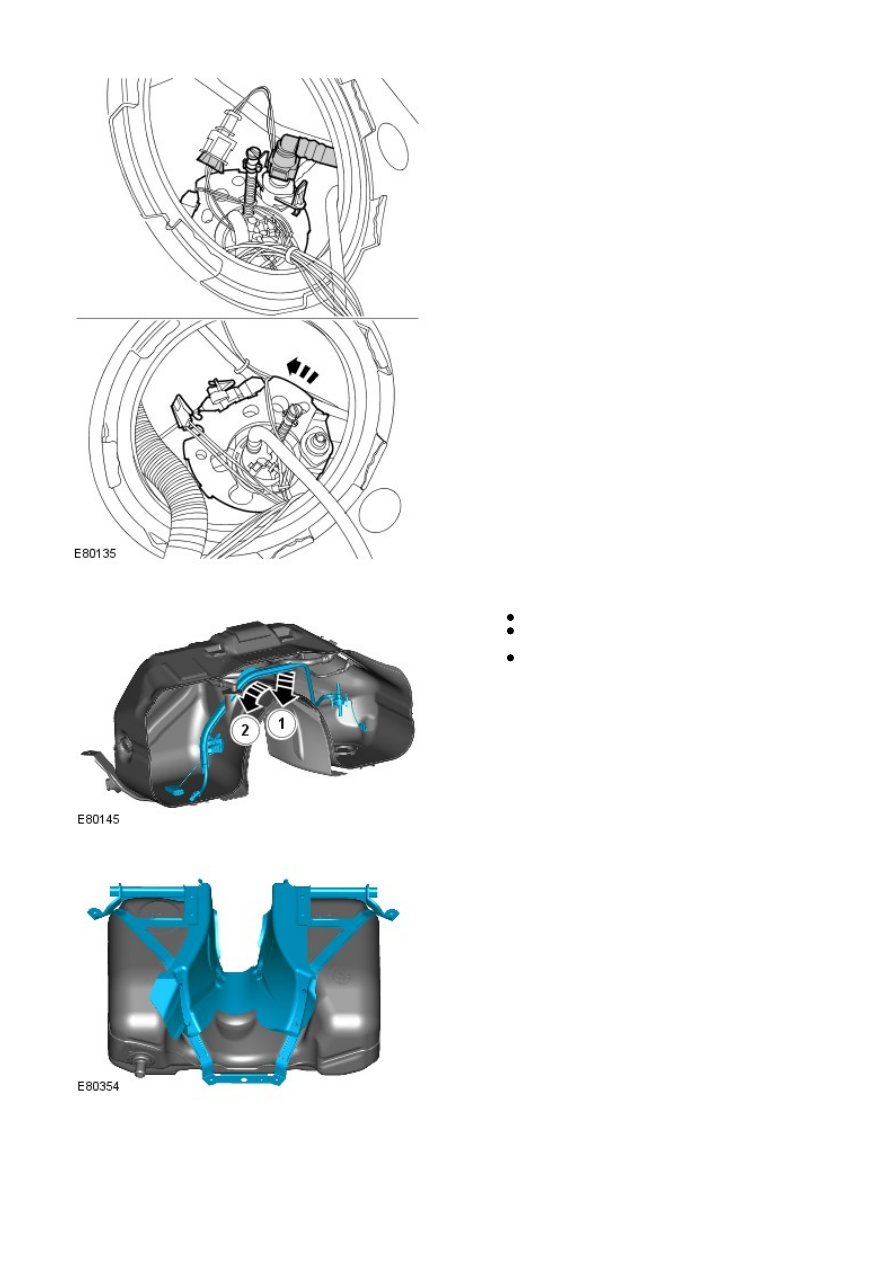

29. NOTE: Petrol illustration shown, diesel similar.

Remove the fuel pump module.

29.



Push down to release the fuel sender from clip.
Slide fuel sender assembly forward to release
from the bracket.
Manoeuvre fuel sender out of the tank.

30.

Remove the fuel tank cradle.

31.

Installation

To install, reverse the removal procedure.

1.

Refill the fuel tank.

2.

Adjust the parking brake.

Refer to:

Parking Brake Cable Adjustment

 (206-05 Parking Brake and

Actuation, General Procedures).

3.

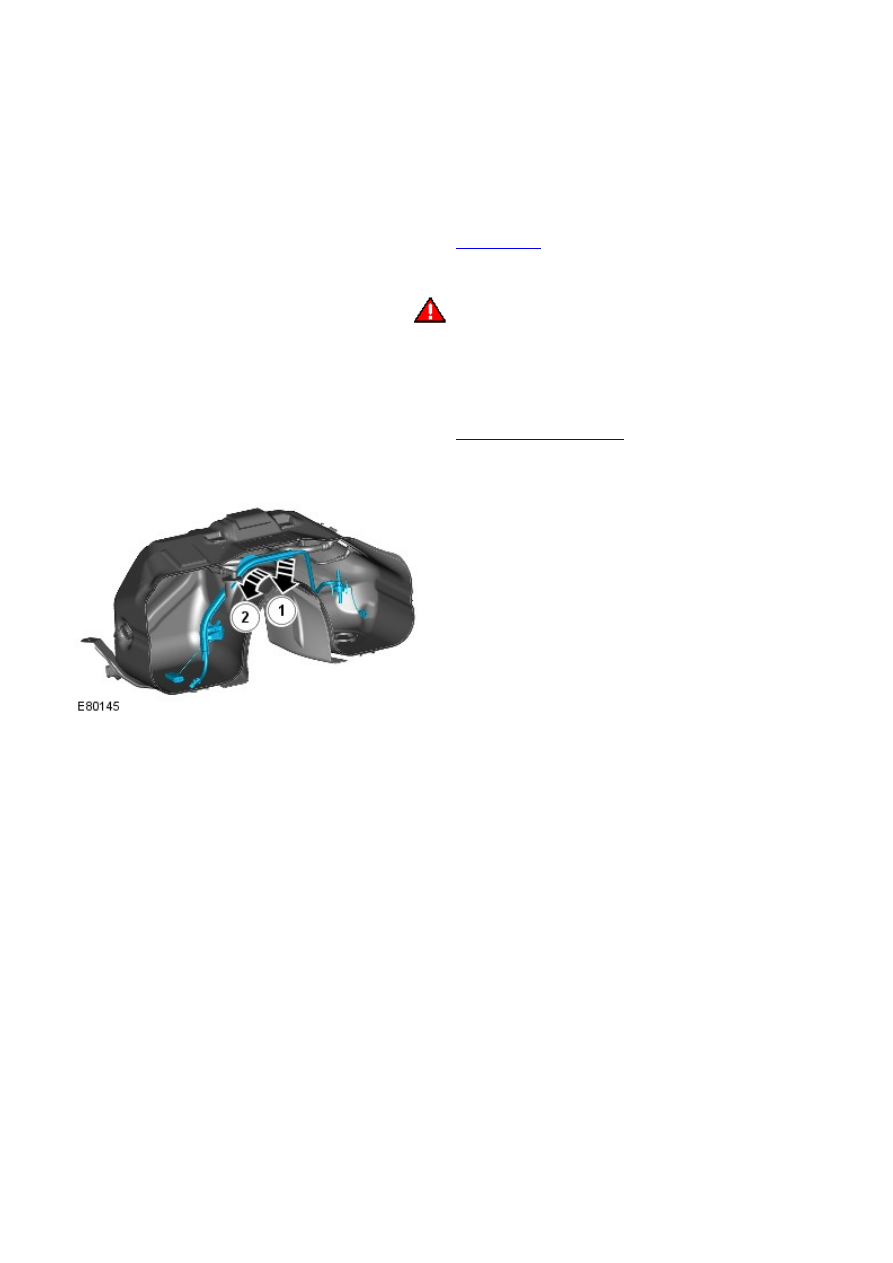

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Level Sender

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

2.

Remove the fuel pump and sender unit.

Refer to:

Fuel Pump and Sender Unit

 (310-01B Fuel Tank and Lines -

TD4 2.2L Diesel, Removal and Installation).

3.

Remove the LH fuel level sender.

4.

Installation

To install, reverse the removal procedure.

1.

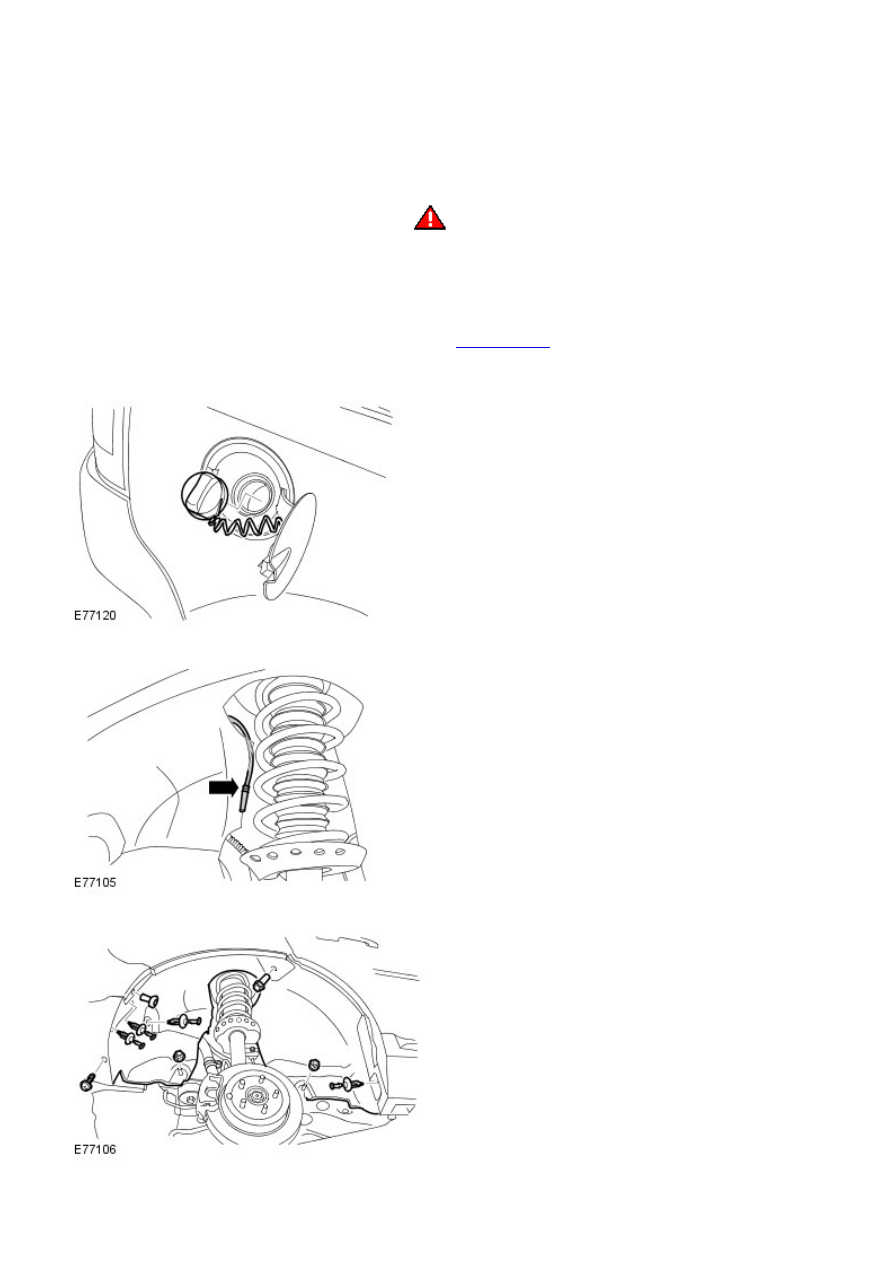

Fuel Tank and Lines - TD4 2.2L Diesel - Fuel Tank Filler Pipe

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the rear wheel.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

3.

4.

5.
