Frelander 2. Manual - part 377





Transfer Case - Transfer Case Seal LH

Removal and Installation

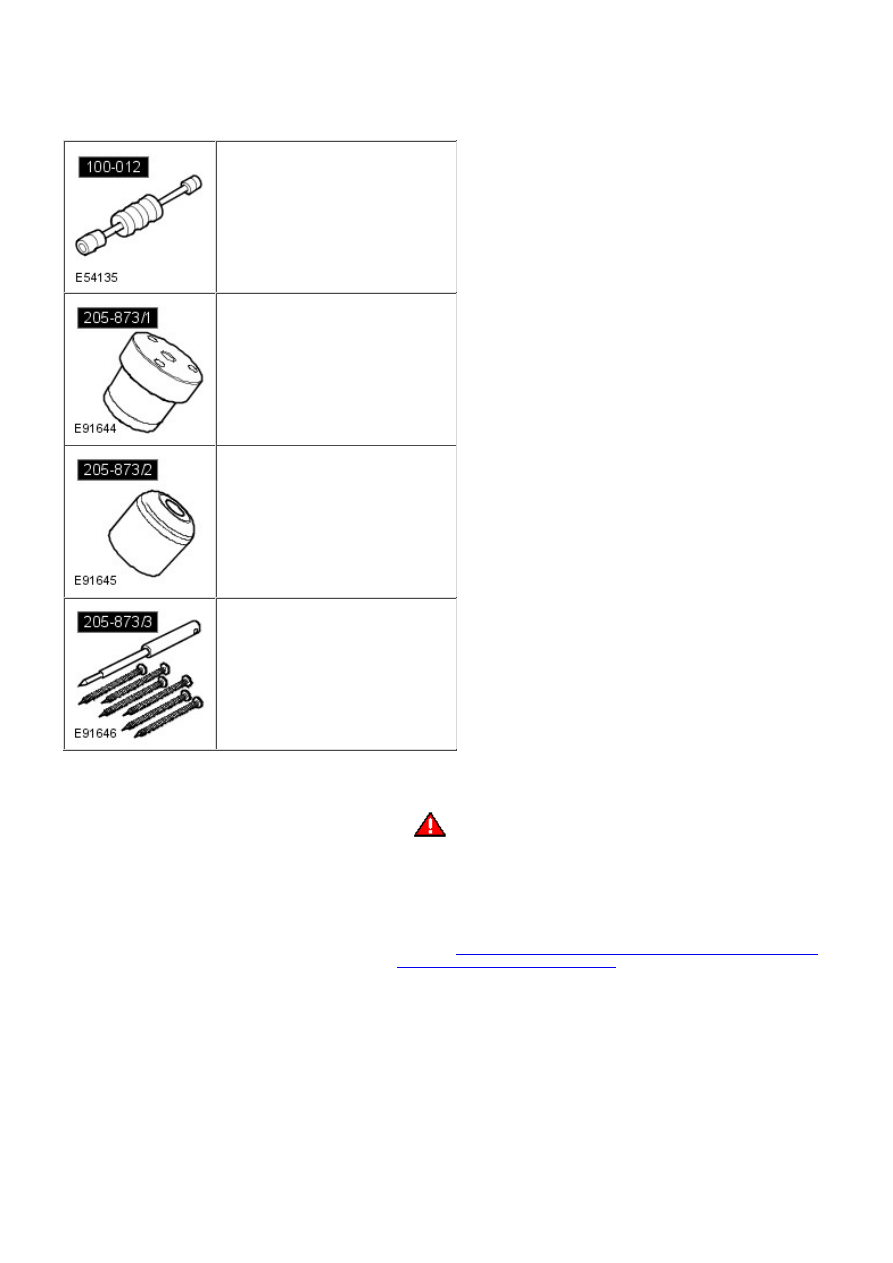

Special Tool(s)

100-012
Slide Hammer

205-873/1
Remover/Installer, Transfer Case Seal

205-873/2
Protector, Transfer Case Seal

205-873/3
Punch/Screws, Transfer Case Seal

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the power transfer unit.

Refer to:

Power Transfer Unit - TD4 2.2L Diesel, Vehicles With: M66

6-Speed Manual Transmission AWD

 (308-07B Transfer Case,

Removal and Installation).

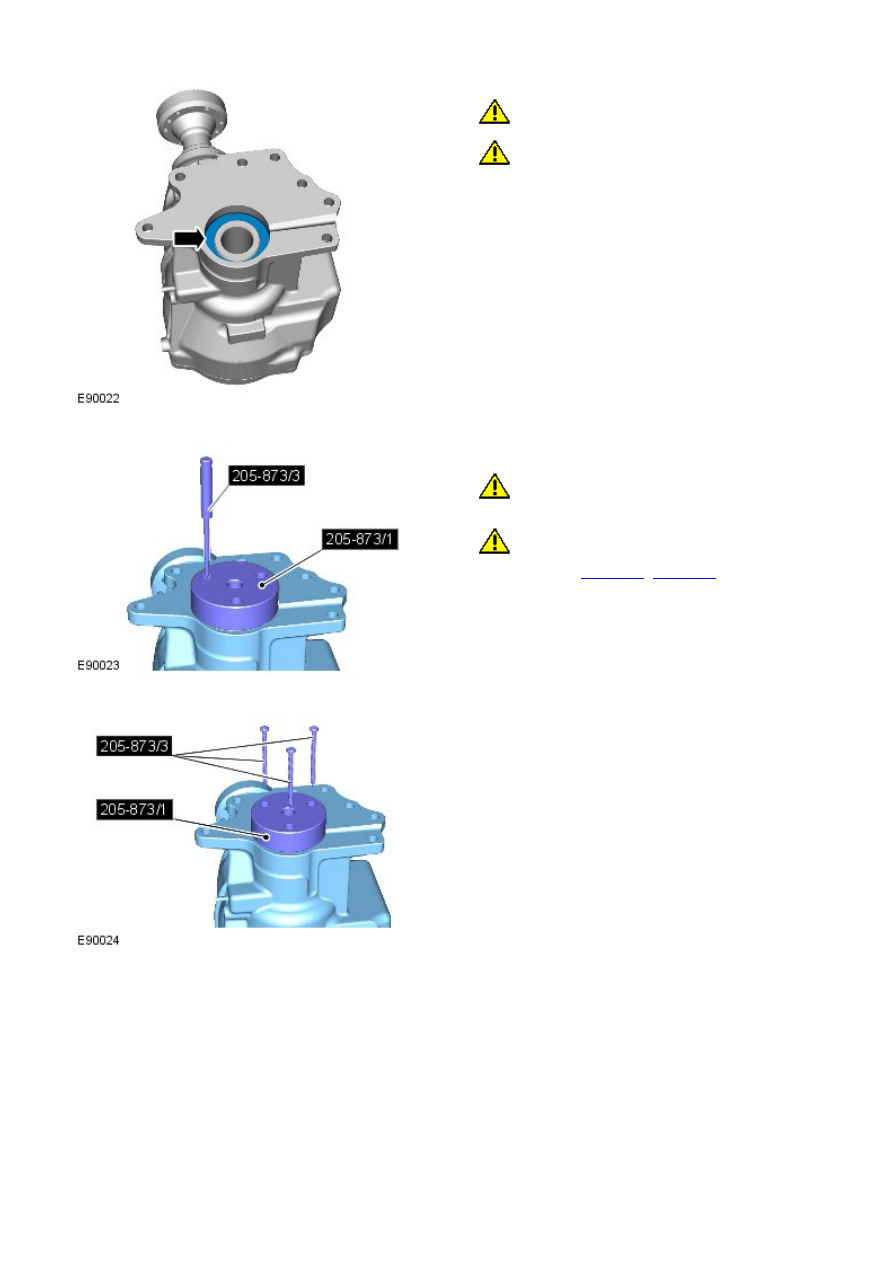

2.

3. CAUTIONS:

 Take extra care not to damage the seal.

 Inspect the seal, replace if damaged

3.

4. CAUTIONS:

 Make sure that the area around the component is

clean and free of foreign material.

 Take extra care not to damage the mating faces.

Special Tool(s):

205-873/1

205-873/3

4.

5.

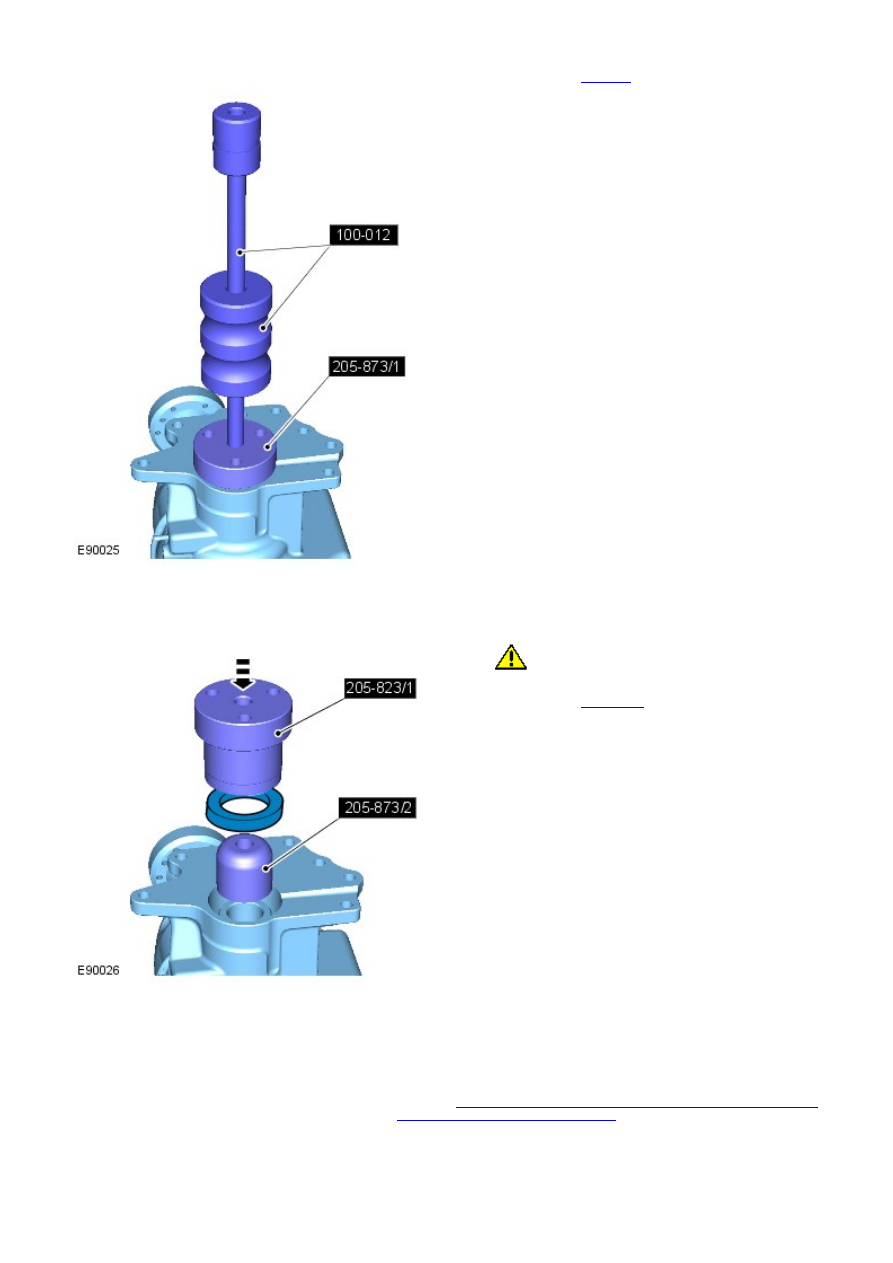

Special Tool(s):

100-012

6.

Installation

1.

CAUTION: A soft faced hammer should be used

to avoid damaging the special tool and creating debris.

Special Tool(s):

205-873/2

1.

To install, reverse the removal procedure.

2.

Install the power transfer unit.

Refer to:

Power Transfer Unit - TD4 2.2L Diesel, Vehicles With: M66

6-Speed Manual Transmission AWD

 (308-07B Transfer Case,

Removal and Installation).

3.

Check and top-up the transfer case fluid level.

4.

Transfer Case - Transfer Case Seal RH

Removal and Installation

Special Tool(s)

100-012
Slide Hammer

205-872
Installer, Transfer Case Seal

308-615
Remover, Seals

308-617
Depth Drill, Seal Remover

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the RH front halfshaft seal.

Refer to:

Halfshaft Seal RH

 (308-03 Manual Transmission/Transaxle,

Removal and Installation).

2.
