Manual Transmission/Transaxle and Clutch - General Information -

Lubricant

Item

Specification

Recommended lubricant

Castrol BOT 350 M3 - Land Rover (vehicles built from 2011 onwards)
Castrol MTF97309 - Land Rover (vehicles built upto 2011)

Capacities

Item

Capacity (liters/pints/US quarts)

Initial dry fill

1.9/3.3/2.0

General Specification

Item

Specification

Transmission make/type

M66 EH50

Gears

6 speed manual

Synchromesh:
Triple

1st and 2nd

Dual

3rd

Single

4th, 5th, 6th and reverse

Torque - Maximum

380 Nm (280 lb-ft)

Gear ratios:
First

3.750:1

Second

1.905:1

Third

1.182:1

Fourth

0.838:1

Fifth

0.652:1

Sixth

0.540:1

Reverse

3.436:1

Torque Specifications

Description

Nm

lb-ft

Earth cable to transmission mounting bracket

25

18

Front flywheel closing panel

60

44

Front subframe
Stage 1

140

103

Stage 2

240°

Rear flywheel closing panel

24

18

Subframe cross-brace
M16

140

103

M10

45

33

Transmission bolts

65

48

Transmission mounting bracket
M8

24

18

M12

80

59

Transmission mounting to body mounting

175

129

Transmission fluid drain plug

30

22

Transmission fluid filler plug

35

26

Manual Transmission/Transaxle and Clutch - General Information - Manual
Transmission and Clutch

Description and Operation

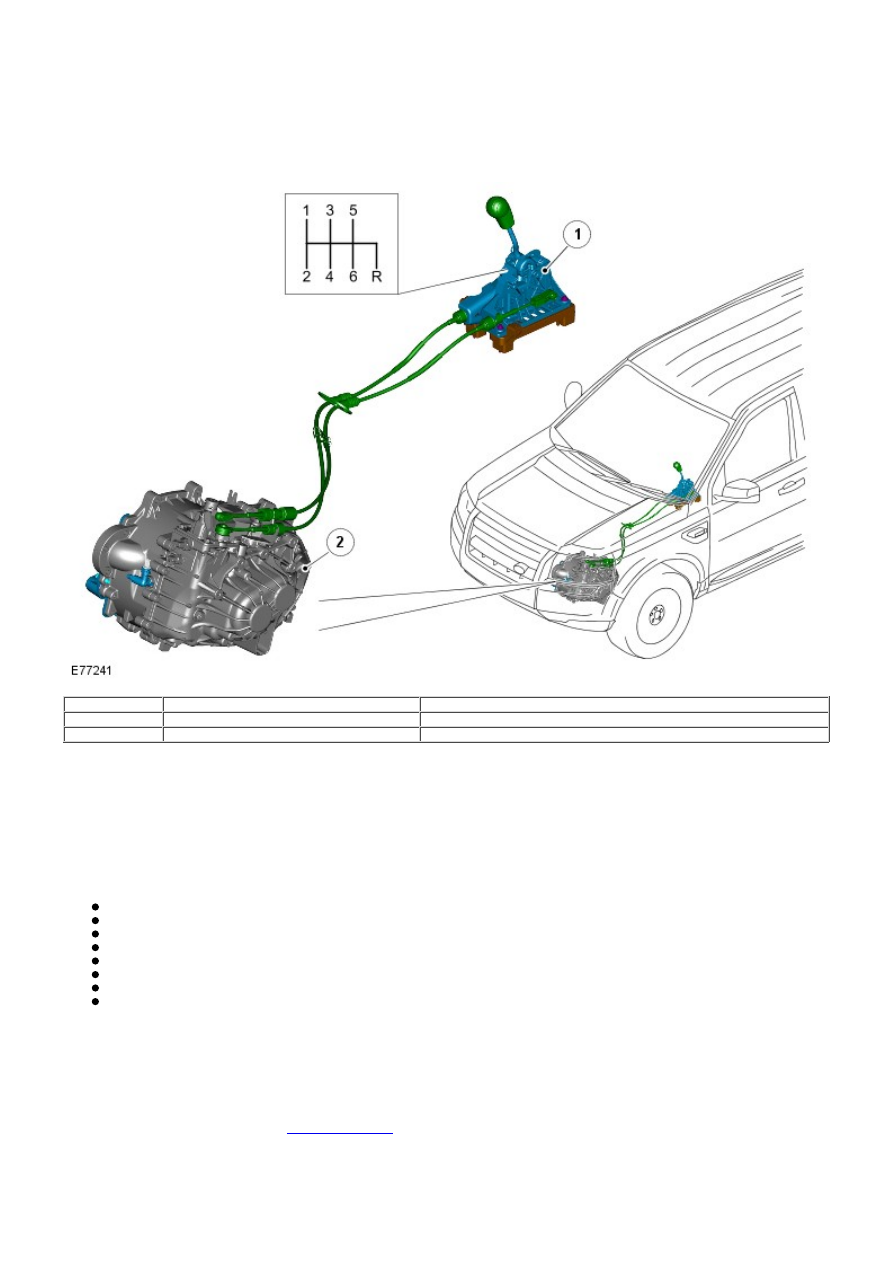

COMPONENT LOCATION

Item

Part Number

Description

1

-

Selector lever

2

-

Manual transmission

OVERVIEW

The M66EHA50 manual transmission is a 6 speed unit manufactured by Getrag-Ford in Cologne, Germany. The transmission
is a highly compact 4 shaft design, incorporating the front final drive gear, and is adapted for All W heel Drive (AW D) by
providing a connection from the final drive carrier to the Power Transfer Unit. The transmission is capable of transferring
high torque from the engine.

The transmission features two mechanical shift cables from the selector lever and an electronic reverse inhibitor.

The M66EH50 manual transmission has the following features:

380 Nm torque capacity (with torque truncation in 1st and reverse gears)
Dry weight 61 kg
Transmission oil is fill for life - 1.9L fill to level plug Oil spec MTF97309
Front differential integral with transmission
6 forward gears
4th to 6th gears and reverse gear have single cone synchronization
3rd gear is double cone synchronized
1st and 2nd gears have triple cone synchronization.

The clutch system used is a conventional single driven plate and a diaphragm spring clutch cover assembly. The clutch is
hydraulically operated by operation of the clutch pedal which disengages the drive from the engine crankshaft to the
transmission.

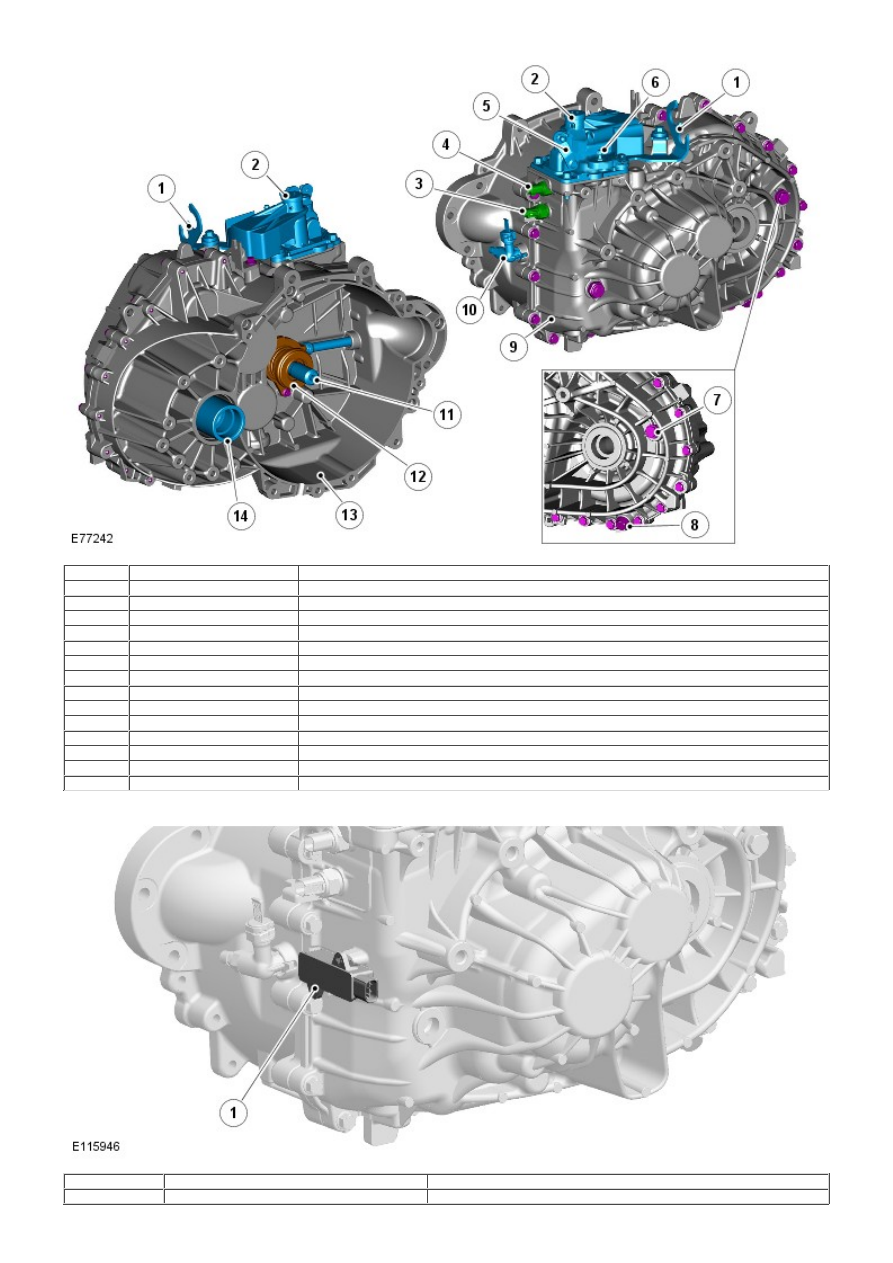

TRANSMISSION

For shift cable and selector lever description refer to External Controls.
For additional information, refer to:

External Controls

 (308-06 Manual Transmission/Transaxle External Controls,

Description and Operation).

Item

Part Number

Description

1

-

Cable retaining bracket

2

-

Longitudinal lever

3

-

1st gear detection switch

4

-

Reverse switch

5

-

Lateral lever

6

-

Shift cable ball end

7

-

Transmission oil level/filler plug

8

-

Transmission drain plug

9

-

Transmission casing

10

-

Hydraulic clutch bleed adaptor

11

-

Input shaft

12

-

Clutch slave cylinder

13

-

Clutch housing

14

-

Differential output (Right Hand (RH) side)

Neutral Gear Sensor - Stop/Start Vehicles - From 2010 MY

Item

Part Number

Description

1

-

Neutral gear sensor

Neutral Gear Sensor

A PLCD (Permanent Magnet Linear Contactless Displacement) sensor is introduced on Stop/Start vehicles and located on
the exterior of the transmission casing and hardwired to the ECM. The sensor’s function is to detect that neutral gear has
been selected within a calibrated window.
For additional information, refer to:

Starting System

 (303-06C Starting System - TD4 2.2L Diesel, Vehicles Built From:

01-03-2009, Description and Operation).

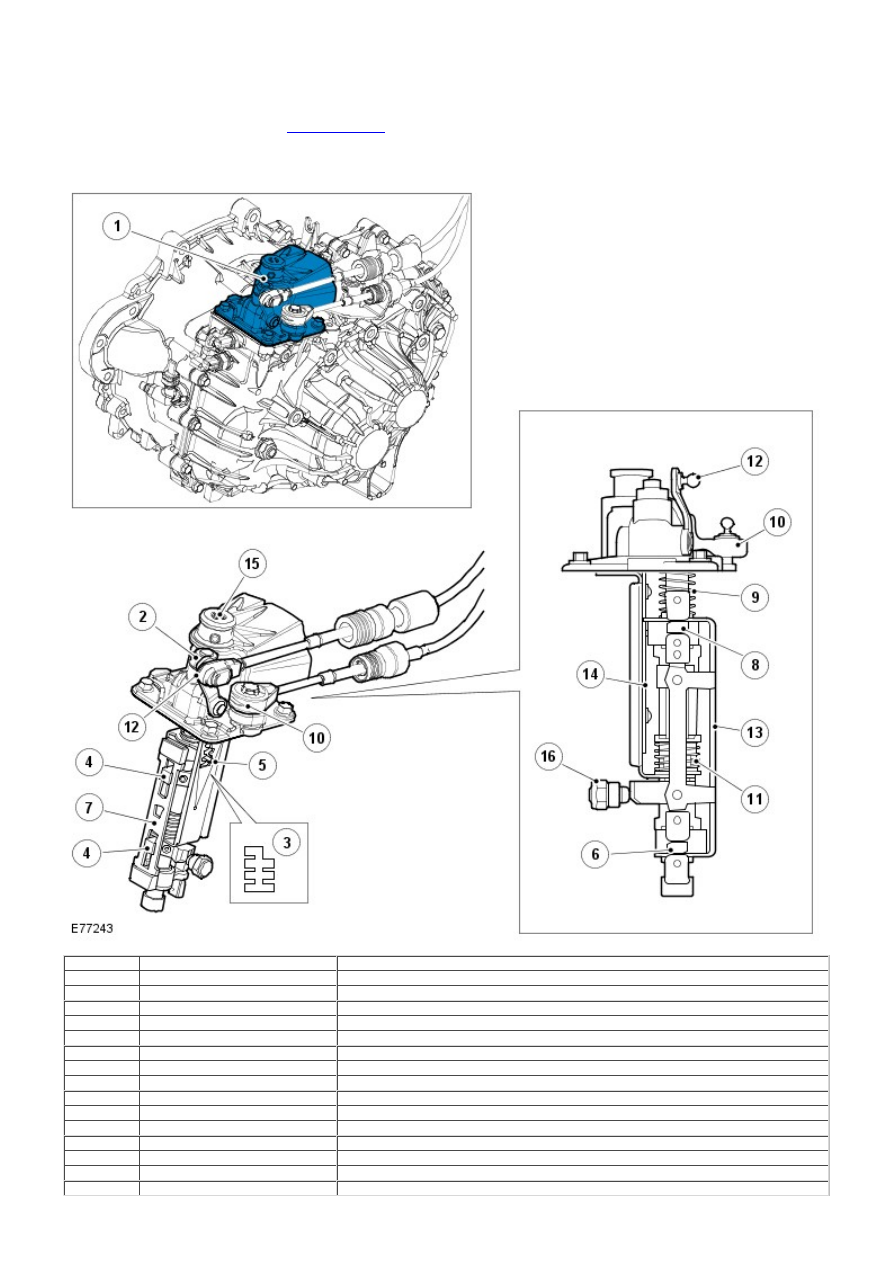

Shift Control Mechanism

Item

Part Number

Description

1

-

Shift control mechanism

2

-

Ball limiter 5th - 6th gear control

3

-

Gearshift gate

4

-

Flange

5

-

Gear shift gate pin

6

-

Lower gear selector

7

-

Gear selector rod

8

-

Upper gear selector

9

-

Spring

10

-

Longitudinal lever

11

-

Spring

12

-

Lateral lever

13

-

Catch plate

14

-

Carrier plate

15

-

Bleed cap
