Accessory Drive - TD4 2.2L Diesel - Accessory Drive Belt Idler Pulley

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the accessory drive belt.

Refer to:

Accessory Drive Belt

 (303-05B Accessory Drive - TD4 2.2L

Diesel, Removal and Installation).

2.

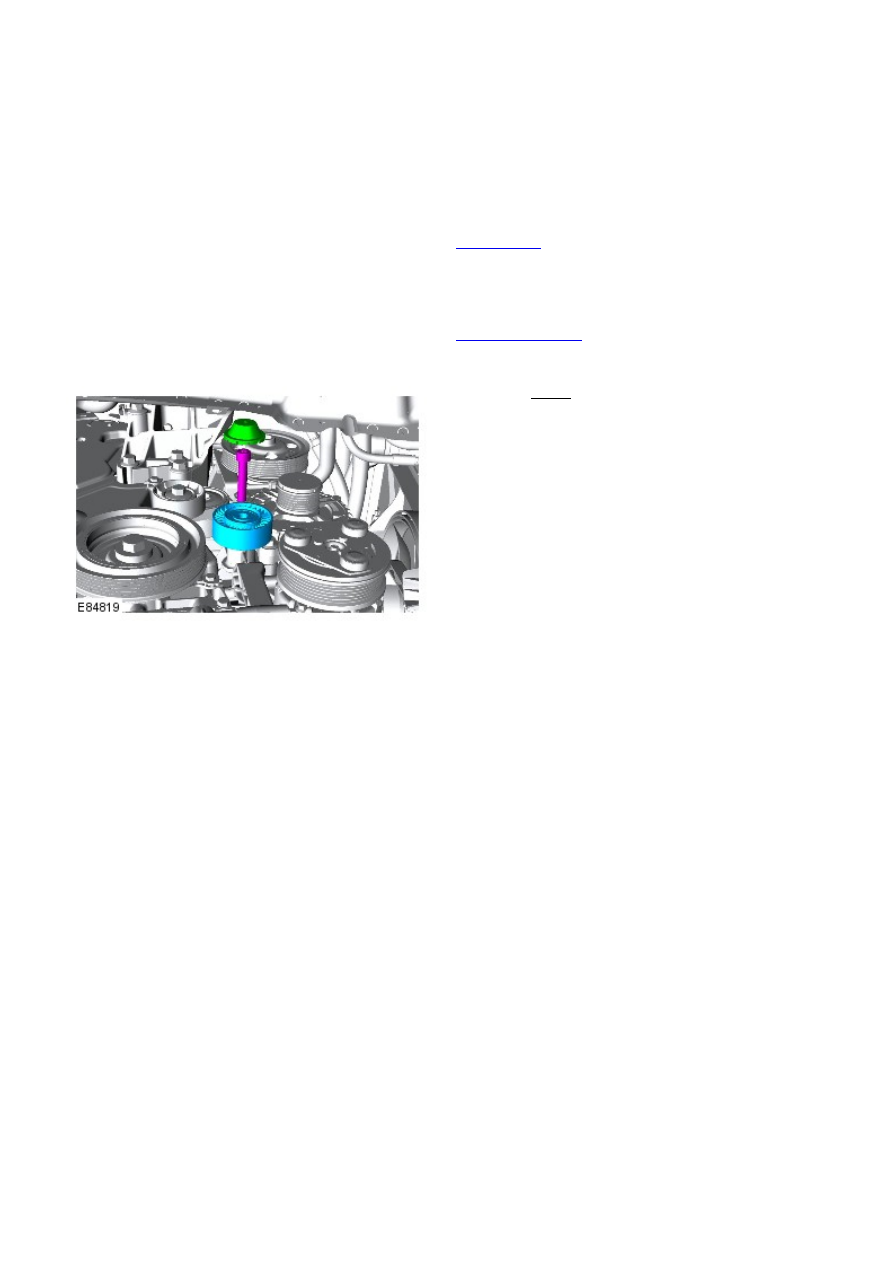

Torque: 45 Nm

3.

Installation

To install, reverse the removal procedure.

1.

Starting System - I6 3.2L Petrol -

General Specification

Item

Specification

Starter motor:
Make

Bosch

Type

1.4 kW

Voltage

12

Torque Specifications

Description

Nm

lb-ft

Starter motor bolts

45

33

Starter motor solenoid terminal nut*

10

7

* Damage to the internal connections will occur if this torque is exceeded

Starting System - I6 3.2L Petrol - Starting System

Description and Operation

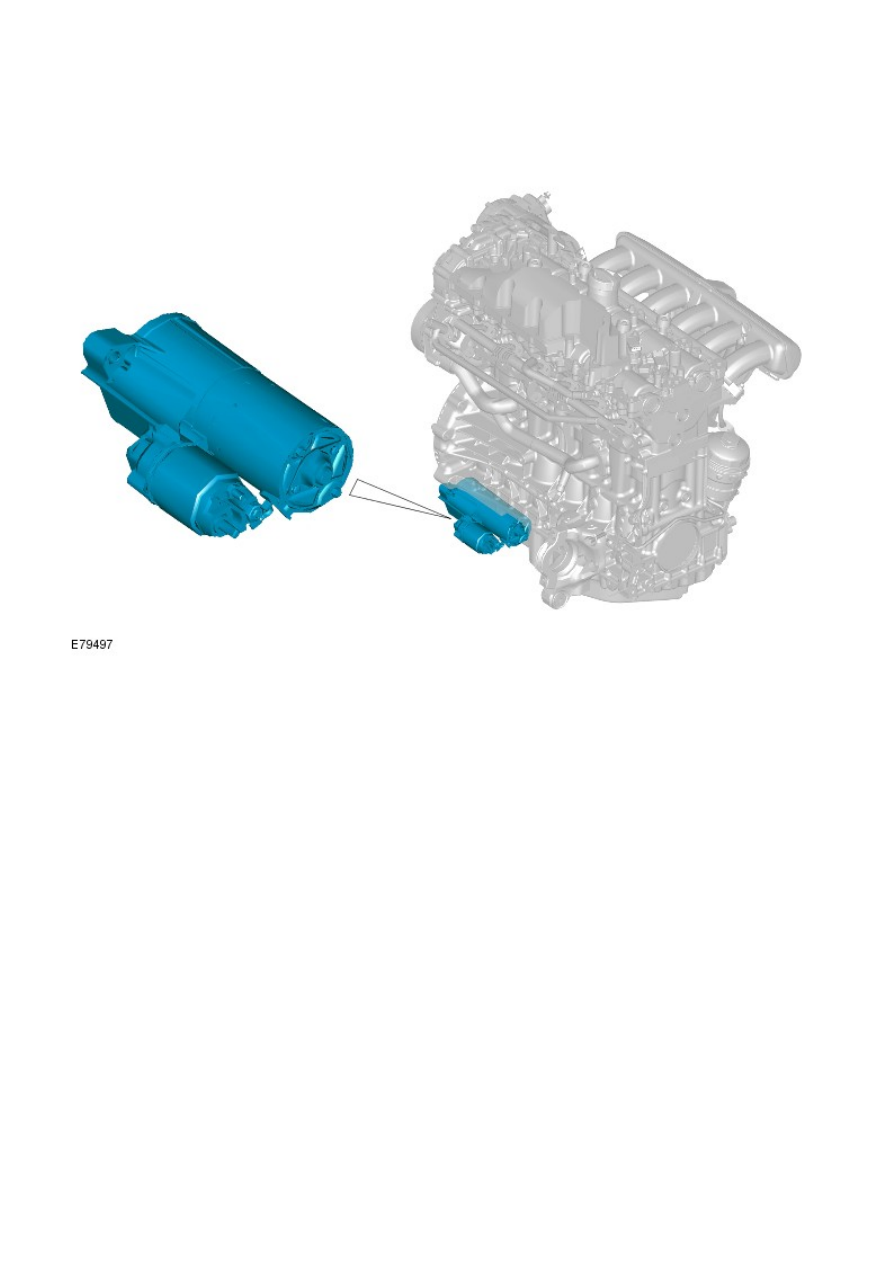

COMPONENT LOCATION

OVERVIEW

The starter motor rated at 1.4 kW uses permanent magnets instead of field windings to provide a low-weight starter
motor; with the use of planetary gears to deliver a good torque to weight ratio.

The starter relay is energized by a signal from the engine control module (ECM) when the ignition is in engine crank mode.
The ECM checks that a valid code has been received before granting the engine crank mode request. When the request is
granted the starter relay energizes the starter solenoid to engage the starter motor's pinion with the flexplate's ring gear.
Once the engine has started and engine speed exceeds starter motor speed the pinion disengages to prevent
over-cranking of the starter motor.

The electrical power for starter operation is supplied via a cable connected directly from the battery positive terminal to
the solenoid.

Starting System - I6 3.2L Petrol - Starting System

Diagnosis and Testing

Principles of Operation

For a detailed description of the starting system, refer to the relevant Description and Operation section in the workshop
manual.
REFER to:

Starting System

 (303-06A Starting System - I6 3.2L Petrol, Description and Operation) /

Starting System

 (303-06B Starting System - TD4 2.2L Diesel, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of mechanical or electrical damage.

2.

Visual Inspection

Mechanical

Electrical

Gear selector lever cable adjustment
Starter Motor
Battery

Battery
Fuses
W iring harness
Damaged, loose or corroded connectors
Starter relay
Engine Control Module (ECM)

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step

3.

4. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively, check for

Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.

4.

Symptom Chart

Symptom

Possible Cause

Action

The engine does not
crank (starter motor
does not turn)

Gear selector not in P
or N position
Battery
Harness/Connectors
Starter motor
Starter relay
Start switch
Transmission control
module (TCM)
Engine control module
(ECM)
Engine seized

Make sure the gear selector is in the P or N position and correctly
adjusted.
REFER to:

Selector Lever Cable Adjustment

 (307-05 Automatic

Transmission/Transaxle External Controls, General Procedures).
Check the battery condition and state of charge.
REFER to:

Battery

 (414-01 Battery, Mounting and Cables, Diagnosis

and Testing).
Check the starter motor and harness. Check for DTCs and refer to
relevant DTC Index

The engine does not
crank (starter motor
does turn)

Starter motor
installation
Starter motor
Ring gear

Check the starter motor installation (fasteners tight, starter motor
square to engine, etc). Check the ring gear teeth for damage,
foreign objects, etc.

Engine cranks too
slowly

Battery
Harness/Connectors
Starter motor
Engine oil incorrect
grade

Check the battery condition and state of charge.
REFER to:

Battery

 (414-01 Battery, Mounting and Cables, Diagnosis

and Testing).
Refer to the electrical circuit diagrams and test the starter motor
and starter motor circuits

Engine cranks too fast

Low engine
compression

Check the engine compressions.
REFER to:

Engine

 (303-00 Engine System - General Information,

Diagnosis and Testing).

Excessive starter
motor noise

Starter motor
Starter motor
installation/casing
Ring gear

Check the starter motor installation (fasteners tight, motor square
to engine, etc). Check the starter motor casing condition. Check the
ring gear teeth for damage, foreign objects, etc.

DTC Index

• NOTE: If the control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the
Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval programme is in operation, prior
to the installation of a new module/component.

• NOTE: Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the
scan tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give additional
