Frelander 2. Manual - part 110





Rear Disc Brake - Rear Disc Brake

Diagnosis and Testing

For additional information.
REFER to:

Brake System

 (206-00 Brake System - General Information, Diagnosis and Testing).

Rear Disc Brake - Brake Pads

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

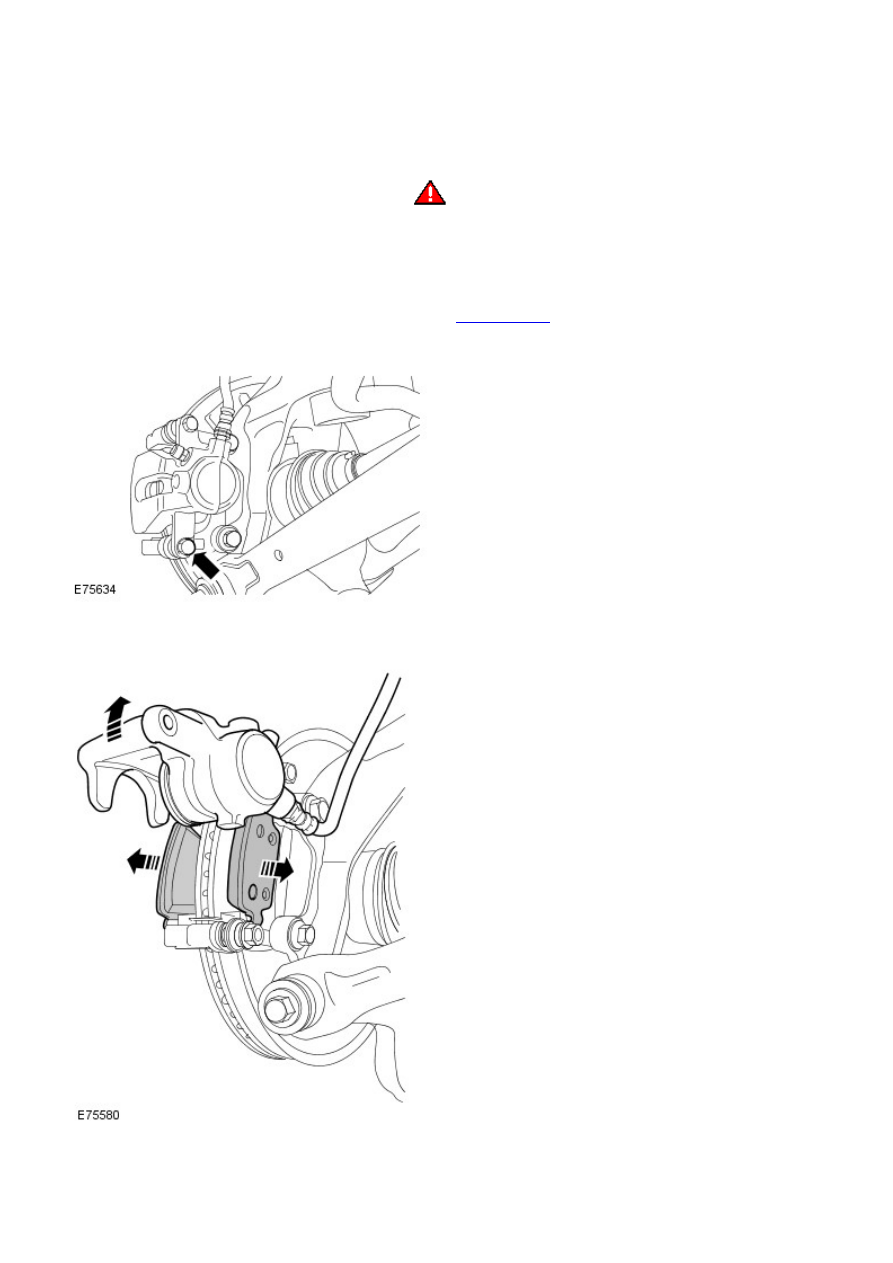

Remove the brake caliper lower bolt.

3.

Remove the brake pads.

4.

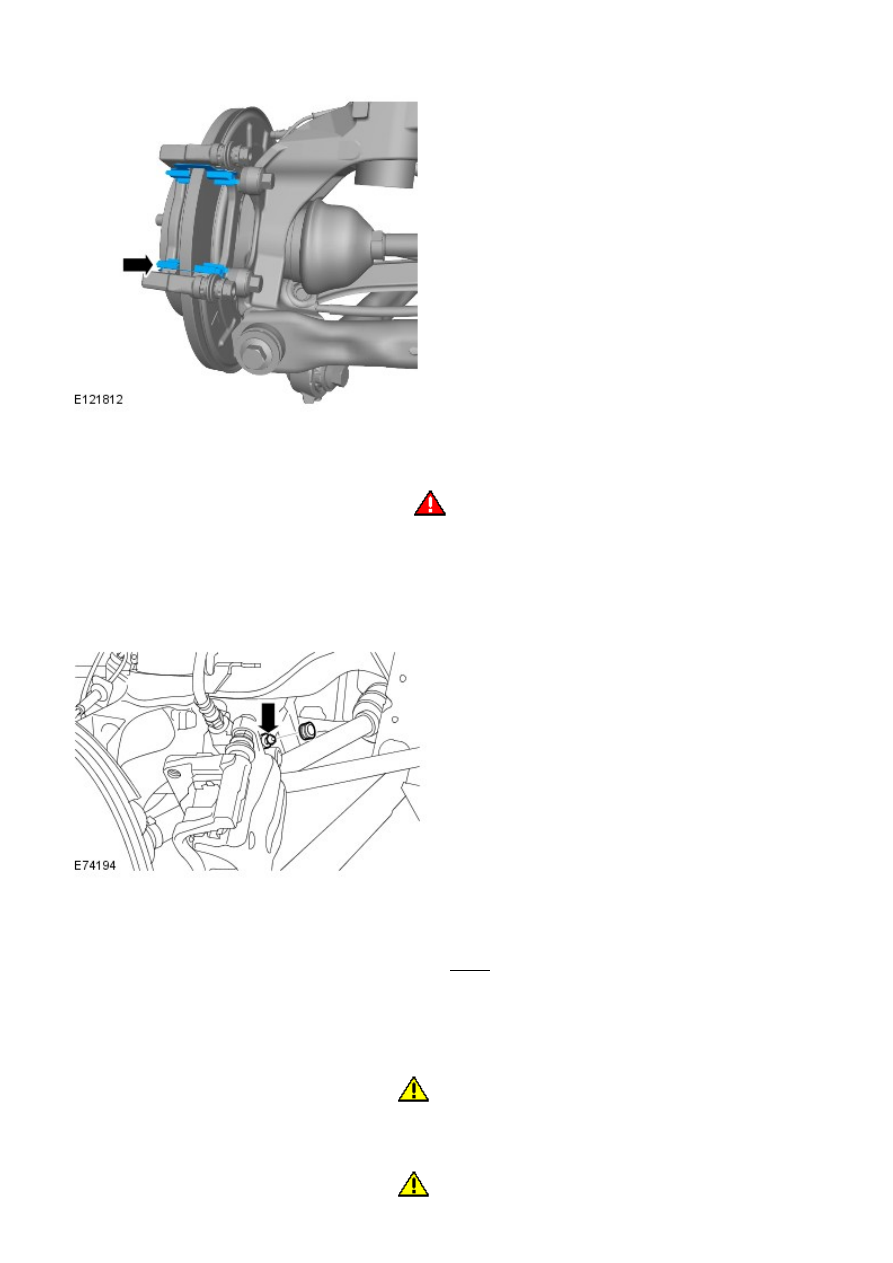

Remove the brake pad clips.

5.

Installation

1.

WARNING: Do not use compressed air to clean brake

components. Dust from friction materials can be harmful if inhaled.

Clean the brake caliper housing and anchor plate using brake
cleaning fluid.

1.

Inspect the caliper piston and slide pin seals for damage.

2.

Position a bleed jar containing a small quantity of
approved brake fluid. Connect the bleed tube to the
bleed screw and loosen the screw.

3.

Press the piston into the caliper housing and tighten the bleed
screw.

Torque: 10 Nm

4.

Disconnect the bleed tube and remove the jar.

5.

6. CAUTIONS:

 If new brake pads are installed, a new gold coloured brake pad

clip must be fitted in the lower position. The clip with one hole must
be fitted to petrol vehicles. The clip with two holes must be fitted to
diesel vehicles. Failure to follow this instruction may result in
damage to the vehicle.

 If new brake pads are installed, a new black coloured brake

6.

pad clip must be fitted in the upper position. Failure to follow this
instruction may result in damage to the vehicle.

Install the brake pad clips.

Install the brake pads.

7.

Secure the brake caliper.

Torque: 35 Nm

8.

Repeat the above procedure for the other side.

9.

Install the wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

10.

Depress the brake pedal several times, check the fluid level in the
brake fluid reservoir and top-up with brake fluid if necessary.

11.
