Frelander 2. Manual - part 77





Item

Part Number

Description

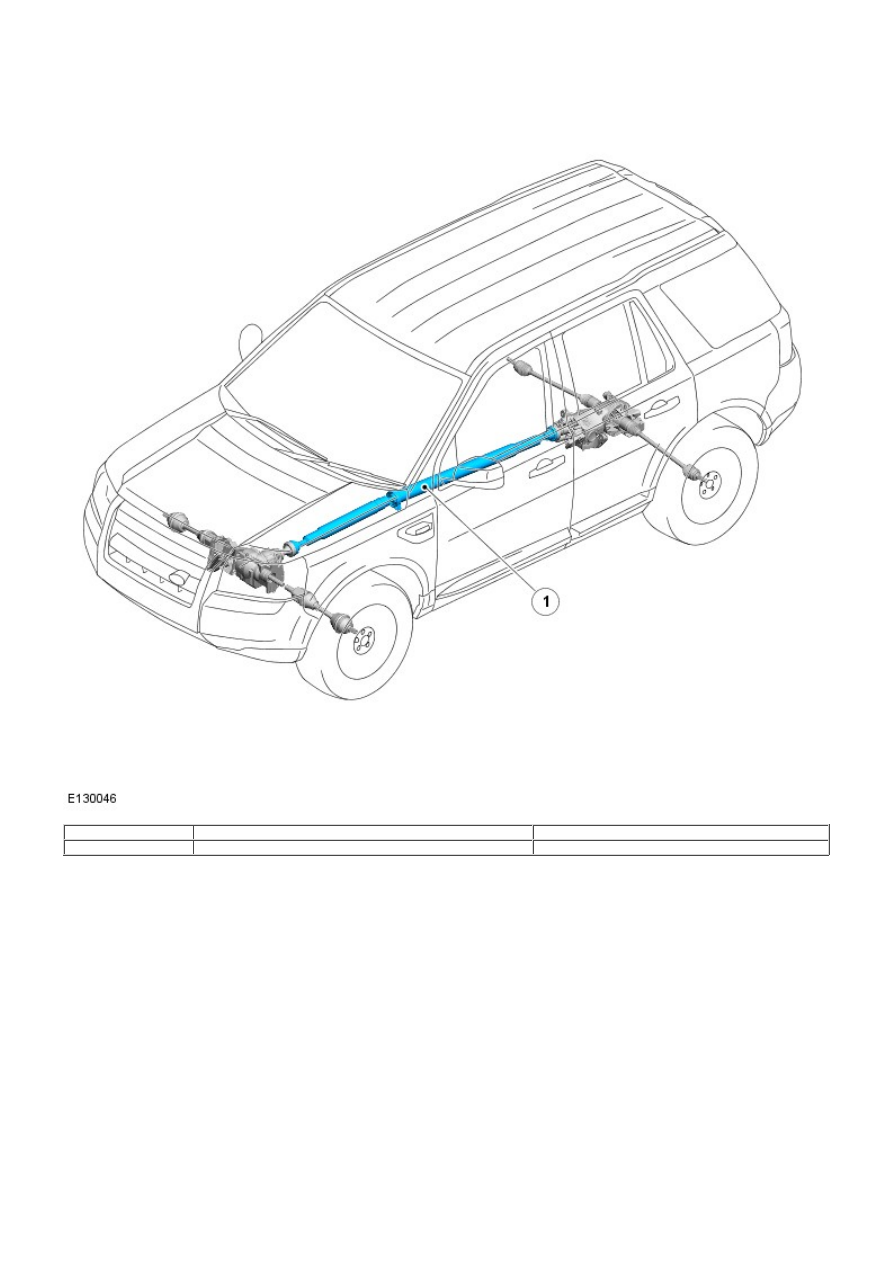

1

-

Driveshaft

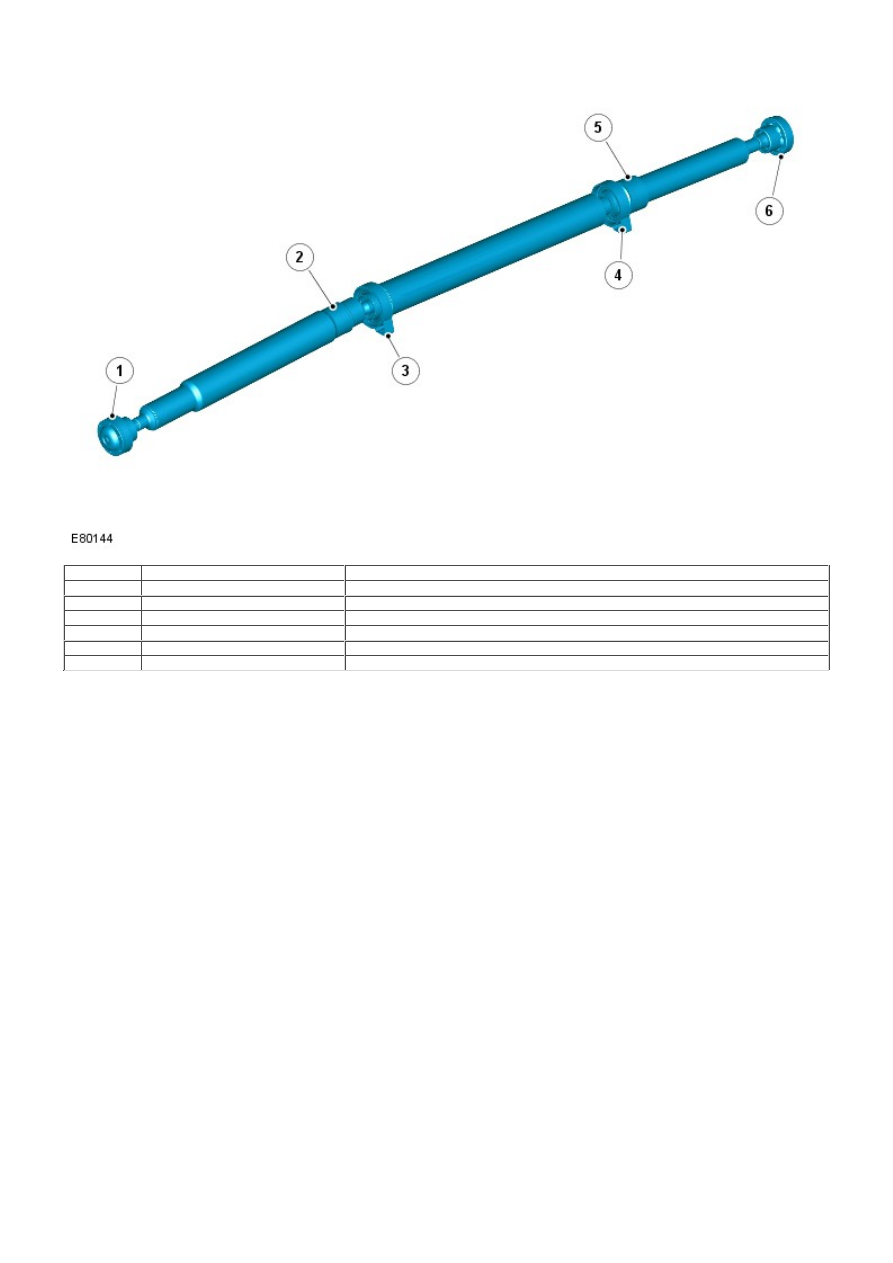

OVERVIEW - TD4 MANUAL AND SI6 (UP TO VIN 180237) AND TD4 AUTO.

Item

Part Number

Description

1

-

Fixed constant velocity joint

2

-

Long plunge double-offset joint

3

-

Center bearing

4

-

Center bearing

5

-

Universal joint

6

-

Plunging constant velocity joint

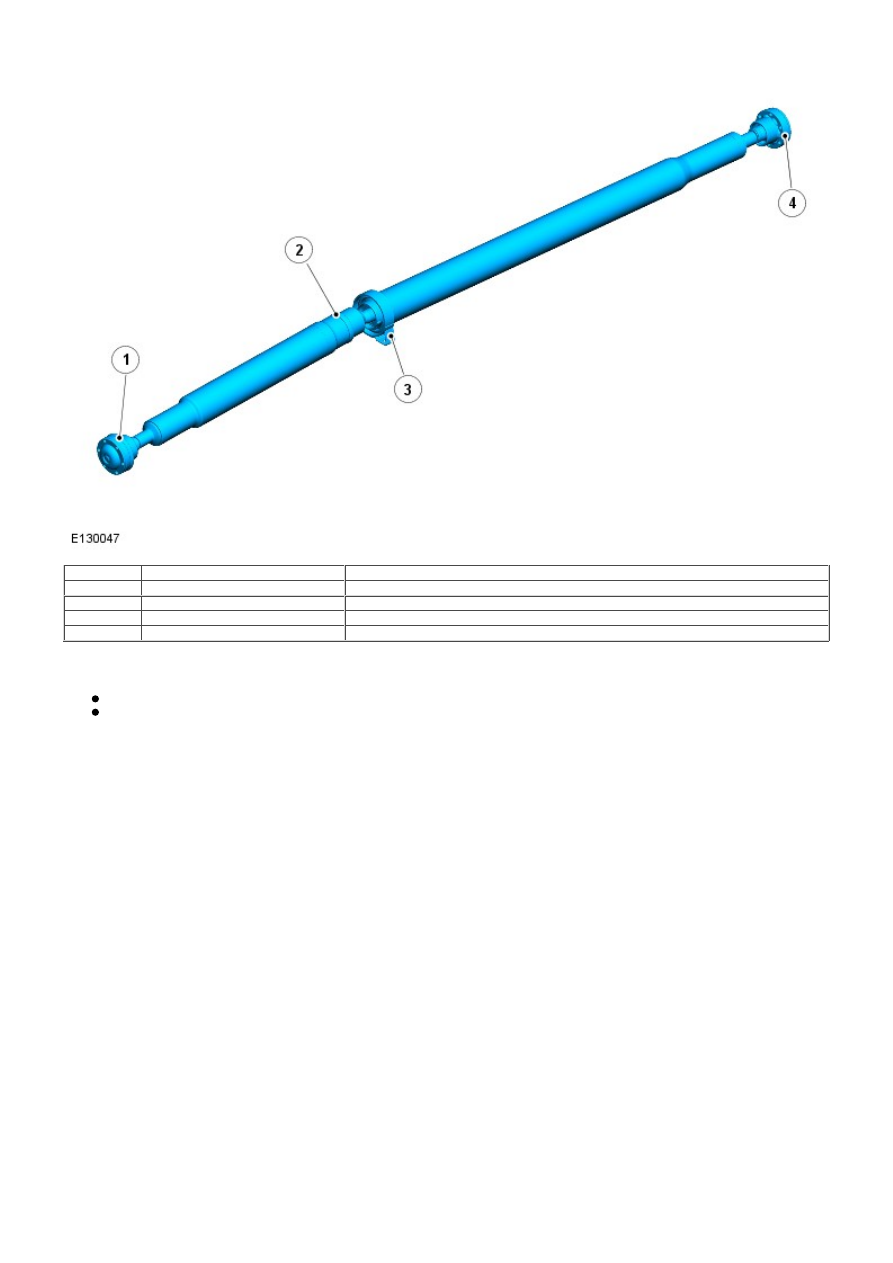

OVERVIEW - TD4 MANUAL AND SI6 (FROM VIN 180238)

Item

Part Number

Description

1

-

Fixed constant velocity joint

2

-

Long plunge double-offset joint

3

-

Center bearing

4

-

Plunging constant velocity joint

Manufactured from high-strength thin-walled tubular steel to minimize weight, the driveshaft incorporates crash energy
management features, designed to collapse progressively and predictably in the event of a severe frontal impact. These
features include:

swaged construction of the front section which allows the section to collapse, and a
sophisticated long-plunge double-offset joint at the rear of the front section, which absorbs the energy of the
impact.

The driveshaft is supported by either 1 or 2 high stiffness, center bearings manufactured from pressed steel with riveted
aluminum heatshield assemblies.

Driveshaft - Universal Joints

Description and Operation

For additional information, refer to:

Driveshaft

 (205-01 Driveshaft, Description and Operation).
