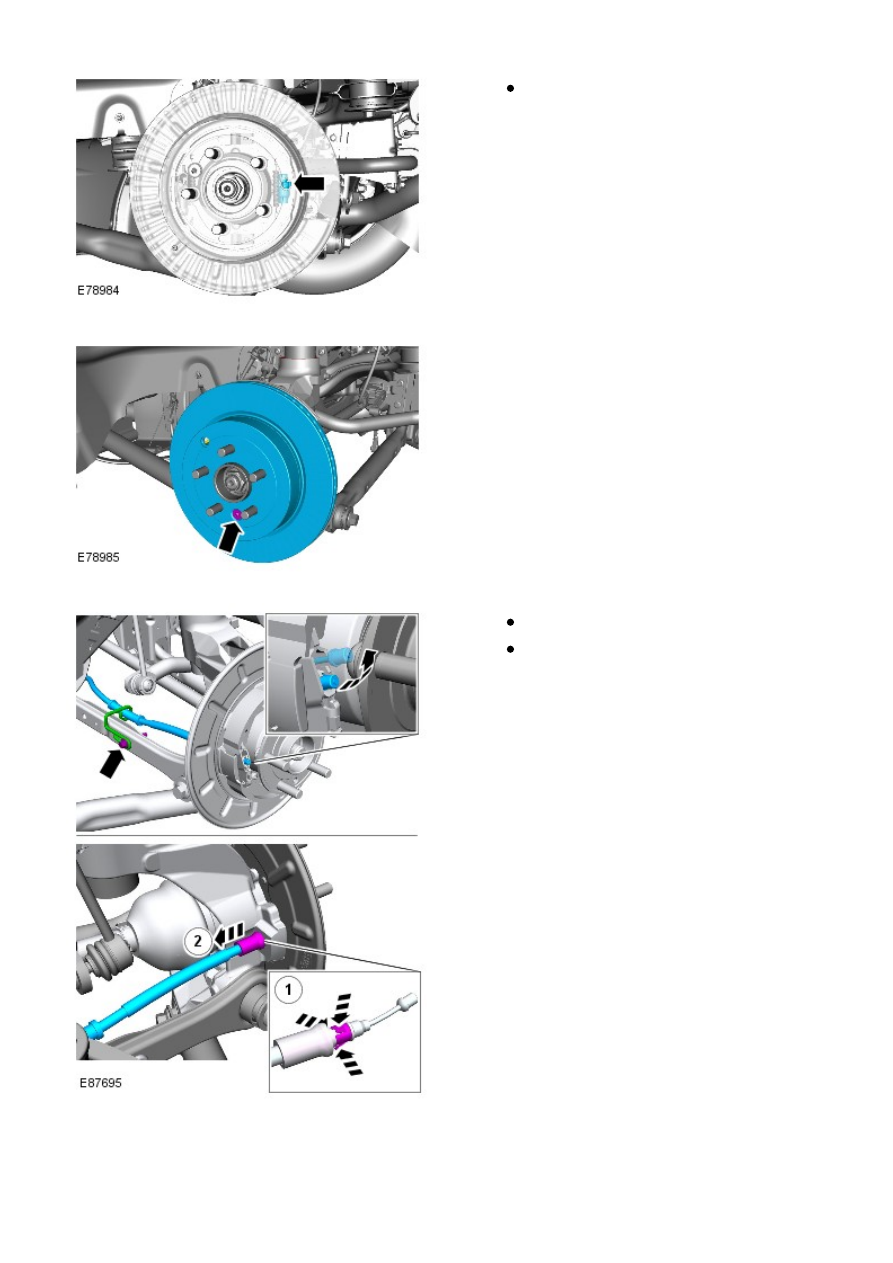

Release the park brake shoe adjustment.

7.

Remove the brake disc.

8.



Release the parking brake cable from the wheel
knuckle.
Collect the clip.

9.

10.

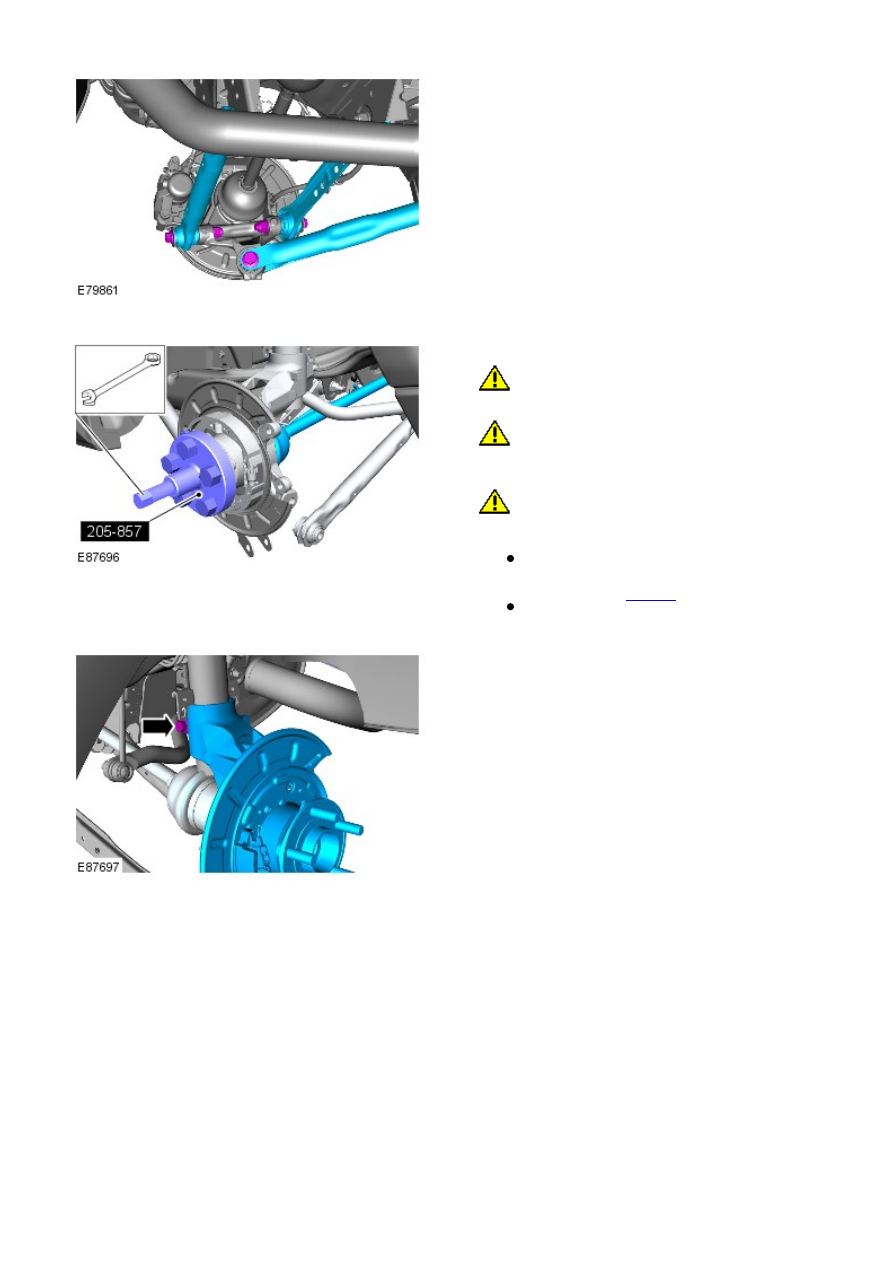

11. CAUTIONS:

 Do not allow halfshafts to hang unsupported at

one end or joint damage will occur.

 Do not store or install halfshafts with joints at

maximum articulation or damage may occur to the
joint.

 Angularly Adjusted Roller (AAR) joints, used at

the inboard end of some halfshafts have no internal
retaining mechanism and can separate.

Release the rear halfshaft.

Special Tool(s):

205-857

Tie the rear halfshaft aside.

11.

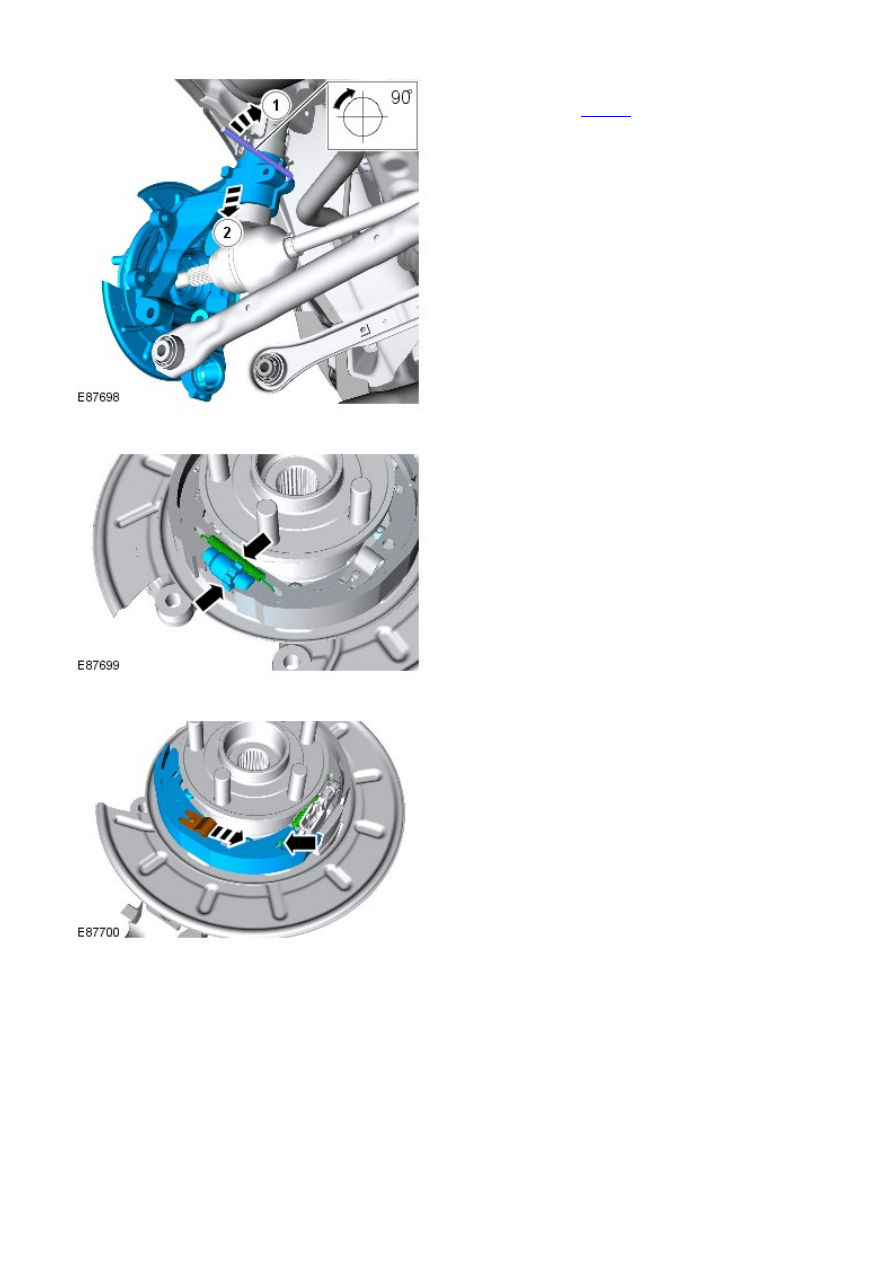

Remove and discard the wheel knuckle clamping bolt.

12.

W ith assistance, remove the wheel knuckle assembly.

Special Tool(s):

204-159

13.

14. NOTE: Do not disassemble further if the component
is removed for access only.

14.

15.

16.

17.

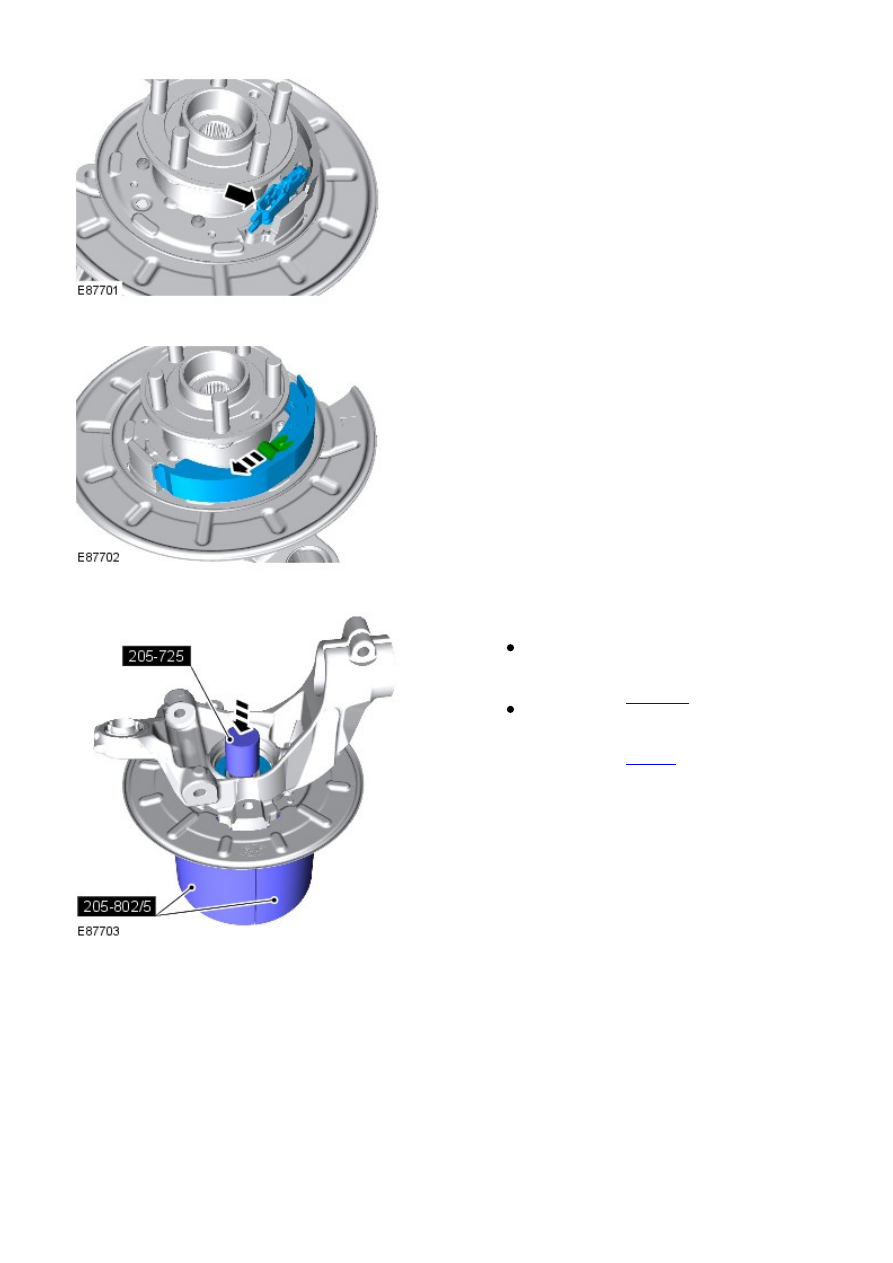

18. NOTE: Bearing damage is unavoidable during this
operation.

Position the wheel knuckle assembly in a press
and support on special tool.

Special Tool(s):

205-802/5

Press the drive flange out of the wheel knuckle
assembly using special tool.

Special Tool(s):

205-725

18.
