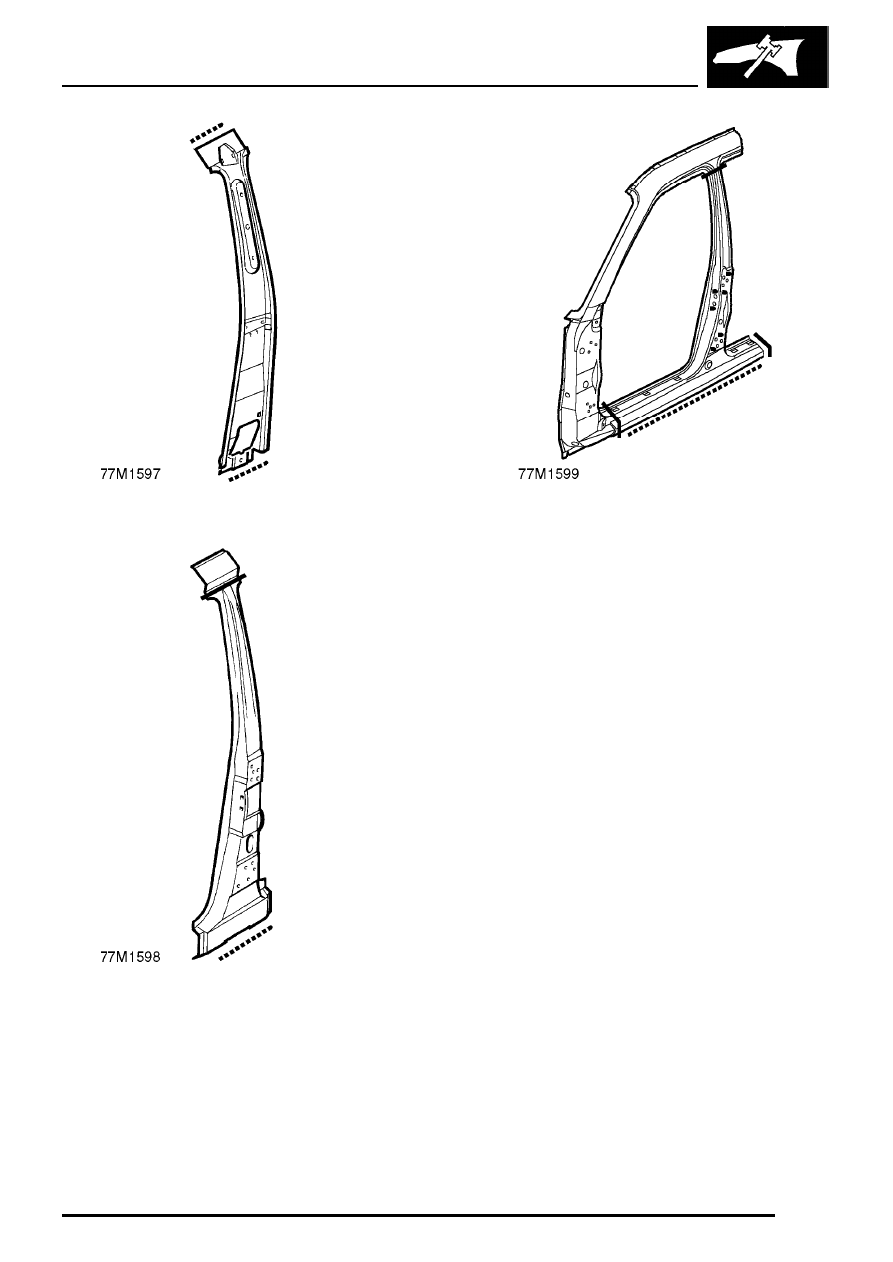

PANEL REPAIRS

REPAIRS

23

Refit

1. Secure vehicle harness to inner sill.
2. Position carpet to inner sill.
3. Fit side door aperture seal(s).
4. Fit treadplate from side door aperture(s).
5. Fit rear seat.

See BODY, Seats and seat

belts.

6. Fit front seat.

See BODY, Seats and seat

belts.

7. Fit front door striker to B/C post.
8. Fit B/C post lower finisher.

See BODY,

Interior trim components.

9. Fit front seat belt.

See RESTRAINT

SYSTEMS, Repairs.

10. Fit headlining.

See BODY, Interior trim

components.

11. Fit rear door.

See BODY, Doors.

12. Connect all ECUs.
13. Connect alternator.

See ELECTRICAL,

Repairs.

14. Connect battery earth lead.

PANEL REPAIRS

24

REPAIRS

COMPLETE REAR QUARTER - 3 DOOR

NOTE: In this procedure, the rear outer
body side panel is replaced in conjunction
with the complete rear quarter.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.

See ELECTRICAL,

Repairs.

3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove sill lower finisher.

See BODY,

Exterior fittings.

6. Remove rear bumper valance.

See BODY,

Exterior fittings.

7. Remove rear wheel arch liner.
8. Remove door striker from ’B’ post.
9. Remove treadplate from front door aperture.

10. Remove front door aperture seal.
11. Release carpet from inner sill and rear

heelboard and position aside.

12. Remove soft/hard top.
13. Remove tail door aperture seal.
14. Remove rear roof panel finisher.

See BODY,

Exterior fittings.

15. Remove tail lamp.

See ELECTRICAL,

Repairs.

16. Remove rear quarter lower casing.

See

BODY, Interior trim components.

17. Remove rear quarter upper casing.

See

BODY, Interior trim components.

18. Remove rear side seat belt.

See RESTRAINT

SYSTEMS, Repairs.

19. Remove loadspace carpet.

See BODY,

Interior trim components.

20. Remove rear seat.

See BODY, Seats and

seat belts.

21. Remove rear body side casing.

See BODY,

Interior trim components.

22. Remove headlining.

See BODY, Interior trim

components.

23. Remove rear quarter vent and seal.

See

BODY, Exterior fittings.

24. Remove rear damper.

See REAR

SUSPENSION, Repairs.

25. Release vehicle harness from rear quarter and

position aside.

For LH side

26. Remove tail door striker from ’E’ post.

For RH side

27. Remove tail door.

See BODY, Doors.

28. Remove fuel filler neck.

See FUEL DELIVERY

SYSTEM, Repairs.

29. Remove fuel tank.

See FUEL DELIVERY

SYSTEM, Repairs.

Repair

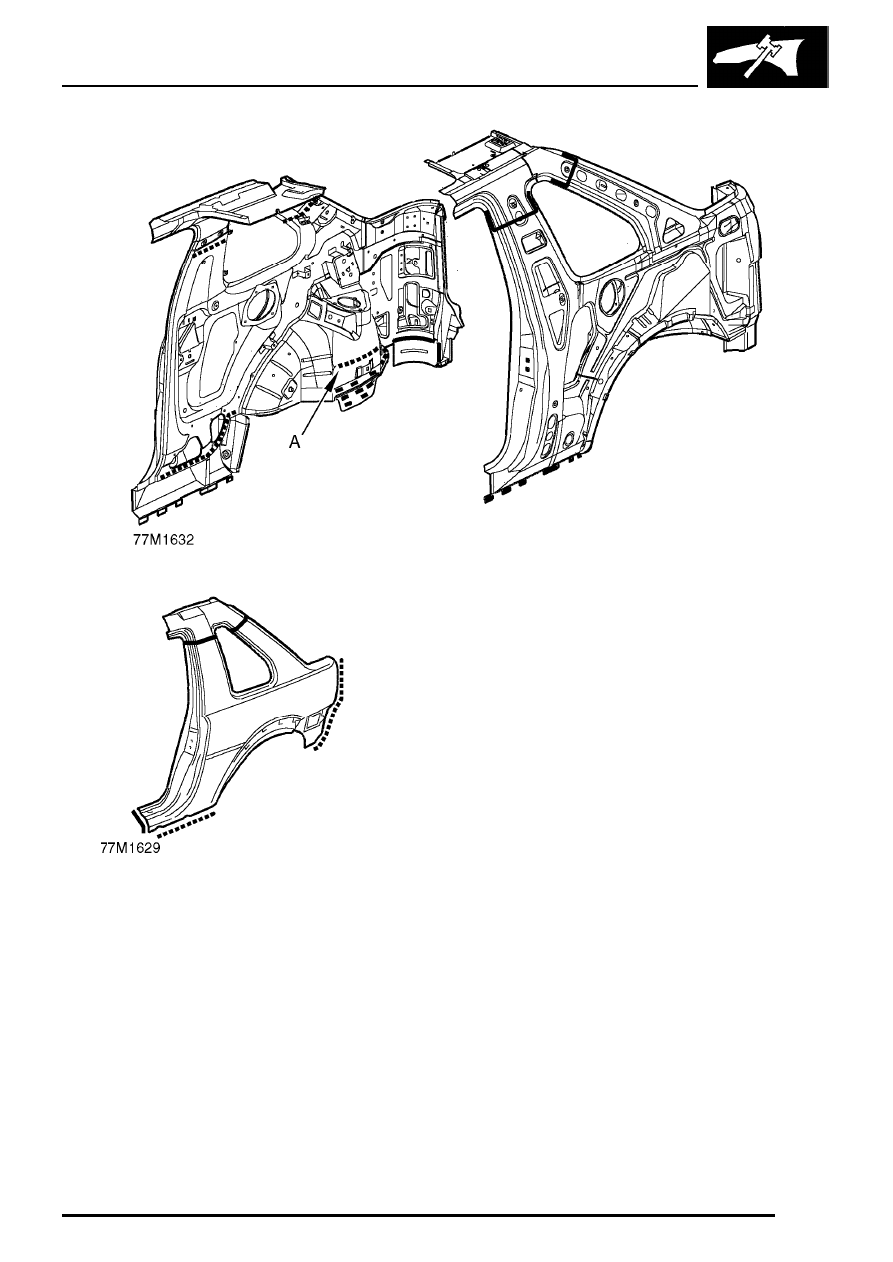

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

2. Arrow A is shown to highlight the fact that there

are plug welds on the other side of the inner
wheelarch as well. These are to weld the rear
longitudinal to the inner wheelarch.

PANEL REPAIRS

REPAIRS

25

Refit

For LH side

1. Fit tail door striker to ’E’ post.

For RH side

2. Fit fuel tank.

See FUEL DELIVERY SYSTEM,

Repairs.

3. Fit fuel filler neck.

See FUEL DELIVERY

SYSTEM, Repairs.

4. Fit tail door.

See BODY, Doors.

PANEL REPAIRS

26

REPAIRS

For both sides

5. Secure vehicle harness to rear quarter.
6. Fit rear damper.

See REAR SUSPENSION,

Repairs.

7. Fit seal and rear quarter vent.

See BODY,

Exterior fittings.

8. Fit headlining.

See BODY, Interior trim

components.

9. Fit rear body side casing.

See BODY, Interior

trim components.

10. Fit rear seat.

See BODY, Seats and seat

belts.

11. Fit loadspace carpet.

See BODY, Interior trim

components.

12. Fit rear side seat belt.

See RESTRAINT

SYSTEMS, Repairs.

13. Fit rear quarter upper casing.

See BODY,

Interior trim components.

14. Fit rear quarter lower casing.

See BODY,

Interior trim components.

15. Fit tail lamp.

See ELECTRICAL, Repairs.

16. Fit rear roof panel finisher.

See BODY,

Exterior fittings.

17. Fit tail door aperture seal.
18. Fit soft/hard top.
19. Secure carpet to inner sill and rear heelboard.
20. Fit front door aperture seal.
21. Fit treadplate to front door aperture.
22. Fit door striker to ’B’ post.
23. Fit rear wheel arch liner.
24. Fit rear bumper valance.

See BODY, Exterior

fittings.

25. Fit sill lower finisher.

See BODY, Exterior

fittings.

26. Fit road wheel(s) and tighten nuts to correct

torque.

See INFORMATION, Torque wrench

settings.

27. Connect all ECUs.
28. Connect alternator.

See ELECTRICAL,

Repairs.

29. Connect battery earth lead.

COMPLETE REAR QUARTER - 5 DOOR

NOTE: In this procedure, the rear outer
body side panel is replaced in conjunction
with the complete rear quarter.

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.

See ELECTRICAL,

Repairs.

3. Disconnect all ECUs.
4. Remove road wheel(s).
5. Remove sill lower finisher.

See BODY,

Exterior fittings.

6. Remove rear bumper valance.

See BODY,

Exterior fittings.

7. Remove rear wheel arch liner.
8. Remove rear door striker from ’D’ post.
9. Remove treadplate from rear door aperture.

10. Remove rear door aperture seal.
11. Release carpet from inner sill and rear

heelboard and position aside.

12. Remove tail door glass upper finisher.

See

BODY, Doors.

13. Remove tail door glass side finisher.

See

BODY, Doors.

14. Remove tail door aperture seal.
15. Remove roof panel finisher.

See BODY,

Exterior fittings.

16. Remove tail lamp.

See ELECTRICAL,

Repairs.

17. Remove rear quarter lower casing.

See

BODY, Interior trim components.

18. Remove rear quarter upper casing.

See

BODY, Interior trim components.

19. Remove rear side seat belt.

See RESTRAINT

SYSTEMS, Repairs.
