Freelander 1. Manual - part 148





MANUAL GEARBOX - PG1

REPAIRS

37-1-5

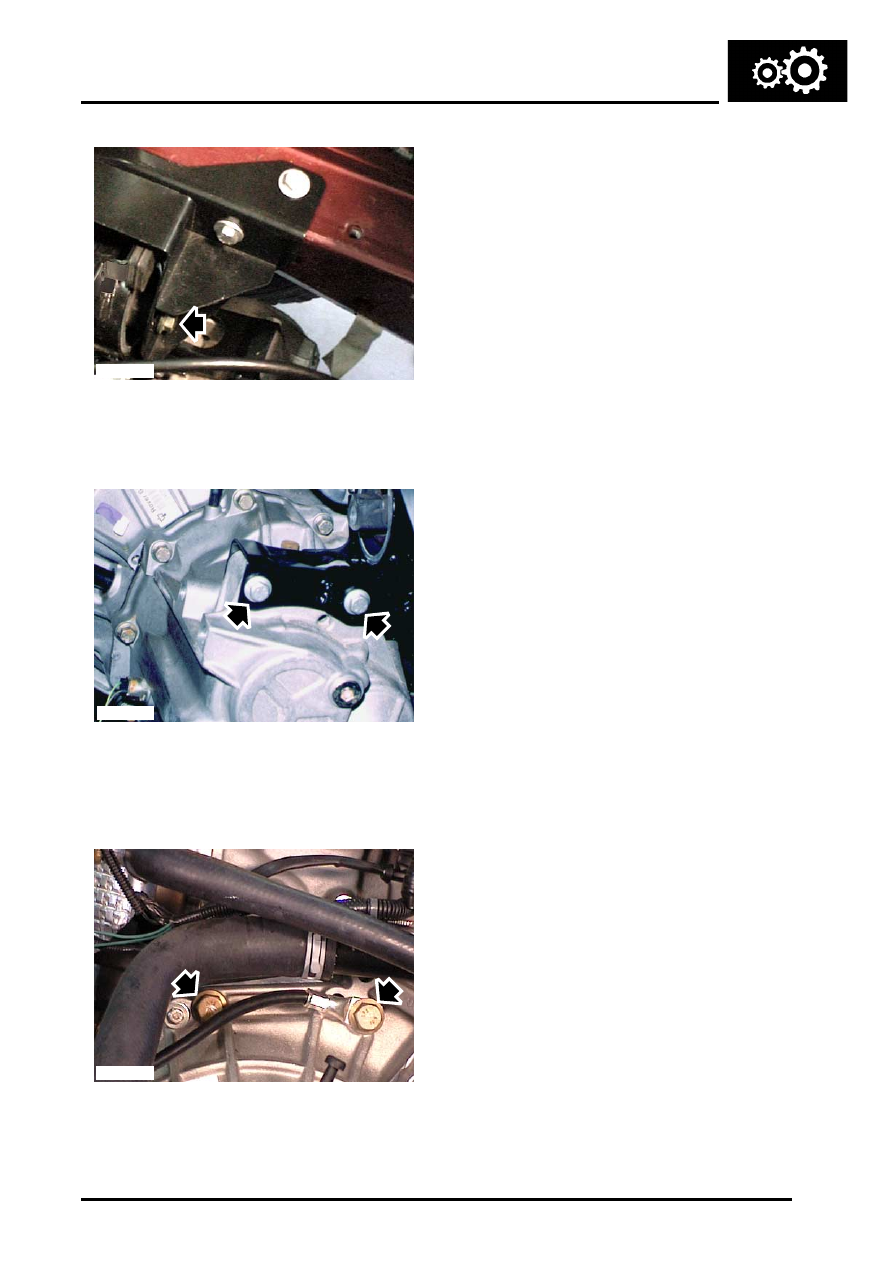

22. Remove through bolt securing LH engine

mounting to gearbox bracket.

23. Lower gearbox for access.

24. Remove 2 bolts securing LH mounting to

gearbox and remove mounting.

25. Fit wooden block to jack, position jack under

engine sump to support engine.

26. Note fitted position of engine earth lead and

remove 2 top bolts securing gearbox to engine.

27. With assistance, release gearbox from 2

locating dowels. Lower gearbox to floor and
remove lifting equipment.

Refit

1. Clean mating faces of engine and gearbox,

dowel and dowel holes.

2. Inspect drive shaft oil seal, renew if worn or

damaged.

3. Lightly grease gearbox splines with

molybdenum disulphide grease.

4. Clean and degrease threads of 2 top bolts

securing gearbox to engine, Apply Loctite 243
to bolt threads.

5. Position gearbox underneath vehicle and

connect lifting equipment.

6. With assistance, raise gearbox and align to

dowels.

7. Correctly position engine earth lead, fit top 2

bolts securing gearbox to engine.

8. Position front cover plate and fit nuts and bolts.
9. Tighten top bolts and front nuts and bolts to 80

Nm (59 lbf.ft) and gearbox to sump to 45 Nm
(33 lbf.ft).

10. Position plain washer to M6 bolt, fit bolt and nut

and tighten to 9 Nm (7 lbf.ft).

11. Disconnect lifting equipment from gearbox

lifting bracket.

12. Remove bolt securing lifting bracket to

gearbox, remove bracket, refit bolt and tighten
to 45 Nm (33 lbf.ft).

13. Position LH engine mounting to gearbox, fit and

tighten bolts to 65 Nm (48 lbf.ft).

14. Raise gearbox and align LH engine mounting to

mounting bracket. Fit through bolt and tighten
to 80 Nm (59 lbf.ft).

15. Remove jack supporting engine.
16. Position gear change steady rod, fit and tighten

bolt to 25 Nm (18 lbf.ft).

17. Position gear change rod to selector shaft, fit

NEW roll pin and secure cover.

18. Clean end of drive shaft and mating splines in

gearbox.

19. Fit new circlip to LH drive shaft.
20. Fit LH drive shaft to gearbox, keep drive shaft

square to prevent damage to oil seal in
gearbox.

M37 1764

M37 1761

M12 7171

MANUAL GEARBOX - PG1

37-1-6

REPAIRS

21. Fit IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - K1.8.

22. Position clutch slave cylinder mounting bracket

to gearbox, fit and tighten bolts to 25 Nm (18
lbf.ft).

23. Connect multiplug to 1st gear switch and

secure harness with clip to clutch slave cylinder
bracket.

24. Connect reverse light switch connectors.
25. Fit battery carrier and tighten bolts to 10 Nm

(7.5 lbf.ft).

26. Position harness to battery carrier and secure

clips.

27. Fit starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - K1.8.

28. Fit battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

29. Connect battery earth lead.

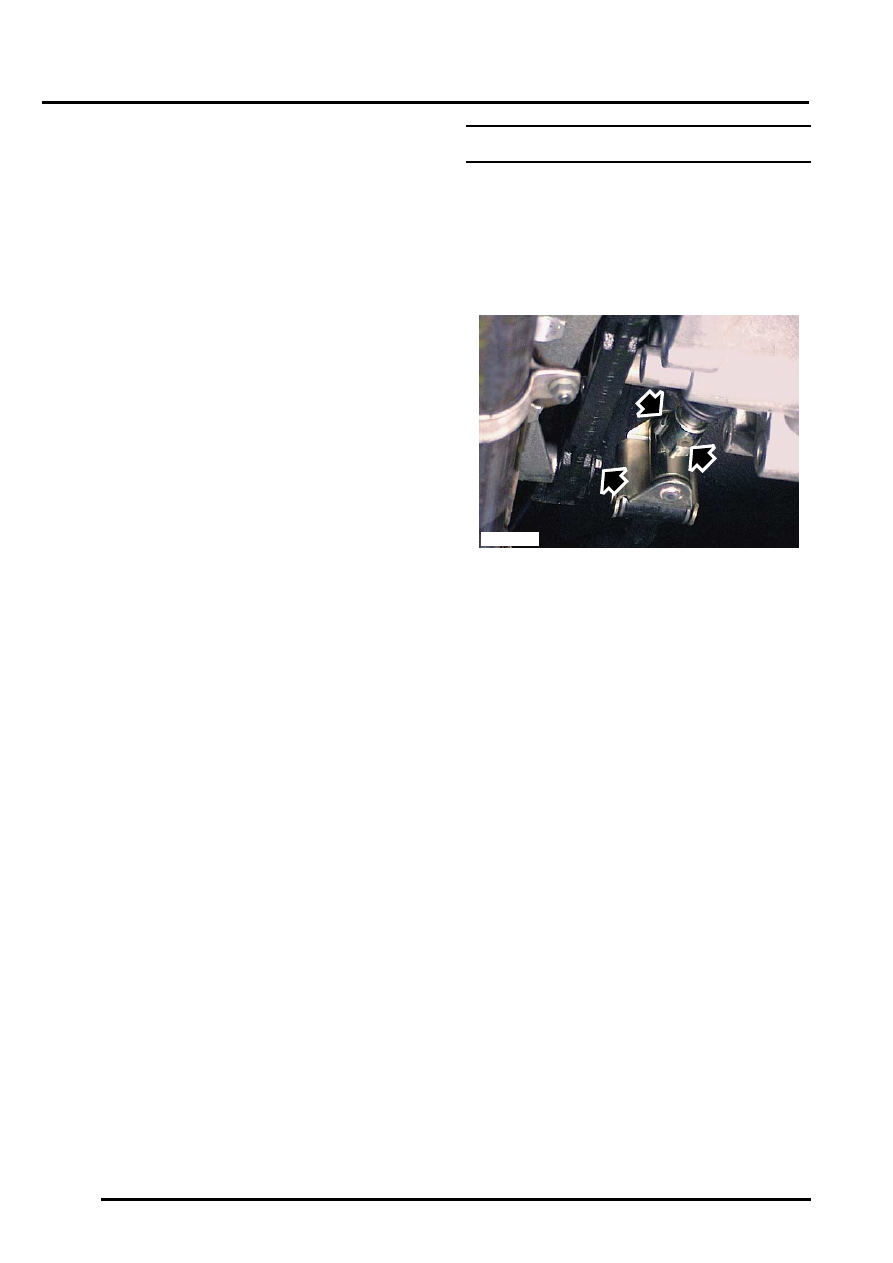

Oil seal - selector shaft

$% 37.23.10

Remove

1. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

2. Remove bolt securing gear change steady to

IRD support bracket, release steady from
bracket and collect 2 washers.

3. Release gear change rod roll pin cover, remove

and discard roll pin.

4. Release gear change rod from gearbox

selector shaft.

5. Position container beneath gearbox to catch

fluid loss.

M12 7143

MANUAL GEARBOX - PG1

REPAIRS

37-1-7

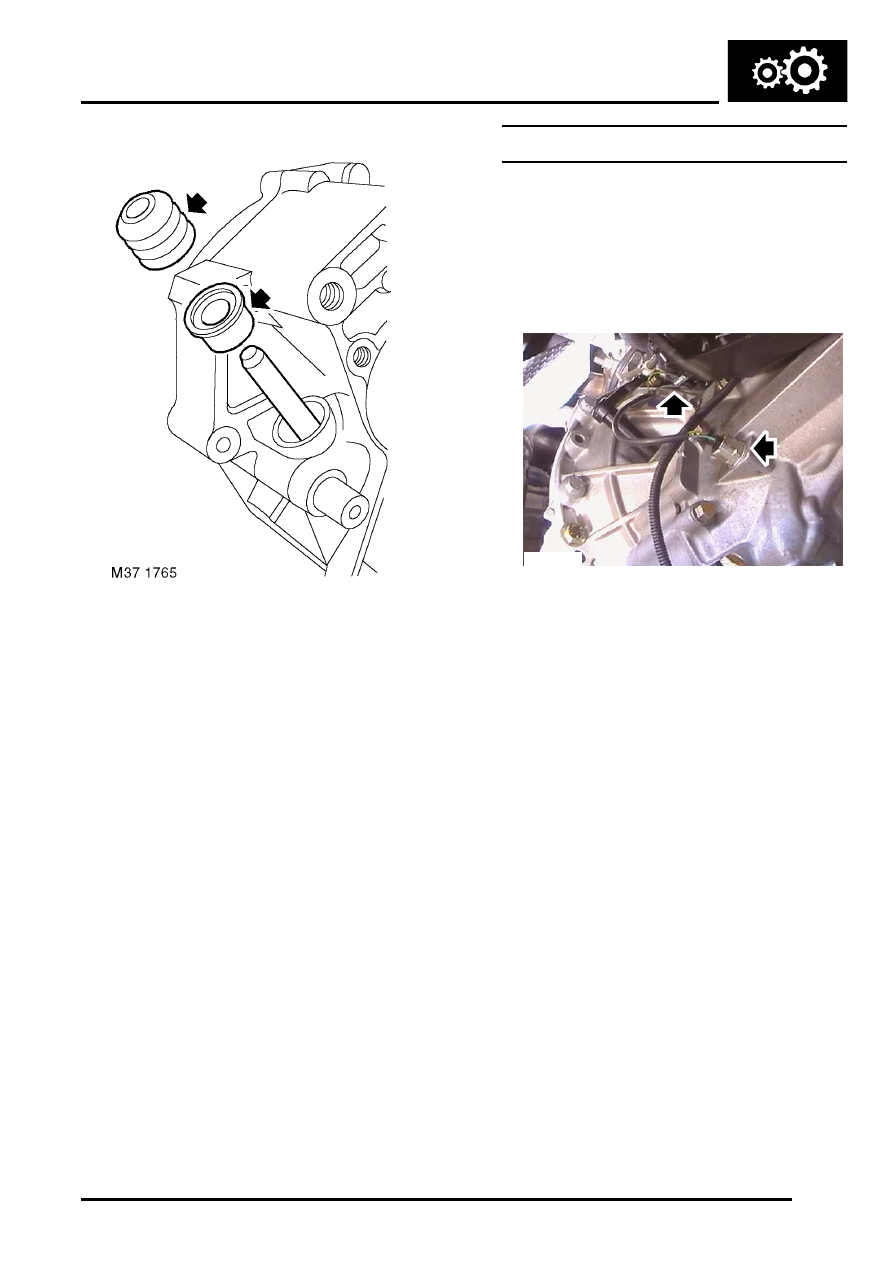

6. Carefully remove gaiter from selector shaft.
7. Remove and discard selector shaft oil seal.

Refit

1. Clean selector shaft.
2. Position new oil seal to selector shaft and drift

into position using a suitable piece of tubing.

3. Fit gaiter to selector shaft and ensure that lip on

gaiter is located over lip on seal.

4. Remove container from underneath gearbox.
5. Position gear change rod to selector shaft, fit

new roll pin and secure cover.

6. Fit washers to gear change steady and position

steady to mounting bracket.

7. Fit bolt securing gear change steady to

mounting bracket and tighten to 25 Nm (18
lbf.ft).

8. Top-up gearbox fluid level.



 +

 MAINTENANCE, MAINTENANCE,

Manual Gearbox – PG1.

9. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

Switch - reverse light

$% 37.27.01

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Disconnect reverse light switch connectors.
4. Remove reverse light switch and discard

sealing washer.

Refit

1. Clean reverse lamp switch and mating face on

gearbox.

2. Fit new sealing washer to reverse light switch,

fit and tighten switch to 24 Nm (18 lbf.ft).

3. Connect reverse light switch connectors.
4. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

5. Connect battery earth lead.



M37 1767

MANUAL GEARBOX - PG1

37-1-8

REPAIRS

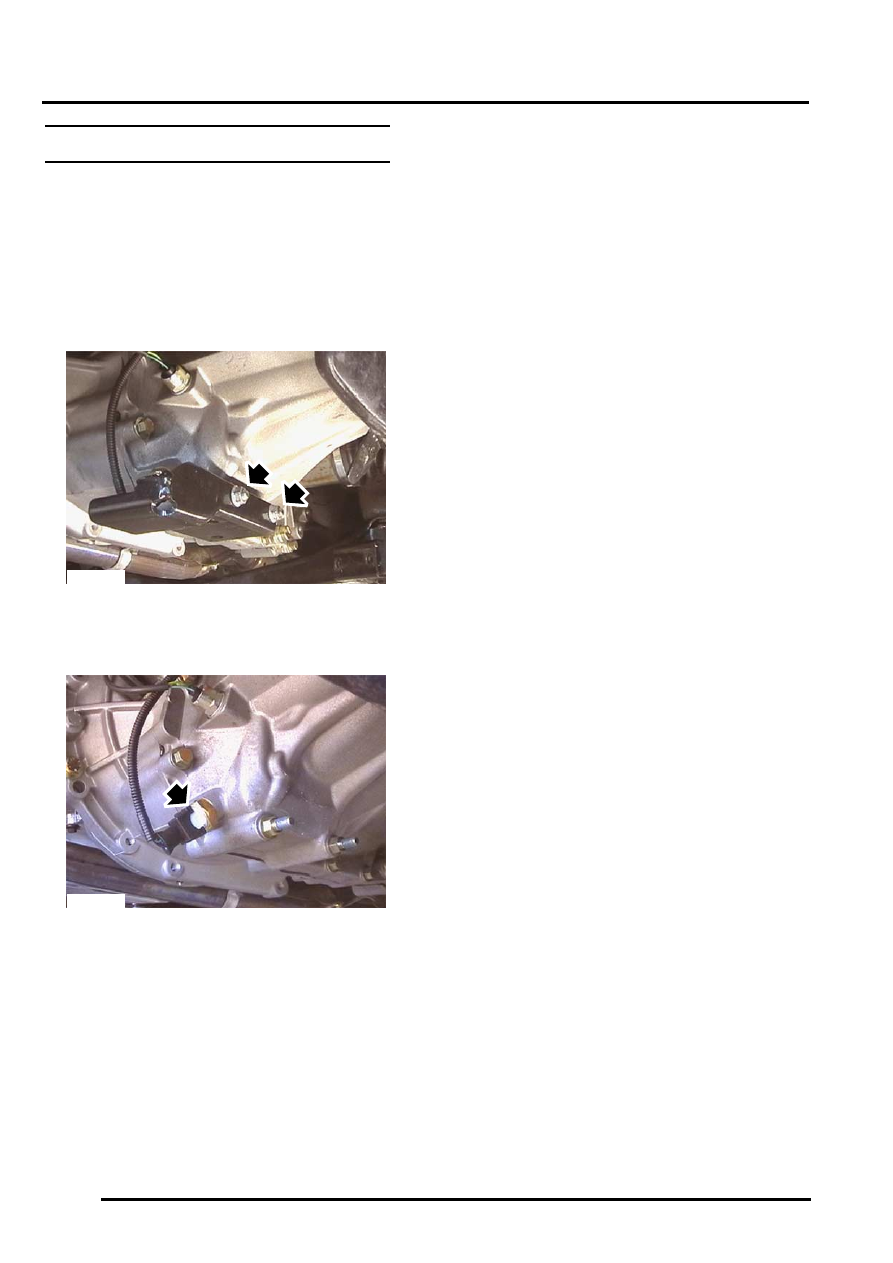

Switch - first gear

$% 37.27.11

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Position container to catch oil spillage.

4. Remove nuts securing 1st gear switch cover to

gearbox housing and remove cover.

5. Disconnect multiplug from 1st gear switch.
6. Remove 1st gear switch.

Refit

1. Clean mating faces of 1st gear switch, fit and

tighten switch to 24 Nm (18 lbf.ft).

2. Remove container from underneath gearbox.
3. Connect multiplug to 1st gear switch.
4. Check and top up gearbox oil.



 +

 MAINTENANCE, MAINTENANCE,

Manual Gearbox – PG1.

5. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

6. Connect battery earth lead.



M37 1768



M37 1769
