FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-35

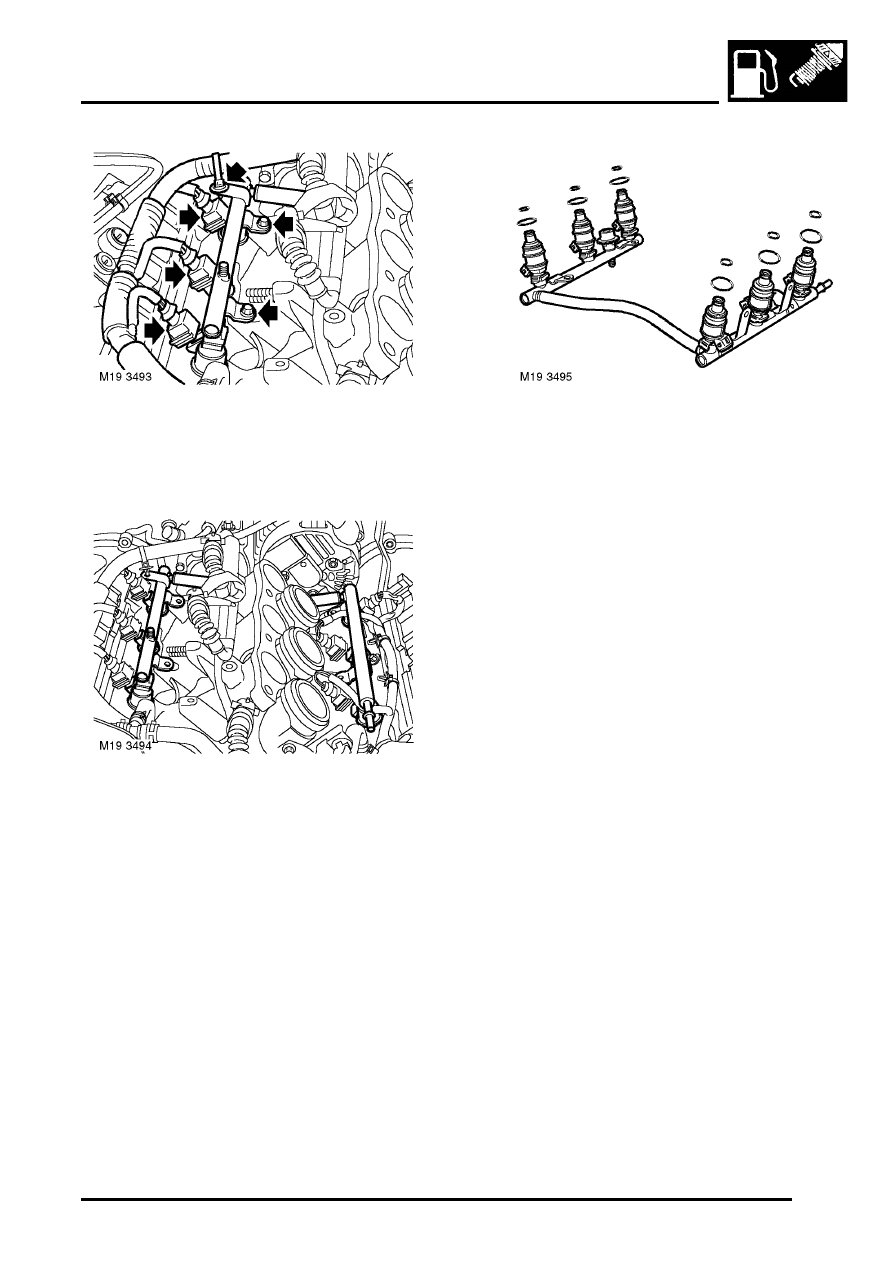

12. Remove 2 bolts securing fuel rail to LH inlet

manifold.

13. Release clips and disconnect injector

multiplugs.

14. Release injectors from manifolds, raise fuel rail

assembly, disconnect 4 clips securing injector
harness to fuel rails and move harness aside.

15. Remove fuel rail and discard 'O' rings

CAUTION: Always fit plugs to open
connections to prevent contamination.

Refit

1. Lubricate new 'O' rings with castor oil and fit to

injectors.

2. Remove plugs from inlet manifolds.
3. Position injector harness to fuel rail and secure

with clips.

4. Position injectors and fuel rail to inlet manifolds.
5. Connect multiplugs to injectors.
6. Fit and tighten 4 bolts securing fuel rail to inlet

manifold to 8 Nm (6 lbf.ft).

7. Position ignition coils to LH inlet manifold.
8. Position earth lead, fit nuts and bolts securing

ignition coils to LH inlet manifold and tighten to
9 Nm (7 lbf.ft).

9. Position alternator and secure with nuts and

bolts, tighten to 45 Nm (33 lbf.ft).

10. Using a 3/8" square drive socket bar, raise

ancillary drive belt tensioner and fit drive belt to
pulleys.

11. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

12. Fit inlet manifold chamber.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber.

13. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

19-2-36 REPAIRS

Injector - KV6

$% 19.60.10

Remove

1. Disconnect battery earth lead.
2. Remove fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

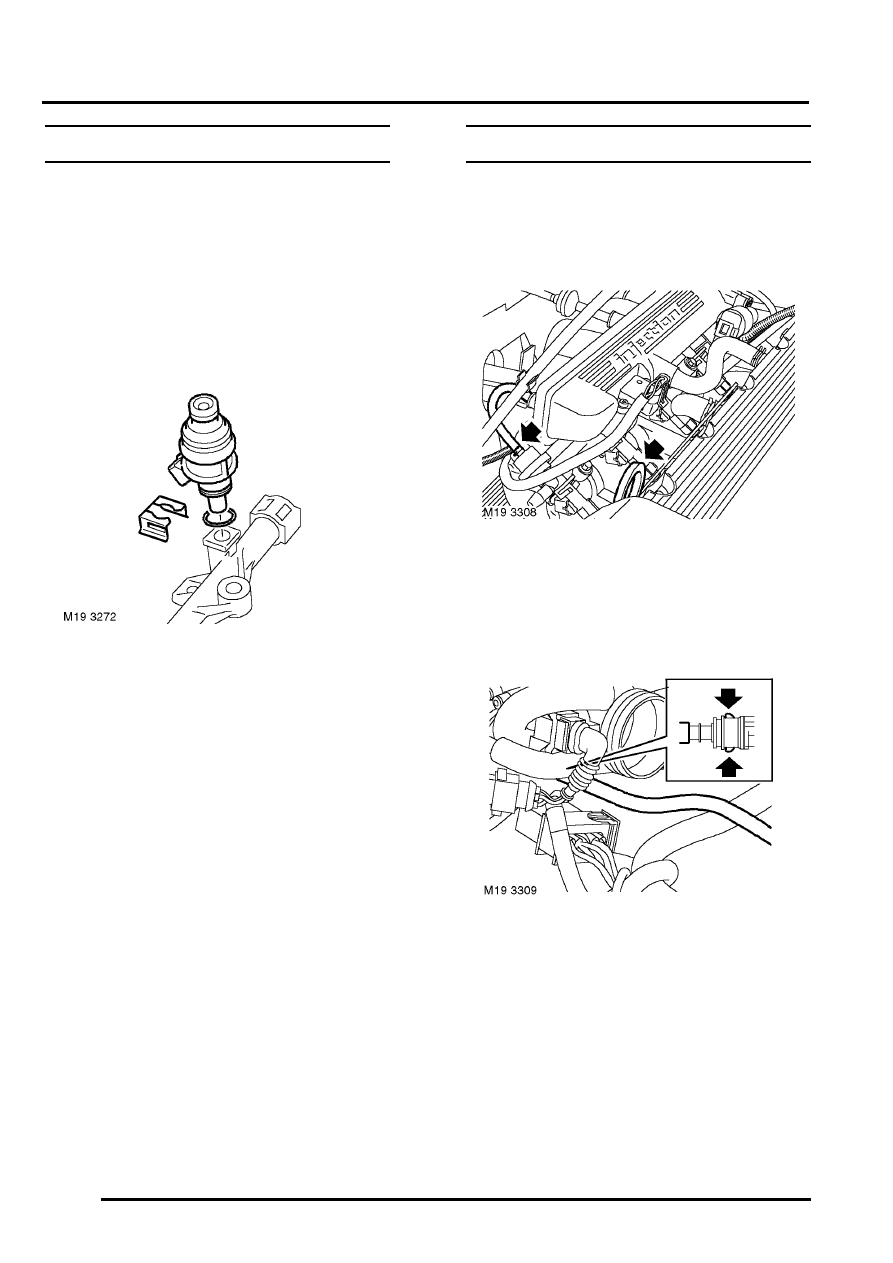

3. Remove clip securing injector to fuel rail.
4. Remove injector from fuel rail, remove and

discard 'O' ring from injector.

CAUTION: Always fit plugs to open
connections to prevent contamination.

Refit

1. Clean injector and mating face in fuel rail.
2. Remove cap from new injector and fit to old

injector.

3. Lubricate new 'O' ring with castor oil and fit to

injector.

4. Fit injector to fuel rail and secure with clip.
5. Fit fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

6. Connect battery earth lead.

Injectors - set - K1.8

$% 19.60.12

Remove

1. Disconnect battery earth lead.

2. Release clip and disconnect vacuum pipe from

fuel pressure regulator.

3. Remove engine oil dipstick.
4. Position absorbent cloth beneath fuel rail.

5. Release fuel feed hose from fuel rail.

CAUTION: Always fit plugs to open
connections to prevent contamination.

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-37

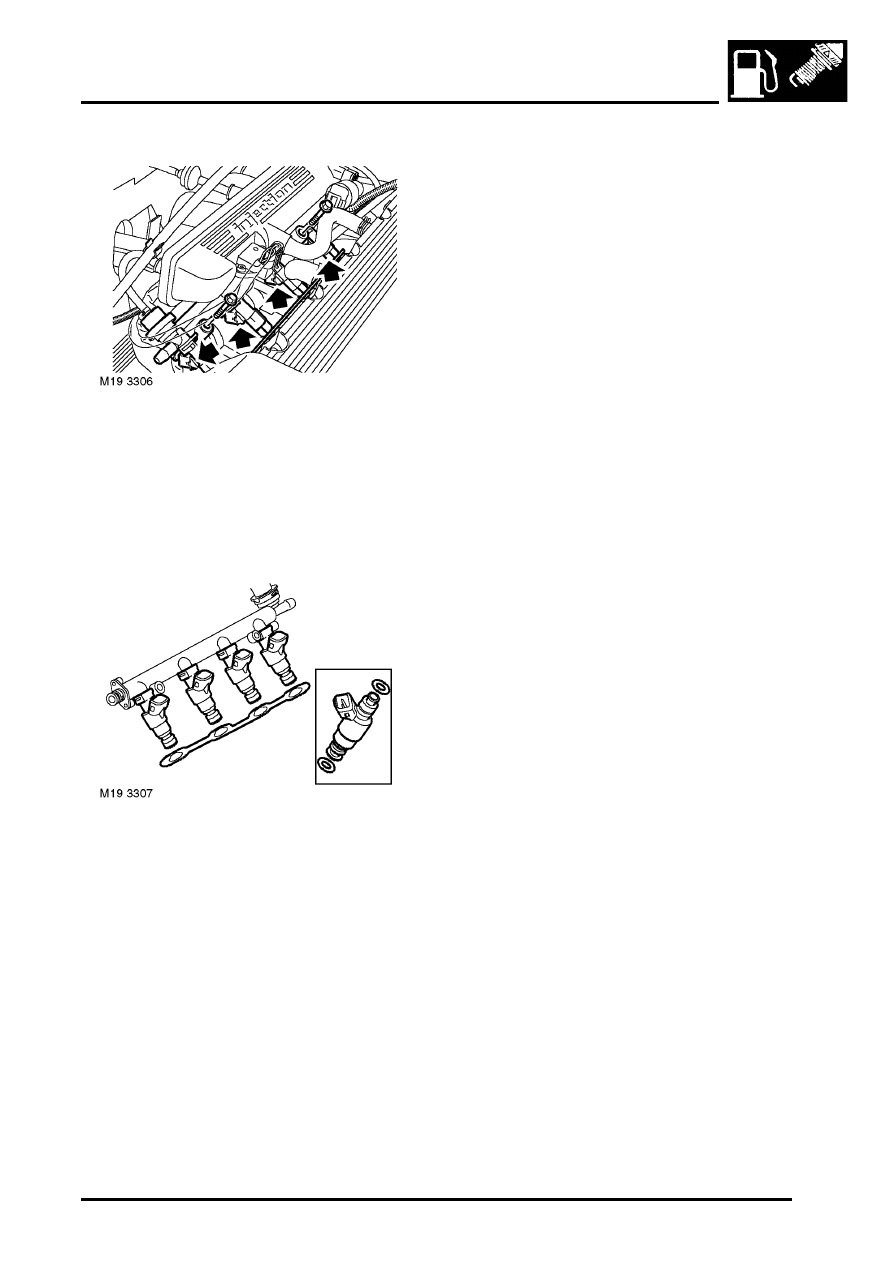

6. Remove 2 bolts securing fuel rail to inlet

manifold.

7. Release fuel rail and injectors from inlet

manifold.

8. Release and remove injector spacer.
9. Disconnect multiplug from injectors.

10. Remove the fuel rail complete with injectors.
11. Release spring clips securing injectors to fuel

rail and remove fuel injectors.

12. Remove and discard 2 'O' rings from each

injector.

13. Fit protective caps to each end of injectors.

Refit

1. Remove protective caps from each injector.
2. Clean injectors and recesses in fuel rail and

inlet manifold.

3. Lubricate new 'O' ring with castor oil and fit to

injector.

4. Fit injectors to fuel rail and secure with spring

clips.

5. Position fuel rail assembly and connect injector

multiplugs.

6. Fit injector spacer.
7. Push each injector into inlet manifold.
8. Fit bolts securing fuel rail to inlet manifold and

tighten to 8 Nm ( 6 lbf.ft).

9. Connect fuel feed hose to fuel rail.

10. Fit engine oil dipstick.
11. Connect vacuum pipe to fuel pressure regulator

and secure with clip.

12. Connect battery earth lead.

FUEL DELIVERY SYSTEM - PETROL

19-2-38 REPAIRS

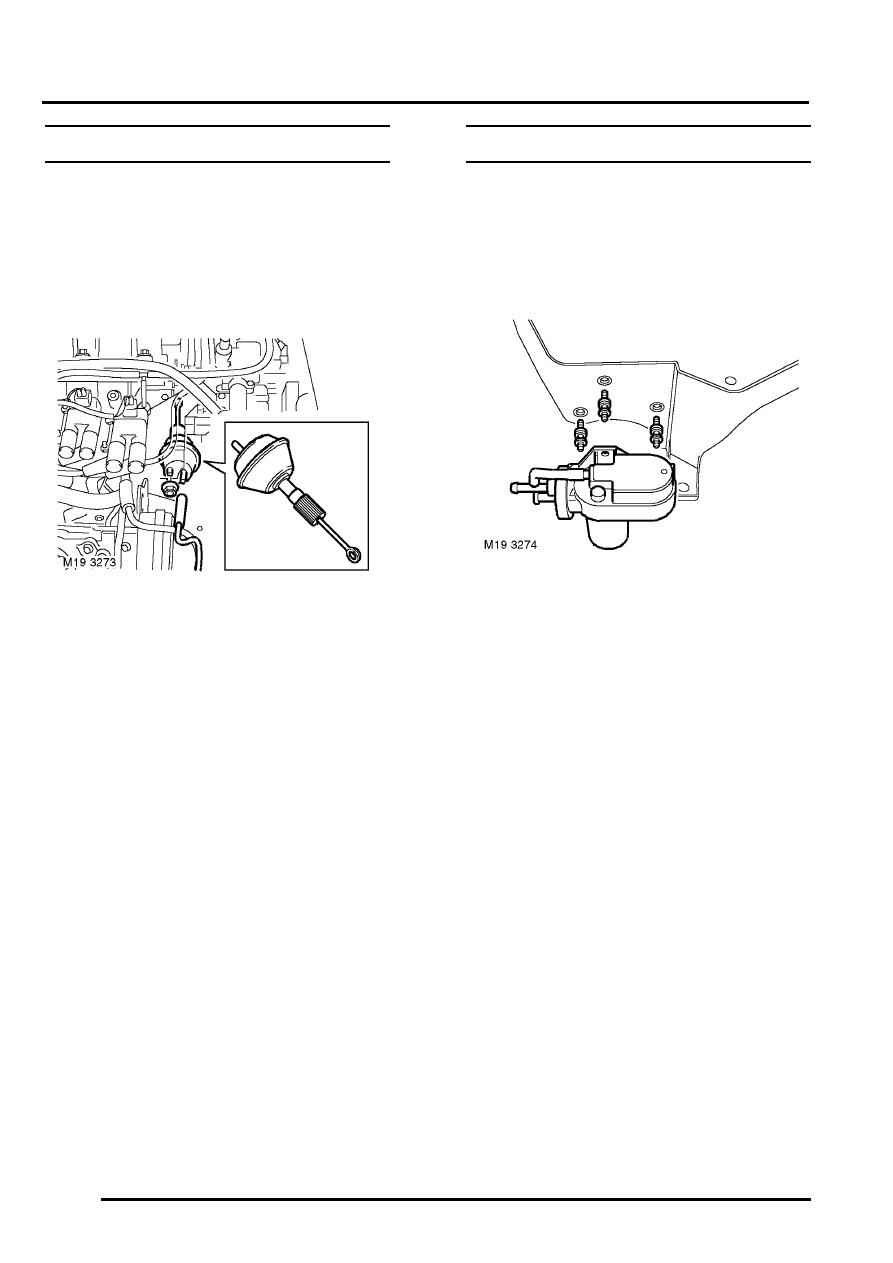

Actuator unit - cruise control - KV6

$% 19.75.05

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Disconnect vacuum hose from actuator.
4. Remove nut securing actuator to mounting

bracket.

5. Release operating rod from throttle cam and

remove actuator.

Refit

1. Position actuator and connect operating rod to

throttle cam.

2. Position actuator into mounting bracket, fit and

tighten nut.

3. Connect vacuum hose to actuator.
4. Check pull rod to retainer clearance, with lever

fully returned, pull rod should just be held by
retainer.

5. Release retainer by turning anti-clockwise,

eliminate clearance then rotate retainer half
turn clockwise. Check pull rod is just held and
rotate retainer a further quarter turn clockwise
to lock.

6. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

7. Connect battery earth lead.

Vacuum pump - cruise control - KV6

$% 19.75.06

Remove

1. Remove battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

2. Release 3 rubber mountings securing vacuum

pump to battery carrier and remove vacuum
pump.

3. Remove 3 rubber mountings from vacuum

pump.

Refit

1. Fit rubber mountings to vacuum pump.
2. Position vacuum pump to battery carrier and

secure with rubber mountings.

3. Fit battery carrier.



 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.
