Freelander 1. Manual - part 71





ENGINE - K SERIES 1.8

OVERHAUL 12-2-57

17. Fit cylinder liner clamps, LRT-12-144, using the

nylon nuts supplied to retain liner clamps.
Ensure that the feet of the liner clamps do not
protrude over cylinder liner bores. Tighten
cylinder head bolts sufficiently to retain liner
clamps.

CAUTION: Ensure that bolts used are in
their original fitted locations.

18. Temporarily fit crankshaft timing gear and

pulley, fit retaining bolt and washer, lightly
tighten bolt.

19. Mark connecting rod bearing caps for refitment.
20. Rotate crankshaft to bring numbers 2 and 3

pistons to BDC.

21. Remove 4 dowel bolts and 2 big-end bearing

caps from numbers 2 and 3 connecting rods,
keep dowel bolts and bearing caps in their fitted
order.

22. Release connecting rods from crankshaft

journals and carefully push pistons to top of
cylinder bore. Remove and discard bearing
shells from connecting rods and bearing caps.

23. Rotate crankshaft to bring numbers 1 and 4

pistons to BDC.

24. Remove 4 dowel bolts and 2 big-end bearing

caps from numbers 1 and 4 connecting rods.

CAUTION:  Keep dowel bolts and bearing
caps in their fitted order.

25. Release connecting rods from crankshaft

journals and carefully push pistons to top of
cylinder bore. Remove and discard bearing
shells from connecting rods and bearing caps.

26. Remove crankshaft pulley bolt, pulley and

timing belt drive gear from crankshaft.

27. Remove bolts securing cylinder liner clamps

LRT-12-144 to cylinder block and remove
clamps.

CAUTION: Keep bolts in their fitted order.
Do not rotate crankshaft with clamps
removed.

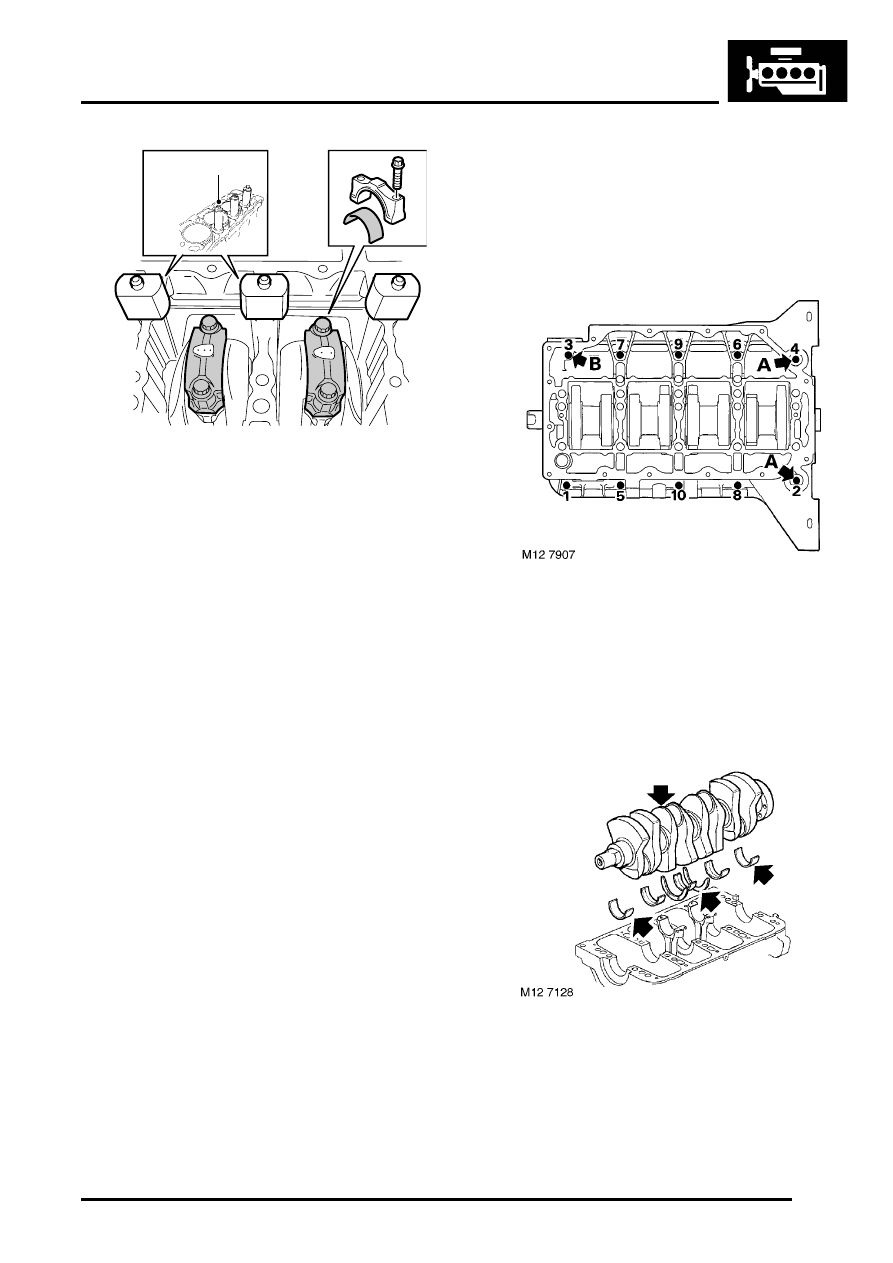

28. Using sequence shown, remove 10 bolts

securing bearing ladder to cylinder block and
remove ladder.

Note: 2 bolts 'A' in illustration are beneath
flanges of rear mountings. Also, note position of
flanged head bolt 'B' at front end of bearing
ladder.

29. Remove crankshaft from cylinder block.
30. Remove 2 thrust washers from No. 3 bearing

position.

31. Remove main bearing shells from cylinder

block and bearing ladder.

LRT-12-144

M12 7037

ENGINE - K SERIES 1.8

12-2-58 OVERHAUL

Refit

1. Using a suitable cleaning solvent, clean mating

faces of cylinder block and bearing ladder.

CAUTION: Do not use a metal scraper on
sealing surfaces.

2. Clean bearing and thrust washer locations in

cylinder block.

3. Clean bearing locations in bearing ladder.
4. Clean bearing locations on connecting rods

and caps.

5. Clean dowels and dowel holes.
6. Clean crankshaft main bearing and big-end

journals.

7. Clean crankshaft rear oil seal location.

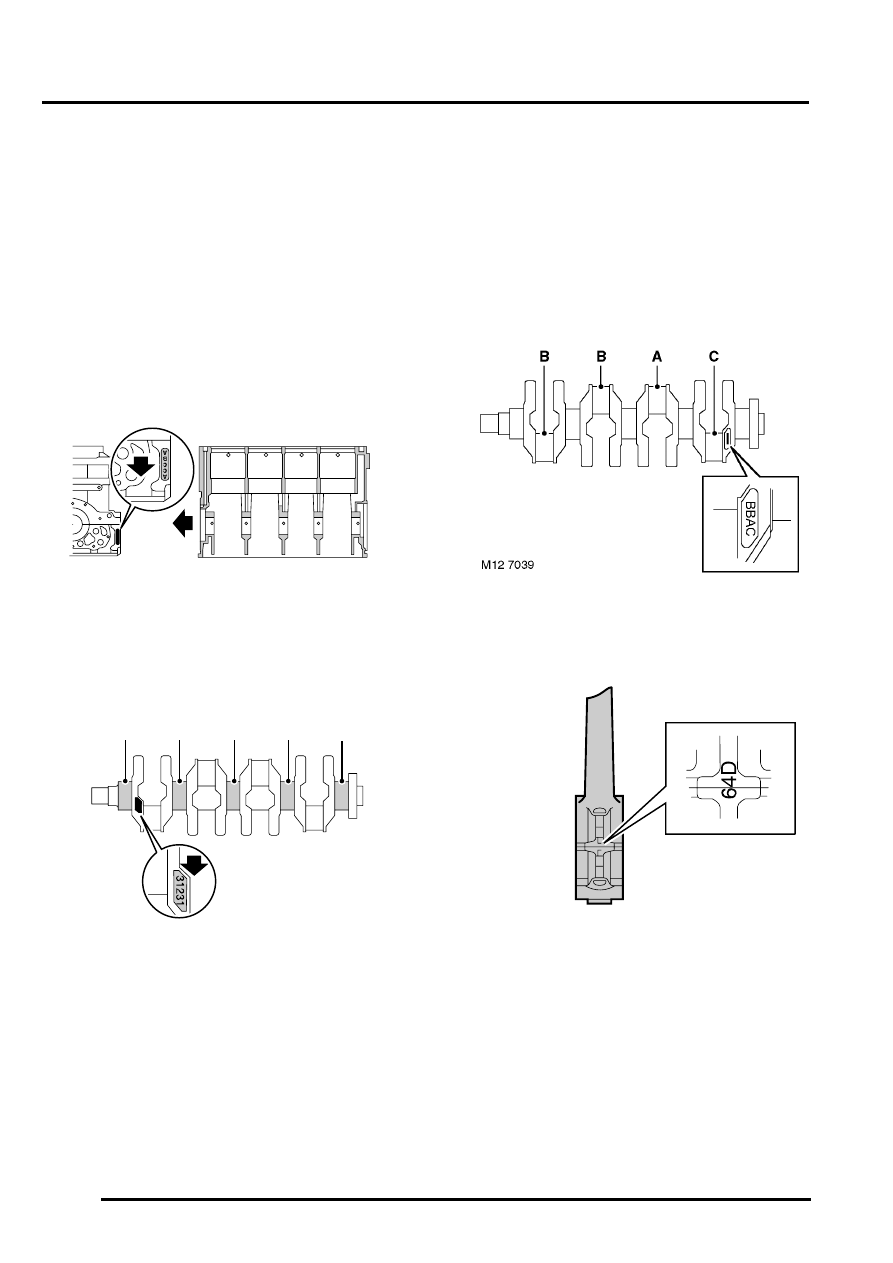

8. Record main bearing code letters from bearing

ladder.

9. Record main bearing code numbers from

crankshaft front web.

10. Check crankshaft main journal diameters.



 +

 GENERAL DATA, Engine – K1.8

Petrol.

11. Determine appropriate main bearing shells to

be fitted from size selection and type.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

12. Colour code on edge of bearing shell denotes

bearing thickness as follows: GREEN = thin,
BLUE = intermediate, RED = thick.

CAUTION: If two bearing colours are to be
used, the thicker bearing must be fitted to
bearing ladder. When original crankshaft is
to be refitted, bearing shells must be as
selected from table. Do not fit undersize
bearings.

13. Record big-end journal code letters from

crankshaft rear web. Reading from left to right,
the first letter is Number 1 big-end bearing.

14. Record big-end bearing bore numbers. This will

be 5, 6 or 7 located on the connecting rod
bearing cap. Select required bearings.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

15. Colour code on edge of bearing denotes

bearing thickness as follows: YELLOW = Thin,
BLUE = Intermediate, RED = Thick. If two
bearing colours are to be used, the thicker
bearing must be fitted to the big-end bearing
cap.

16. Fit selected main bearing shells, grooved into

cylinder block and plain into bearing ladder.

M12 7129

1
A

2
C

3
C

4
B

5
A

M12 7130

3

1

2

3

1

M12 7040

ENGINE - K SERIES 1.8

OVERHAUL 12-2-59

17. Clean and fit new thrust washers into block,

each side of No. 3 main bearing with oil grooves
facing outwards.

18. Lubricate crankshaft main bearing journals with

clean engine oil.

19. Hold crankshaft with big end journals

horizontal, lower crankshaft onto main
bearings.

20. Ensure that mating faces of bearing ladder and

cylinder block are clean and dry.

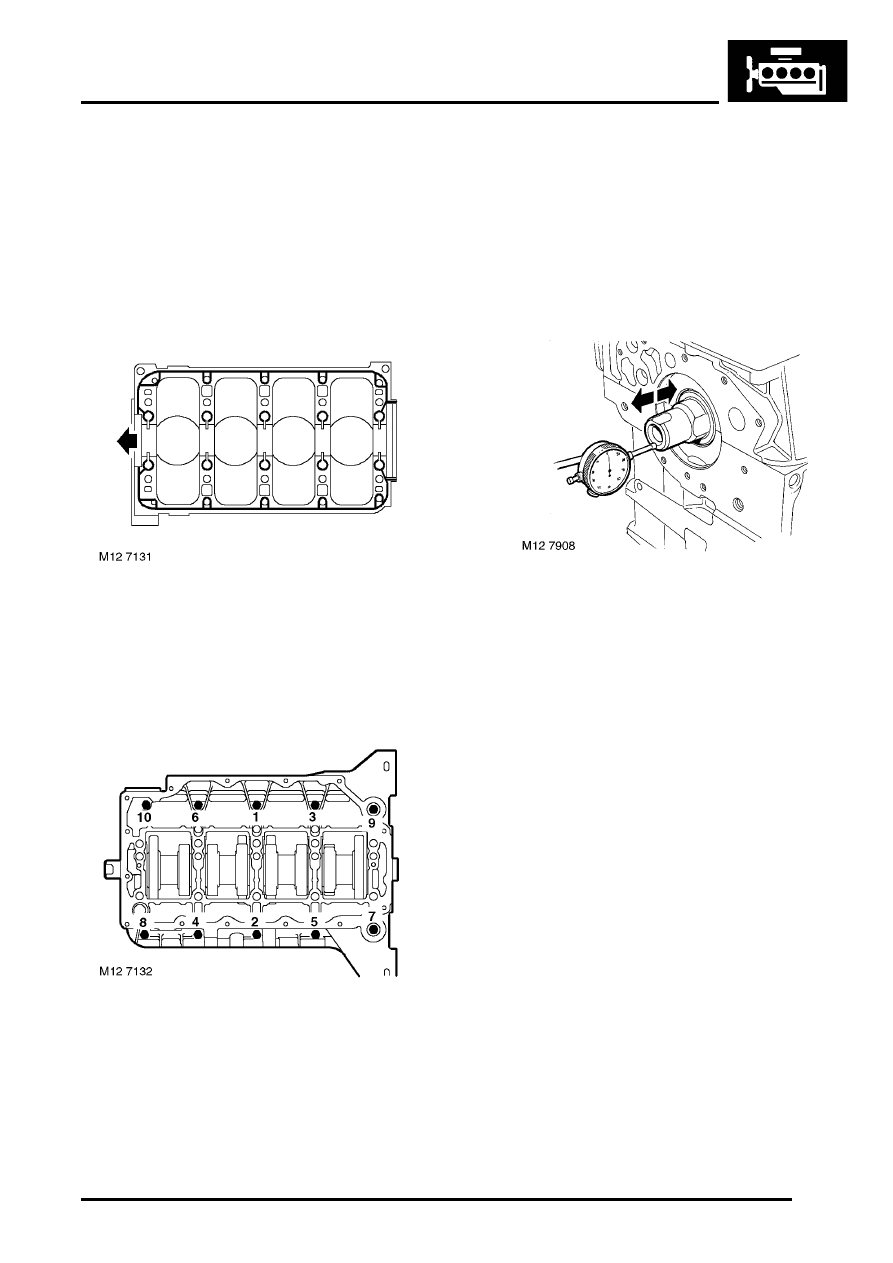

21. Apply a continuous bead of sealant, Part

Number STC 4600, to paths shown on cylinder
block then spread to an even film using a roller.

CAUTION: To avoid contamination,
assembly should be completed immediately
after application of sealant.

22. Lubricate main bearing journals with engine oil.

Fit bearing ladder to block, fit bolts ensuring
that flanged head bolt is fitted at position 10.

23. Tighten bolts in the sequence shown:

l

Stage 1 - 5 Nm (3.5 lbf.ft)

l

Stage 1 - 30 Nm (22 lbf.ft)

24. Fit cylinder liner clamps, LRT-12-144, using the

nylon nuts supplied to retain liner clamps.
Ensure that the feet of the liner clamps do not
protrude over cylinder liner bores. Tighten
cylinder head bolts sufficiently to retain liner
clamps.

CAUTION: Ensure that bolts used are those
originally fitted in that location.

25. Position DTI to front of cylinder block with stylus

of gauge contacting front of crankshaft.

26. Move crankshaft rearwards and zero gauge.
27. Move crankshaft forwards and note end-float

reading on gauge.

28. Compare figure obtained with specified end-

float.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

CAUTION: If end-float exceeds service limit
with new thrust washers fitted, crankshaft
must be replaced.

29. Remove DTI.
30. Temporarily fit crankshaft timing gear and

pulley, fit retaining bolt and washer, lightly
tighten bolt.

31. Fit selected big-end bearing shells to

connecting rods and caps.

32. Lubricate connecting rod journals and bearing

shells with clean engine oil.

33. Carefully pull connecting rods into place, fit

connecting rod caps noting that featherways
are on opposite sides and tighten dowel bolts
finger tight.

34. Tighten big-end bearing dowel bolts to:

l

Stage 1 - 20 Nm (15 lbf.ft)

l

Stage 2 - Further 45

°

Note: Until cylinder head is fitted, crankshaft
will be difficult to rotate once big-end bolts are
tightened.

ENGINE - K SERIES 1.8

12-2-60 OVERHAUL

35. Using feeler gauges, check end-float of each

big-end/connecting rod.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

36. Using a lint free cloth and suitable solvent, wipe

clean sealing surfaces on bearing ladder and
oil rail.

37. Temporarily remove cylinder liner clamps,

LRT-12-144..

CAUTION:  Do not rotate crankshaft with
cylinder liner clamps removed.

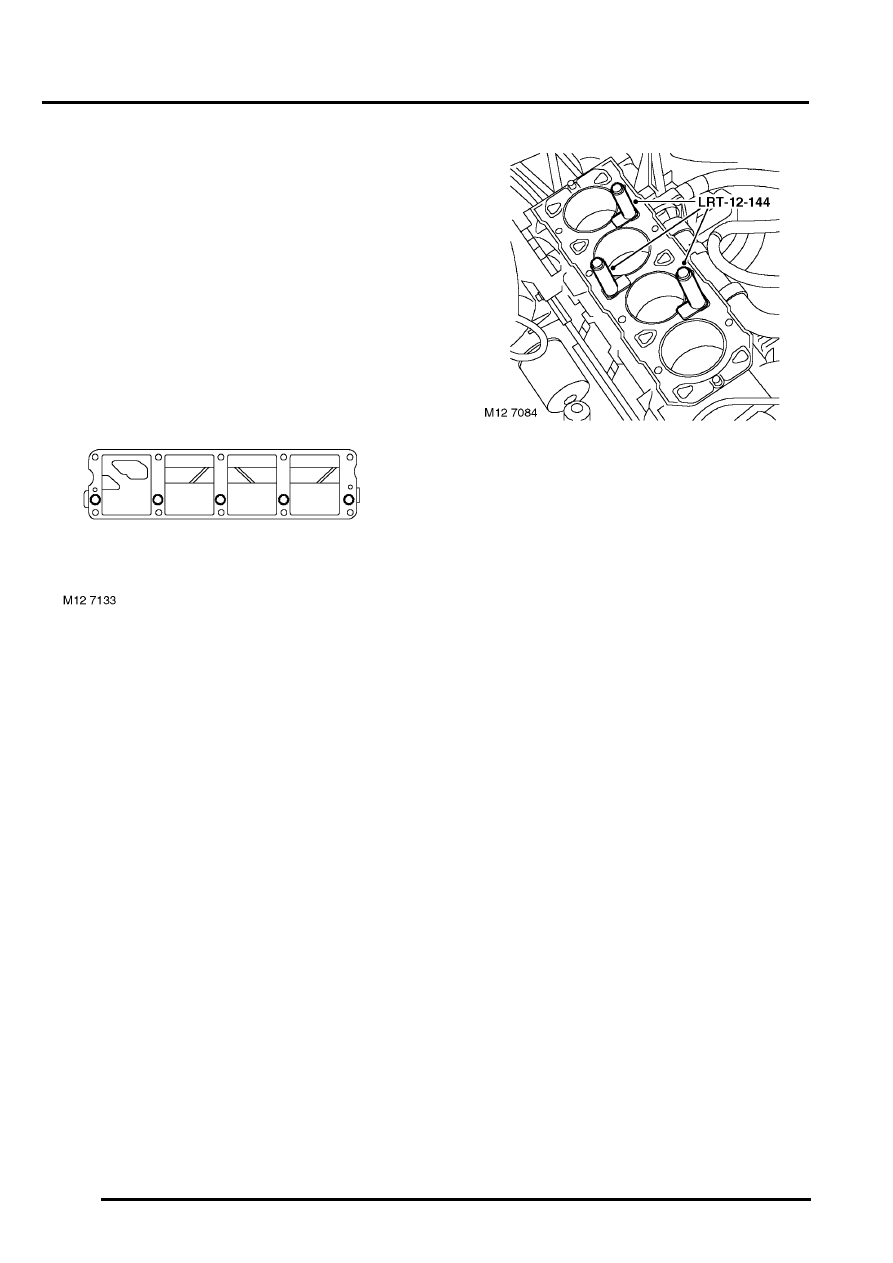

38. Apply continuous beads of sealant, Part

Number STC 4600, to paths on oil rail as
shown, then spread to an even film using a
roller.

CAUTION: To avoid contamination,
assembly should be completed immediately
after application of sealant.

39. Position oil rail to bearing ladder, fit and tighten

nuts to 9 Nm (7 lbf.ft).

CAUTION: A new oil rail together with oil
pick-up pipe must be fitted if cylinder head
bolt threads are damaged. Thread inserts
(Helicoil) are not acceptable.

40. Fit cylinder liner clamps, LRT-12-144 and

lightly tighten cylinder head bolts.

CAUTION: Ensure bolts used are those
originally fitted in that location.

41. Remove crankshaft pulley bolt, washer and

pulley.

42. Clean oil pick-up strainer and mating face.
43. Lubricate new 'O' ring with clean engine oil and

fit to pick-up strainer.

44. Position oil pick-up strainer, fit and tighten bolts

to 10 Nm (7.5 lbf.ft).

45. Fit sump.



 +

 ENGINE - K SERIES 1.8,

OVERHAUL, Sump.

46. Clean dipstick tube and mating face.
47. Fit new gasket and dipstick tube to cylinder

block.

48. Fit bolts securing dipstick tube to cylinder block

and tighten to 10 Nm (7.5 lbf.ft).

49. Fit bolt securing dipstick tube and thermostat

housing to cylinder block, tighten to 10 Nm (7.5
lbf.ft).

50. Fit dipstick.
51. Fit oil pump.



 +

 ENGINE - K SERIES 1.8,

OVERHAUL, Oil pump.

52. Position PAS pump mounting to cylinder block,

fit and tighten bolts to 45 Nm (33 lbf.ft).

53. Fit new oil filter and tighten by hand until it

seats, then tighten a further half turn.

54. Fit crankshaft timing gear.
55. Fit crankshaft rear oil seal.



 +

 ENGINE - K SERIES 1.8,

OVERHAUL, Crankshaft rear oil seal.

56. Fit cylinder head.



 +

 ENGINE - K SERIES 1.8,

OVERHAUL, Gasket - cylinder head - unit
removed.
