IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION 86-6-11

If one headphone amplifier unit has control of the tape player, CD or radio, the other headphone amplifier will be able
to listen and be able to change tape tracks or radio bands. Other buttons allow a search seek function of radio band
or compact disk track, reversal of the tape, radio station and volume adjustment depending on the current operating
mode. If one radio headphone amplifier has control of the radio, tape or CD autochanger the other radio headphone
amplifier is able to change the track or radio band selected. A headphone socket with a glow ring is located on the
control panel. When a headphone is turned on , a 'headphone-module active' signal is sent to the radio cassette
player. The design incorporates panel  illumination and a glow-ring to locate the socket in low light conditions. To
control the audio output from the radio headphone amplifiers, signals are sent to and received from the radio cassette
player.

Automatic volume control (High line system only)
An automatic base and treble volume control feature compensates for increases in interior road/transmission noise.
A road speed signal is monitored by the power amplifier, the signal is supplied by the SLABS ECU.


 +

 BRAKES, DESCRIPTION AND OPERATION, Description.The power amplifier boosts the levels of base

and treble as road speed increases. This system ensures that the apparent volume of sound remains constant and is
not affected by increases in the background noise in the vehicle.

Speakers
 Some vehicles will not have all the speakers, the type and location of speakers fitted depends on the trim level and
ICE options specified for the vehicle.

A-post speakers LH/RH (if fitted)
The A-post speakers are located in the A-post trim on each side of the windscreen, and are each protected by a metal
grille. The speakers are held from the rear by a bayonet clip that clamps the speaker on to the A-post trim. The A-post
speakers are a high range type and have a power rating of:

l

Mid line system A-post speakers have a power rating of 15 watts and an impedance of 4

.

l

High line system A-post speakers have a power rating of 30 watts and an impedance of 4

.

Upper front and rear door speakers LH/RH (high line system only)
The upper door speakers are located in the upper door trim, the speaker is protected by an integral metal grille. The
speaker is held in by a threaded ring that clamps the speaker from the rear onto the door trim. The upper door speaker
is a mid-range type and has a power rating of 30 watts and an impedance of 4

.

Lower front  door speakers LH/RH
The lower front door speaker is located in the front end of the lower (pocket) trim and is secured by three self tapping
screws. The speaker is protected by a clip on circular metal grille. The type of lower front door speakers fitted depends
on trim level and market:

l

The base and mid line systems are fitted with full-range door speakers with a power rating of 15 watts and an
impedance of 4

l

The high line system is fitted with a low-range door speaker with a power rating of 30 watts and an impedance
of 4

.

Lower rear door speaker LH/RH
The lower rear door speaker is located in the lower door trim and is secured by three self tapping screws. The speaker
is protected by a clip on metal grille. The type of lower rear door speaker fitted depends on trim level and market:

l

The base and mid line systems are fitted with full-range door speakers with a power rating of 15 watts and an
impedance of 4

l

The high line system is fitted with a low-range door speaker with a power rating of 30 watts and an impedance
of 4

.

Low range tail door speakers (high line system only)
The low range tail door speaker are located in a plastic casing in the lower door trim. Each of the two speakers is
secured to the casing with four self tapping screws. The casing is secured to the lower door structure with eight bolts.
The tail door trim surrounds the casing, the front of the casing is covered by a metal grill that is secured with six
screws.  The low range tail door speakers have a power rating of 30 watts and has an impedance of 4

.

IN CAR ENTERTAINMENT

86-6-12 DESCRIPTION AND OPERATION

IN CAR ENTERTAINMENT

REPAIRS 86-6-13

REPAIRS

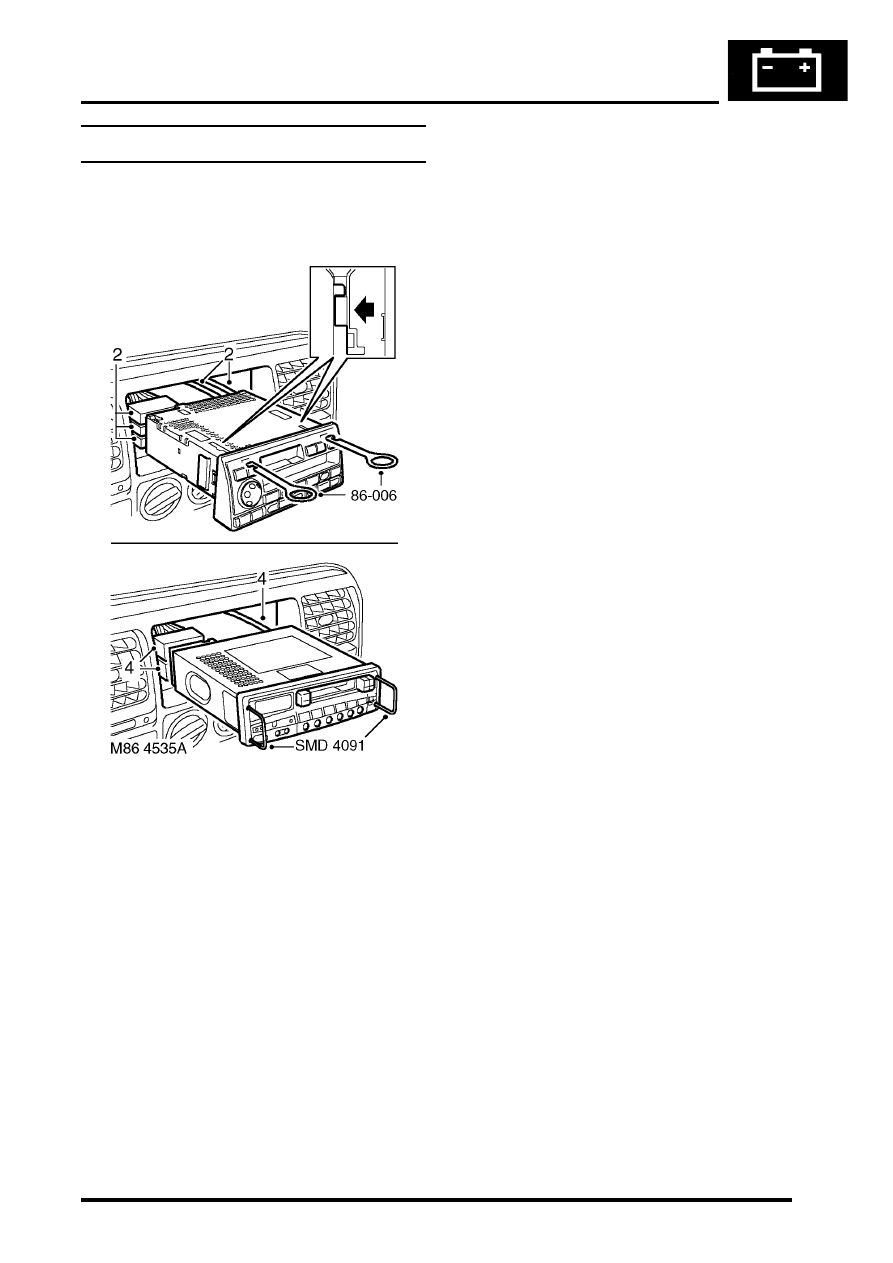

Radio cassette player

$% 86.50.03

Remove

1. High line models:Fit tool 86-006, with cut-outs

facing outwards, into slots at top of radio
cassette player. Ensure that cut-outs locate
correctly with retaining clips (arrowed), and pull
radio cassette player from fascia.

2. High line models: Disconnect 3 multiplugs

and 2 coax cables and remove radio cassette
player.

3. Mid and low line models: Fit radio removal

tools SMD 4091  to release retaining clips and
pull radio cassette player from fascia.

4. Mid and low line models: Disconnect 2

multiplugs and coax cable and remove radio
cassette player.

Refit

1. Position radio cassette player to fascia aperture

and connect multiplugs and coax cable(s).

2. Slide radio into fascia until retaining  clips

engage.

3. Enter security code and check radio cassette

player for correct operation.

IN CAR ENTERTAINMENT

86-6-14 REPAIRS

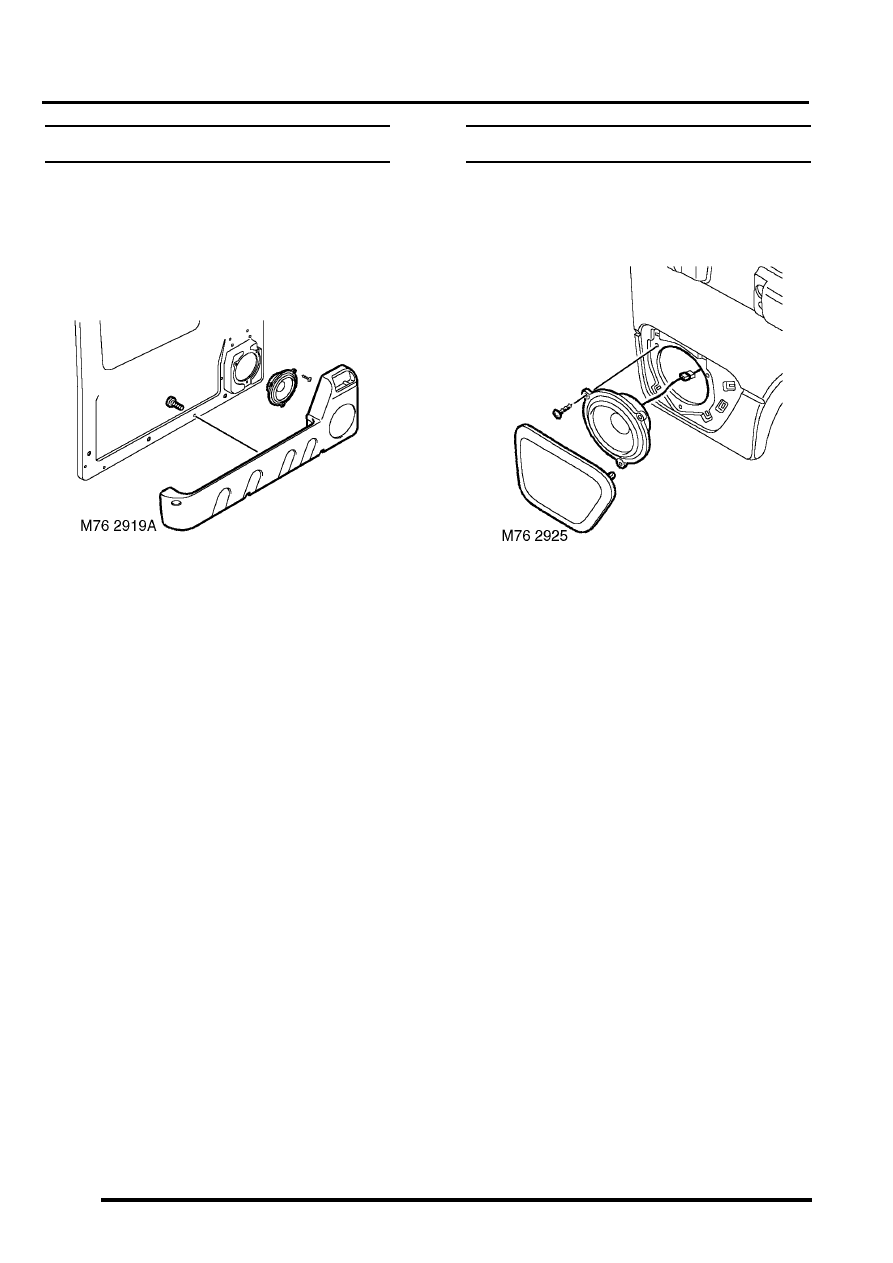

Speaker - low/full range - front door

$% 86.50.10

Remove

1. Remove front door trim casing.



 +

 DOORS, REPAIRS, Trim casing -

front door.

2. Remove 10 Torx screws securing front  door

pocket to door trim casing.

3. Remove 3 screws securing speaker to door

trim casing.

4. Remove front door speaker.

Refit

1. Position speaker and secure to door  trim

casing with screws.

2. Position front door pocket to trim  casing and

secure with Torx screws.

3. Fit front door trim casing.



 +

 DOORS, REPAIRS, Trim casing -

front door.

Speaker - low range - rear door

$% 86.50.12

Remove

1. Carefully release 6 clips securing  speaker

grille to door trim casing.

2. Remove speaker grille.
3. Remove 3 screws securing rear door  speaker

to rear door trim casing.

4. Disconnect multiplug from rear of  speaker.
5. Remove speaker.

Refit

1. Position rear door speaker and connect

multiplug.

2. Secure speaker to rear door trim casing  with

screws.

3. Position grille to trim casing and  secure with

clips.
