Discovery 2. Manual - part 560





TRANSFER BOX - LT230SE

OVERHAUL

41-43

4. Remove 3 bolts securing differential  lock

selector housing and remove housing.

5. Remove and discard 'O' ring from selector

housing.

6. Remove Allen plug and remove detent spring

and ball.

7. Remove differential lock warning lamp switch

and locknut.

Note: Locknut is only fitted to switches up to 03
MY, a modified switch and sealing washer is
fitted from 03 MY onwards.

8. 03 MY onwards: Remove differential lock

warning lamp switch from end of front output
shaft housing, discard sealing washer.

9. Compress differential lock selector fork spring

and remove retaining clips from each end of
spring.

10. Withdraw differential lock selector shaft from

front output housing, recover  spring and
remove selector fork.

Note: Carry out the following operations for all
transfer boxes.

11. Position tool LRT-51-003 to output  shaft drive

flange, remove and discard nut, steel and felt
washers; remove output shaft drive flange.

12. Using a copper mallet, drive output shaft from

housing, recover bearing spacer.

13.  If fitted:  Noting its fitted position, remove dog

clutch from output  shaft.

TRANSFER BOX - LT230SE

41-44

OVERHAUL

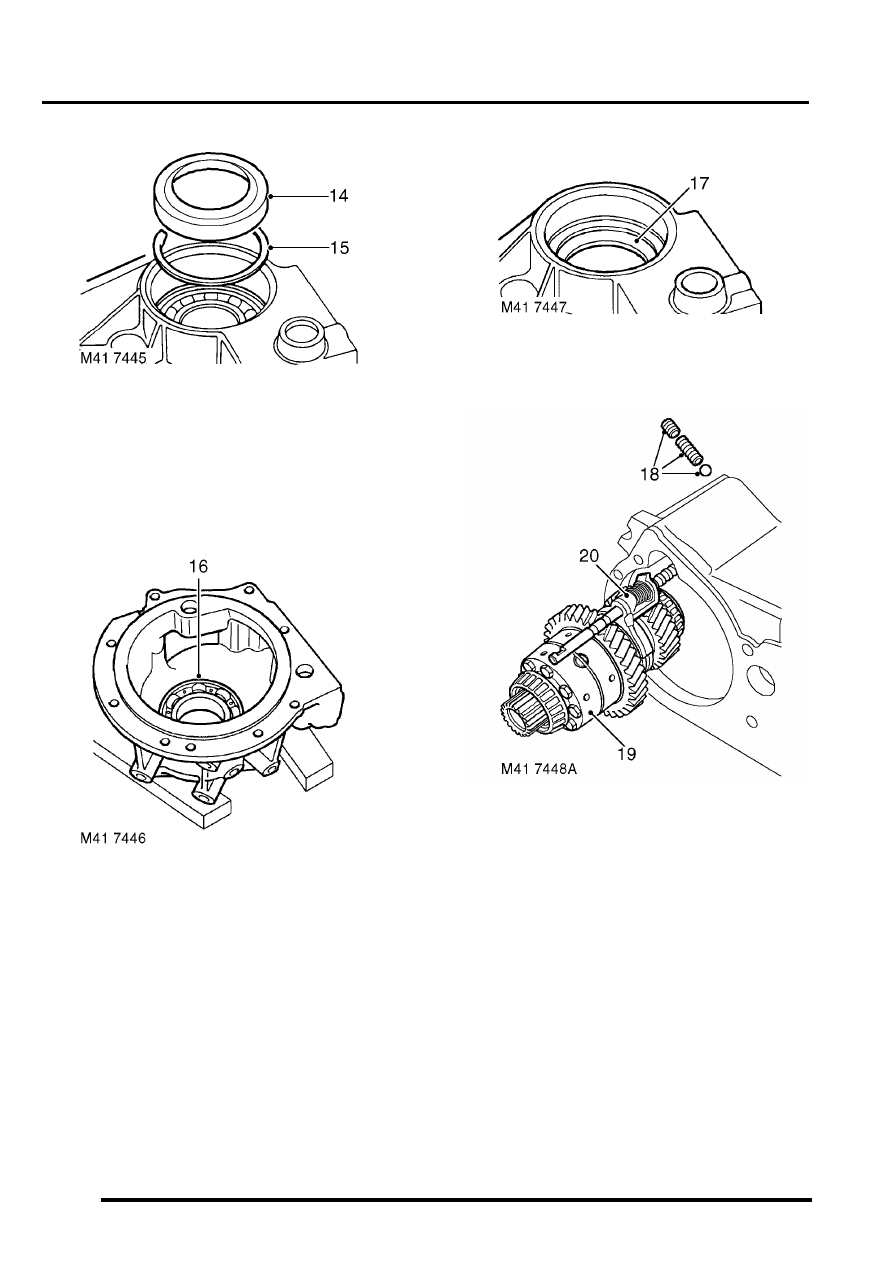

14. Remove and discard oil seal from housing.
15. Remove and discard circlip retaining output

shaft bearing.

16. Support housing and drift out output shaft

bearing.

17. Remove and discard differential bearing track

and collect selective shim.

18. Remove Allen plug securing high/low selector

shaft detent spring and ball,  remove spring and
ball.

19. Withdraw differential assembly together with

high/low selector shaft and fork.

20. Remove selector fork and shaft from

differential.

Note: Selector fork fitted to 03 MY onwards
illustrated.

TRANSFER BOX - LT230SE

OVERHAUL

41-45

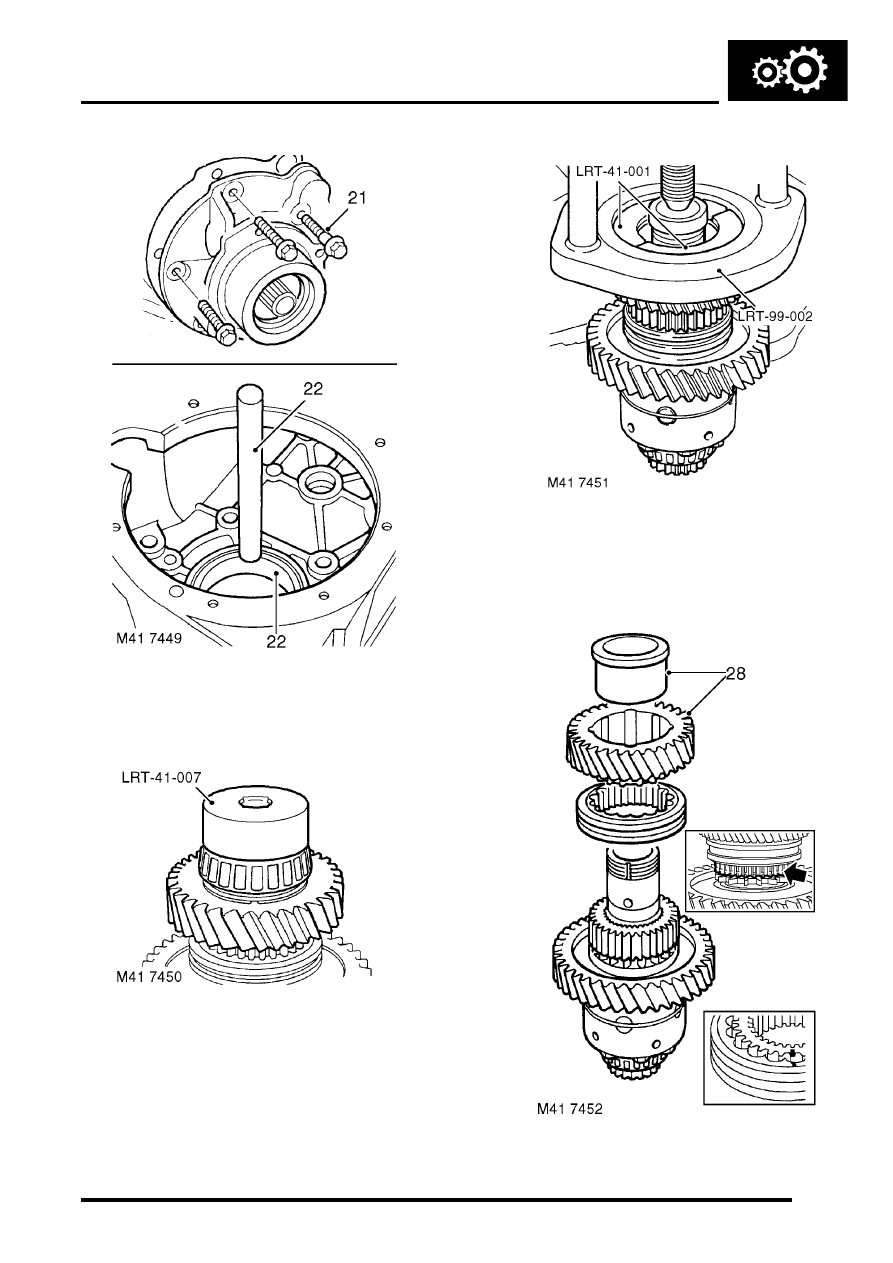

21. Note position of shoulder bolt, remove  6 bolts

and remove rear output shaft  housing.

22. Remove rear bearing track from  main casing.

23. Secure differential in a soft jawed  vice.
24. Release staking from bearing retaining  nut.
25. Using tool LRT-41-007 remove and  discard

bearing retaining nut.

26. Position tool LRT-99-002 to vice.
27. Position tool LRT-41-001 around rear

differential bearing, position differential  to tool
LRT-99-002  and press off  bearing.

28. Remove high range gear and bush.

TRANSFER BOX - LT230SE

41-46

OVERHAUL

29. Make suitable alignment marks between  high/

low selector sleeve and hub, remove  selector
sleeve.

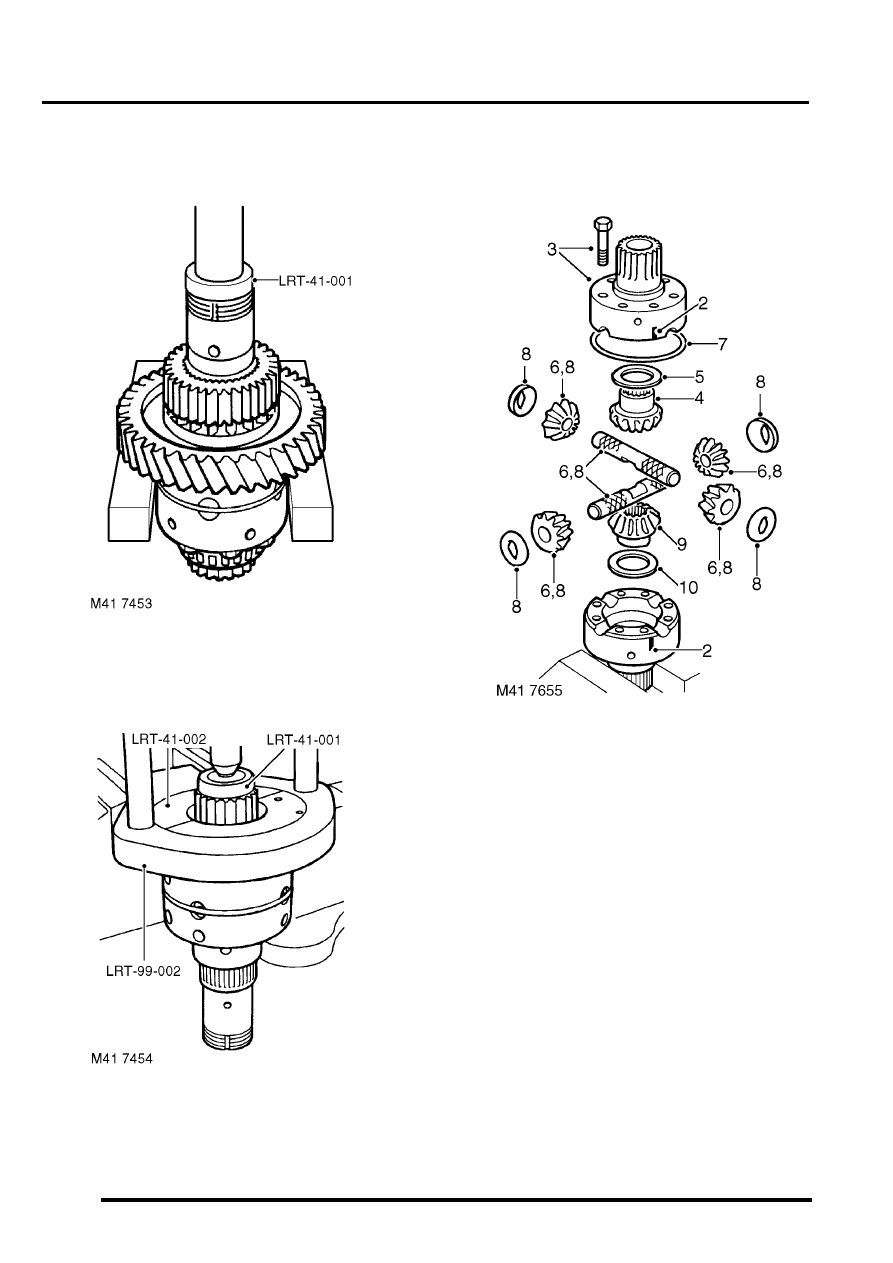

30. Using a suitable press and thrust button  LRT-

41-001 remove high/low hub and  low range
gear.

31. Position tool LRT-41-002 around front

differential bearing and  tool LRT-41-001  thrust
button to differential shaft and  press off
bearing.

Disassembly

1. Secure rear half of differential carrier in a soft

jawed vice.

2. Make suitable alignment marks between front

and rear halves of differential carrier.

3. Remove 8 bolts securing front half of carrier to

rear and separate both halves of carrier.

4. Suitably identify front sun gear to front half of

carrier, then remove sun gear.

5. Remove and discard thrust washer.
6. Suitably identify each planet gear to its shaft

and fitted position of each cross shaft to rear
half of carrier

7. Remove retaining ring.
8. Remove planet gears and cross shafts, remove

and discard dished thrust washers.

9. Suitably identify rear sun gear to rear half of

carrier, then remove sun gear.

10. Remove and discard thrust washer.
