Discovery 2. Manual - part 551





TRANSFER BOX - LT230SE

DESCRIPTION AND OPERATION

41-7

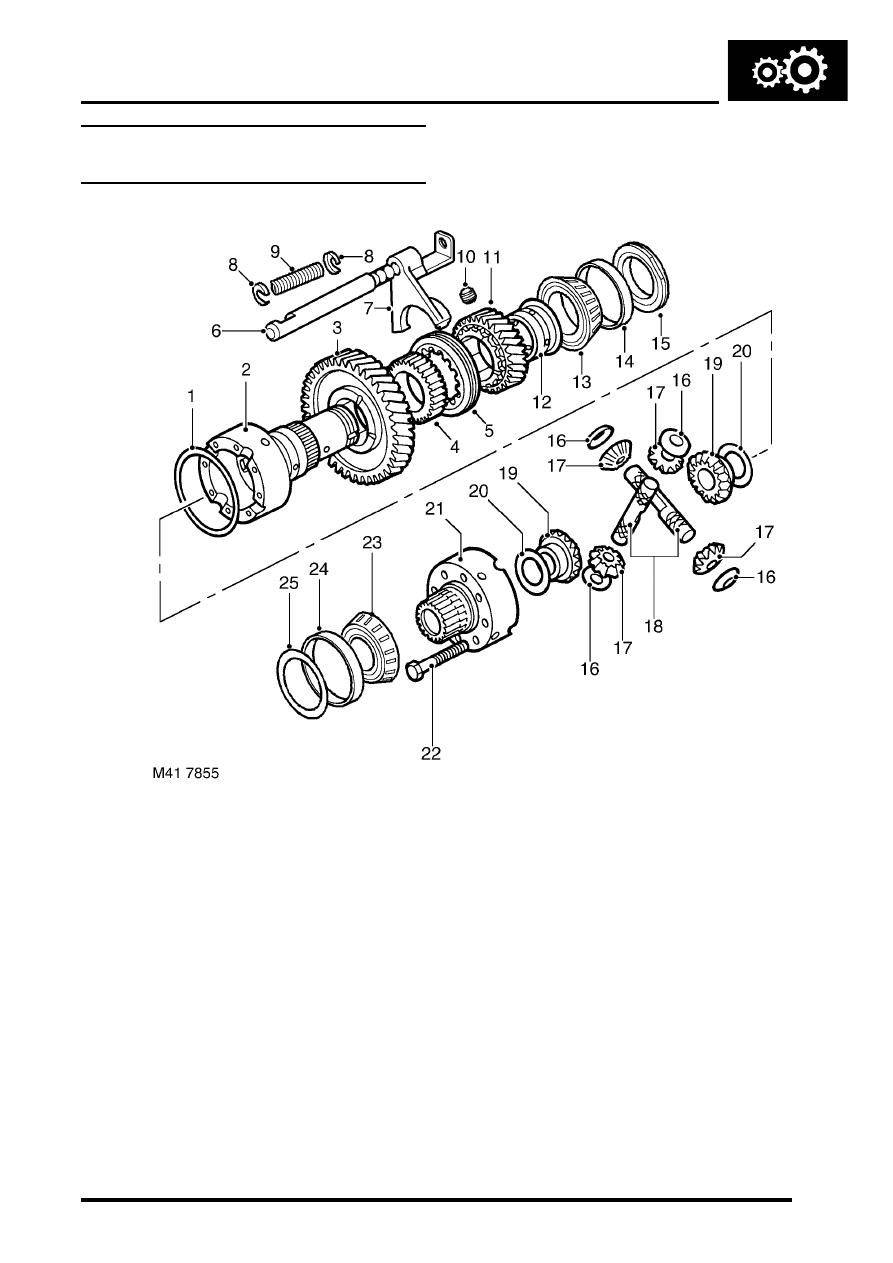

Differential components – Vehicles from
03 model year

Retaining ring
Differential carrier - rear half
Low range gear
High/low hub
High/low selector sleeve
High/low selector shaft
High/low selector fork
Clip (2 off)
Spring

10 Setscrew - high/low selector fork
11 High range gear
12 High range gear bush
13 Differential rear bearing

14 Bearing outer track
15 Bearing retaining nut
16 Dished thrust washers
17 Planet gears
18 Cross shafts
19 Sun gears
20 Selective thrust washers
21 Differential carrier - front half
22 Bolt - differential carriers
23 Differential front bearings
24 Bearing outer track
25 Selective shim

TRANSFER BOX - LT230SE

41-8

DESCRIPTION AND OPERATION

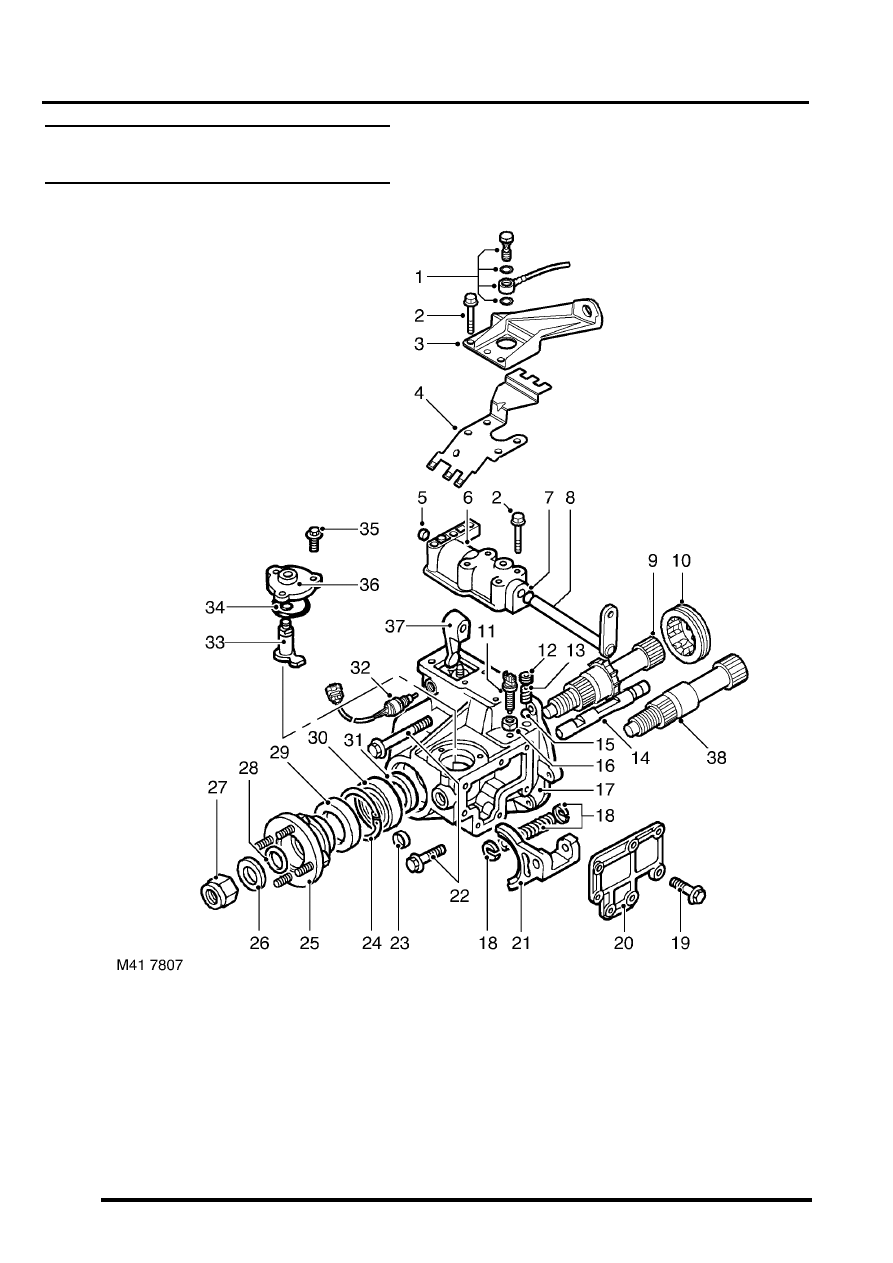

Front output housing components –
Vehicles up to 03 model year

TRANSFER BOX - LT230SE

DESCRIPTION AND OPERATION

41-9

Breather pipe, banjo bolt and sealing washers
Bolt - high/low cross shaft housing and

abutment bracket

Selector cable abutment bracket
Multiplug bracket
Hollow plug
High/low cross shaft housing
'O' ring
High/low cross shaft and lever
Front output shaft - Differential lock - If fitted

10 Dog clutch - Differential lock - If fitted
11 Warning lamp switch - Differential lock - If fitted
12 Detent plug - Differential lock - If fitted
13 Detent spring - Differential lock - If fitted
14 Selector shaft - Differential lock - If fitted
15 Detent ball - Differential lock - If fitted
16 Threaded spacer - Differential lock - If fitted
17 Front output housing
18 Spring and clips - Differential lock - If fitted
19 Bolt - cover plate
20 Cover plate

21 Selector fork - Differential lock - If fitted
22 Bolt - front output housing
23 Hollow plug
24 Circlip
25 Front output flange
26 Steel washer
27 Self-locking nut
28 Felt washer
29 Oil seal
30 Output shaft bearing
31 Bearing spacer
32 High/low detect switch
33 Selector finger and shaft - Differential lock - If

fitted

34 'O' rings - Differential lock - If fitted
35 Bolt - selector housing - Differential lock - If

fitted

36 Selector housing - Differential lock - If fitted
37 High/low selector finger
38 Front output shaft - Vehicles not fitted with

differential lock

TRANSFER BOX - LT230SE

41-10

DESCRIPTION AND OPERATION

Front output housing components –
Vehicles from 03 model year
